Amana CRC18T2OG (BOM P1330506M)

Model: CRC18T2OG (BOM P1330506M)

Save Part Not Listed?
product name

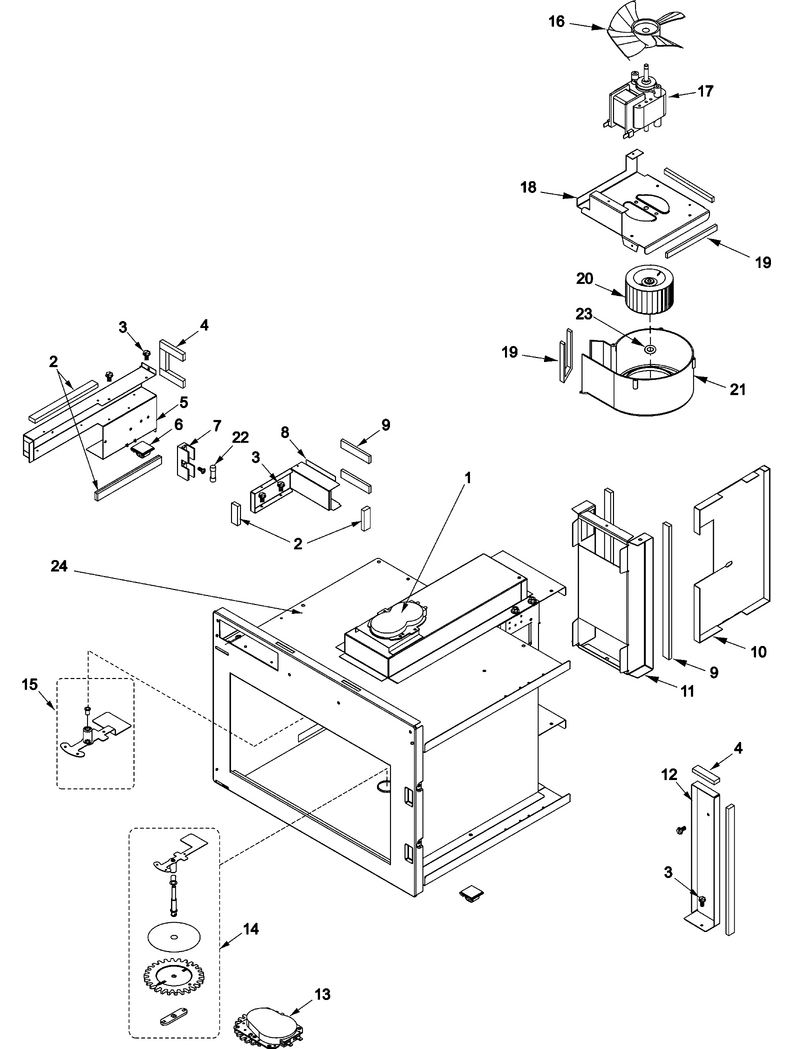

04 - Fuses, Antennas, Blower, Ducts, Cavity

...
...
001
Motor, Stirrer WPL-R0150186
...
002
Tape, Foam WPL-M0275058
...
003
Screw WPL-WP489349
...
004
Gasket WPL-A3030302
...
005
Assy, Exhaust Duct Kit WPL-R9900126
...
006
Clip WPL-WPM0104106
...
007
Fuse Holder WPL-10091101
...
008
Assy, Exhaust Duct Kit WPL-12135704
...
009
Gasket (Per Foot) WPL-10839706
...
010
Flow Divider WPL-59002000
...
011
Assy, Duct WPL-R0150161
...
012
Barrier, Air WPL-12525701
...
013
Kit,antenna Motor(120v) WPL-R9900667
...
014
Kit,antenna(Bottom) WPL-R9900585
...
015
Assy, Ant/retainer WPL-R0150185
...
016
Fan Blade WPL-B5706704
...
017
Motor, Blower WPL-12138102
...
018
Brkt, Blower Mtg WPL-12271103
...
019
Gasket (Per Foot) WPL-A3030303
...
020
Wheel-Blower WPL-12138201
...
021
Scroll-Blower WPL-12138302
...
022
Fuse, 20 Amp WPL-M0805303
...
023
Clip WPL-M0118901
...
024
Cavity Kit- Hdc18, 21 Kit Includes Tray, Antennas WPL-12002678

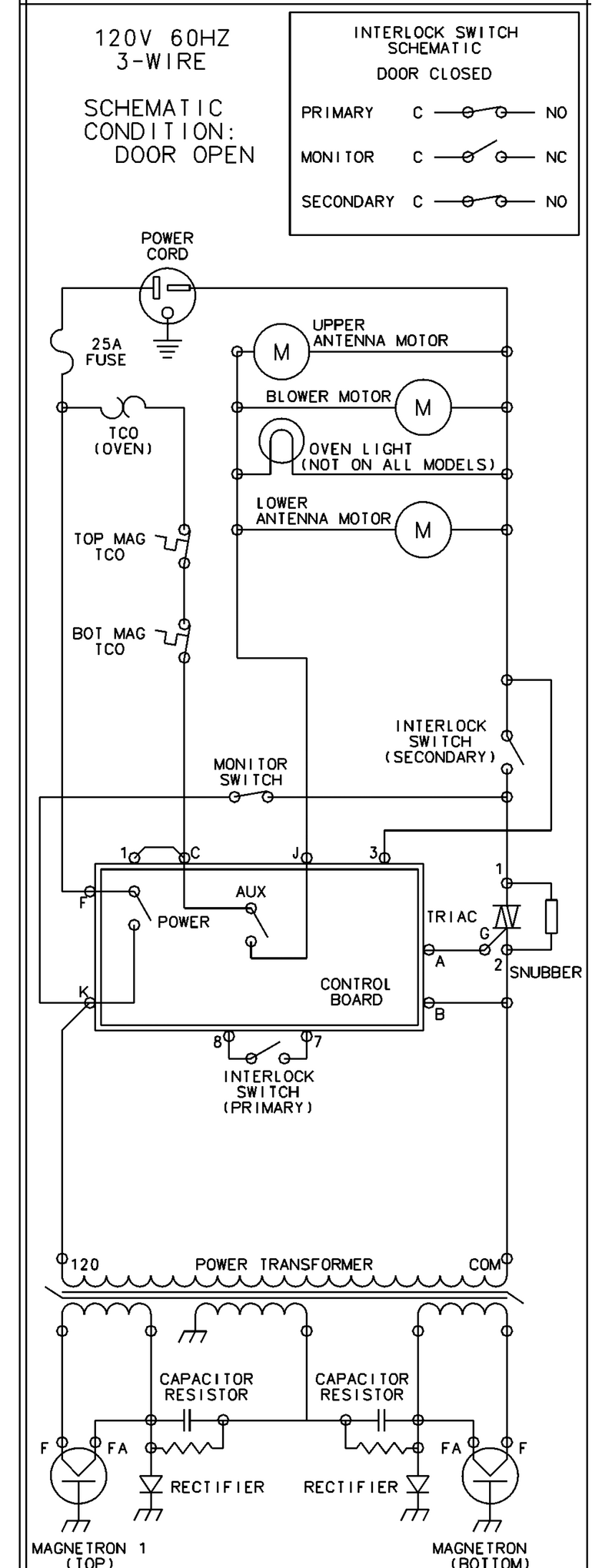

06 - Wiring Information

...
...
001
Wiring Information WPL-NLA

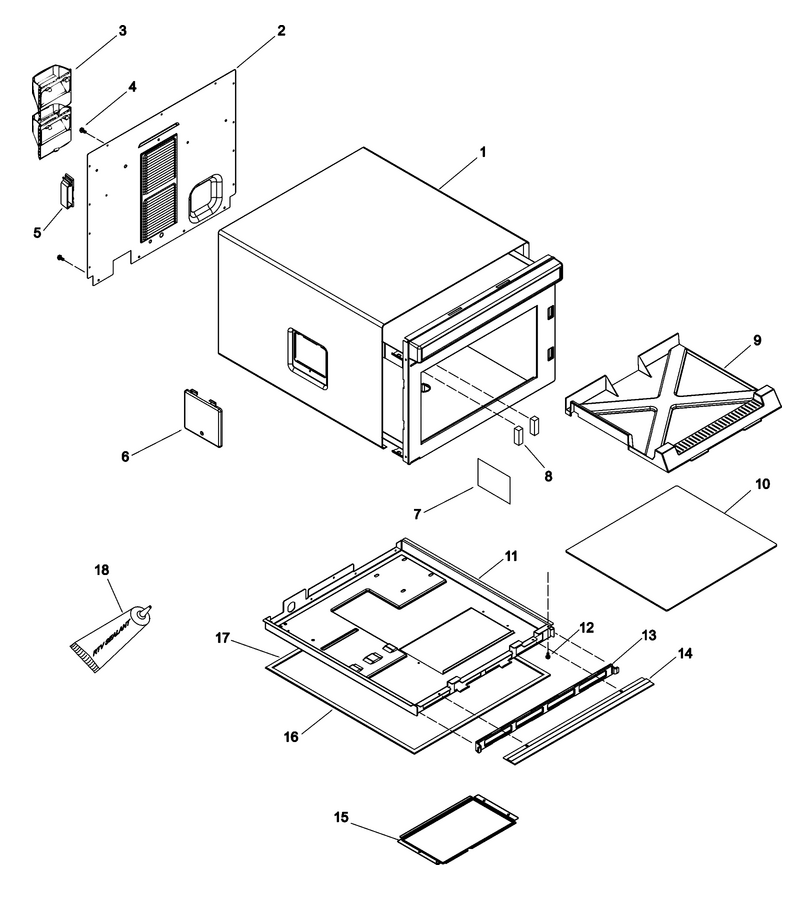

01 - Tray, Grease Shield, Cabinet,

...
...
001
Wrapper, Outer Case WPL-12408501
...
002
Pan, Access-E Ct WPL-12296804
...
003
Duct, Air WPL-12296601
...
004
Screw WPL-WP3388228
...
005
Clip, Guide WPL-M0118705
...
006
Spacer, Rubber WPL-M0274072
...
007
Assy, Window Kit (Light Lens) WPL-R9900114
...
008
Support, Shelf WPL-12496801
...
009
Shield-Grease WPL-12126601
...
010
Tray-Ceramic Floor W/sealer WPL-R0150144
...
011
Asy, Base Pan 50 Hz WPL-59002074
...
012
Screw WPL-WP90767
...
013
Screen Filter WPL-59001659
...
014
Screw, Handle (Black) WPL-12991101
...
015
Screw WPL-WP489349
...
016
Gasket,basepan - Cut WPL-59001643
...
017
Gasket,basepan - Cut WPL-59001642
...
018
Adhesive WPL-W10841140

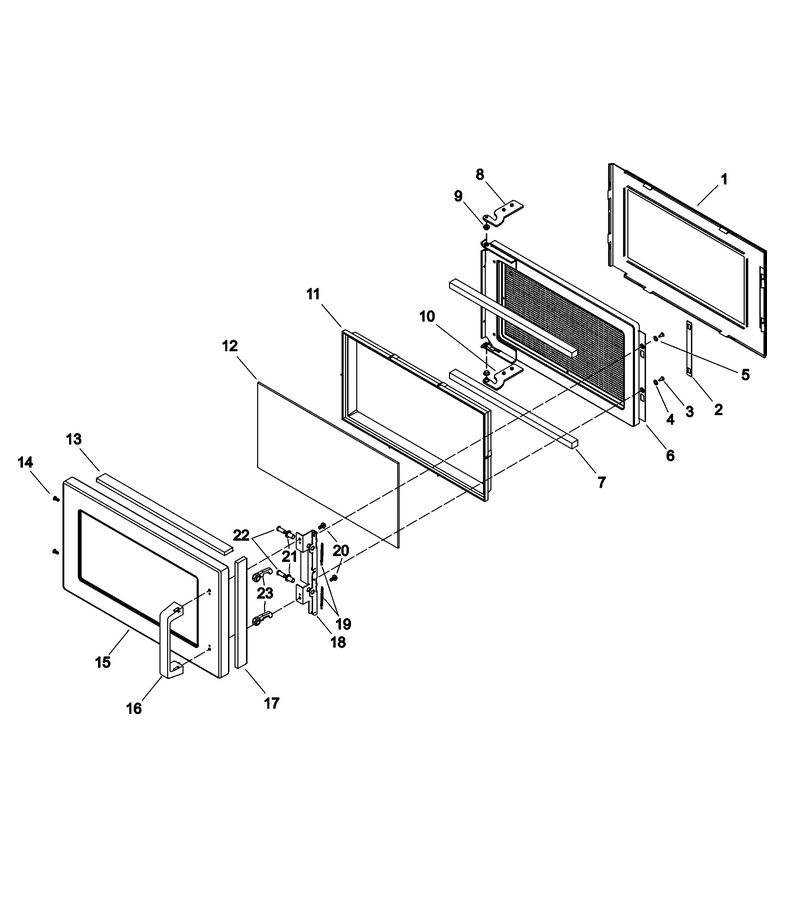

05 - Door

...
...
001
Assy, Inner Door WPL-13067001
...
002
Linkage, Dr Latch WPL-12526201
...
003
Screw-Tc/flat WPL-13047402
...
004
Washer, Nylon WPL-M0274066
...
005
Washer WPL-M0272503
...
006
Door Ring Weld, E Ct WPL-12472204
...
007
Gasket, Neoprene WPL-10966601
...
008
Plate, Hinge (Upper) WPL-12126805
...
009
Bushing, Nylon WPL-5210001001
...
010
Plate, Hinge (Lower) WPL-12126806
...
011
Retainer, Lens WPL-R0150147
...
012
Window-Outer WPL-59001236
...
013
Energy, Strip WPL-12210804
...
014
Screw WPL-W11233072
...
015
Door-Outer Includes Items 21, 191 And 201 WPL-R0000208
...
016
Handle-Door WPL-12133901
...
017
Energy, Strip WPL-12210803
...
018
Brkt-Door Latch WPL-12114401
...
019
Spring, Door Latch WPL-C8893502
...
020
Screw WPL-WP489128
...
021
Spacer WPL-M0800501
...
022
Pin-Latch WPL-59002069
...
023
Latch-Door WPL-12126901

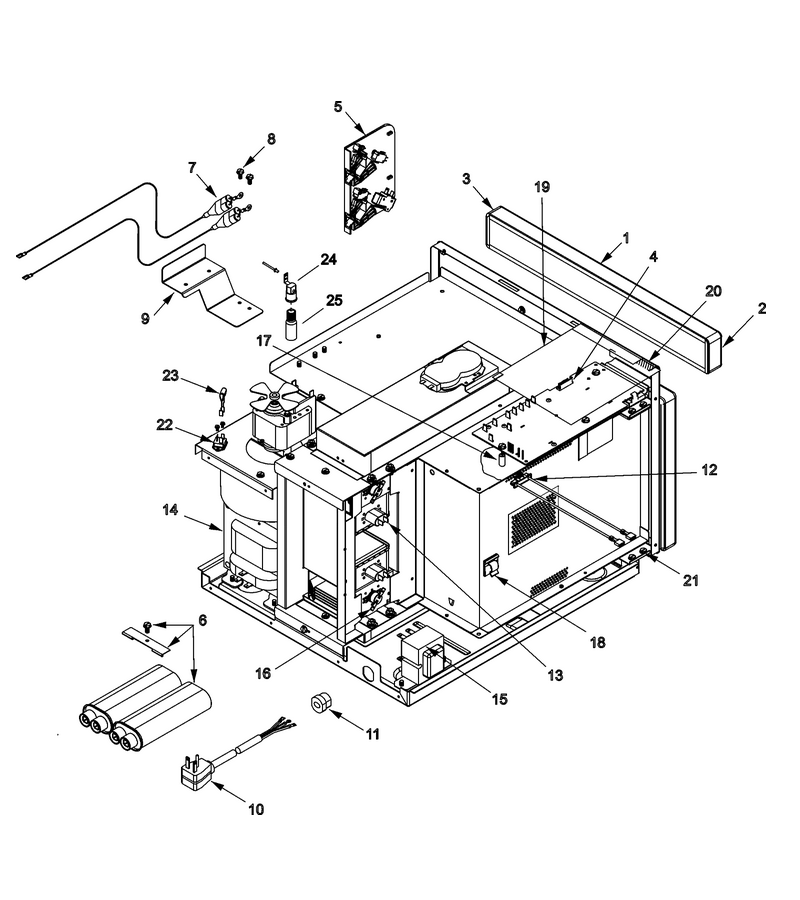

02 - Electrical Components

...
...
001
Assy, Touch Panel WPL-R9900580
...
002
Endcap-Esc (Right) WPL-12131001
...
003
Endcap-Esc (Left) WPL-12131002
...
004
Cntrl-Elec WPL-59001867
...
005
Screw-Hi Lo/pan WPL-12993002
...
006
Capacitor-.74 WPL-59001162
...
007
Kit, Diode WPL-R9800022
...
008
Screw WPL-WP90767
...
009
Screw WPL-WP489349
...
010
Power Cord Kit WPL-R0131016
...
011
Strain Relief WPL-8536977
...
012
Thermal Cut Out WPL-59001874
...
013
Magnetron-T WPL-D7831007
...
014
Transformer- Hv WPL-12136107
...
015
Screw-Tc/hex WPL-12991606
...
016
Screw T.c WPL-M0229916
...
017
Cap, Protective-Threaded (Red) WPL-M0308801
...
018
Clip WPL-WPM0104106
...
019
Shield, Spill WPL-12160602
...
020
Tape Per Roll WPL-M0275163
...
021
Screw-Tf/hex WPL-13048901
...
022
Kit, Triac Assy WPL-R0157373
...
023
Snubber Assembly WPL-59002017
...
024
Kit, Receptacle WPL-R9900584
...
025
Bulb-Light WPL-WPA3073101

...
...
001
Mnl,svc-Comm`l Micro WPL-RS2240002
...
002
Manual-Owners WPL-NLA
...
003
Tech Sheet-Comm`l Micro Xxno WPL-16027355
...
004
Manual-Prod Safety WPL-16021751
...
005
Quick Start Instructions WPL-NLA
...
006
Bit For Torx 15h Drive Screws WPL-NLA
...
007
Harness- Oven WPL-59002003
...
008
Harness, Hi Volt WPL-59002065
...
009
Harness, Lw Antenna WPL-59002066
...
010
Menu Label WPL-12155701
