Amana CRC18T2OG (BOM: P1323006M)

Model: CRC18T2OG (BOM: P1323006M)

Save Part Not Listed?
product name

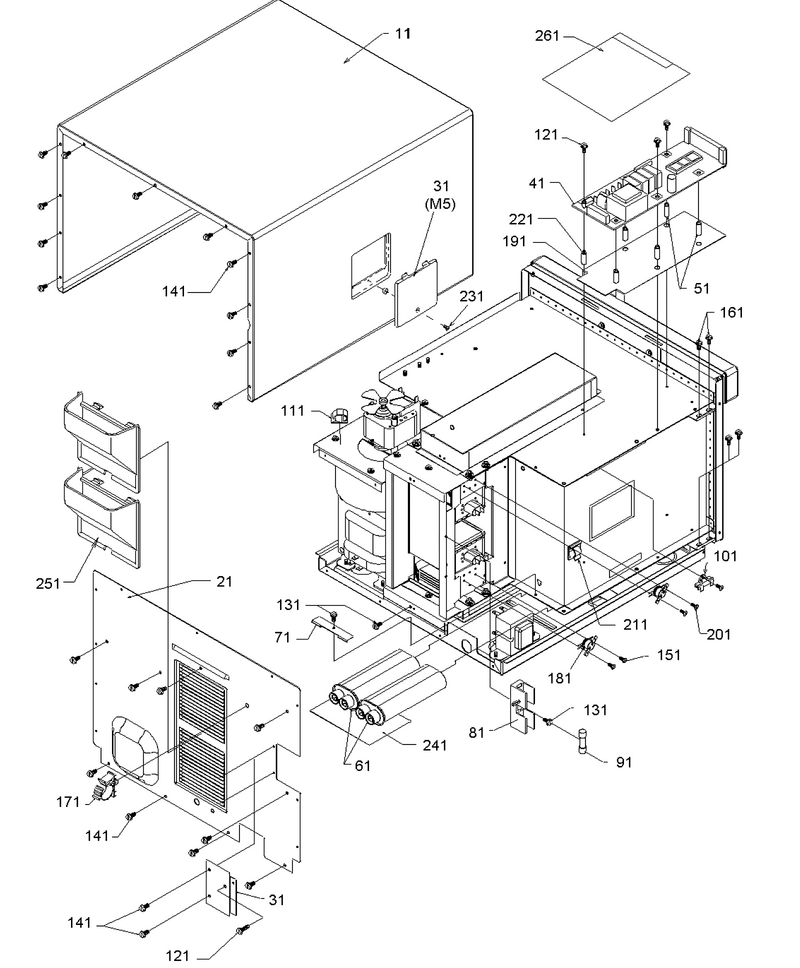

03 - Electrical Components

...
...
11
Wrapper, Outer Case WPL-12408501
...
21
Pan, Access-E Ct WPL-12296804
...
31
Cover Light (Ss) WPL-10785608
...
41
Hv/lv Board WPL-R0131379
...
61
Capacitor-.74 WPL-59001162
...
71
Strap-Capacitor WPL-12132501
...
81
Fuse Holder WPL-10091101
...
91
Fuse, 25 Amp WPL-M0805201
...
101
Thermal Cut Out WPL-B5795302
...
111
Clip, Cord WPL-M0104102
...
121
Screw-Tc/hex WPL-12991607
...
171
Clip, Guide WPL-M0118705
...
181
Cut Out, Thermal WPL-B5684129
...
211
Clip WPL-WPM0104106
...
231
Screw, T F WPL-M0249619
...
241
Overlay-S/p WPL-Y10459002
...
251
Duct, Air WPL-12296601
...
261
Shield, Spill WPL-12160602

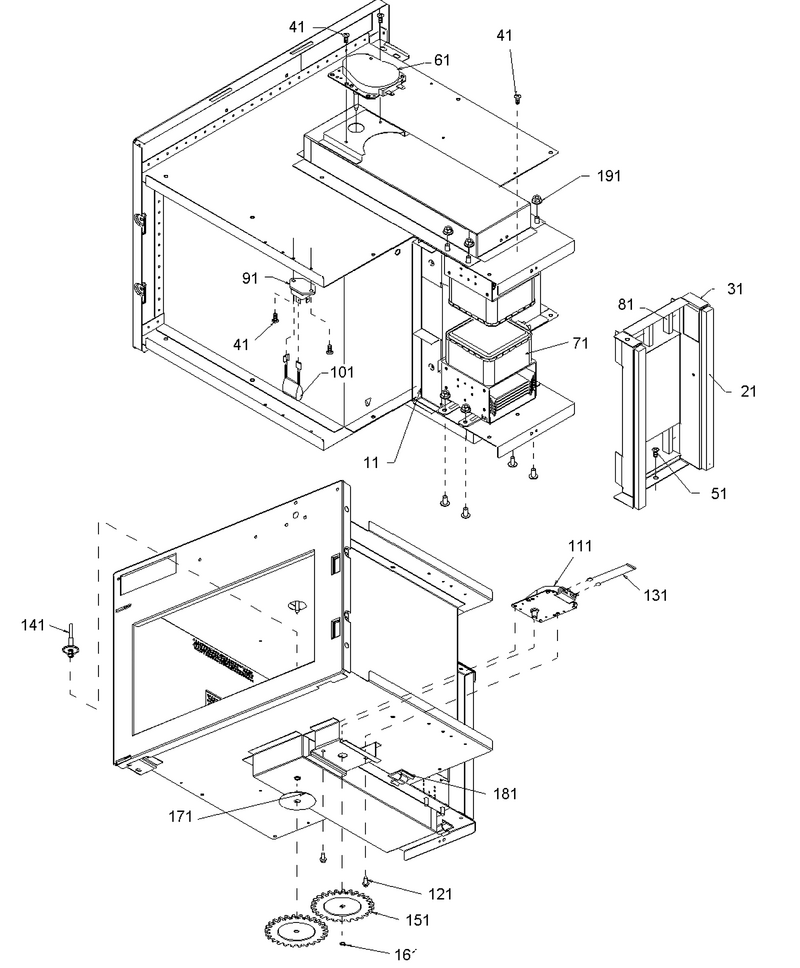

05 - Magnetron/stirrer Motor

...
...
11
Assy, Duct WPL-R0150161
...
31
Duct-Mag Outlet WPL-59002075
...
61
Motor-Stirrer (230v) WPL-R0150197
...
71
Magnetron-T WPL-D7831007
...
91
Kit, Triac Assy WPL-R0157373
...
101
Snubber Assembly WPL-59002017
...
111
Kit,antenna Motor(230v) WPL-R9900668
...
121
Screw-Tf/hex WPL-13048901
...
131
Harness, Lw Antenna WPL-59002066
...
141
Kit,antenna(Bottom) WPL-R9900585
...
151
Gear,spur WPL-12570101
...
161
Ring, Retainer WPL-M0274902
...
171
Washer, Bearing WPL-12520001
...
181
Clip WPL-WPM0104106
...
191
Ia 5mm Flange Whiz-Lk Nut (25) WPL-5014-J

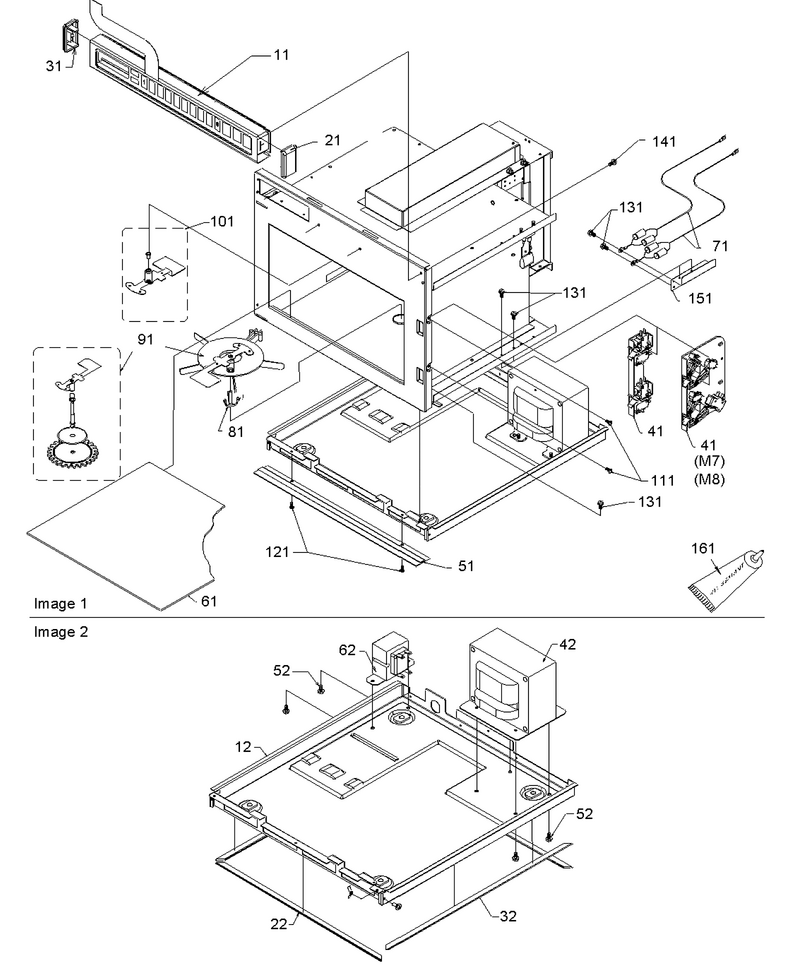

01 - Control/antenna & Basepan Assembly

...
...
11
Assy, Touch Panel WPL-R9900580
...
12
Asy, Base Pan 50 Hz WPL-59002074
...
21
Endcap-Esc (Right) WPL-12131001
...
22
Gasket,basepan - Cut WPL-59001643
...
31
Endcap-Esc (Left) WPL-12131002
...
32
Gasket,basepan - Cut WPL-59001642
...
41
Switch Kit WPL-R0000277
...
42
Transformer WPL-12136102
...
51
Trim-Oc WPL-59002068
...
61
Tray-Ceramic Floor W/sealer WPL-R0150144
...
62
Transformer-Auto WPL-C8901509
...
71
Kit, Diode WPL-R9800022
...
91
Kit,antenna(Bottom) WPL-R9900585
...
101
Assy, Ant/retainer WPL-R0150185
...
111
Screw-Hi Lo/pan WPL-12993002
...
151
Bracket, Diode WPL-12529501
...
161
Adhesive WPL-W10841140

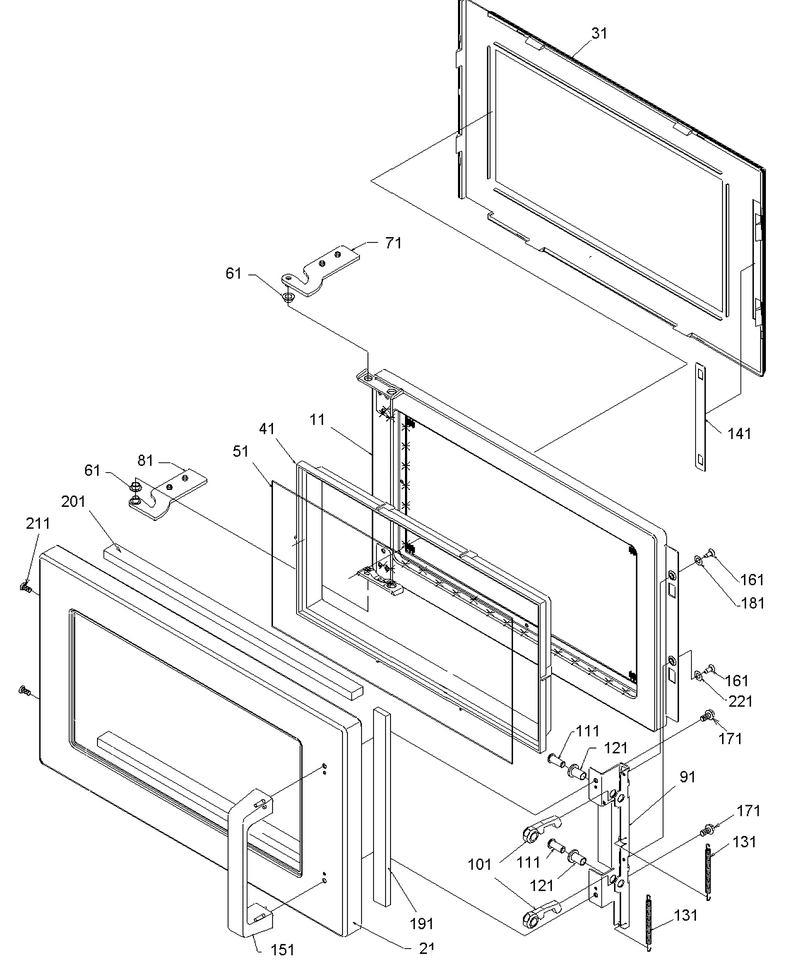

02 - Door Assy

...
...
11
Door Ring Weld, E Ct WPL-12472202
...
21
Door, Outer WPL-R9900567
...
31
Assy, Inner Door WPL-13067001
...
41
Retainer, Lens WPL-R0150147
...
51
Window-Outer WPL-59001236
...
61
Bushing, Nylon WPL-5210001001
...
71
Plate, Hinge (Upper) WPL-12126805
...
81
Plate, Hinge (Lower) WPL-12126806
...
91
Brkt-Door Latch WPL-12114401
...
101
Latch-Door WPL-12126901
...
111
Pin-Latch WPL-59002069
...
121
Spacer WPL-M0800501
...
131
Spring, Door Latch WPL-C8893502
...
141
Linkage, Dr Latch WPL-12526201
...
151
Handle-Door WPL-12133901
...
161
Screw-Tc/flat WPL-13047402
...
171
Screw WPL-WP489128
...
181
Washer WPL-M0272503
...
191
Energy, Strip WPL-12210803
...
201
Energy, Strip WPL-12210804
...
211
Screw WPL-W11233072
...
221
Washer, Nylon WPL-M0274066

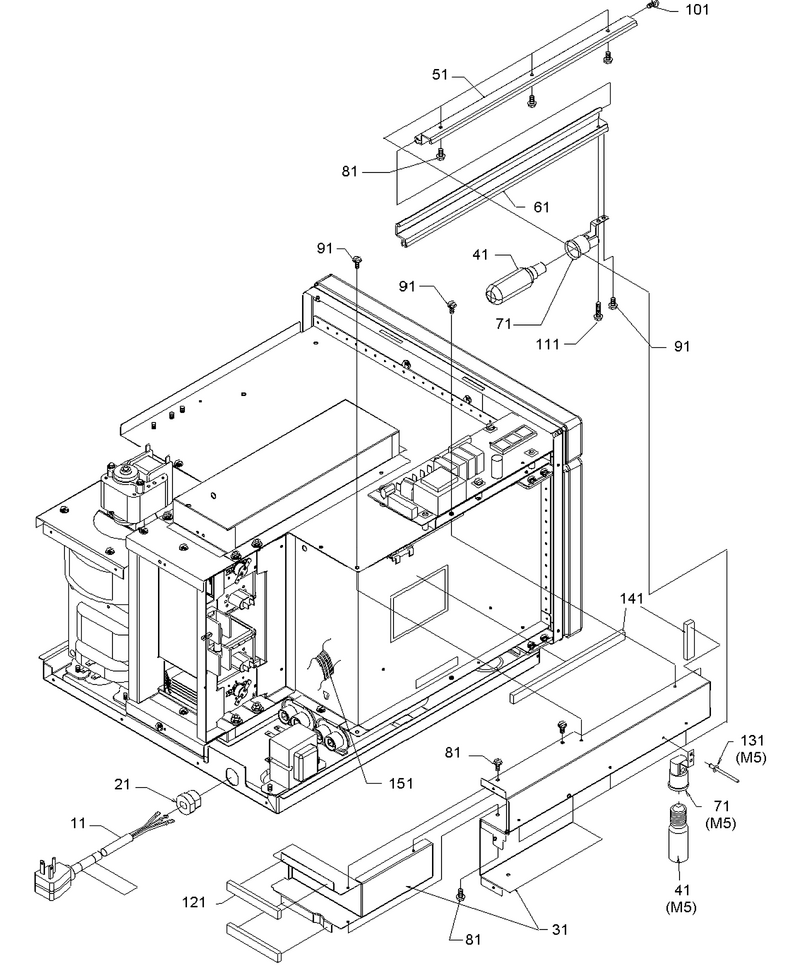

04 - Light

...
...
11
Power Cord Kit WPL-R0131016
...
21
Strain Relief WPL-8536977
...
31
Assy, Exhaust Duct Kit WPL-R9900126
...
41
Bulb-Light WPL-WPA3073101
...
71
Kit, Receptacle WPL-R9900584
...
131
Pop Rivet WPL-A4539625
...
151
Harness, Hi Volt WPL-59002065

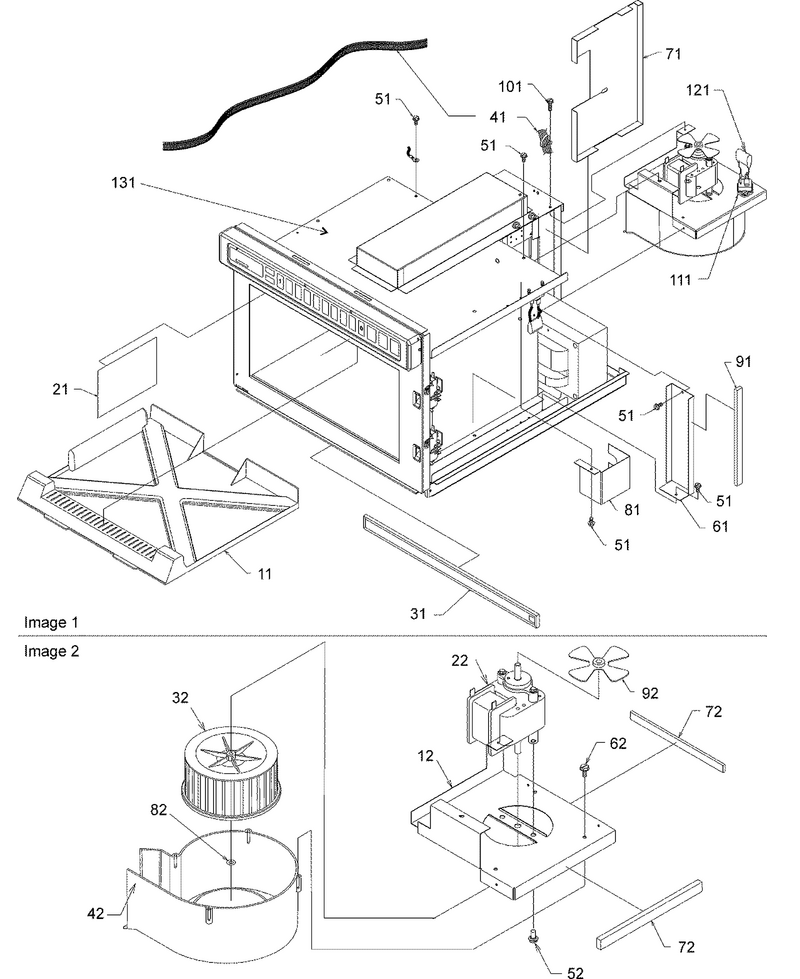

07 - Splash Shield/blower/cavity

...
...
11
Shield-Grease WPL-12126601
...
12
Brkt, Blower Mtg WPL-12271103
...
21
Assy, Window Kit (Light Lens) WPL-R9900114
...
22
Blower Motor WPL-12138105
...
31
Screen Filter WPL-59001659
...
32
Wheel-Blower WPL-12138201
...
41
Harness, Oven WPL-12514801
...
42
Scroll-Blower WPL-12138302
...
61
Barrier, Air WPL-12525701
...
71
Flow Divider WPL-59002000
...
82
Clip WPL-M0118901
...
92
Fan Blade WPL-B5706704
...
111
Kit, Triac Assy WPL-R0157373
...
121
Snubber Assembly WPL-59002017
...
131
Cavity Kit- Hdc18, 21 WPL-12002678

...
...
NI
Mnl, Pts Comm`l M/w WPL-RP2230003
