Amana CRC18T2OG (BOM P1304436M)

Model: CRC18T2OG (BOM P1304436M)

Save Part Not Listed?
product name

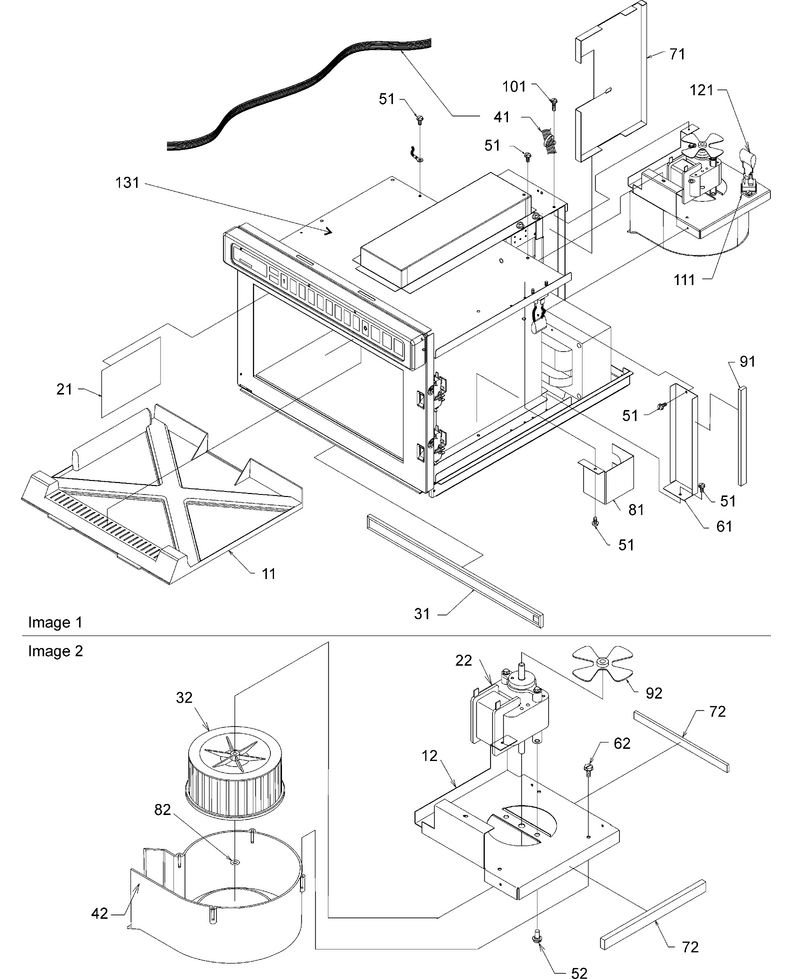

03 - Splash Shield/blower

...
...
011
Shield-Grease WPL-12126601
...
012
Brkt, Blower Mtg WPL-12271103
...
021
Window-Oven Light Includes 4 Screws WPL-R9900114
...
022
Motor-Blower WPL-12138105
...
031
Screen Filter WPL-59001659
...
032
Wheel-Blower WPL-12138201
...
041
Harness, Oven WPL-12465101
...
042
Scroll-Blower WPL-12138302
...
051
Screw WPL-WP489349
...
052
Screw WPL-WP3400094
...
061
Divider-Flow WPL-12155801
...
062
Screw WPL-WP489349
...
071
Flow Divider WPL-59002000
...
072
Gasket WPL-A3030302
...
081
Cover-Triac WPL-NLA
...
082
Clip-Push WPL-M0118901
...
091
Gasket WPL-A3030302
...
092
Fan Blade WPL-B5706704
...
101
Screw-Sm/hex WPL-12990523
...
111
Triac WPL-R0000341
...
121
Snubber Assembly WPL-59002017

...
...
011
Power Cord Kit WPL-R0131016
...
021
Strain Relief WPL-8536977
...
031
Cav Exh Duct-E Ct WPL-R9900126
...
041
Bulb-Light WPL-WPA3073101
...
051
Extrsn-Lamp Acs WPL-12133201
...
061
Extrsn-Lamp Acs WPL-12133203
...
071
Receptical-Lamp WPL-12161401
...
081
Screw WPL-WP489349
...
091
Screw WPL-WP90767
...
101
Screw-Tf/hex WPL-13048901
...
111
Screw WPL-M0238921
...
121
Gasket (Per Foot) WPL-10839706
...
141
Tape, Foam WPL-M0275058
...
151
Harness, Hi Volt WPL-59002065

...
...
011
Kit, Door WPL-R9800008
...
021
Kit, Door WPL-R9800008
...
031
Assy, Inner Door WPL-13067001
...
041
Retainer, Lens WPL-R0150147
...
051
Window-Outer WPL-59001236
...
061
Shoulder Washer Ny WPL-5210001001
...
071
Top Hng Plt Weld WPL-12126805
...
081
Bot Hng Plt Weld WPL-12126806
...
091
Brkt-Door Latch WPL-12114401
...
101
Latch-Door WPL-12126901
...
111
Pin-Latch WPL-59002069
...
121
Spacer WPL-M0800501
...
131
Spring, Door Latch WPL-C8893502
...
141
Linkage, Dr Latch WPL-12526201
...
151
Handle-Door WPL-12133901
...
161
Screw-Tc/flat WPL-13047402
...
171
Screw WPL-WP489128
...
181
Washer-Lock WPL-M0272503
...
191
Absorber-Energy WPL-12210803
...
201
Absorber-Energy WPL-12210804
...
211
Screw WPL-W11233072
...
221
Washer, Nylon WPL-M0274066

...
...
011
Wrapper WPL-NLA
...
021
Access Pan WPL-12296802
...
031
Lamp Cover WPL-12131206
...
041
Hv/lv Board, Amana Progno. WPL-R0131377
...
051
Spacer WPL-M0800601
...
061
Capacitor-.85 WPL-59001651
...
071
Strap-Capacitor WPL-12132501
...
081
Block-Fuse WPL-10091101
...
091
Fuse-25a WPL-M0805201
...
101
Cutout-Thermal Cavity WPL-B5795302
...
111
Clip, Cord WPL-M0104102
...
121
Screw WPL-M0216525
...
131
Screw WPL-WP489349
...
141
Screw WPL-WP3388228
...
151
Screw-Tf WPL-M0251717
...
161
Screw-Tf/hex WPL-13048901
...
171
Clip, Guide WPL-M0118705
...
181
Cut Out, Thermal WPL-B5684129
...
191
Barrier, Pc Board WPL-12150002
...
201
Screw WPL-WP488234
...
211
Clip WPL-WPM0104106
...
221
Spacer WPL-M0800602
...
241
Film-Polyester WPL-Y10459002
...
251
Duct, Air WPL-12296601

...
...
011
Duct-Mag Inlet WPL-R0150161
...
021
Gasket (Per Foot) WPL-10839706
...
031
Duct-Mag Outlet WPL-59002075
...
041
Screw WPL-WP489349
...
051
Screw-Tc/hex WPL-12991606
...
061
Motor-Top Antenna WPL-R0150197
...
071
Magnetron-T WPL-D7831007
...
081
Gasket (Per Foot) WPL-10839706
...
091
Triac WPL-R0000341
...
101
Snubber Assembly WPL-59002017
...
191
Nut-Magnetron WPL-NLA

...
...
001
Manual-Service WPL-RS2230003

...
...
011
Touch Panel Assy WPL-R0150145
...
012
Asy, Base Pan 50 Hz WPL-59002074
...
021
Endcap-Esc WPL-12131001
...
022
Gasket,basepan - Cut WPL-59001643
...
031
Endcap-Esc WPL-12131002
...
032
Gasket,basepan - Cut WPL-59001642
...
041
Switch Kit WPL-R0000277
...
042
Transformer WPL-12136102
...
051
Trim-Oc WPL-59002068
...
052
Screw-Tc/hex WPL-12991606
...
061
Tray-Oven Includes Sealer-Rtv & Scraper- WPL-R0150144
...
062
Xfmr-Auto WPL-C8901509
...
071
Diode Assy Includes Brkt-Diode. WPL-R9800022
...
081
Cradle-Antenna (Lower) WPL-12132601
...
091
Antenna Assy (Lower) Includes Cradle-Antenna & Rtv WPL-R9800006
...
101
Antenna Assy-Top WPL-R0150185
...
111
Screw-Hi Lo/pan WPL-12993002
...
121
Screw, Handle (Black) WPL-12991101
...
131
Screw WPL-WP489349
...
141
Screw WPL-WP3388228
...
151
Bracket, Diode WPL-12529501
...
161
Adhesive WPL-W10841140
