Amana CRC10T2 (BOM: P1304438M)

Model: CRC10T2 (BOM: P1304438M)

Save Part Not Listed?
product name

03 - Electrical Components

...
...
11
Wrapper, Outercase WPL-12114002
...
21
Access Pan-E Ct WPL-12296802
...
31
Lamp Cover-E Ct WPL-12131204
...
41
Board Hv/lv WPL-12100307
...
51
Spacer WPL-M0800601
...
61
Capacitor-.85 WPL-59001651
...
71
Strap-Capacitor WPL-12132502
...
81
Rectifier WPL-WP13091701
...
91
Fuse Holder WPL-10091101
...
101
Fuse, 25 Amp WPL-M0805201
...
111
Thermal Cut Out WPL-B5795302
...
121
Clip, Cord WPL-M0104102
...
131
Screw WPL-M0216525
...
141
Screw WPL-WP489349
...
151
Screw WPL-WP3388228
...
161
Screw-Tf/hex WPL-13048901
...
171
Clip, Guide WPL-M0118705
...
181
Cut Out, Thermal WPL-B5684129
...
191
Barrier-Pc Board WPL-12150001
...
201
Screw WPL-WP488234
...
211
Clip WPL-WPM0104106
...
221
Spacer WPL-M0800602
...
231
Barrier-Capacitor WPL-12222901

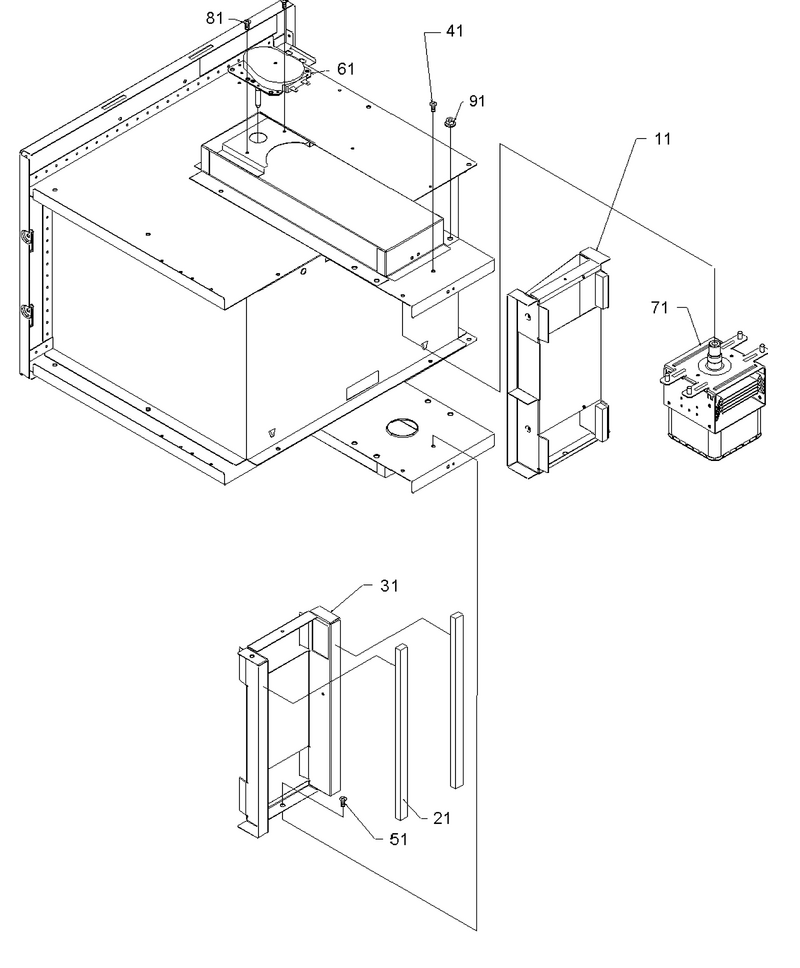

05 - Magnetron/stirrer Motor

...
...
11
Assy, Duct WPL-R0150161
...
21
Gasket, Neoprene (1 Roll) WPL-10966605
...
31
Duct-Mag Outlet WPL-12107401
...
41
Screw WPL-WP489349
...
51
Screw-Tc/hex WPL-12991606
...
61
Motor, Stirrer WPL-R0150186
...
71
Magnetron-T WPL-10489404
...
81
Screw WPL-WP90767
...
91
Ia 5mm Flange Whiz-Lk Nut (25) WPL-5014-J

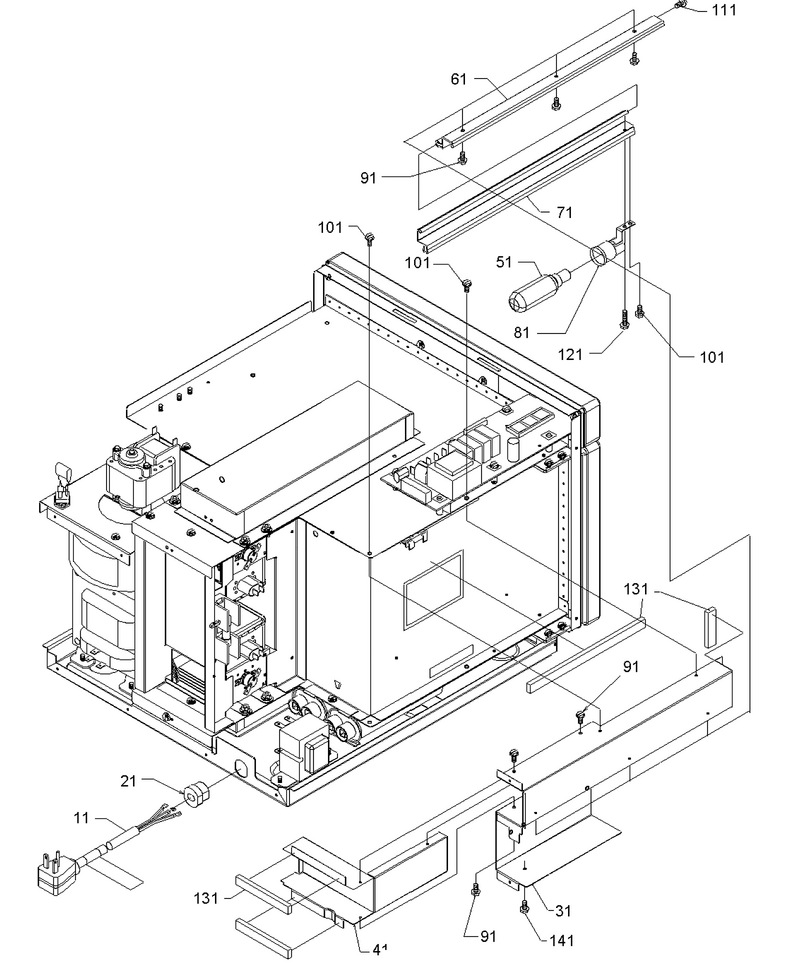

04 - Light/power Cord

...
...
11
Power Cord WPL-59001672
...
21
Strain Relief WPL-8536977
...
31
Assy, Exhaust Duct Kit WPL-12135602
...
41
Assy, Exhaust Duct Kit WPL-12135701
...
51
Bulb-Light WPL-WPA3073101
...
61
Extrsn-Lamp Access WPL-12133201
...
71
Extrn-Lamp Acs WPL-12133203
...
81
Receptical-Lamp WPL-12161401
...
91
Screw WPL-WP489349
...
101
Screw WPL-WP90767
...
111
Screw-Tf/hex WPL-13048901
...
121
Screw, Sm WPL-M0238921
...
131
Gasket WPL-A3030302
...
141
Screw WPL-M0253504

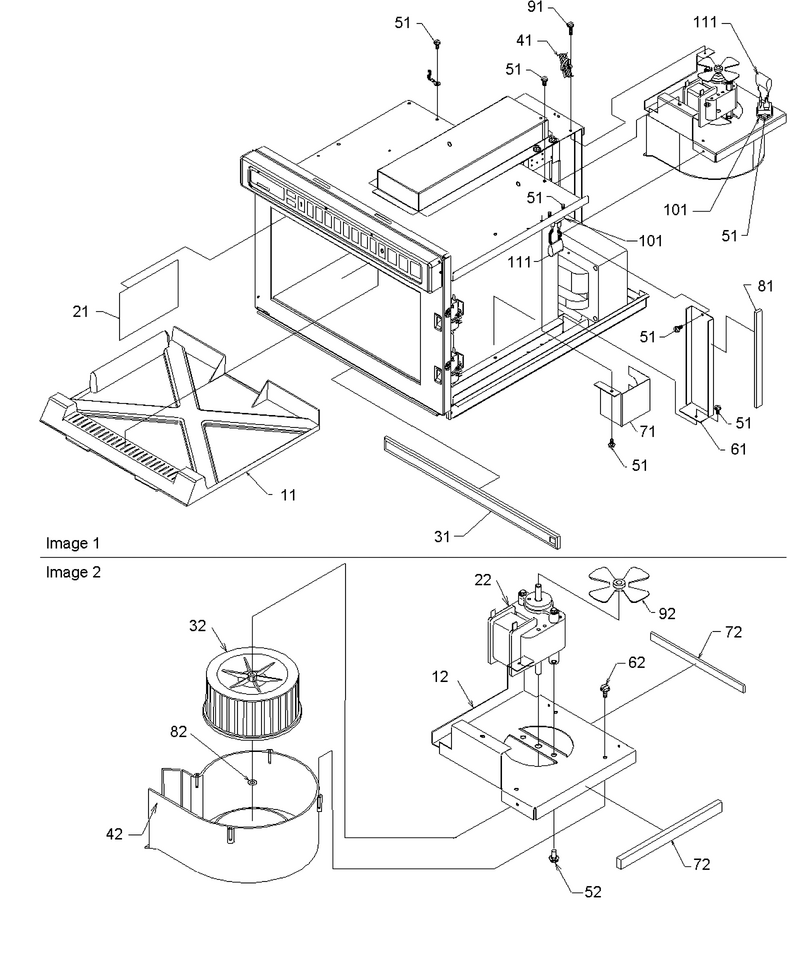

06 - Splash Shield/blower

...
...
11
Shield-Grease WPL-12126601
...
12
Brkt, Blower Mtg WPL-12271103
...
21
Assy, Window Kit (Light Lens) WPL-R9900114
...
22
Motor, Blower WPL-12138102
...
31
Screen Filter WPL-59001659
...
32
Wheel-Blower WPL-12138201
...
41
Harnes, Wiring WPL-12135906
...
42
Scroll-Blower WPL-12138302
...
51
Screw WPL-WP489349
...
52
Kit, Screw WPL-R9800670
...
61
Divider-Flow WPL-12155801
...
62
Screw WPL-WP489349
...
71
Cover-Triac WPL-12159901
...
72
Gasket WPL-A3030302
...
81
Gasket WPL-A3030302
...
82
Clip WPL-M0118901
...
91
Screw-Sm/hex WPL-12990523
...
92
Fan Blade WPL-B5706704
...
101
Kit,triac Reloc WPL-R0000341
...
111
Snubber Assembly WPL-59002017

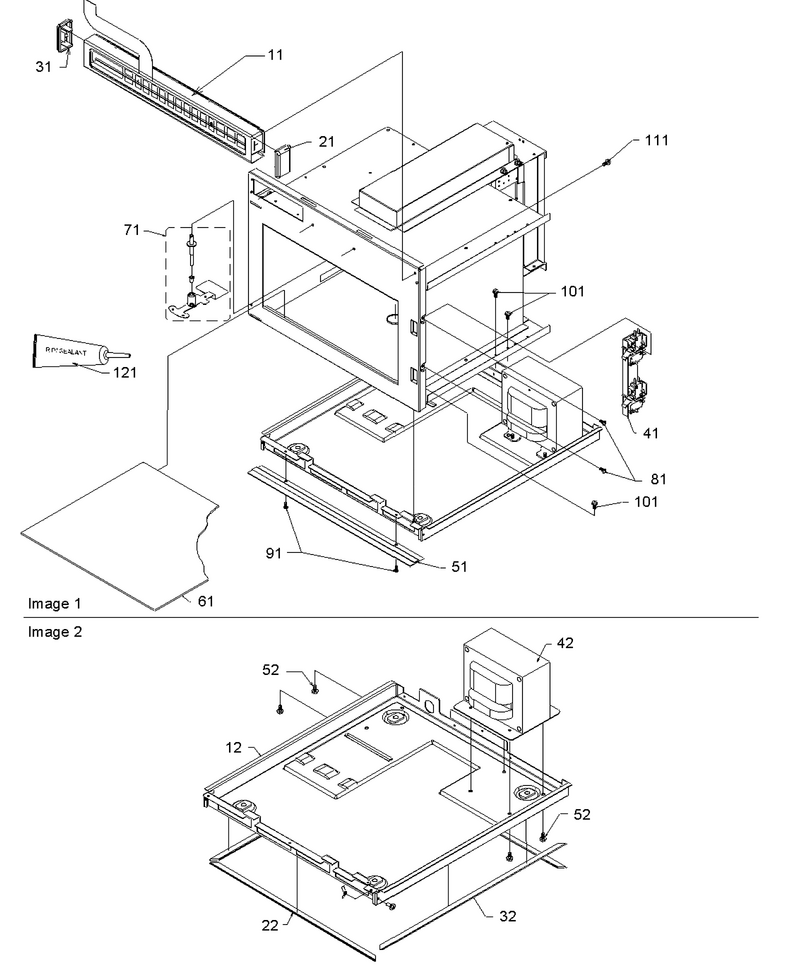

01 - Controls/basepan

...
...
11
Assy, Touch Panel WPL-R0150152
...
12
Asy, Base Pan 50 Hz WPL-59002074
...
21
Endcap-Esc (Right) WPL-12131001
...
22
Gasket,basepan - Cut WPL-59001643
...
31
Endcap-Esc (Left) WPL-12131002
...
32
Gasket,basepan WPL-R0000413
...
41
Switch Kit WPL-R0000277
...
42
Transformer WPL-10426610
...
51
Trim-Oc WPL-59002068
...
52
Screw-Tc/hex WPL-12991606
...
61
Tray-Ceramic Floor W/sealer WPL-R0150144
...
71
Assy, Ant/retainer WPL-R0150185
...
81
Screw-Hi Lo/pan WPL-12993002
...
91
Screw, Handle (Black) WPL-12991101
...
101
Screw WPL-WP489349
...
111
Screw WPL-WP3388228
...
121
Sealer, Rtv WPL-M0275593

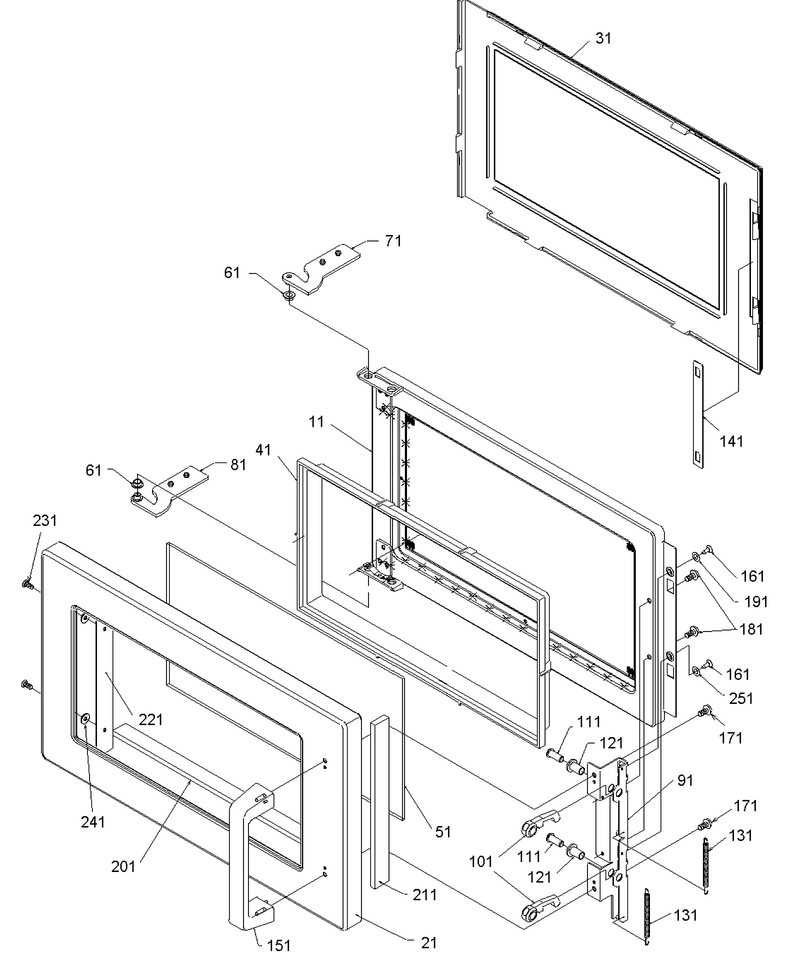

02 - Door

...
...
11
Door Ring Weld, E Ct WPL-12472202
...
21
Door, Outer (Drilled) WPL-12104205
...
31
Assy, Inner Door WPL-13067001
...
41
Retainer, Lens WPL-R0150147
...
51
Window-Outer WPL-59001236
...
61
Bushing, Nylon WPL-5210001001
...
71
Plate, Hinge (Upper) WPL-12126805
...
81
Plate, Hinge (Lower) WPL-12126806
...
91
Brkt-Door Latch WPL-12114401
...
101
Latch-Door WPL-12126901
...
111
Pin-Latch WPL-59002069
...
121
Spacer WPL-M0800501
...
131
Spring, Door Latch WPL-C8893502
...
141
Linkage, Dr Latch WPL-12526201
...
151
Handle-Door WPL-12133901
...
161
Screw-Tc/flat WPL-13047402
...
171
Screw WPL-WP489128
...
181
Screw WPL-M0232012
...
191
Washer WPL-M0272503
...
201
Energy, Strip WPL-12210803
...
211
Energy, Strip WPL-12210804
...
231
Screw WPL-W10856125
...
251
Washer, Nylon WPL-M0274066
