Amana CKS3020LL (BOM: P1142515NLL)

Model: CKS3020LL (BOM: P1142515NLL)

Save Part Not Listed?
product name

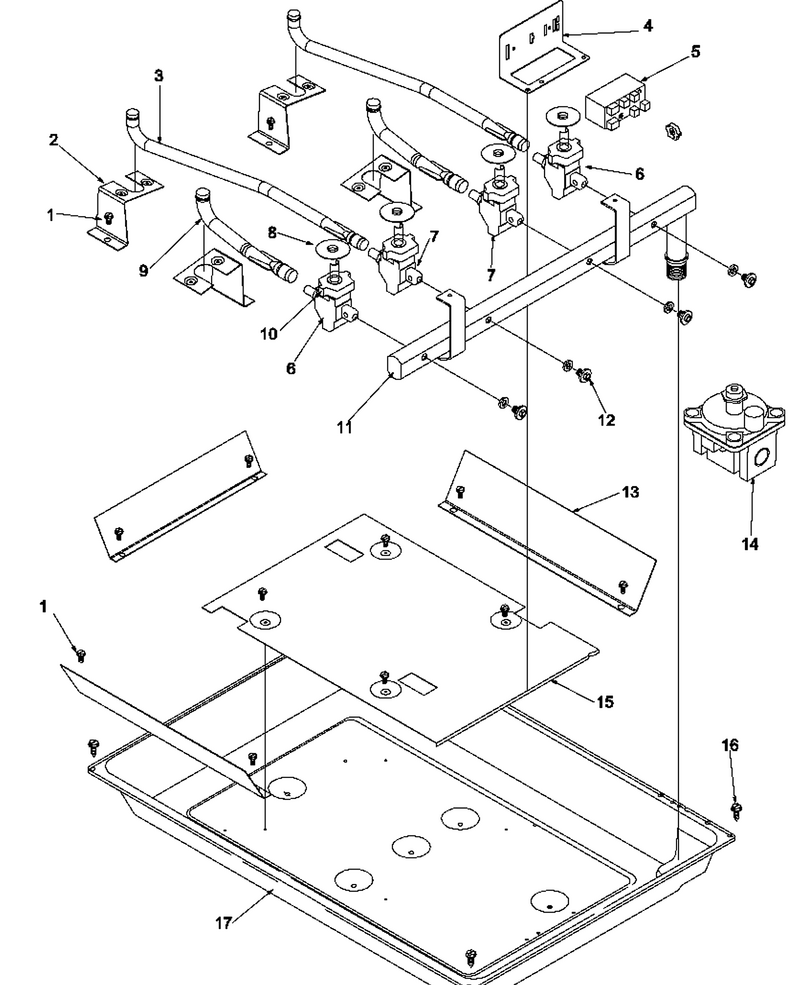

01 - Burner Box

...
...
NI
Harness, Spark Module (20``) WPL-Y0316743
...
1
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
2
Brkt, Venturi Mtg WPL-Y0315640
...
3
Venturi, Left WPL-31899701
...
4
Bracket WPL-WPW10116817
...
5
Spark Module, 4+0 WPL-0315154
...
6
Valve WPL-Y0315645
...
7
Valve, Kit WPL-0315646
...
8
Shield, Switch WPL-Y0314316
...
9
Venturi, Right WPL-0315635
...
10
Switch- Sp WPL-WPY0316705
...
11
Pipe, Manifold WPL-Y0317061
...
12
Screw WPL-W10491986
...
13
Shield, Burner Box-Side WPL-Y0316984
...
14
Regulator WPL-0042303
...
15
Shield, Burner Box-Bottom WPL-Y0316983
...
16
Screw, Wood WPL-Y0098017
...
17
Box, Burner (30`` Gas) WPL-Y0315639

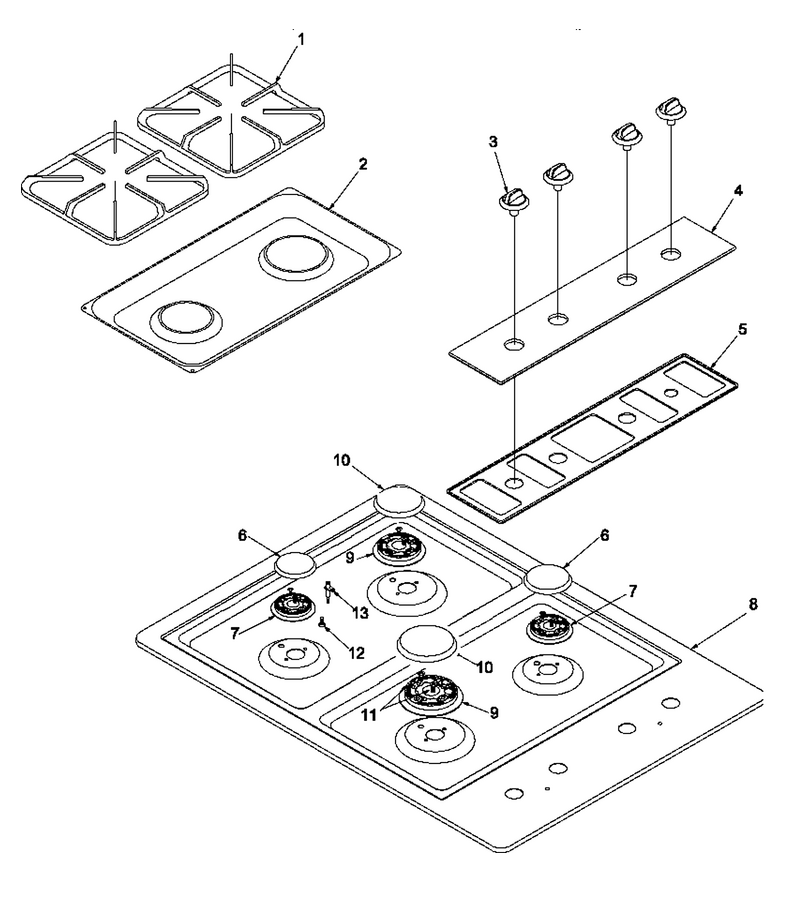

02 - Main Top

...
...
1
Grate, Single Cast (Matte Blk) WPL-32012201MB
...
2
Bowl- Burn WPL-WP315600B
...
3
Kit- Knobs WPL-R9800034
...
4
Glass, Cont Pnl WPL-315650L
...
5
Frame-Control Pnl Glass (Blk) WPL-316399B
...
6
Cap, Burner 9k (Matte Blk) WPL-315765MB
...
7
Top Burner WPL-WPY0315768
...
8
Maintop, 30``gas (Almond) WPL-315524L
...
9
Burnr-Head WPL-WP7504P109-60
...
10
Cap-Burner WPL-WP31782701MB
...
11
Screw WPL-WPY04100059
...
12
Screw, Electrode WPL-Y0316775
...
13
Igntr-Surf WPL-WPY0316773
