Amana CDU500CB (BOM: P1188319W)

Model: CDU500CB (BOM: P1188319W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

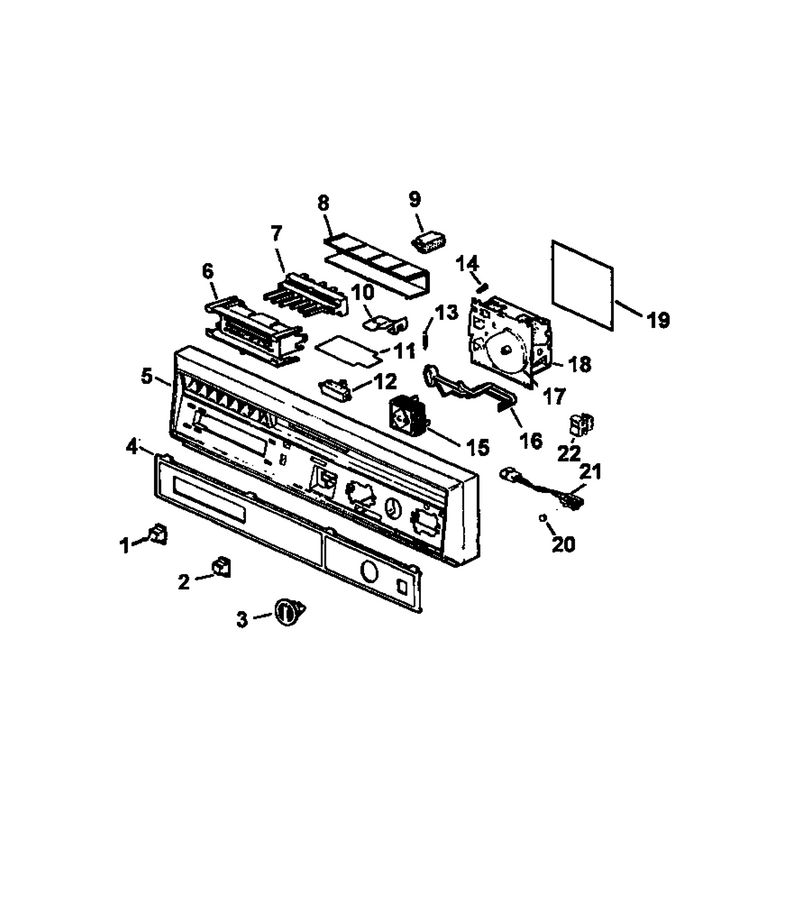

01 - Control Panel

...
...
NI
Washer WPL-R0900507
...
1
Push Button WPL-R0903542
...
2
Pushbutton WPL-R0903540
...
3
Assy, Timer Knob WPL-R0903601
...
4
Insert Escutcheon WPL-R0905753
...
5
Escutcheon WPL-Y03000101
...
6
Retainer, Switch WPL-R0905546
...
7
Switch, Push Button WPL-R0902530
...
8
Cover, Switch WPL-R0905547
...
9
Housing Terminal WPL-R0910049
...
10
Switch Leaf WPL-R0905533
...
11
Shield, Switch WPL-R0905534
...
12
Switch, Interlock WPL-R0902506
...
13
Spring, Timer Lever WPL-R0905541
...
14
Screw WPL-R0900009
...
15
Switch, Cycle WPL-R0902507
...
16
Lever, Timer WPL-R0905545
...
17
Cam, Timer WPL-R0904019
...
18
Timer WPL-R0904021
...
19
Shield, Timer WPL-R0904016
...
20
Lens WPL-R0910061
...
21
Ass`y Pilot Light WPL-R0910163
...
22
Switch- Ro WPL-WP31986601B

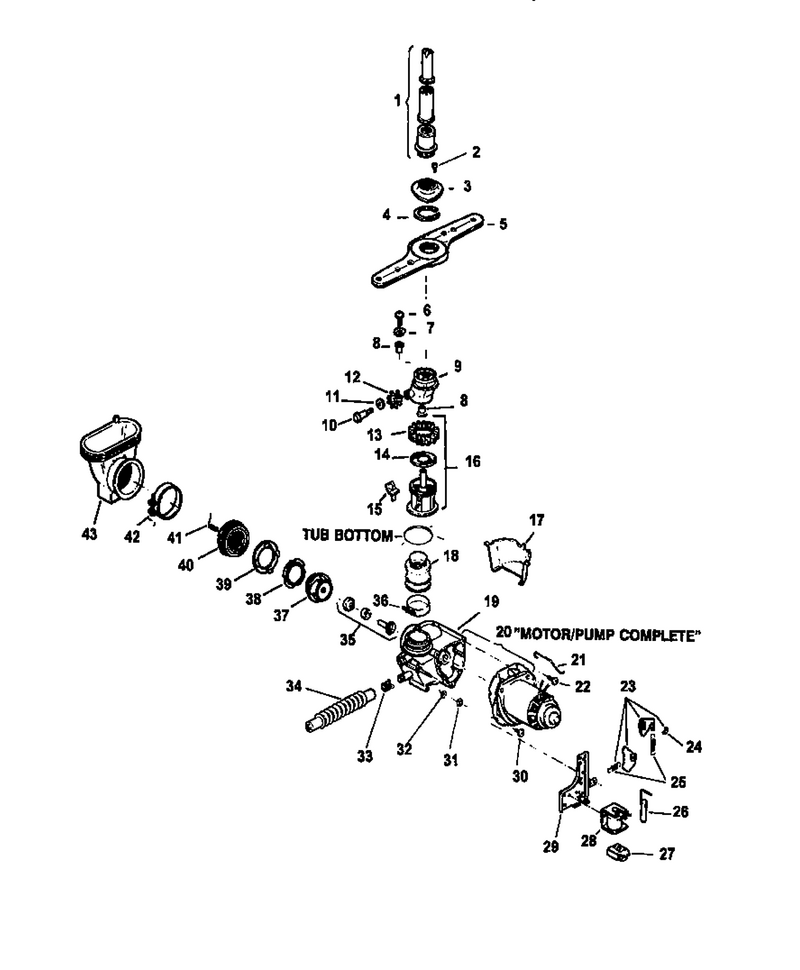

03 - Motor/pump

...
...
NI
Cap, Power Shower WPL-R0903508

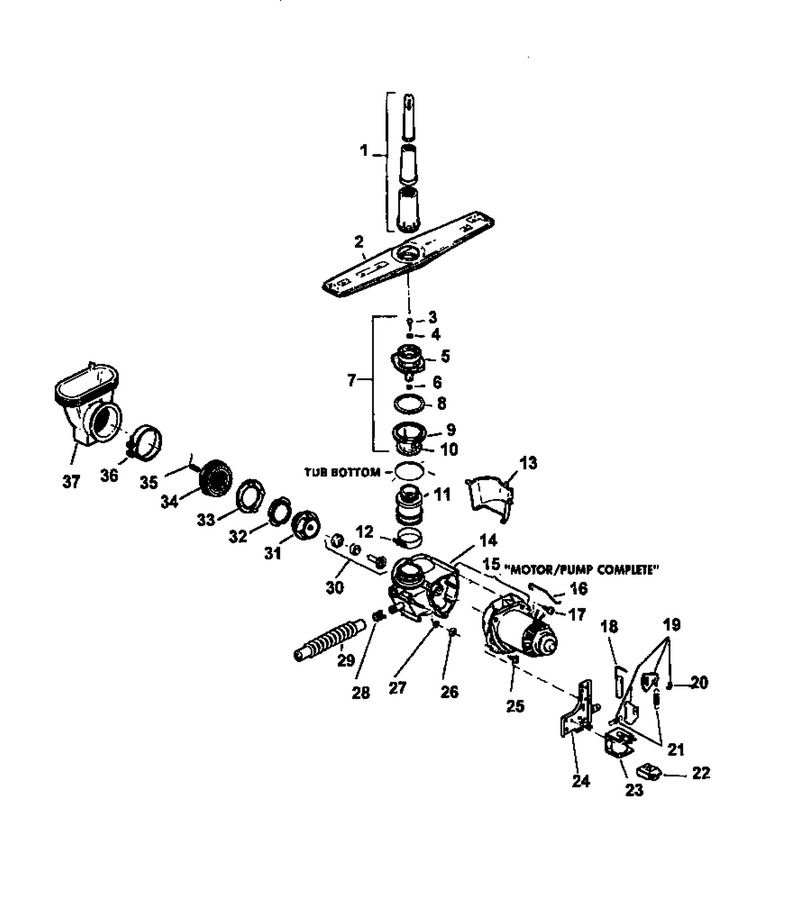

04 - Motor/pump

...
...
NI
Cap, Power Shower WPL-R0903508
...
1
Assembly-Center Spray WPL-R0910057
...
2
Assy Spray Arm Shield WPL-R0910055
...
3
Screw, Hub WPL-R0900026
...
4
Thrust Washer WPL-R0900508
...
5
Spray Arm Hub WPL-R0910056
...
6
No.8 Type A Set Sst Washer WPL-R0900503
...
7
Hub & Suppt. WPL-R0903515
...
8
Kit Spray Assy WPL-R0903535
...
9
See Note Not Stocked Separately-See Item 7 For Part Number WPL-Y00000000
...
10
Check Valve WPL-R0910037
...
11
Connector, Pump WPL-R0903520
...
12
Clamp WPL-WP696392
...
13
Guard WPL-R0905522
...
14
Motor/pump Assy Dishwa WPL-R0910001
...
15
Motor-Pump WPL-WPY03000182
...
16
Hanger Mechanism WPL-R0905712
...
17
Screw WPL-R0900007
...
18
Armature & Link Assy WPL-R0905517
...
19
Gate Valve Arm Kit WPL-Y03000032
...
20
Retainer WPL-R0901503
...
21
Spring, Gate Arm WPL-R0905529
...
22
Insul, Hsg Terminal WPL-R0903582
...
23
Solenoid WPL-Y03000185
...
24
Bracket-Solenoid WPL-R0905639
...
25
Screw WPL-W10856125
...
26
Nut WPL-R0906510
...
27
Seal, Shaft WPL-R0906504
...
28
Clamp WPL-R0901510
...
29
Tube Assy, Drain WPL-Y03000184
...
30
Seal,pump WPL-R0910148
...
31
Pump Impeller WPL-R0905519
...
32
Wear Ring WPL-R0905520
...
33
Wear Ring Base WPL-R0905518
...
34
Nut WPL-R0905563
...
35
Spring, Cutter WPL-R0905521
...
36
Clamp WPL-WP696392
...
37
Inlet, Sump WPL-Y03000224

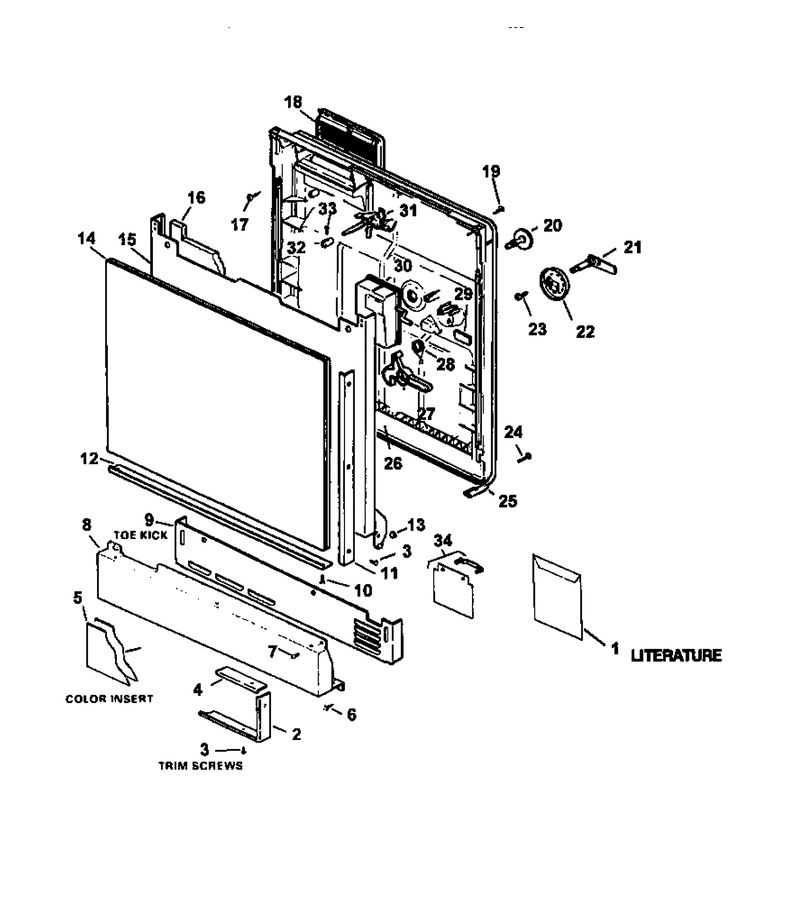

02 - Door

...
...
1
Owners Manual (Am Dishwasher) WPL-R0913060
...
2
Trim Side/bottom-Sides WPL-Y03000033
...
3
Screw WPL-W11233072
...
4
Trim-Top Serv Panel WPL-R0905648
...
5
Insert, Door Panel WPL-R0903019
...
6
Kit, Screw WPL-R9800670
...
7
Screw WPL-R0900017
...
8
Panel, Access WPL-Y03000189
...
9
Toe Kick Assy WPL-R0903022
...
10
Screw WPL-W10856125
...
11
Trim Door Side WPL-R0905644
...
12
Trim-Door Bottom WPL-R0905645
...
13
Hinge Arm Bearing WPL-R0905537
...
14
Insert, Door Panel WPL-R0903018
...
15
Door & Hinge Assy, Outer WPL-R0905637
...
17
Screw WPL-R0900009
...
18
Door Vent WPL-R0905536
...
19
Screw WPL-WP3351614
...
20
Cap Fill WPL-R0905646
...
21
Shaft Hand D Cup WPL-R0905538
...
22
Detergent Cup Cover WPL-R0910010
...
23
Screw WPL-R0900007
...
24
Screw WPL-R0900006
...
25
Door Gasket WPL-R0904501
...
26
Door, Inner WPL-R0903021
...
27
Latch Detergent Cup WPL-R0905539
...
28
Trip Spring WPL-R0905542
...
29
Deflecter WPL-R0905523
...
30
Injector, Rinse WPL-Y03000002
...
31
Latch, Assembly WPL-Y03000191
...
32
Knob, Latch WPL-R0903532
...
33
Screw WPL-WP74004005
...
34
Drip Shield WPL-R0910011

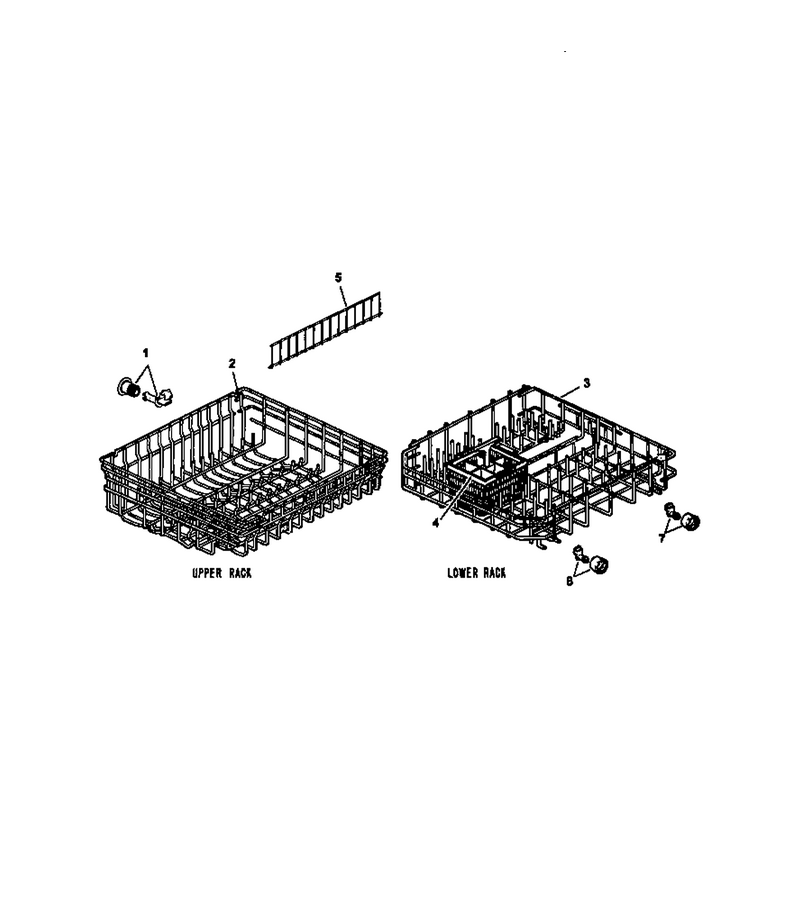

05 - Rack

...
...
1
Wheel WPL-W10542232
...
2
Assembly-Upper Rack WPL-R0910058
...
3
Rack & Roller Assy. (Lwr) WPL-R0910162
...
6
Lower Roller Assy WPL-R0910149
...
7
Roller WPL-W10882367

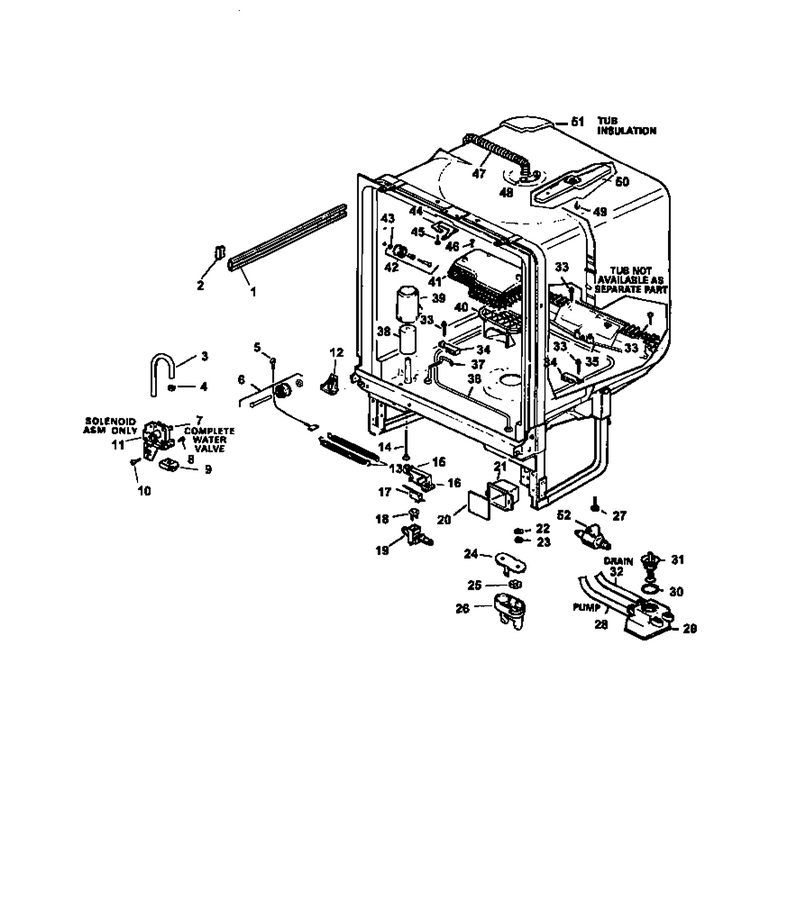

06 - Tub

...
...
1
Rack Slide WPL-R0905567
...
2
Endcap WPL-WPW10326683
...
3
Hose, Water Inlet WPL-R0903514
...
4
Clamp WPL-R0901510
...
5
Cable And Eyelet WPL-R0905640
...
6
Roller & Stud Kit WPL-R0910013
...
7
Valve, Water Inlet (W/solenoid WPL-R0910033
...
8
Screw WPL-R0900011
...
9
Insul, Hsg Terminal WPL-R0903582
...
10
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
11
Solenoid Assembly, Water Valve WPL-R0909002
...
12
Baffle Tub Corner Lh WPL-R0905597
...
13
Door Spring Yellow WPL-R0905504
...
14
Float Stem WPL-R0905512
...
15
Brkt, Flood Switch WPL-R0905513
...
16
Cover Switch Brkt WPL-R0905514
...
17
Switch Flood WPL-R0902501
...
20
Cover, Junc Box WPL-R0903032
...
21
Box, Junction WPL-R0903587
...
22
Washer WPL-R0900501
...
23
Grommet WPL-R0906502
...
24
Base Barrier WPL-R0903580
...
25
Nut WPL-R0901001
...
26
Barrier, Htg Element WPL-R0903581
...
27
Leg, Leveling WPL-R0905506
...
33
Screw WPL-WPW10348409
...
34
Support Heater Rear WPL-R0905633
...
36
Heater WPL-R0911009
...
37
Support, Heater WPL-R0911008
...
38
Flood Float WPL-R0903501
...
39
Float, Dome WPL-R0913227
...
40
Cap, Sump WPL-Y03000213
...
41
Cover Inlet Sump WPL-R0905527
...
42
Tub Roller & Stud Kit WPL-R0910004
...
43
No.8 Type A Set Sst Washer WPL-R0900503
...
44
Latch Keeper WPL-R0905505
...
45
Screw WPL-R0900025
...
46
Screw WPL-R0900008
...
47
Hose, Shower Assy WPL-R0903527
...
48
Nut WPL-R0901003
...
49
Screw WPL-R0900013
...
50
Assy, Pwr Shower WPL-R0905554
...
51
Insulation, Tub WPL-R0904525
