Amana CDU300DB (BOM: P1309605W)

Model: CDU300DB (BOM: P1309605W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

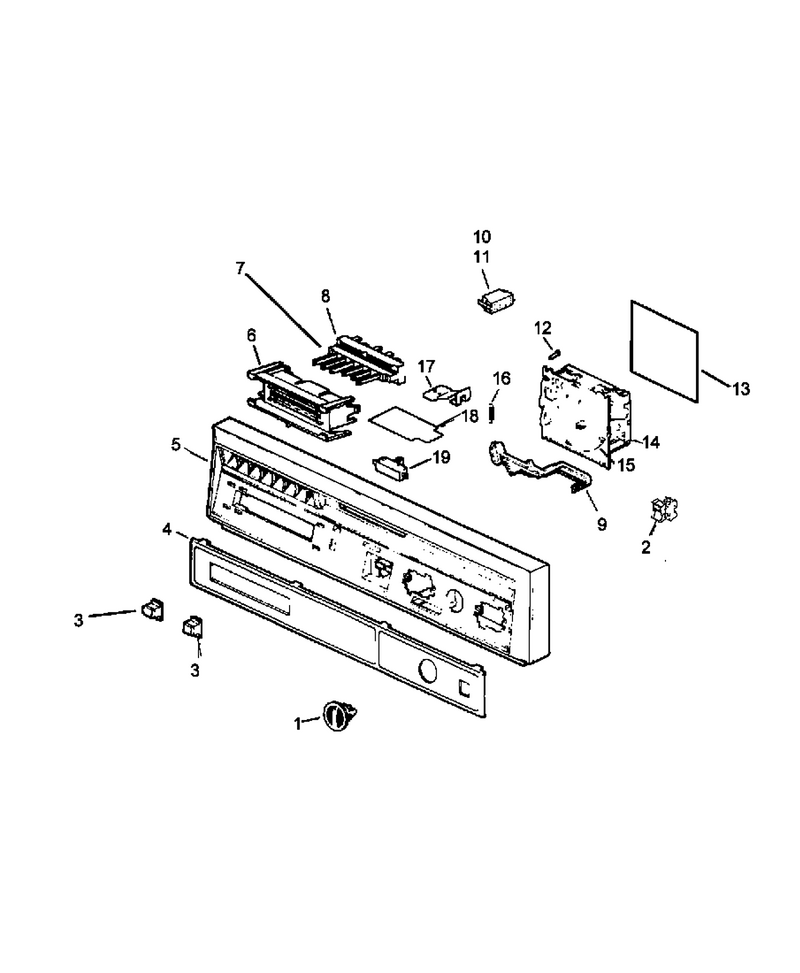

01 - Control Panel Assy

...
...
1
Assy, Timer Knob WPL-R0903601
...
2
Switch- Ro WPL-WP31986601B
...
3
Push Button WPL-R0903542
...
4
Insert, Escutcheon WPL-10856821
...
5
Escutcheon WPL-Y03000101
...
6
Retainer-Switch 006 WPL-R0905652
...
7
Barrier WPL-R0904514
...
8
Switch, Pushbutton WPL-R0913223
...
9
Lever, Timer WPL-R0905545
...
10
Housing Terminal WPL-R0910049
...
11
Terminal WPL-Y03000076
...
12
Screw WPL-R0900009
...
13
Shield, Timer WPL-R0904016
...
14
Timer WPL-R0913219
...
15
Cam, Timer WPL-R0904015
...
16
Spring, Timer Lever WPL-R0905541
...
17
Switch Leaf WPL-R0905533
...
18
Shield, Switch WPL-R0905534
...
19
Switch, Interlock WPL-R0902506

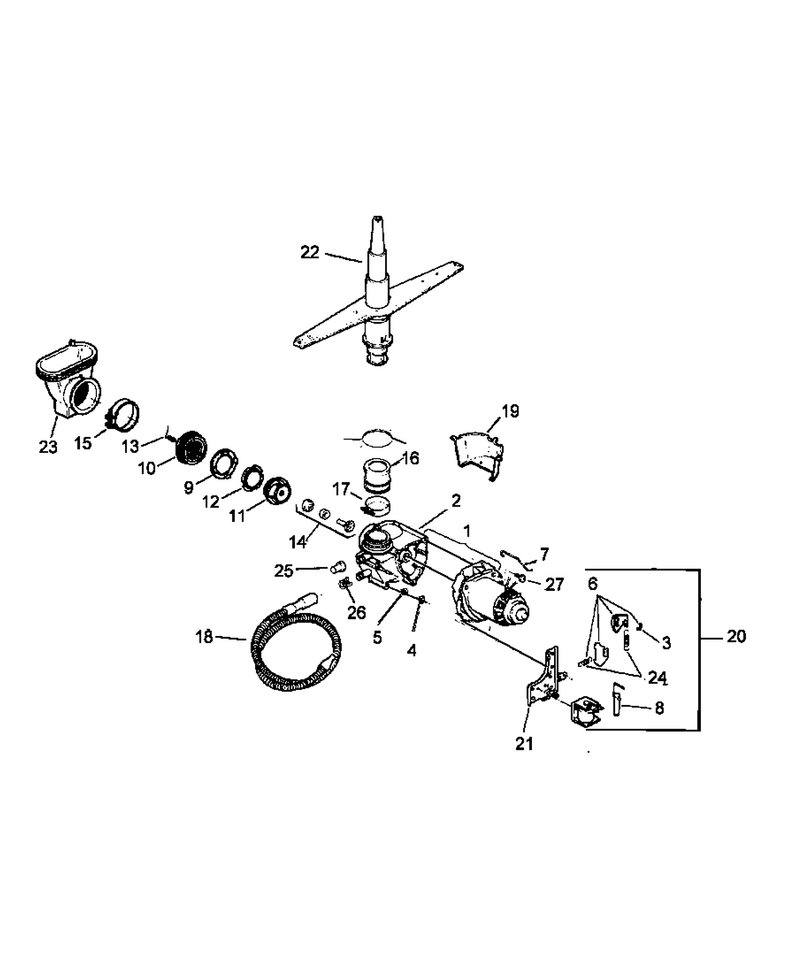

03 - Motor & Pump Assy

...
...
1
Motor/pump Assy Dishwa WPL-R0907001
...
2
Motor/pump Assy Dishwa WPL-R0904527
...
3
Retainer WPL-R0901503
...
4
Nut WPL-R0906510
...
5
Seal, Shaft WPL-R0906504
...
6
Gate Valve Arm Kit WPL-Y03000032
...
7
Hanger Mechanism WPL-R0905712
...
8
Armature & Link Assy WPL-R0905517
...
9
Wear Ring Base WPL-R0905518
...
10
Nut WPL-R0905563
...
11
Assy, Impeller WPL-R0913109
...
12
Wear Ring WPL-R0905520
...
13
Spring, Cutter WPL-R0913110
...
14
Assy, Pump Seal WPL-R0913111
...
15
Clamp WPL-WP696392
...
16
Assy, Pump Connector WPL-R0913113
...
17
Clamp WPL-WP696392
...
18
Tube Assy, Drain WPL-Y03000184
...
19
Guard WPL-R0905522
...
20
Solenoid WPL-Y03000185
...
21
Bracket-Solenoid WPL-R0905639
...
22
Assy, Spray Arm WPL-R0913217
...
23
Inlet, Sump WPL-Y03000224
...
24
Spring, Gate Arm WPL-R0905529
...
25
Cap, Power Shower WPL-R0903508
...
26
Clamp WPL-R0901510
...
27
Screw WPL-R0900007

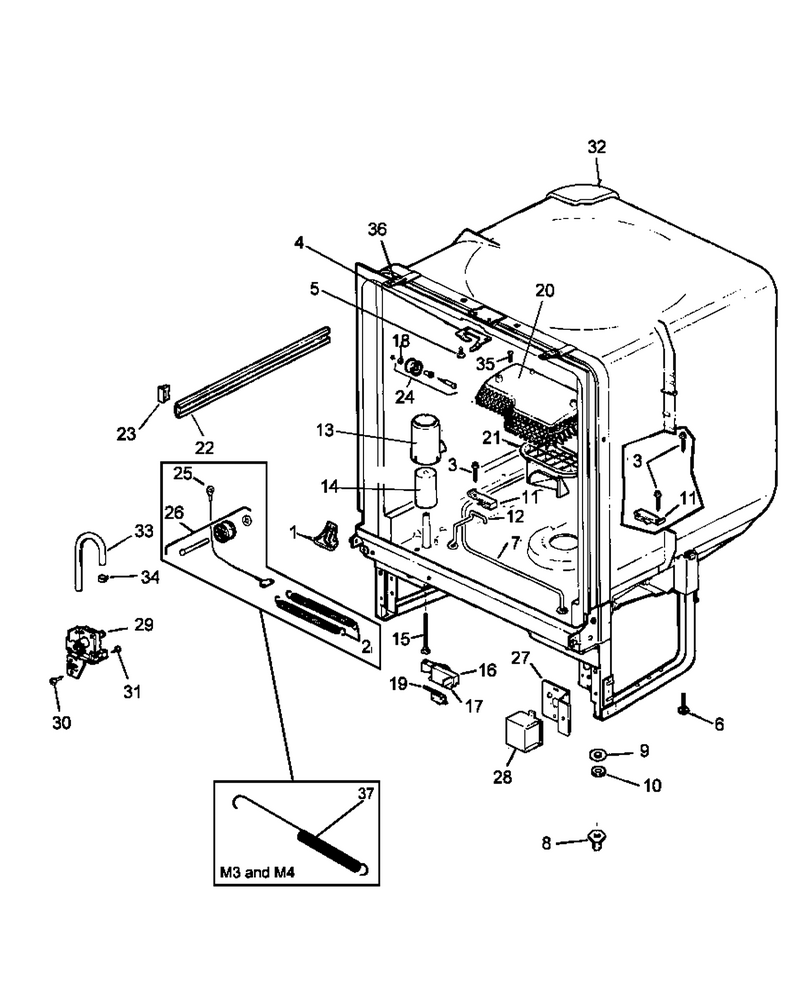

05 - Tub Assy

...
...
1
Baffle, Tube Corner Rh WPL-R0905596
...
3
Screw WPL-WPW10348409
...
4
Latch Keeper WPL-R0905505
...
5
Screw WPL-R0900025
...
6
Leg, Leveling WPL-R0905506
...
7
Ass`y, Htg Element WPL-R0913106
...
8
Nut, Hr Tower WPL-R0913107
...
9
Washer WPL-R0900501
...
10
Grommet WPL-R0906502
...
11
Support Heater Rear WPL-R0905633
...
12
Support, Heater WPL-R0911008
...
13
Float, Dome WPL-R0913227
...
14
Flood Float WPL-R0903501
...
15
Float Stem WPL-R0905512
...
16
Brkt, Flood Switch WPL-R0905513
...
17
Cover Switch Brkt WPL-R0905514
...
18
No.8 Type A Set Sst Washer WPL-R0900503
...
19
Switch Flood WPL-R0902501
...
20
Cover Inlet Sump WPL-R0905527
...
21
Cap, Sump WPL-Y03000213
...
22
Rack Slide WPL-R0905567
...
23
Endcap WPL-WPW10326683
...
24
Tub Roller & Stud Kit WPL-R0910004
...
27
Brkt, J-Box WPL-R0913226
...
28
Cover, Junction Box WPL-R0913225
...
29
Valve, Water Inlet (W/solenoid WPL-R0910033
...
30
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
31
Screw WPL-R0900011
...
32
Insulation, Tub WPL-R0913229
...
33
Hose, Water Inlet WPL-R0903514
...
34
Clamp WPL-R0901510
...
35
Screw WPL-R0900008
...
36
Kit, Mtg Bracket WPL-R0913209
...
37
Spring, Door (Red 21.5``) WPL-R0913239

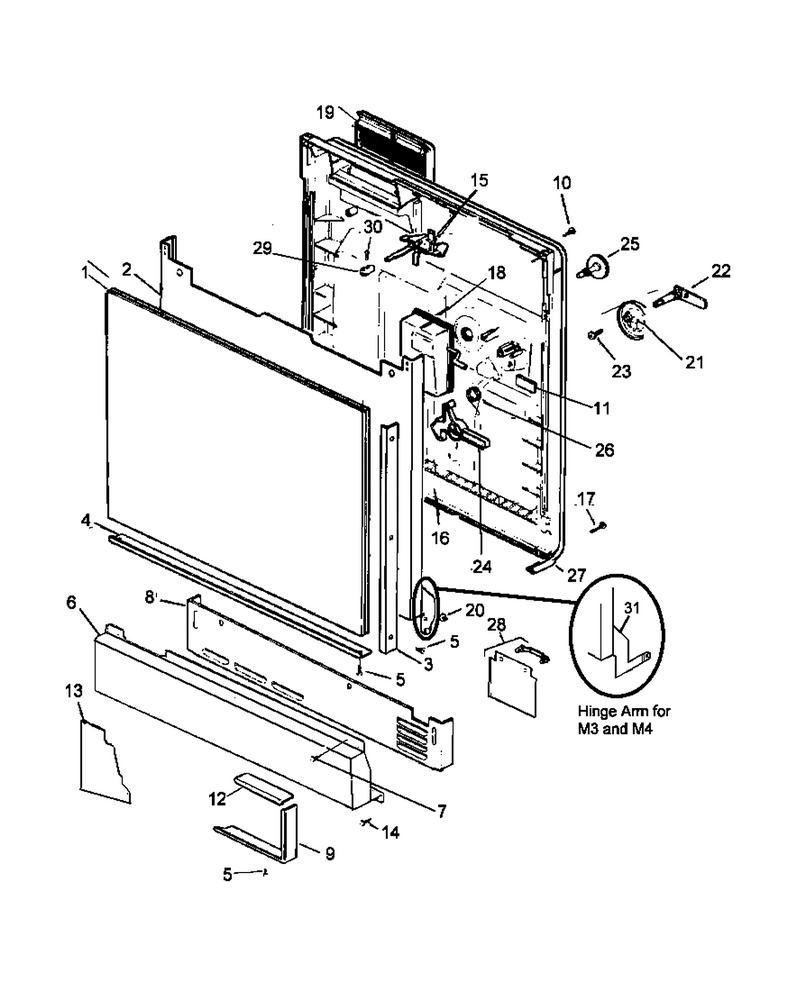

02 - Door Assy

...
...
NI
Arm, Hinge Complete WPL-R0913237
...
1
Insert, Door Panel WPL-R0903018
...
2
Door & Hinge Assy, Outer WPL-R0905637
...
3
Trim, Door Side WPL-R0913127
...
4
Trim, Door Btm WPL-R0913128
...
5
Screw WPL-R0900042
...
6
Panel, Access WPL-Y03000189
...
7
Screw WPL-R0900017
...
8
Toe Kick Assy WPL-R0903022
...
9
Trim, Access Narrow Bl WPL-R0913125
...
10
Screw WPL-WP3351614
...
11
Deflecter WPL-R0905523
...
12
Trim, Access Top WPL-R0913133
...
13
Insert, Door Panel WPL-R0903019
...
14
Kit, Screw WPL-R9800670
...
15
Latch, Assembly WPL-Y03000191
...
16
Door, Inner WPL-R0903021
...
17
Screw WPL-R0900006
...
18
Injector, Rinse WPL-Y03000002
...
19
Door Vent WPL-R0905536
...
20
Hinge Arm Bearing WPL-R0905537
...
21
Detergent Cup Cover WPL-R0910010
...
22
Shaft Hand D Cup WPL-R0905615
...
23
Screw WPL-R0900007
...
24
Latch Detergent Cup WPL-R0905539
...
25
Cap, Fill WPL-Y03000003
...
26
Trip Spring WPL-R0905542
...
27
Door Gasket WPL-R0904507
...
28
Drip Shield WPL-R0910011
...
29
Knob, Latch WPL-R0903532
...
30
Screw WPL-WP74004005
...
31
Arm, Hinge Complete WPL-R0913238

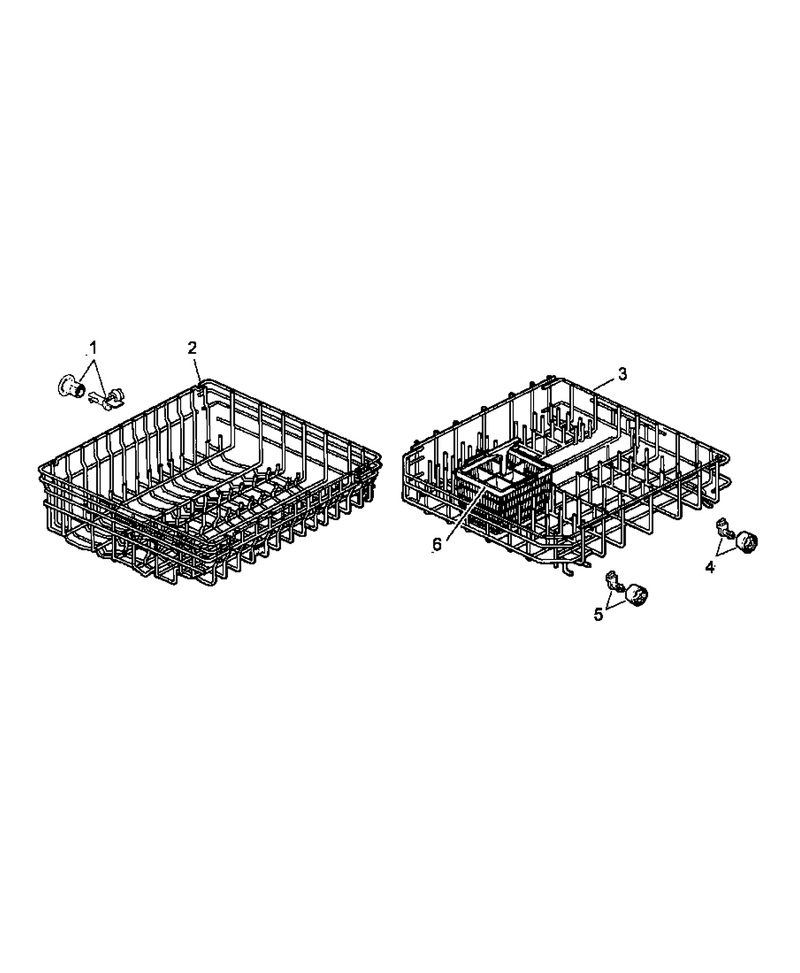

04 - Rack Assy

...
...
1
Wheel WPL-W10542232
...
2
Assy-Upper Rack & Roller WPL-R0910111
...
3
Assy, Lwr Rack/roller WPL-R0913124
...
4
Roller WPL-W10882367
...
5
Lower Roller Assy WPL-R0910007
...
6
Basket,silverware WPL-R0910160
