Amana CDU300CB (BOM: P1199012W)

Model: CDU300CB (BOM: P1199012W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

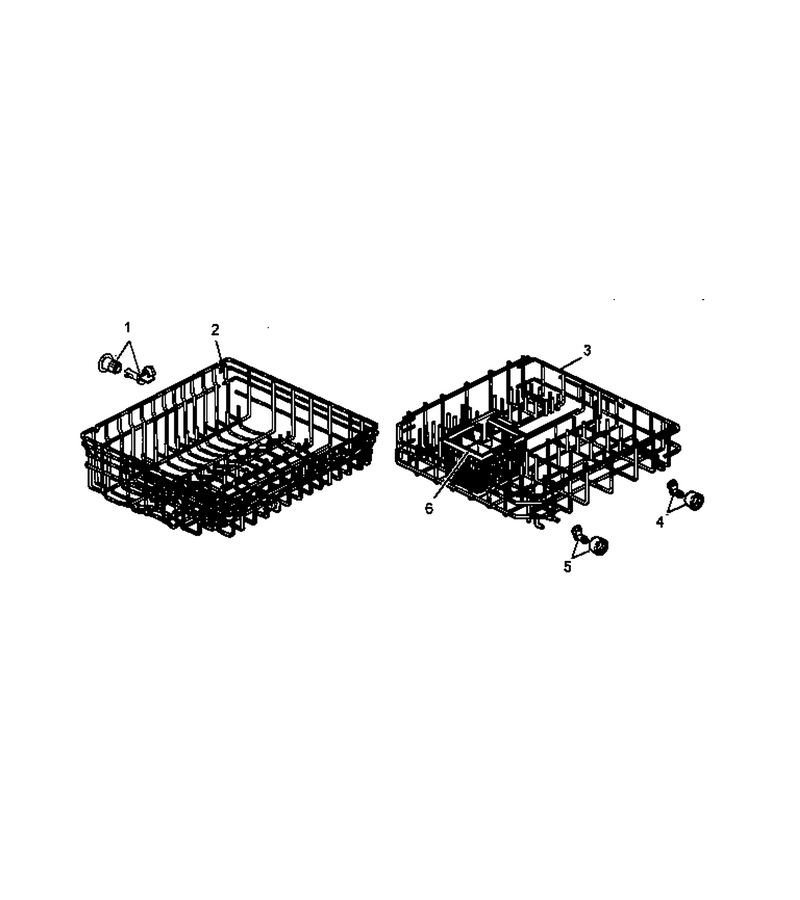

04 - Rack Assy

...
...
1
Wheel WPL-W10542232
...
2
Assy-Upper Rack & Roller WPL-R0910111
...
3
Assy, Lwr Rack/roller WPL-R0913124
...
4
Roller WPL-W10882367
...
5
Lower Roller Assy WPL-R0910007
...
6
Basket,silverware WPL-R0910160

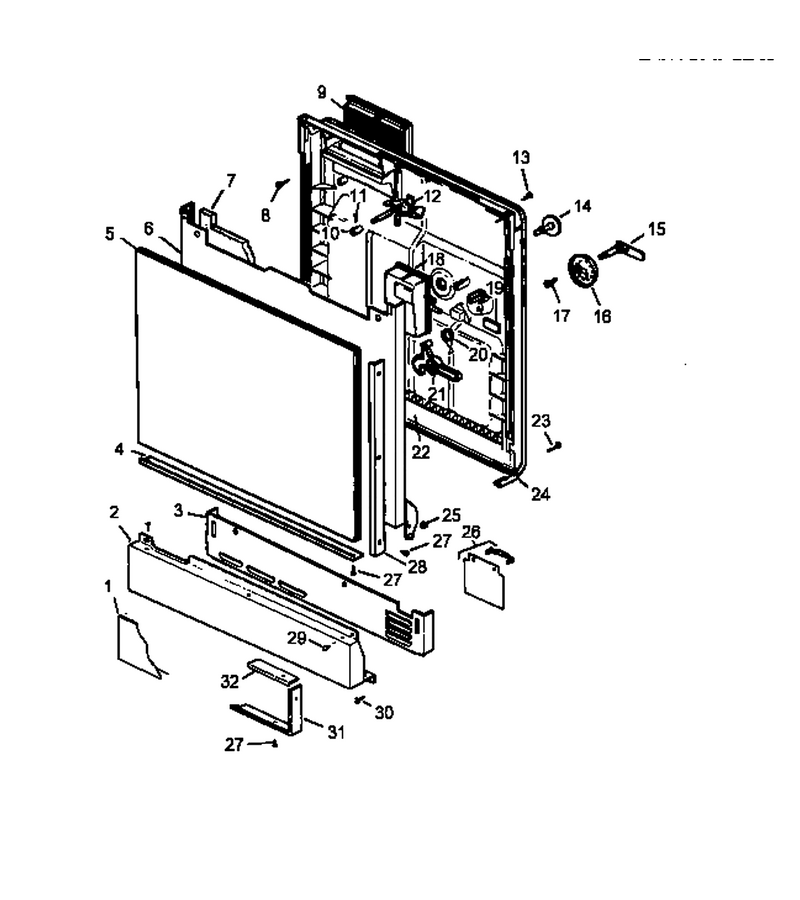

02 - Door Assy

...
...
1
Insert, Door Panel WPL-R0903019
...
2
Panel, Access WPL-Y03000189
...
3
Toe Kick Assy WPL-R0903022
...
4
Trim, Door Btm WPL-R0913128
...
5
Insert, Door Panel WPL-R0903018
...
6
Door & Hinge Assy, Outer WPL-R0905637
...
8
Screw WPL-R0900009
...
9
Door Vent WPL-R0905536
...
10
Knob, Latch WPL-R0903532
...
11
Screw WPL-WP74004005
...
12
Latch, Assembly WPL-Y03000191
...
13
Screw WPL-WP3351614
...
14
Cap, Fill WPL-Y03000003
...
15
Shaft Hand D Cup WPL-R0905615
...
16
Detergent Cup Cover WPL-R0910010
...
17
Screw WPL-R0900007
...
18
Injector, Rinse WPL-Y03000002
...
19
Deflecter WPL-R0905523
...
20
Trip Spring WPL-R0905542
...
21
Latch Detergent Cup WPL-R0905539
...
22
Door, Inner WPL-R0903021
...
23
Screw WPL-R0900006
...
24
Door Gasket WPL-R0904507
...
25
Hinge Arm Bearing WPL-R0905537
...
26
Drip Shield WPL-R0910011
...
27
Screw, 8-18 WPL-R0900053
...
28
Trim, Door Side WPL-R0913127
...
29
Screw WPL-R0900017
...
30
Screw, 10-16 WPL-R0900054
...
31
Trim, Access Narrow Bl WPL-R0913125
...
32
Trim, Access Top WPL-R0913133

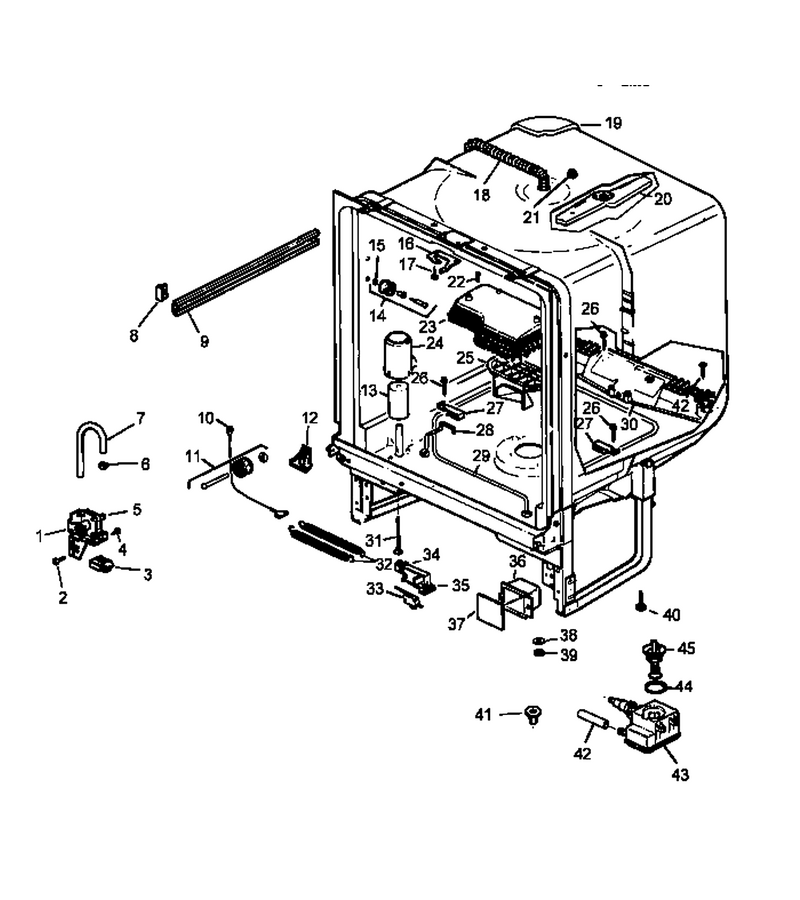

05 - Tub Assy

...
...
1
Solenoid Assembly, Water Valve WPL-R0909002
...
2
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
3
Insul, Hsg Terminal WPL-R0903582
...
4
Screw WPL-R0900011
...
5
Valve, Water Inlet (W/solenoid WPL-R0910033
...
6
Clamp WPL-R0901510
...
7
Hose, Water Inlet WPL-R0903514
...
8
Endcap WPL-WPW10326683
...
9
Rack Slide WPL-R0905567
...
10
Cable And Eyelet WPL-R0910012
...
11
Roller & Stud Kit WPL-R0910013
...
12
Baffle Tub Corner Lh WPL-R0905597
...
13
Flood Float WPL-R0903501
...
14
Tub Roller & Stud Kit WPL-R0910004
...
15
No.8 Type A Set Sst Washer WPL-R0900503
...
16
Latch Keeper WPL-R0905505
...
17
Screw WPL-R0900025
...
19
Assy-Upper Rack & Roller WPL-R0910111
...
22
Screw WPL-R0900008
...
23
Cover Inlet Sump WPL-R0905527
...
24
Float, Dome WPL-R0913227
...
25
Cap, Sump WPL-Y03000213
...
26
Screw WPL-WPW10348409
...
27
Support Heater Rear WPL-R0905633
...
28
Support, Heater WPL-R0911008
...
29
Ass`y, Htg Element WPL-R0913106
...
31
Float Stem WPL-R0905512
...
32
Door Spring Yellow WPL-R0905504
...
33
Switch Flood WPL-R0902501
...
34
Brkt, Flood Switch WPL-R0905513
...
35
Cover Switch Brkt WPL-R0905514
...
36
Box, Junction WPL-R0903587
...
37
Cover, Junc Box WPL-R0903032
...
38
Washer WPL-R0900501
...
39
Grommet WPL-R0906502
...
40
Leg, Leveling WPL-R0905506
...
41
Nut, Hr Tower WPL-R0913107

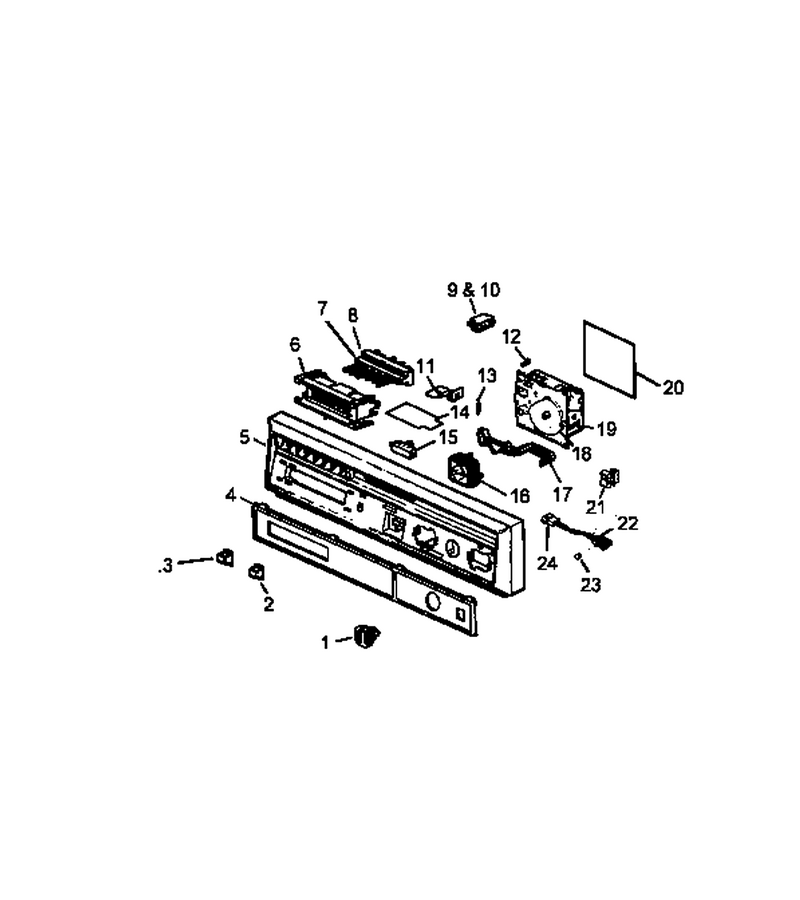

01 - Control Panel Assy

...
...
1
Assy, Timer Knob WPL-R0903601
...
3
Push Button WPL-R0903542
...
4
Insert, Escut WPL-R0913198
...
5
Escutcheon WPL-Y03000101
...
6
Retainer-Switch 006 WPL-R0905652
...
7
Barrier WPL-R0904514
...
8
Switch-Push Button WPL-R0902519
...
9
Housing Terminal WPL-R0910049
...
10
Terminal WPL-Y03000076
...
11
Switch Leaf WPL-R0905533
...
12
Screw WPL-R0900009
...
13
Spring, Timer Lever WPL-R0905541
...
14
Shield, Switch WPL-R0905534
...
15
Switch, Interlock WPL-R0902506
...
16
Switch, Cycle WPL-R0902507
...
17
Lever, Timer WPL-R0905545
...
18
Cam, Timer WPL-R0904019
...
19
Timer WPL-R0913148
...
20
Shield, Timer WPL-R0904016
...
21
Switch- Ro WPL-WP31986601B

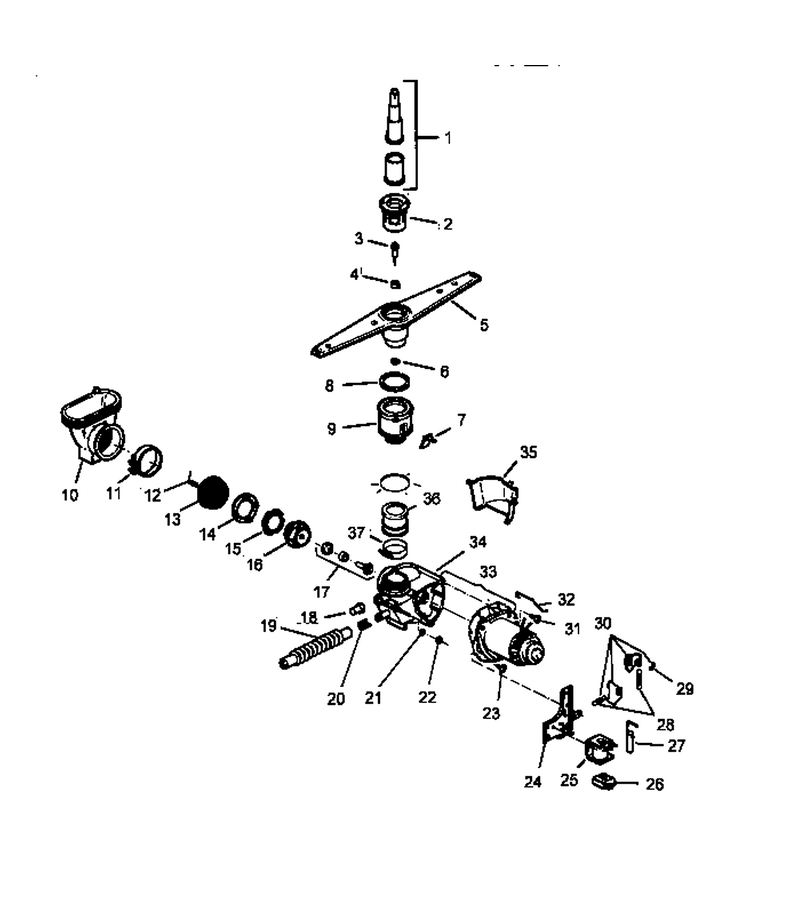

03 - Motor-Pump/water Distribution Components

...
...
1
Assy, Tower WPL-R0913119
...
2
Spray Arm & Shield WPL-R0913121
...
3
Screw, Spray Arm WPL-R0913115
...
4
Thrust Washer WPL-R0900508
...
5
Spray Arm Assembly WPL-R0913192
...
6
E-Ring WPL-R0913116
...
7
Check Valve WPL-R0910037
...
8
Ring Seal WPL-R0913118
...
9
Ass`y, Support WPL-R0913120
...
10
Inlet, Sump WPL-Y03000224
...
11
Clamp WPL-WP696392
...
12
Spring, Cutter WPL-R0913110
...
13
Nut WPL-R0905563
...
14
Wear Ring Base WPL-R0905518
...
15
Wear Ring WPL-R0905520
...
16
Assy, Impeller WPL-R0913109
...
17
Assy, Pump Seal WPL-R0913111
...
18
Cap, Power Shower WPL-R0903508
...
19
Tube Assy, Drain WPL-Y03000184
...
20
Clamp WPL-R0901510
...
21
Seal, Shaft WPL-R0906504
...
22
Nut WPL-R0906510
...
24
Bracket-Solenoid WPL-R0905639
...
25
Solenoid WPL-Y03000185
...
26
Insul, Hsg Terminal WPL-R0903582
...
27
Armature & Link Assy WPL-R0905517
...
28
Spring, Gate Arm WPL-R0905529
...
29
Retainer WPL-R0901503
...
30
Gate Valve Arm Kit WPL-Y03000032
...
31
Screw WPL-R0900007
...
32
Hanger Mechanism WPL-R0905712
...
33
Motor/pump Assy Dishwa WPL-R0913108
...
34
Motor/pump Assy Dishwa WPL-R0904527
...
35
Guard WPL-R0905522
...
36
Assy, Pump Connector WPL-R0913113
...
37
Clamp WPL-WP696392
