Amana CDC550CL (BOM: P1188329W)

Model: CDC550CL (BOM: P1188329W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

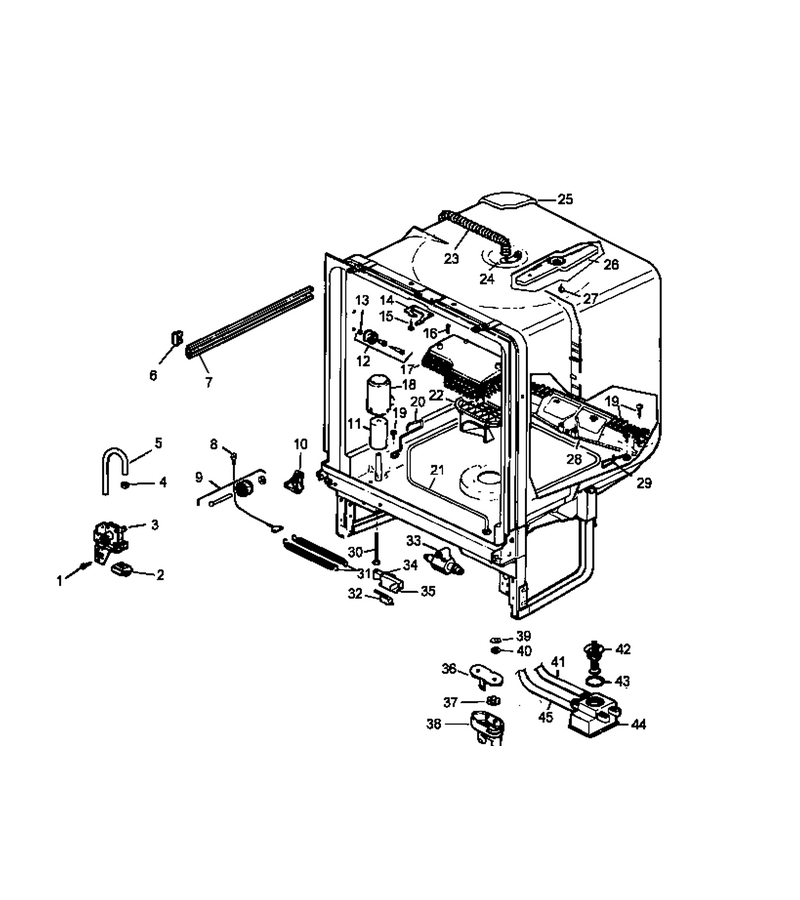

06 - Tub Assy

...
...
1
Screw (1=12) WPL-R0900049
...
2
Insul, Hsg Terminal WPL-R0903582
...
3
Valve, Water Inlet WPL-R0910140
...
4
Clamp WPL-R0901510
...
5
Hose, Water Inlet WPL-R0903589
...
6
Endcap WPL-WPW10326683
...
7
Rack Slide WPL-R0905567
...
8
Cable And Eyelet WPL-R0910139
...
9
Roller & Stud Kit WPL-R0910013
...
10
Baffle Tub Corner Lh WPL-R0905597
...
11
Flood Float WPL-R0903501
...
12
Tub Roller & Stud Kit WPL-R0910004
...
13
No.8 Type A Set Sst Washer WPL-R0900503
...
14
Latch Keeper WPL-R0905505
...
15
Screw WPL-R0900025
...
16
Screw WPL-R0900008
...
17
Cover Inlet Sump WPL-R0905527
...
18
Float, Dome WPL-R0913227
...
19
Screw WPL-WPW10348409
...
20
Support, Heater Front WPL-R0905632
...
21
Heater WPL-R0906001
...
22
Cap, Sump WPL-Y03000213
...
23
Hose, Shower Assy WPL-R0903527
...
24
Nut WPL-R0901003
...
25
Insulation WPL-R0904523
...
26
Assy, Pwr Shower WPL-R0905554
...
27
Screw WPL-7101P345-60
...
28
Assy, Filter Frame WPL-R0910122
...
29
Support Heater Rear WPL-R0905633
...
30
Float Stem WPL-R0905512
...
31
Door Spring Blue WPL-R0905503
...
32
Switch Flood WPL-R0902501
...
33
Check Valve WPL-R0910053
...
34
Brkt, Flood Switch WPL-R0905513
...
35
Cover Switch Brkt WPL-R0905514
...
36
Base Barrier WPL-R0903580
...
37
Nut WPL-R0901001
...
38
Barrier, Htg Element WPL-R0903581
...
39
Washer WPL-R0900501
...
40
Grommet WPL-R0906502
...
41
Hose, Chamber WPL-R0906505
...
42
Piston & Nut Assy WPL-Y03000222
...
43
Gasket WPL-R0904503
...
44
Coll. Chamber WPL-Y03000055
...
45
Hose, Chamber WPL-R0906506

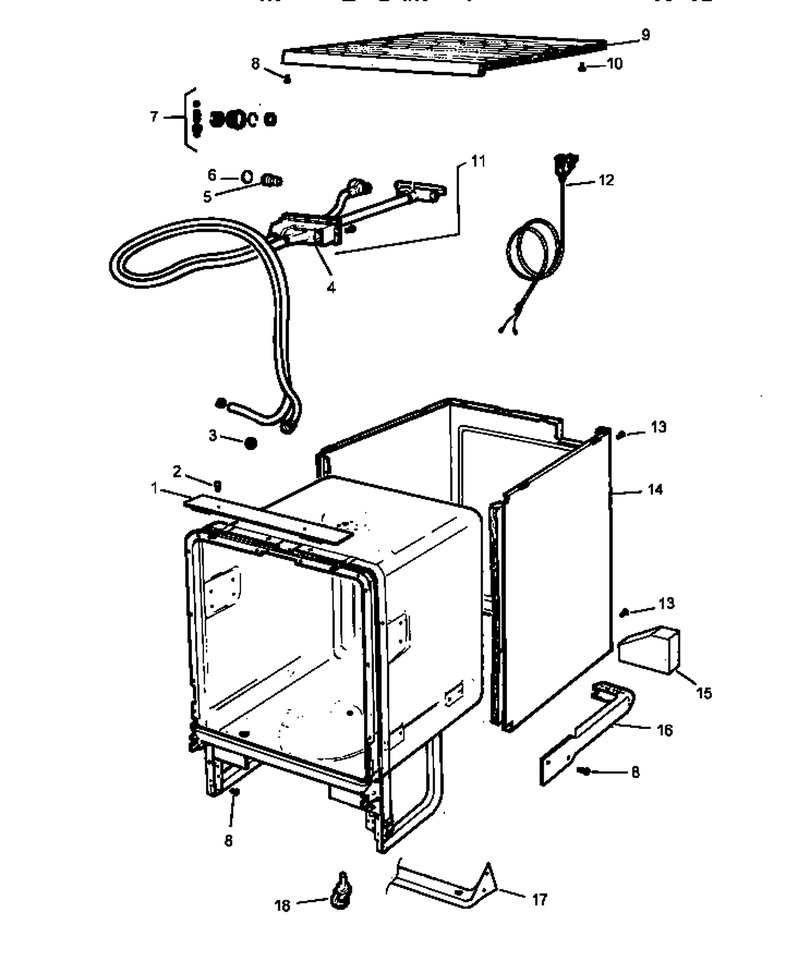

04 - Outer Case/unicouple Components

...
...
1
Cross, Piece WPL-R0910143
...
2
Screw WPL-R0900050
...
3
Gasket- In WPL-WPY013783
...
4
Pocket, Unicouple WPL-R0910133
...
5
Adapter, Assy Faucet WPL-R0910135
...
6
Washer WPL-R0913097
...
7
Kit, Repair Unicouple WPL-R0910132
...
8
Screw (1=12) WPL-R0900049
...
9
Top, Wood (Laminated) WPL-R0910141
...
10
Screw WPL-R0900048
...
11
Assy, Unicouple Replace WPL-R0910119
...
12
Cord, Power WPL-R0906012
...
13
Screw WPL-R0900009
...
14
See Note Wrapper -- (Not Stocked) WPL-Y00000000
...
15
Counter Weight WPL-R0910144
...
16
Brace, Rear WPL-R0905728
...
17
Brace, Front WPL-R0905729
...
18
Caster WPL-R0910142

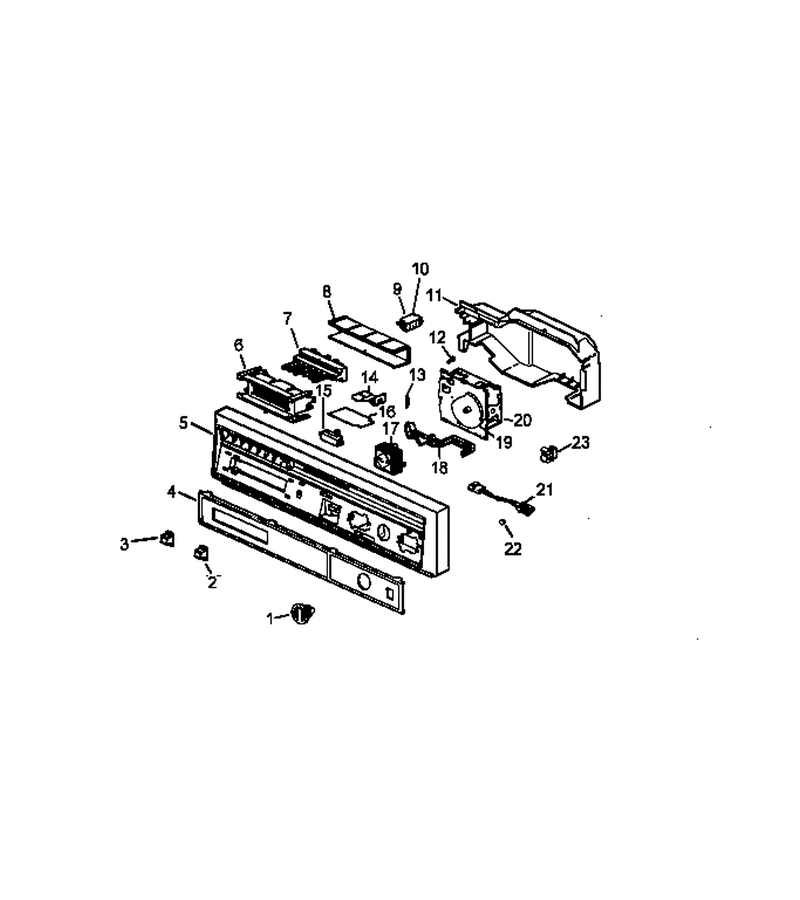

01 - Control Panel Assy

...
...
1
Assy, Timer Knob WPL-R0903601
...
2
Push Button WPL-R0903542
...
3
Pushbutton WPL-R0903540
...
4
Insert Escutcheon WPL-R0905753
...
5
Escutcheon WPL-R0913099
...
6
Retainer, Switch WPL-R0905546
...
7
Switch, Push Button WPL-R0902530
...
8
Cover, Switch WPL-R0905547
...
9
Housing, Terminal WPL-R0910130
...
10
Terminal, Special WPL-R0910129
...
11
Cover, Electrical WPL-R0903033
...
12
Screw WPL-R0900009
...
13
Spring, Timer Lever WPL-R0905541
...
14
Switch Leaf WPL-R0905533
...
15
Switch, Interlock WPL-R0902506
...
16
Shield, Switch WPL-R0905534
...
17
Switch, Cycle WPL-R0902507
...
18
Lever, Timer WPL-R0905545
...
19
Cam, Timer WPL-R0904019
...
20
Timer WPL-R0904021
...
21
Ass`y, Light Pilot WPL-R0913100
...
22
Lens WPL-R0910061
...
23
Switch- Ro WPL-WP31986601B

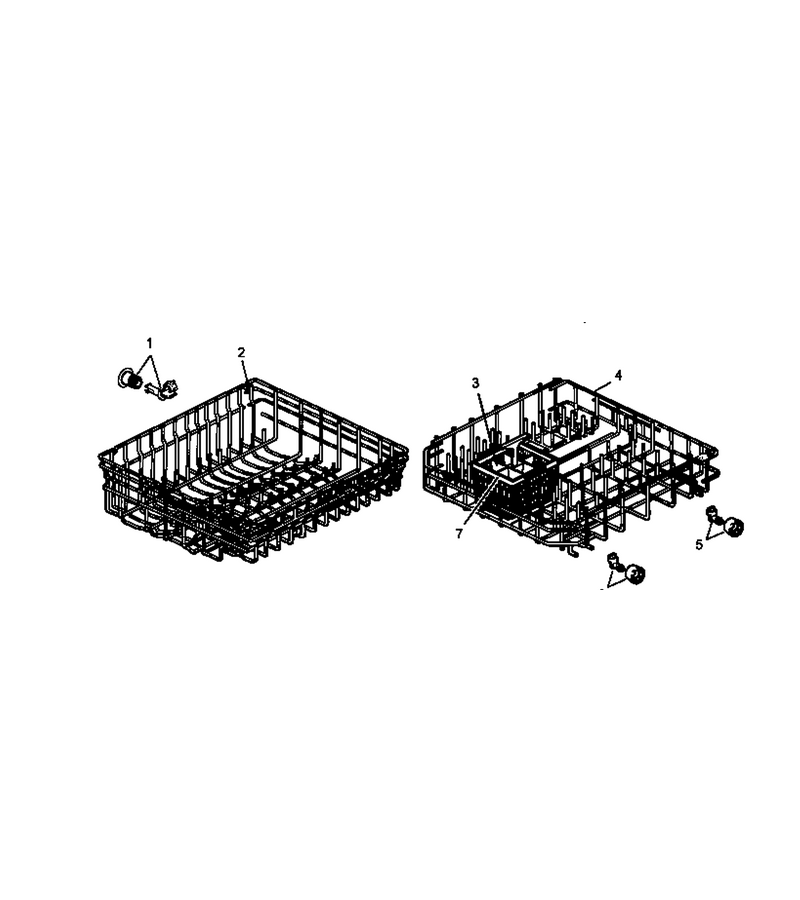

05 - Rack Assy

...
...
1
Wheel WPL-W10542232
...
2
Rack, Upper WPL-R0910126
...
3
Lid, Silverware Bskt WPL-R0904530
...
4
Rack, Lower WPL-R0910127
...
5
Roller WPL-W10882367
...
6
Lower Roller Assy WPL-R0910007
...
7
Basket, Silverware WPL-R0910060

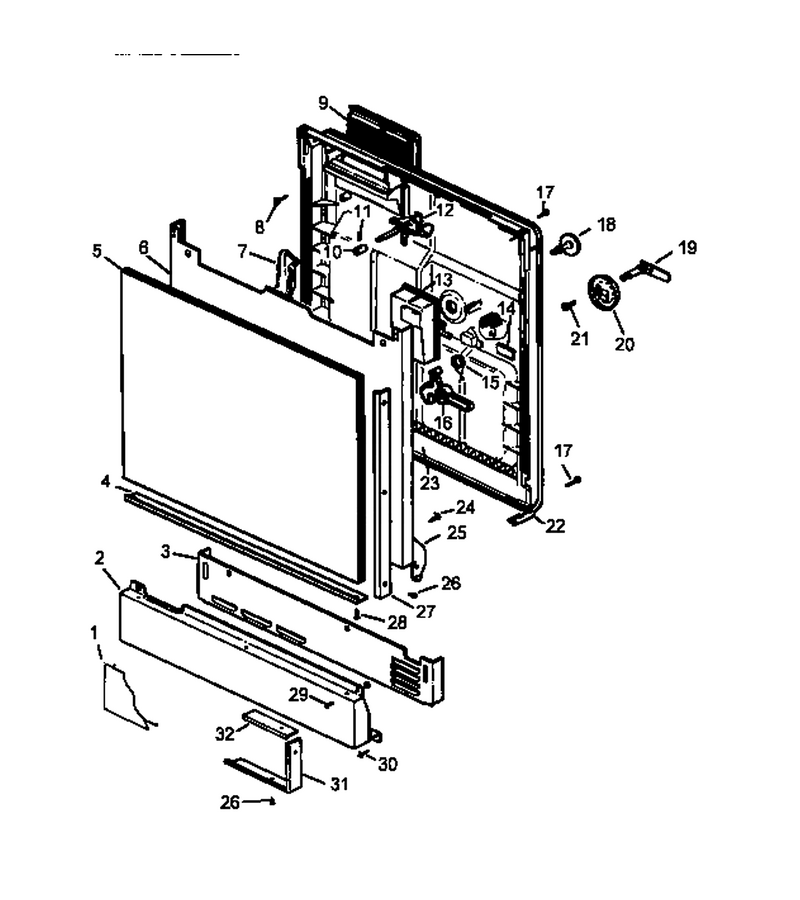

02 - Door Assy

...
...
1
Insert, Door Panel WPL-R0903019
...
2
Panel, Service WPL-R0903034
...
3
Assy, Toe Kick WPL-R0910138
...
4
Trim, Bottom Door WPL-R0905723
...
5
Insert, Door Panel WPL-R0903018
...
6
Assy, Outer Door WPL-R0910145
...
7
Conduit, Harness WPL-R0905726
...
8
Screw WPL-R0900009
...
9
Door Vent WPL-R0905536
...
10
Knob, Latch WPL-R0903532
...
11
Screw WPL-WP74004005
...
12
Latch, Assembly WPL-Y03000191
...
13
Injector, Rinse WPL-Y03000002
...
14
Deflecter WPL-R0905523
...
15
Trip Spring WPL-R0905542
...
16
Latch Detergent Cup WPL-R0905539
...
17
Screw WPL-R0900006
...
18
Assy Rinse Aid Disp. WPL-R0910155
...
19
Shaft Hand D Cup WPL-R0905615
...
20
Detergent Cup Cover WPL-R0910010
...
21
Screw WPL-R0900007
...
22
Door Gasket WPL-R0904507
...
23
Door, Inner WPL-R0910131
...
24
Screw, Hinge WPL-R0900052
...
25
(Right) WPL-WD14M4
...
26
Screw WPL-M0211530
...
27
Trim, Side Door WPL-R0905722
...
28
Screw WPL-W10856125
...
29
Screw WPL-R0900017
...
30
Kit, Screw WPL-R9800670
...
31
Trim Side/bottom-Sides WPL-Y03000033
...
32
Trim-Top Serv Panel WPL-R0905648

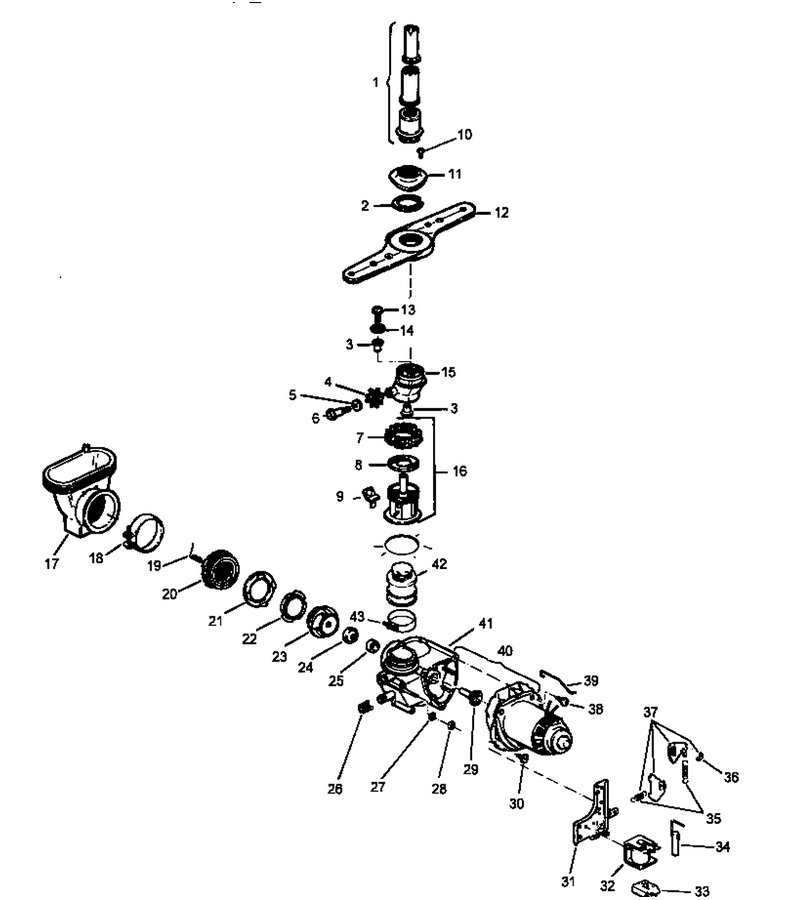

03 - Motor Pump/water Distribution Components

...
...
1
Center Spray Assy WPL-R0910017
...
2
Seal, Split Ring WPL-R0905557
...
3
Bearing WPL-R0905556
...
4
Pinion Gear WPL-R0910016
...
5
Washer WPL-R0900504
...
6
Screw WPL-R0900015
...
7
Nut WPL-R0901004
...
8
Seal Lower WPL-R0910029
...
9
Check Valve WPL-R0910037
...
10
Screw WPL-WPW10348409
...
11
Adapter Pwr Twr WPL-R0905558
...
12
Arm Epicyclic Assembly WPL-R0910146
...
13
Screw, Hub WPL-R0900045
...
14
Washer WPL-R0900502
...
15
Hub/pinion Assy WPL-R0905555
...
16
Supt & Nut Arm WPL-R0901009
...
17
Inlet, Sump WPL-Y03000224
...
18
Clamp WPL-WP696392
...
19
Spring, Cutter WPL-R0905521
...
20
Nut WPL-R0905563
...
21
Wear Ring Base WPL-R0905518
...
22
Wear Ring WPL-R0905520
...
23
Pump Impeller WPL-R0905519
...
24
Shaft Seal WPL-R0903503
...
25
Seal WPL-R0903502
...
26
Clamp WPL-R0901510
...
27
Seal, Shaft WPL-R0906504
...
28
Nut WPL-R0906510
...
29
Shaft Guard/slinger WPL-R0905564
...
30
Screw WPL-W10856125
...
31
Bracket-Solenoid WPL-R0905639
...
32
Solenoid WPL-Y03000185
...
33
Insul, Hsg Terminal WPL-R0903582
...
34
Armature & Link Assy WPL-R0905517
...
35
Spring, Gate Arm WPL-R0905529
...
36
Retainer WPL-R0901503
...
37
Gate Valve Arm Kit WPL-Y03000032
...
38
Screw WPL-R0900007
...
39
Hanger Mechanism WPL-R0905712
...
40
Motor-Pump WPL-WPY03000182
...
41
Motor/pump Assy Dishwa WPL-R0910001
...
42
Connector, Pump WPL-R0903520
...
43
Clamp WPL-WP696392
