Amana CC12H (BOM: P1100201S)

Model: CC12H (BOM: P1100201S)

Save Part Not Listed?
product name

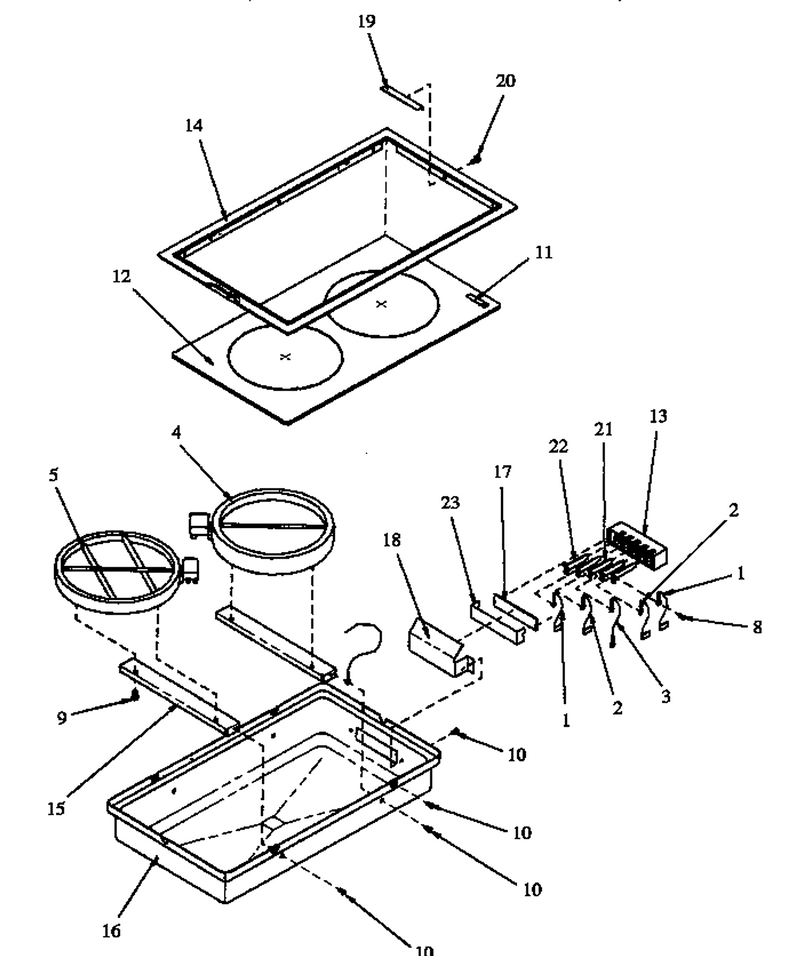

01 - Halogen Module

...
...
NI
Limiter WPL-0312936
...
1
Jumper Wire WPL-0312317
...
2
Jumper Wire WPL-0312318
...
3
Jumper Wire WPL-D8601237
...
4
Quick Star Assy WPL-YD8603105
...
5
Assy, Halogen WPL-Y0307396
...
8
Screw WPL-WP3400882
...
9
Screw, Shoulder WPL-0306212
...
10
Screw, No.6-20 X .375 Panhd(Blk) WPL-Y0092373
...
11
Tape, Vinyl Foam, Roll WPL-Y0307330
...
12
Cooktop, Ceramic WPL-307740B
...
13
Module, Plug Block WPL-Y0314569
...
14
Frame, Chrome Mod. WPL-300752R
...
15
Element Mtg. Brkt WPL-0040970
...
16
Module Pan, Electric WPL-31907501
...
17
Insulator Shield WPL-0312330
...
18
Plug Block Mtg Brkt WPL-Y0040964
...
19
Support Glass WPL-0312338
...
20
Screw WPL-M0230015
...
21
Contact, Spade-Ground WPL-Y0052041
...
22
Contact, Spade-Ground WPL-Y0052041
...
23
Tape, Glass Cloth, 1/2`` X 60 Y WPL-Y0078470
