product name

Amana CC-7 (BOM: P2727118S)

Model: CC-7 (BOM: P2727118S)

Save Part Not Listed?
product name

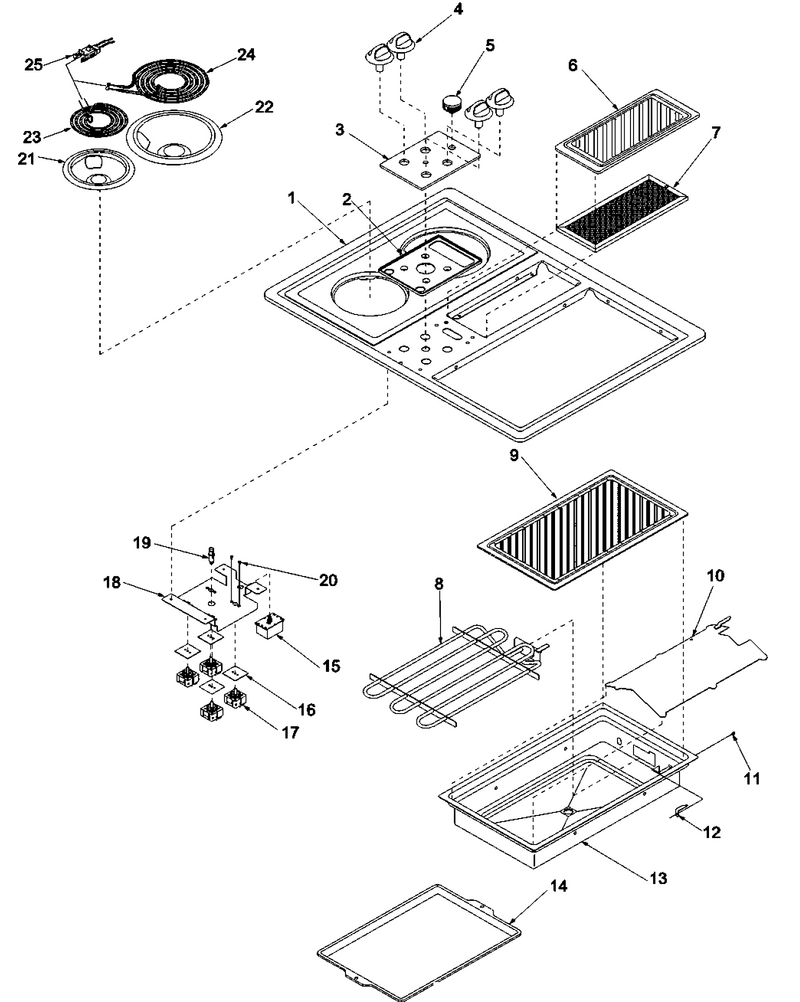

11 - Main Top

...
...
NI
Shield, Switch-Variable WPL-31726301
...
1
Maintop, 30`` S/mod (Wht) WPL-315627W
...
2
Frame-Glass Control Panel(Blk) WPL-315725B
...
3
Glass, Control Panel (Wht) WPL-315691W
...
4
Knob,infinite Switch WPL-31760502B
...
5
Knob, Fan Switch (Black) WPL-31760707B
...
6
Cover, Vent Elec (Casting) WPL-315693G
...
7
Filter, Exhaust (Blk) WPL-315689B
...
8
Element- G WPL-77001104
...
9
Grille, Low Smk Elec (Casting) WPL-315692G
...
10
Insert, Griddle (W/strike) WPL-31761301CG
...
11
Screw, No.6-32 X .250 Pan Hd Ph WPL-Y0041785
...
12
Strike, Grille Pan WPL-31892401
...
13
Module Pan WPL-31907601CG
...
14
Pan, Grease Kgt591 WPL-32067501
...
15
Control, Fan Speed Variable WPL-Y0316913
...
16
Switch Gas WPL-31953701
...
17
Switch- In WPL-WP74011243
...
18
Brkt, Switch Mtg WPL-Y0315723
...
19
Light, Indicator (Red) WPL-Y0316314
...
20
Screw WPL-WP488234
...
21
Bowl-Drip WPL-W10291024
...
22
Bowl-Drip WPL-WPW10290350
...
23
Elmnt-Surf WPL-WPW10259868
...
24
Elmnt-Surf WPL-WP3191454
...
25
Receptacle WPL-330031

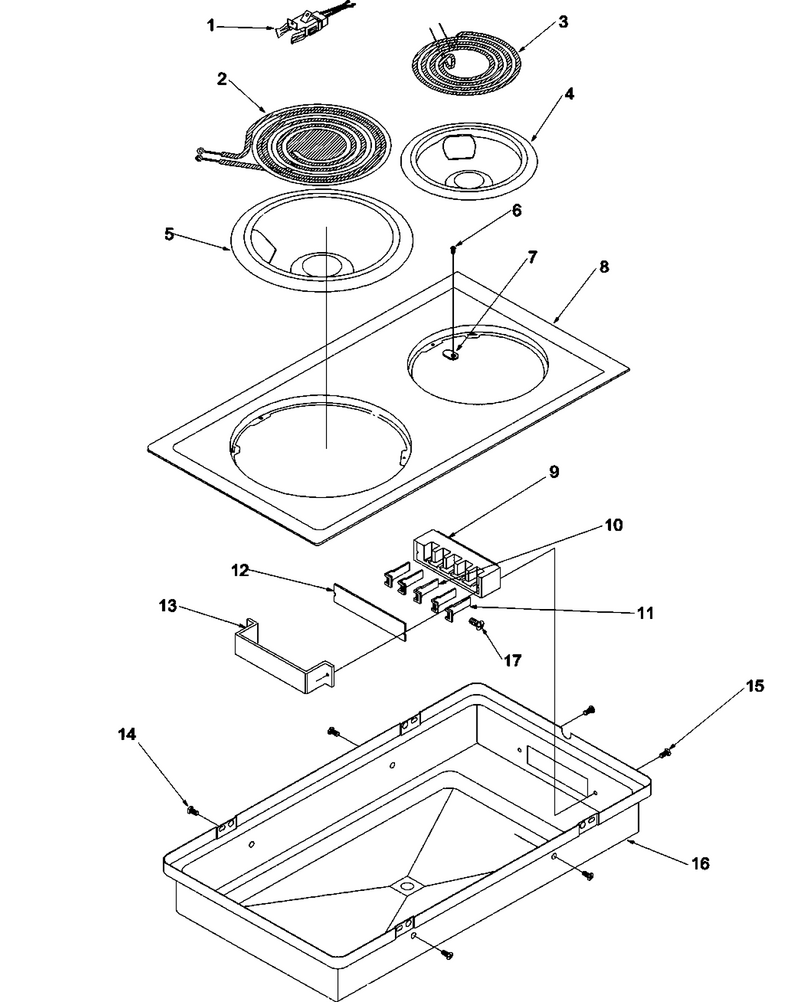

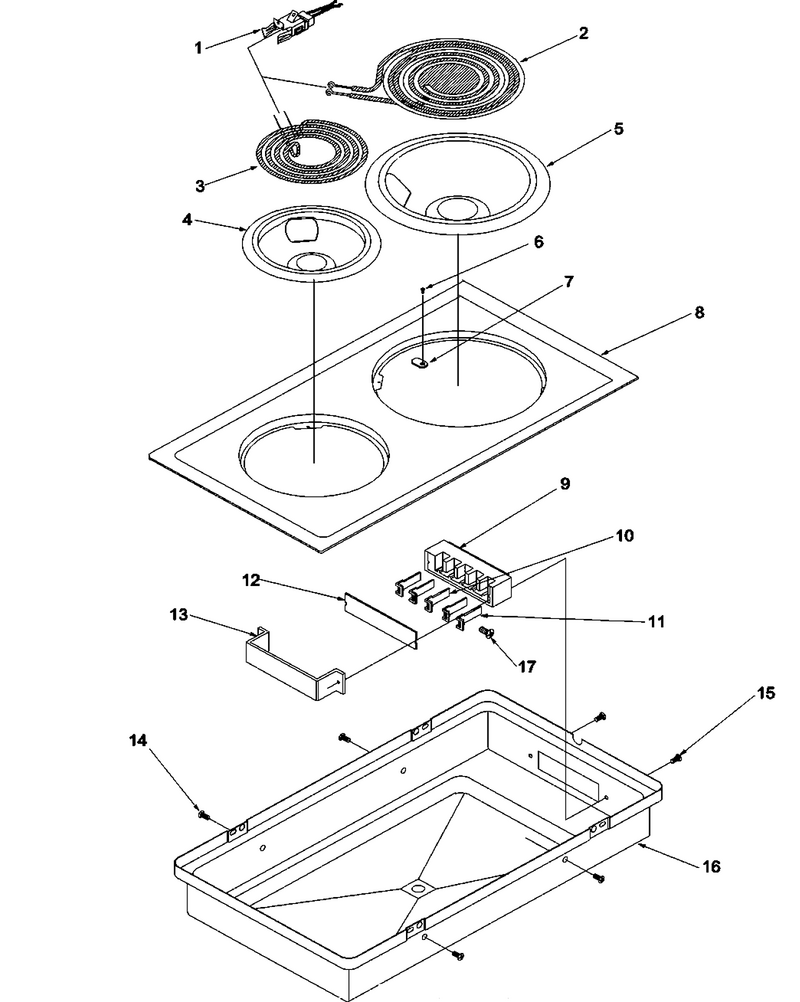

04 - Acr110(electric Coil, 8``/6``)

...
...
NI
Screw, No.6-32 X .250 Pan Hd Ph WPL-Y0041785
...
1
Receptacle WPL-330031
...
2
Elmnt-Surf WPL-WP3191454
...
3
Elmnt-Surf WPL-WPW10259868
...
4
Bowl-Drip WPL-W10290353RW
...
5
Bowl-Drip WPL-WPW10290350
...
6
Tapng Screw 6 32x1/2 Ph P Hd WPL-0041786
...
7
Nut K WPL-M0282005
...
8
Top, Module (Black) WPL-32006801B
...
9
Module, Plug Block WPL-Y0314569
...
10
Contact, Spade-Ground WPL-Y0052041
...
11
Contact, Spade-Ground WPL-Y0052041
...
12
Insulator-Cooktop Module WPL-Y0041994
...
13
Plug Block Mtg Brkt WPL-Y0040964
...
14
Metal Screw 6x3/8 Phil Pan Hd WPL-Y0041796
...
15
Screw WPL-W11245710
...
16
Module Pan, Electric WPL-31907501
...
17
Screw WPL-WP3400882

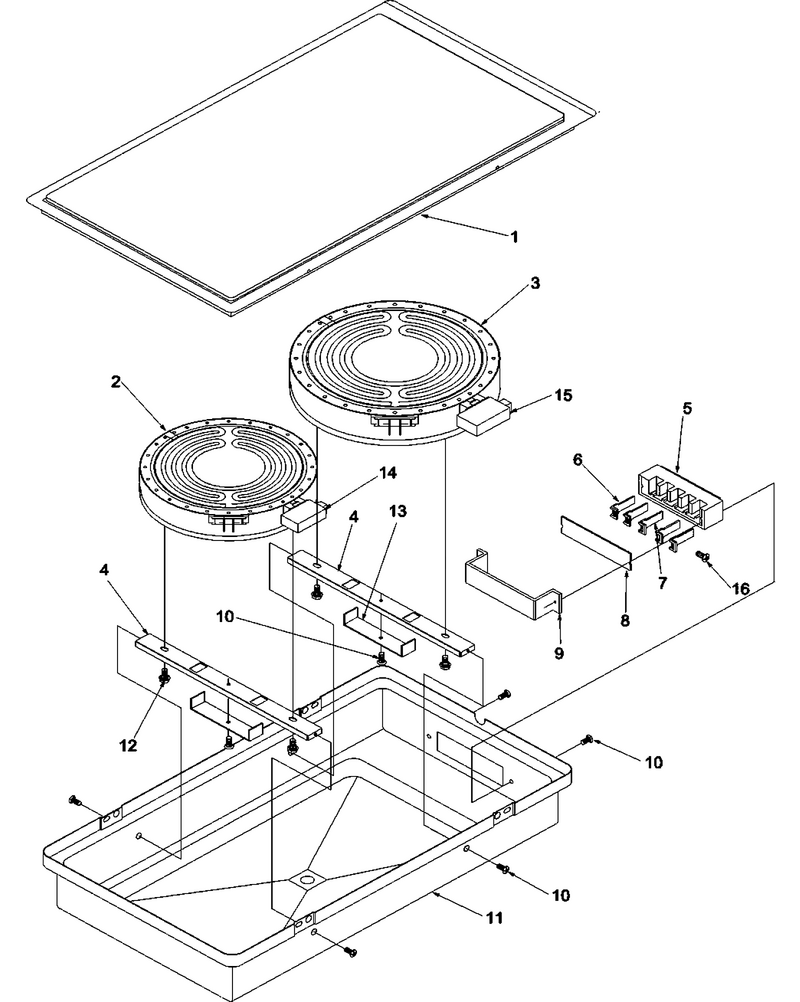

06 - Act110(ribbon Radiant, 8``/6``)

...
...
NI
Screw WPL-WP8281227
...
1
Assy, Frame & Glass (White) WPL-316134W
...
2
Element, Ribbon 1200w WPL-0316131
...
3
Elmnt-Surf WPL-W10823710
...
4
Brkt, Element Mtg WPL-Y0316133
...
5
Module, Plug Block WPL-Y0314569
...
6
Contact, Spade-Ground WPL-Y0052041
...
7
Contact, Spade-Ground WPL-Y0052041
...
8
Insulator-Cooktop Module WPL-Y0041994
...
9
Plug Block Mtg Brkt WPL-Y0040964
...
10
Screw WPL-W11245710
...
11
Module Pan, Electric WPL-31907501
...
12
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
13
Spring, Element WPL-Y0306683
...
14
Tod, Limiter D014 WPL-0316904
...
15
Tod, Limiter C017 WPL-0316903
...
16
Screw WPL-WP3400882

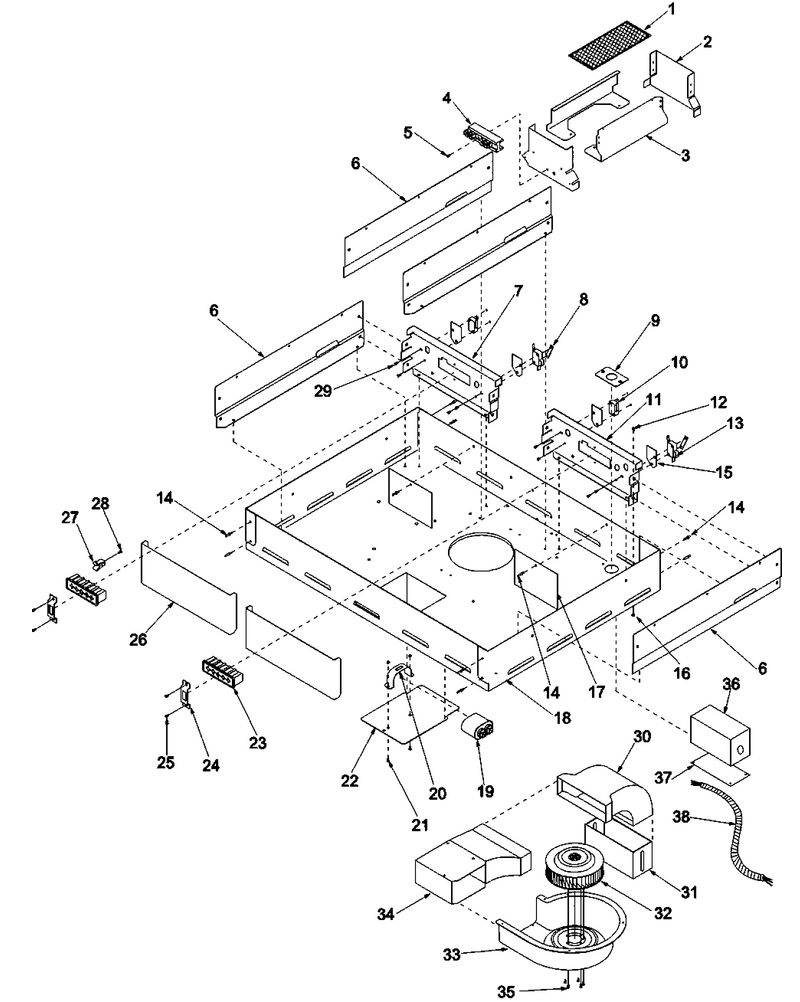

08 - Cavity

...
...
NI
Harness, Fan Control WPL-Y0315701
...
1
Shield, Fan WPL-Y0316901
...
2
Plenum, End WPL-31756001
...
3
Plenum, Side WPL-32042101
...
4
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
5
Screw WPL-WP400021-1
...
6
Shield, Control & Plenum WPL-0315707
...
7
Plug Block Baffle Rh WPL-31727901
...
8
Nut, Speed No.4-40 (Blk) WPL-31750107
...
9
Plate, Conduit Mtg. WPL-Y0316849
...
10
Switch, Smoke Cntl Intlk WPL-31724201
...
11
Plug Block Baffle Rh WPL-31727901
...
12
Screw, No.10-32x1/2 (Pan Ph Hd) WPL-Y0316004
...
13
Switch, Interlock (S.p.d.t.) WPL-Y0308371
...
14
Rivet, Pop WPL-Y0097822
...
15
Insulation, Esm WPL-Y0091523
...
16
Hex Nut (Nkl) WPL-31750124
...
17
Insulation Board WPL-Y0041997
...
18
Burner Box-Gas WPL-77001141
...
19
Motor Capacitor-Fan WPL-0316874
...
20
Brkt, Capacitor WPL-0317082
...
21
Screw No.8 - 18 X .250 WPL-Y0061164
...
22
Pnl, Access WPL-0316489
...
23
Plug Block Modular Top WPL-Y0042210
...
24
Plug Block Mtg Brkt Et590 595 WPL-Y0040965
...
25
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
26
Shield, Front WPL-31788701
...
27
Element, Contact-Module Top WPL-Y0042123
...
28
Screw WPL-WP3400882
...
29
Screw, Tt 23 4-40 X 5/8 WPL-Y0065664
...
30
Transition, Blower 90 Deg WPL-0316641
...
31
Transition, Adj Hsg WPL-0316662
...
32
Assy, Fan/motor WPL-Y0315697
...
33
Housing, Blower WPL-0315711
...
34
Transition, Blower WPL-0315696
...
35
Screw (Plain M4 Metric .236) WPL-31750722
...
36
Box, Junction-Motor WPL-31755001
...
37
Cover,j-Box (Fan Mtr) WPL-Y0316912
...
38
Assy, Conduit WPL-Y0315698

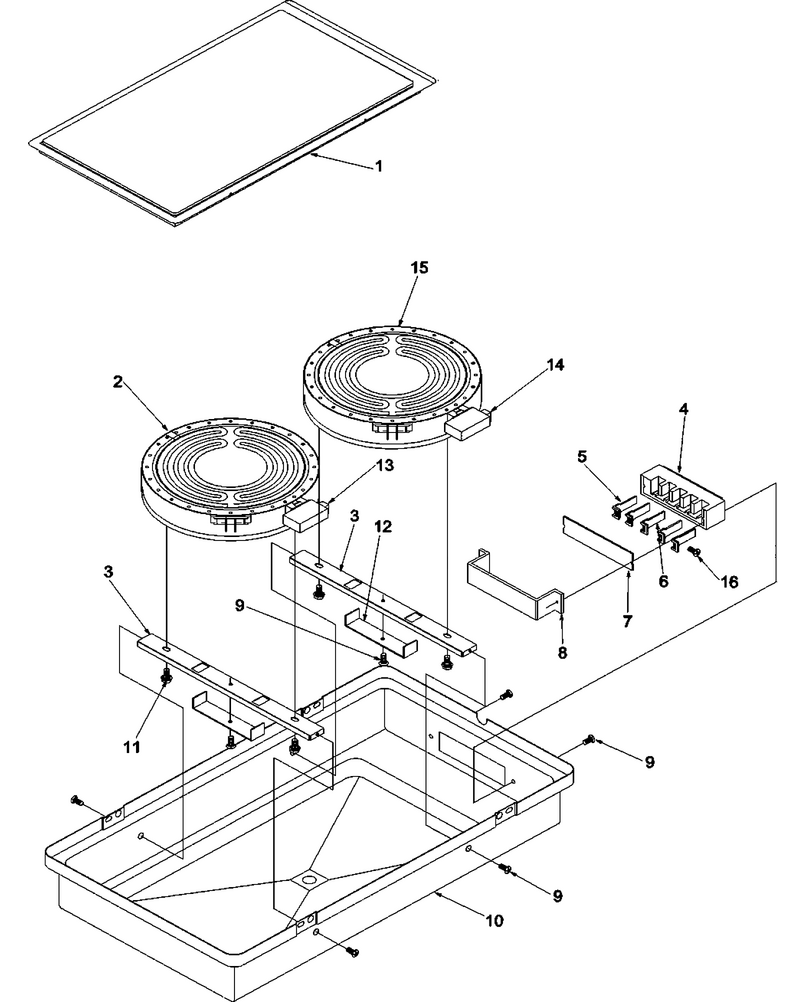

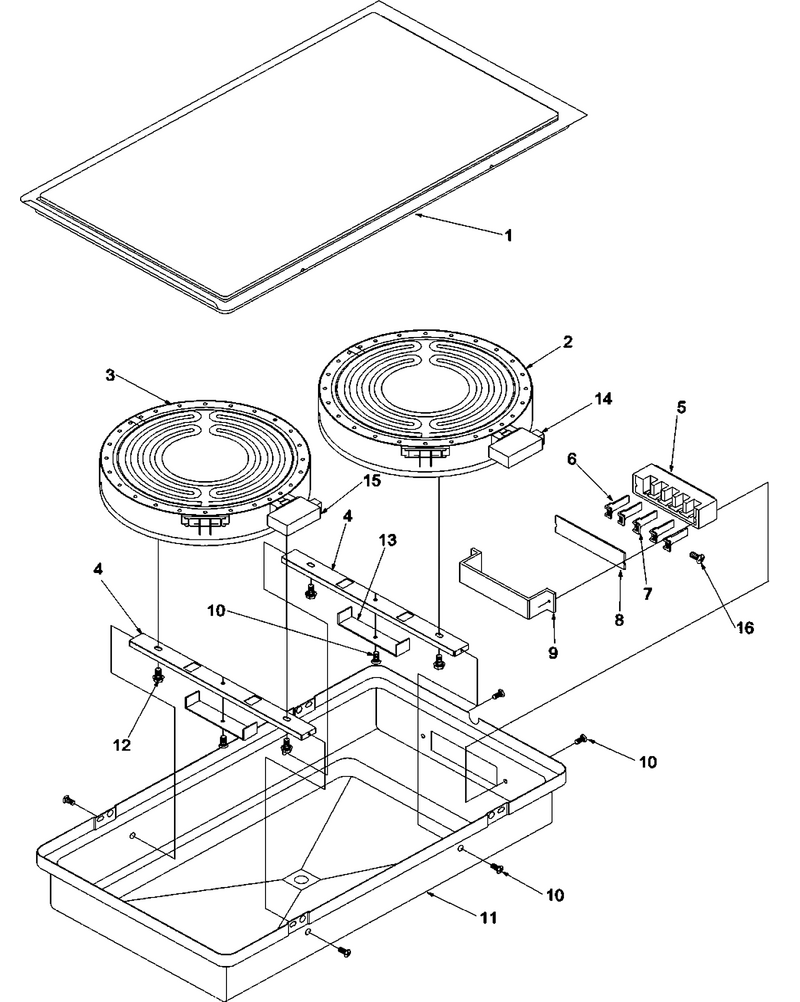

10 - Cc14(ribbon Radiant)

...
...
NI
Cleaner, Cooktop WPL-W10355051
...
1
Assy, Frame & Glass WPL-315187W
...
2
Element- R WPL-32082601
...
3
Brkt, Element Mtg WPL-Y0315186
...
4
Module, Plug Block WPL-Y0314569
...
5
Contact, Spade-Ground WPL-Y0052041
...
6
Contact, Spade-Ground WPL-Y0052041
...
7
Insulator-Cooktop Module WPL-Y0041994
...
8
Bracket, Plug Blk. Mtg. WPL-0061496
...
9
Screw WPL-W11245710
...
10
Module Pan, Electric WPL-31907501
...
11
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
12
Spring, Element WPL-Y0306683
...
13
Limiter WPL-0316685
...
14
Screw WPL-WP3400882

03 - Acr100(electric Coil, 6``/8``)

...
...
NI
Cable, Clip Esm WPL-Y0091587
...
1
Receptacle WPL-330031
...
2
Elmnt-Surf WPL-WP3191454
...
3
Elmnt-Surf WPL-WPW10259868
...
4
Bowl-Drip WPL-W10290353RW
...
5
Bowl-Drip WPL-WPW10290350
...
6
Tapng Screw 6 32x1/2 Ph P Hd WPL-0041786
...
7
Nut K WPL-M0282005
...
8
Module Top, Coil Element (Wht) WPL-31987402W
...
9
Module, Plug Block WPL-Y0314569
...
10
Contact, Spade-Ground WPL-Y0052041
...
11
Contact, Spade-Ground WPL-Y0052041
...
12
Insulator-Cooktop Module WPL-Y0041994
...
13
Plug Block Mtg Brkt WPL-Y0040964
...
14
Metal Screw 6x3/8 Phil Pan Hd WPL-Y0041796
...
15
Screw WPL-W11245710
...
16
Module Pan, Electric WPL-31907501
...
17
Screw WPL-WP3400882

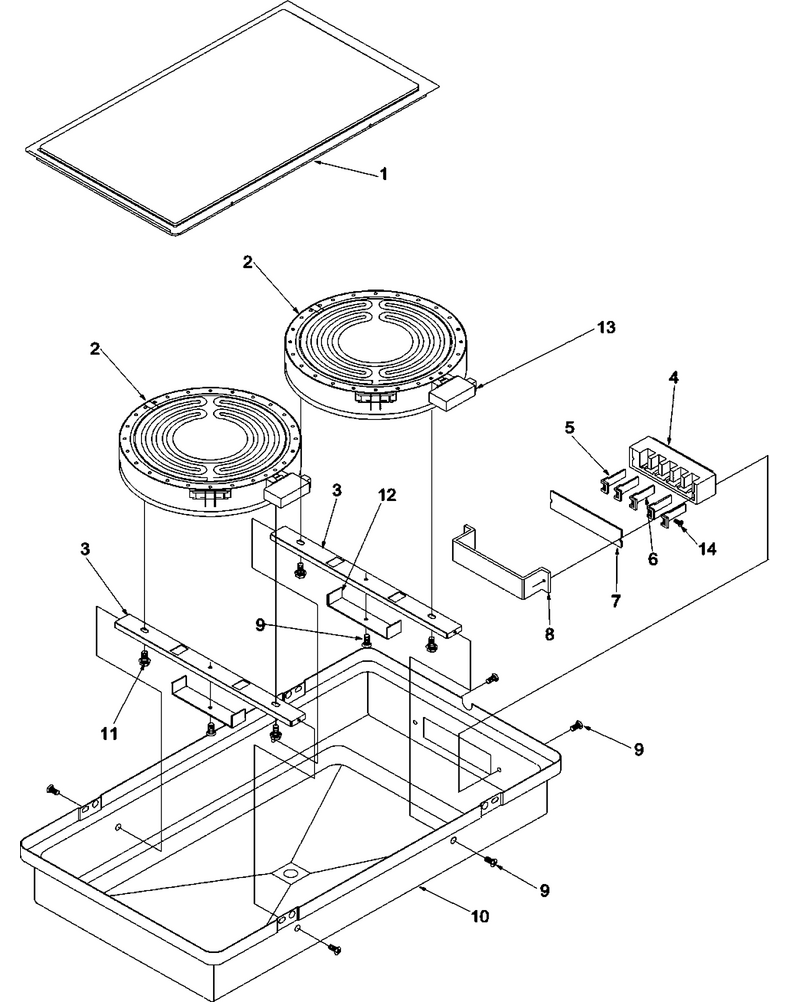

05 - Act100(ribbon Radiant, 6``/8``)

...
...
NI
Cleaner, Cooktop WPL-W10355051
...
1
Assy, Module Top (Black) WPL-31729801B
...
2
Element, Ribbon 1200w WPL-0316131
...
3
Elmnt-Surf WPL-W10823710
...
4
Brkt, Element Mtg WPL-Y0316133
...
5
Module, Plug Block WPL-Y0314569
...
6
Contact, Spade-Ground WPL-Y0052041
...
7
Contact, Spade-Ground WPL-Y0052041
...
8
Insulator-Cooktop Module WPL-Y0041994
...
9
Plug Block Mtg Brkt WPL-Y0040964
...
10
Screw WPL-W11245710
...
11
Module Pan, Electric WPL-31907501
...
12
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
13
Spring, Element WPL-Y0306683
...
14
Tod, Limiter D014 WPL-0316904
...
15
Tod, Limiter C017 WPL-0316903
...
16
Screw WPL-WP3400882

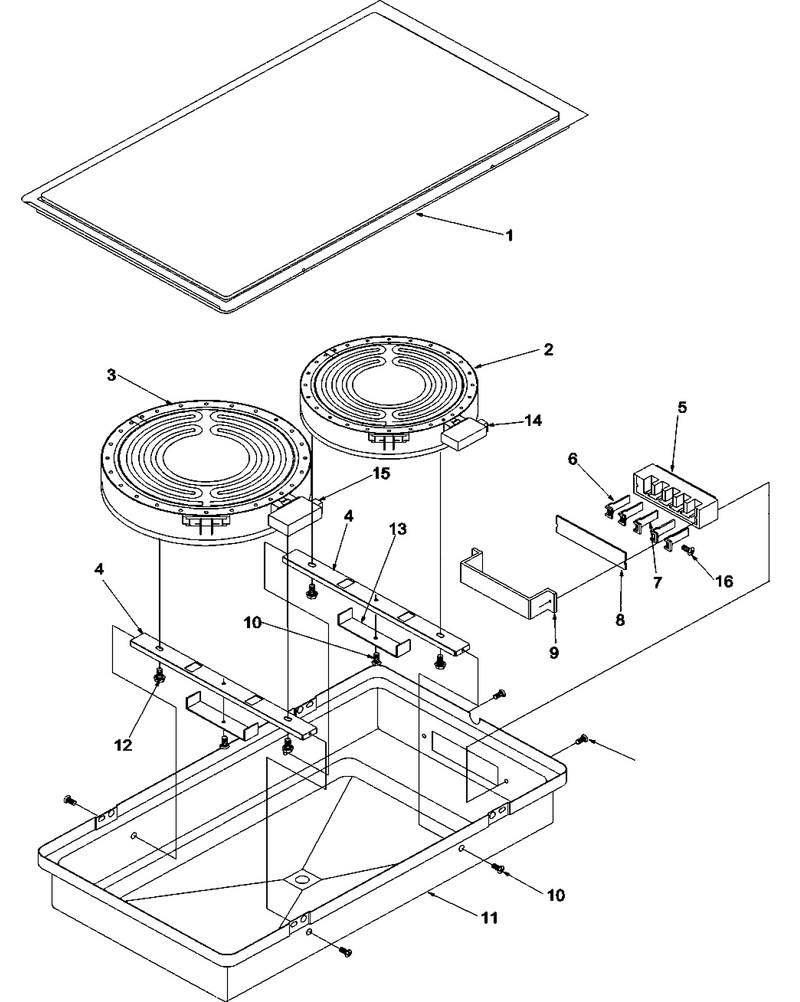

02 - Ach100(halogen/radiant, 8``/6``)

...
...
NI
Cleaner, Cooktop WPL-W10355051
...
1
Assy, Module Top (Black) WPL-31729801B
...
2
Element, Ribbon 1200w WPL-0316131
...
3
Elmnt-Surf WPL-W10823698
...
4
Brkt, Element Mtg WPL-Y0316133
...
5
Module, Plug Block WPL-Y0314569
...
6
Contact, Spade-Ground WPL-Y0052041
...
7
Contact, Spade-Ground WPL-Y0052041
...
8
Insulator-Cooktop Module WPL-Y0041994
...
9
Plug Block Mtg Brkt WPL-Y0040964
...
10
Screw WPL-W11245710
...
11
Module Pan, Electric WPL-31907501
...
12
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
13
Spring, Element WPL-Y0306683
...
14
Tod, Limiter D014 WPL-0316904
...
15
Limiter, 18t WPL-Y0316815
...
16
Screw WPL-WP3400882

09 - Cc12hrx1(quartz Halogen)

...
...
NI
Cleaner, Cooktop WPL-W10355051
...
1
Assy, Frame & Glass WPL-315187W
...
2
Assy, Haloring Heater Element WPL-Y0307265
...
3
Brkt, Element Mtg WPL-Y0315186
...
4
Module, Plug Block WPL-Y0314569
...
5
Contact, Spade-Ground WPL-Y0052041
...
6
Contact, Spade-Ground WPL-Y0052041
...
7
Insulator-Cooktop Module WPL-Y0041994
...
8
Bracket, Plug Blk. Mtg. WPL-0061496
...
9
Screw WPL-W11245710
...
10
Module Pan, Electric WPL-31907501
...
11
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
12
Spring, Element WPL-Y0306683
...
13
Limiter, Halogen Element WPL-Y0312334
...
14
Limiter WPL-0316685
...
15
Element- R WPL-32082601
...
16
Screw WPL-WP3400882

...
...
NI
Griddle, Silvertone WPL-Y0043500

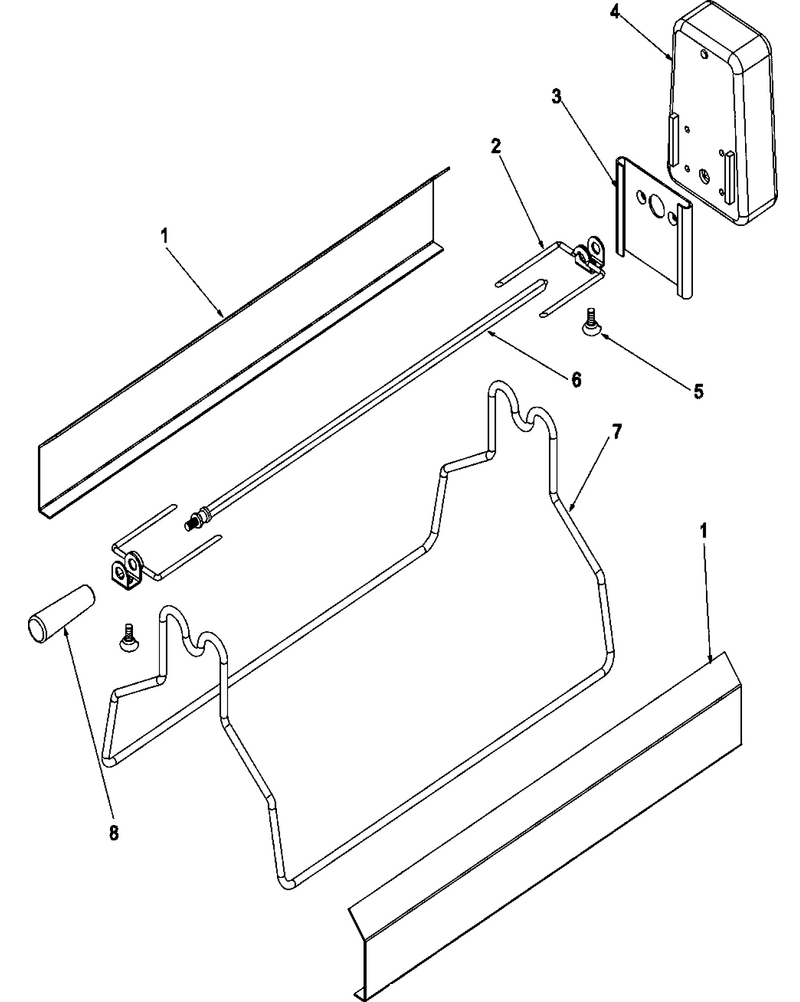

07 - Acx100(rotisserie)

...
...
NI
Inst.instr-Griddle/rotisserie WPL-31743401
...
1
Shield,rotisserie Heat WPL---
...
2
Skewer WPL-0042747
...
3
Motor Mtg Blkt Xst310 WPL-0040974
...
4
Rotisserie Motor WPL-Y0301074
...
5
Screw 1/4 20x1/2 Thumb WPL-0041770
...
6
Spit WPL-302713J
...
7
Rotiss Rack Xst310 WPL-0042721
...
8
Handle WPL-0302714
