Amana CC-1 (BOM: P2727101S)

Model: CC-1 (BOM: P2727101S)

Save Part Not Listed?
product name

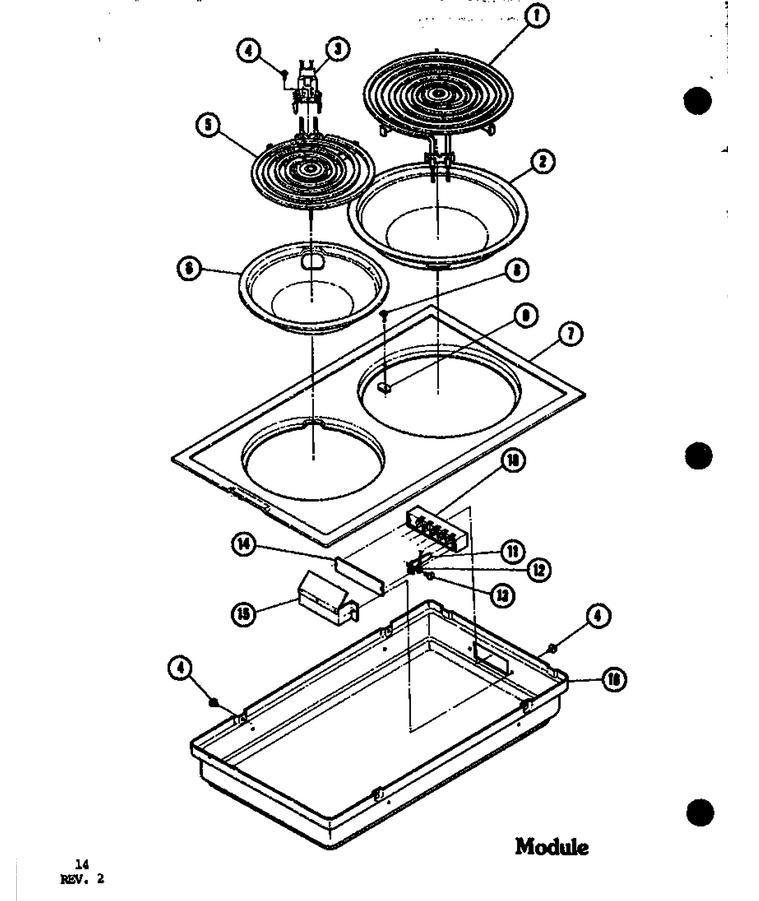

01 - Module

...
...
NI
Harness, Wire WPL-Y0309968
...
1
Elmnt-Surf WPL-WP3191454
...
2
Bowl-Drip WPL-WPW10196405
...
3
Bracket WPL-W10116809
...
4
Screw, No.6-32 X .250 Pan Hd Ph WPL-31750303
...
5
Elmnt-Surf WPL-WPW10259868
...
6
Bowl-Drip WPL-WPW10196406
...
7
Module Top, Brushed Chrome WPL-300753K
...
8
Tapng Screw 6 32x1/2 Ph P Hd WPL-R0157934
...
9
Weld Nut 6-32 Can Tops WPL-R0157935
...
10
Module, Plug Block WPL-Y0314569
...
11
Contact, Spade-Ground WPL-Y0052041
...
12
5644044 W.j. WPL-R0157924
...
13
Screw WPL-WP3400882
...
14
Insulator-Cooktop Module WPL-Y0041994
...
15
Plug Block Mtg Brkt WPL-Y0040964
...
16
Module Pan, Electric WPL-31907501
