Amana CBE26DB5 (BOM: P1137947N L)

Model: CBE26DB5 (BOM: P1137947N L)

Save Part Not Listed?

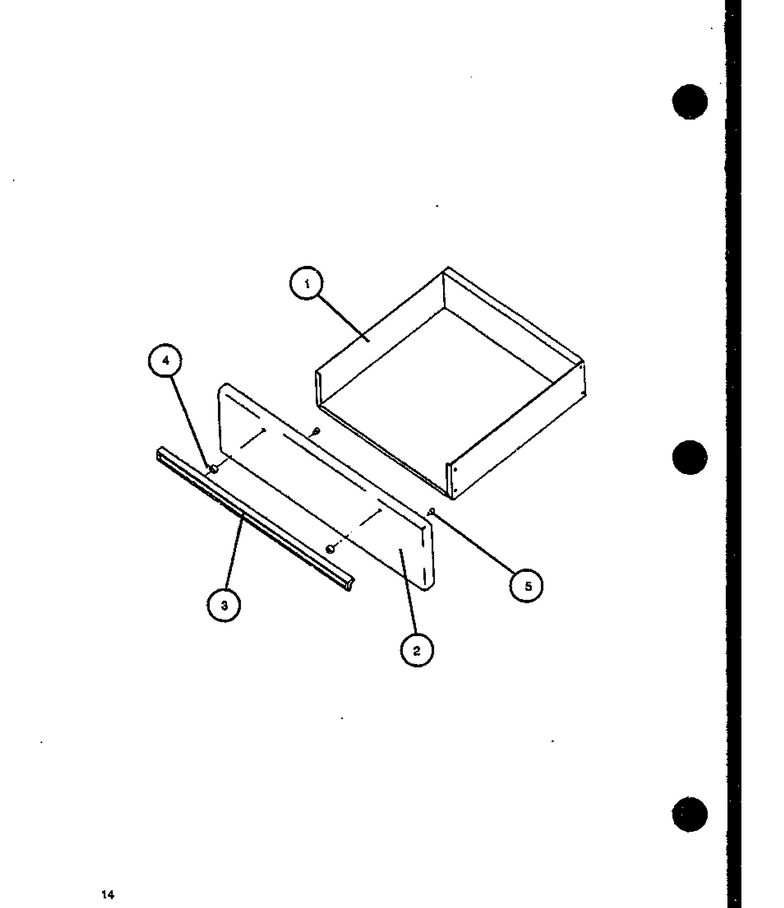

product name

06 - Page 7

...
...
NI
Track, Upper R.h. (Elec) WPL-0310519
...
1
Storage Drawer WPL-Y0310537
...
2
Panel, Storage Drawer WPL-310535L
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Handle Spacer, Plastic (J) WPL-Y0310818
...
5
Bumper-Rubber 1/4`` WPL-Y02068200

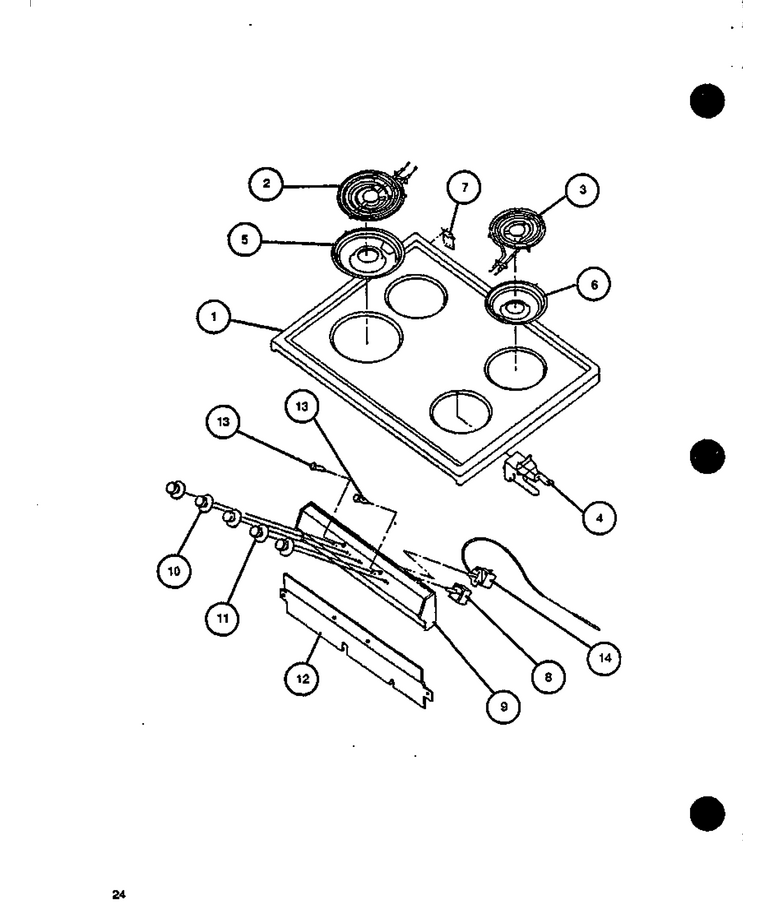

02 - Page 12

...
...
NI
Wire Harness WPL-Y0312804
...
1
Main Top, Almond WPL-086931L
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Manifold Panel, 30`` WPL-Y0310481
...
10
Knob WPL-WP4179304
...
11
Knob, Thermostat WPL-0086943
...
12
Switch Cover WPL-Y0086935
...
13
Light, Indicator WPL-Y0088777
...
14
Thermo-Elect. WPL-0088758

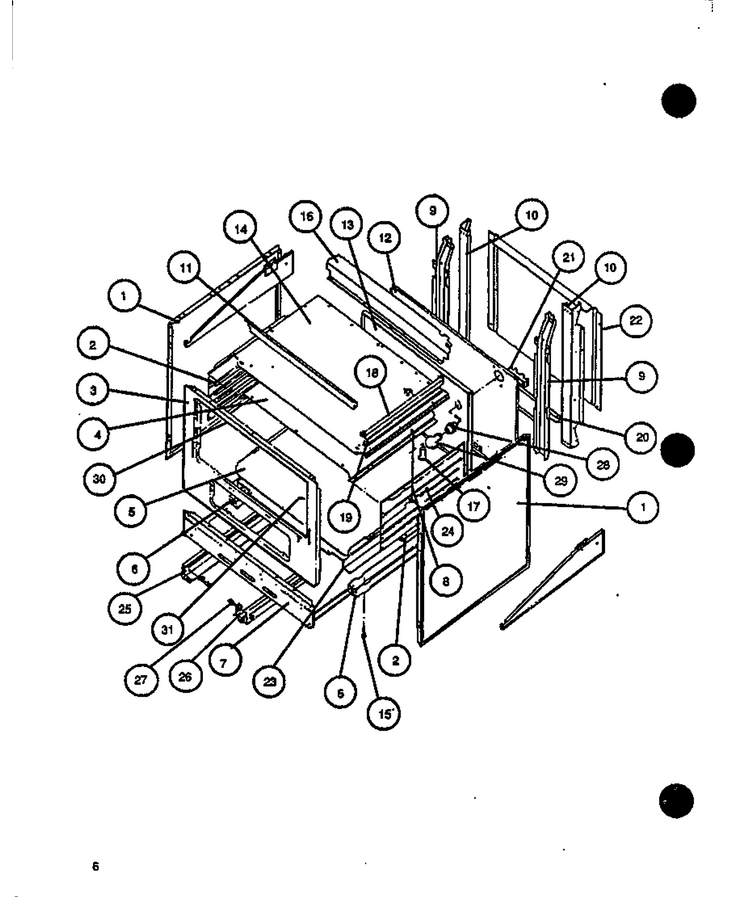

04 - Page 2

...
...
NI
Snap-In Tee Nut WPL-Y0088571
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
3
See Note Main Front -- (Not Field Replaceable) WPL-Y00000000
...
4
Liner, Oven Top WPL-310096E
...
5
Liner, Oven Bottom WPL-88898CG
...
6
Rail, Base WPL-0088654
...
7
Toe Panel (J) WPL-0052744
...
8
Support Rod WPL-0087023
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Switch Cover WPL-Y0086935
...
12
Main Back WPL-Y0088752
...
13
Oven Backliner WPL-311030E
...
14
Burner Box, Bottom Elect. WPL-311002E
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Rear Burner Box WPL-311014E
...
17
Tube, Oven Vent WPL-Y0056015
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire WPL-0312153
...
21
Block-Term WPL-WP8203546
...
22
Cover Wire WPL-Y0088833
...
23
Support, Oven Bottom Insul. WPL-Y0088820
...
24
Shoulder Screw WPL-0088779
...
25
Track, Lower L.h. WPL-0310522
...
26
Track, Lower R.h. WPL-Y0310523
...
27
See Note Roller And Rivet -- (Part Of Track Assembly) WPL-Y00000000
...
30
Seal, Oven Door WPL-0056089
...
31
Seal, Oven-Sides WPL-Y0056090

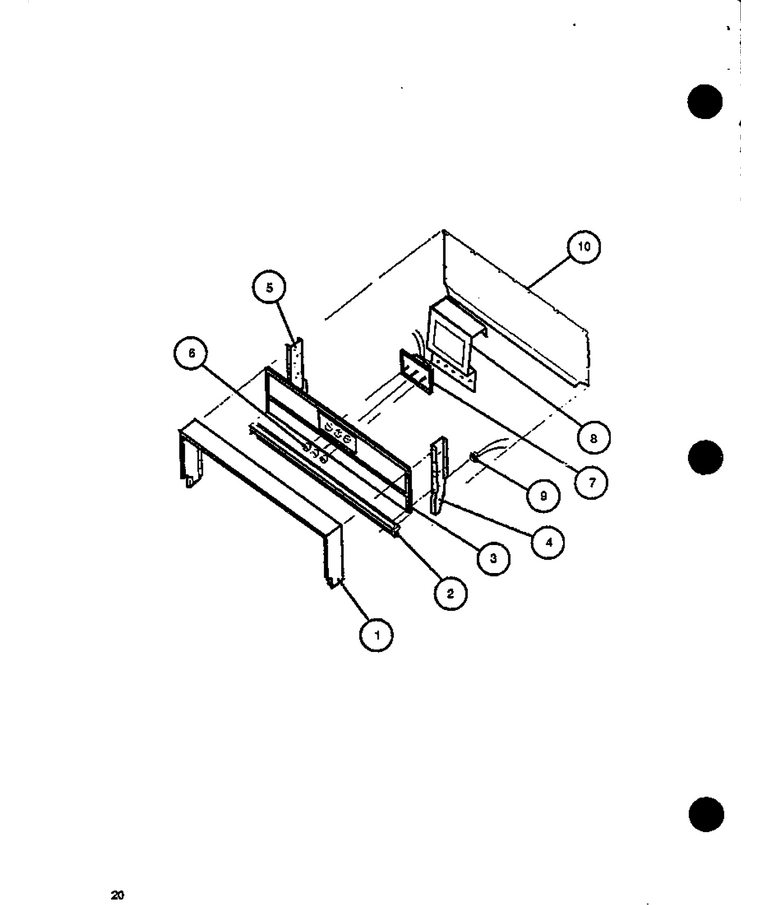

01 - Page 10

...
...
NI
Logo Backguard Glass WPL-Y0312813
...
1
Frame, Backguard, 6`` WPL-Y0310467
...
2
Base-Bkgd, 30`` W/holes WPL-Y02331026B
...
3
Glass, Backguard, 6`` WPL-Y0310508
...
4
Support, Backguard, 6`` Rh WPL-Y0310453
...
5
Support, Backguard, 6`` Lh WPL-Y0310454
...
7
Clock Timer 120/60 WPL-Y0310492
...
8
Bracket, Clock WPL-Y0310452
...
9
Pin, Connector WPL-M0335315
...
10
Wire Cover 6`` WPL-Y0310460

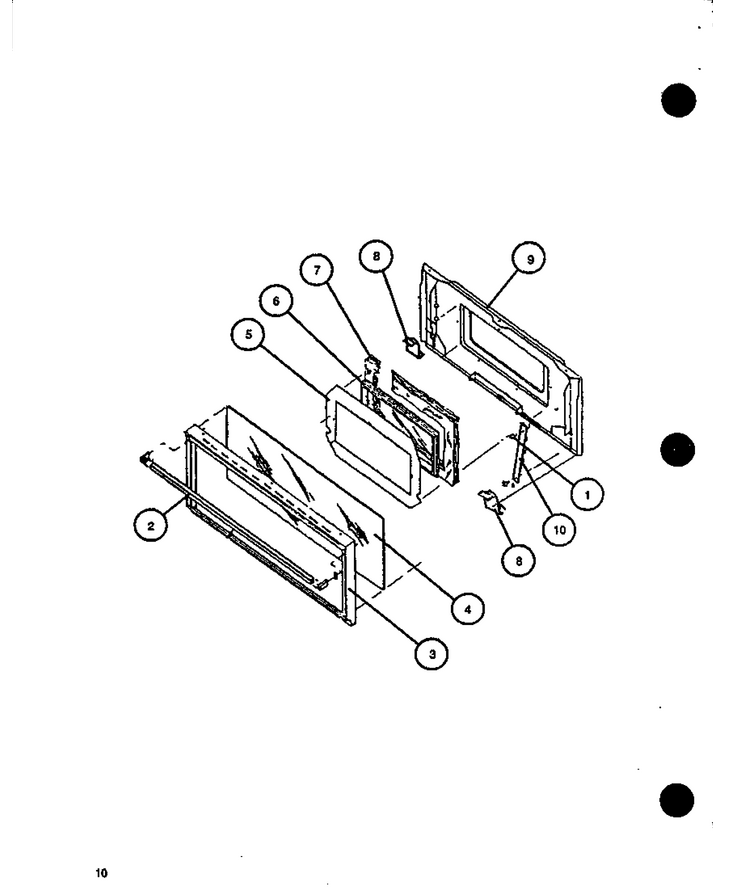

05 - Page 4

...
...
NI
Hinge, Oven Door WPL-Y07489700
...
1
Bumper-Rubber 1/4`` WPL-Y02068200
...
2
Handle, Door (J) WPL-Y0057315
...
3
Frame, Oven Door, 30`` {j} WPL-Y0312047
...
4
Glass, Oven Door 30`` WPL-Y07642502
...
5
Ring, Insulation Hold Down WPL-0312043
...
7
Insulation, Wrapper WPL-31975801
...
8
Bracket, Bumper Mount {j} WPL-Y0311752
...
9
Backer, Oven Door WPL-312046E

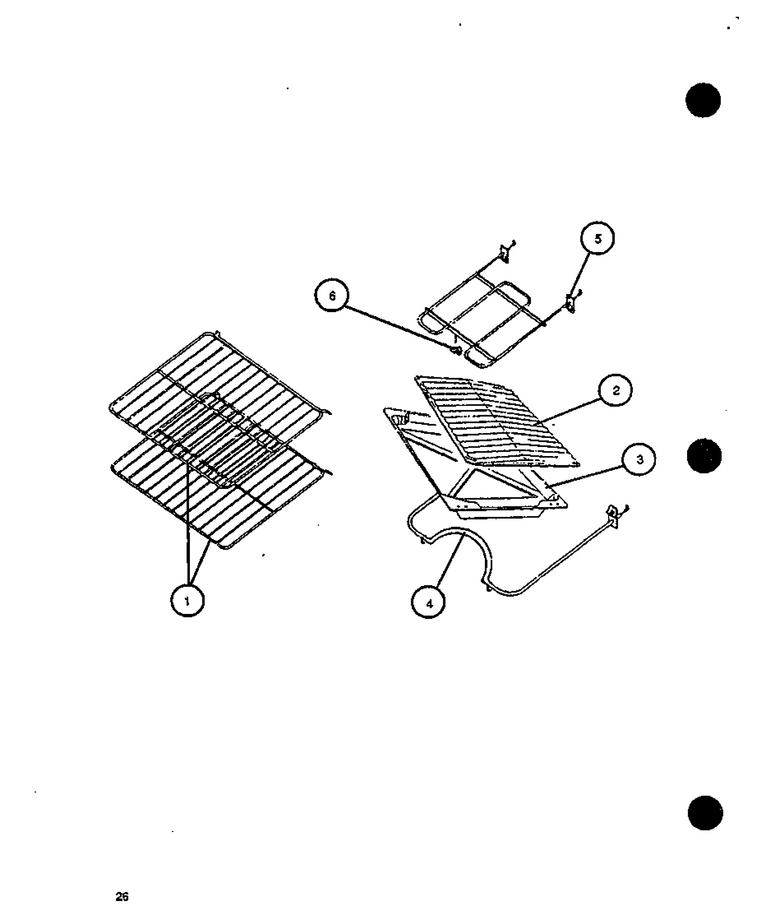

03 - Page 13

...
...
NI
Disc, Thermo WPL-0053357
...
1
Rack, Oven, 30`` WPL-Y07671200
...
3
Pan, Broiler WPL-87722CG
...
4
Element- B WPL-WPY07409600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
