product name

Amana CBE26AA0 (BOM: P1137946N W)

Model: CBE26AA0 (BOM: P1137946N W)

Save Part Not Listed?
product name

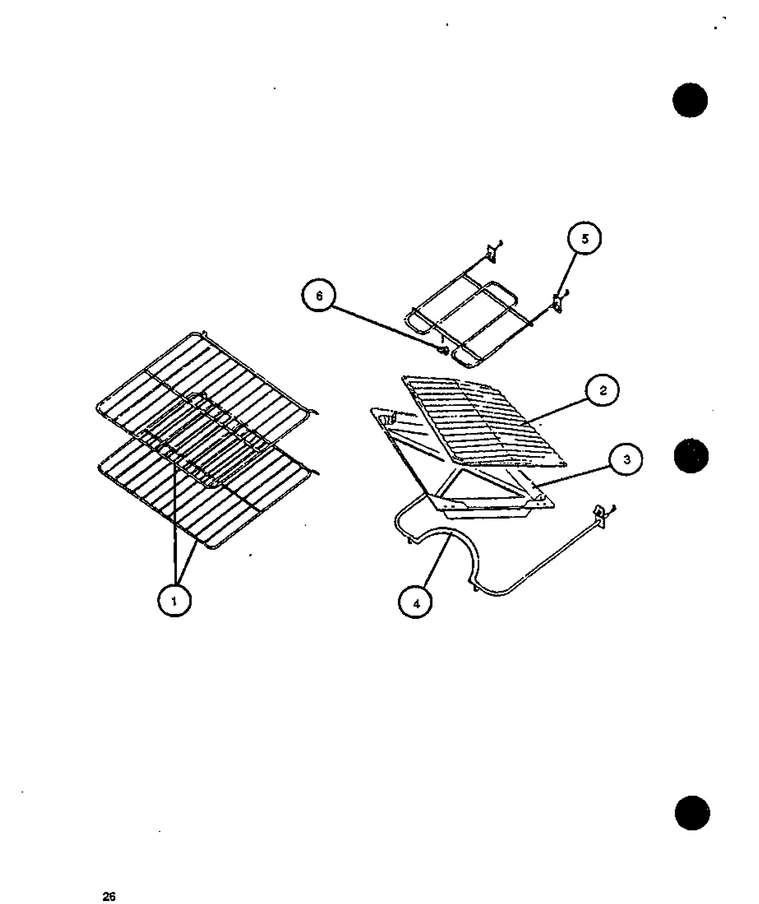

02 - Page 13

...
...
NI
Disc, Thermo WPL-0053357
...
1
Rack, Oven, 30`` WPL-Y07671200
...
3
Pan, Broiler WPL-87722CG
...
4
Element- B WPL-WPY07409600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343

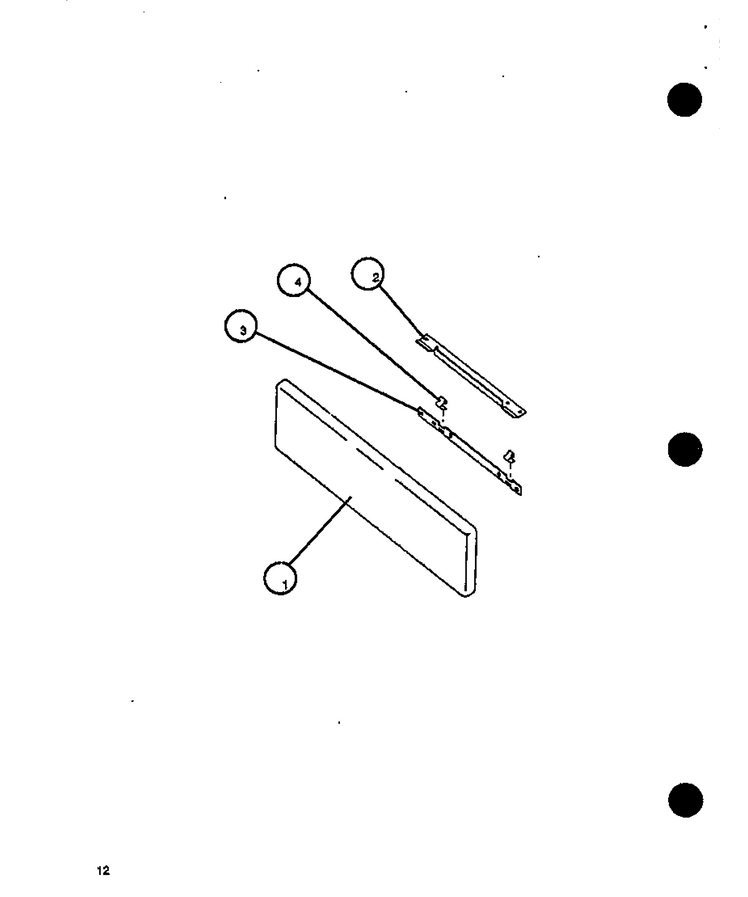

04 - Page 5

...
...
1
Panel, Fixed WPL-310531W
...
2
Flanged Bracket, Top WPL-0088839
...
3
Clip, Bracket, Bottom WPL-0088838
...
4
Spring Clip WPL-Y0088664

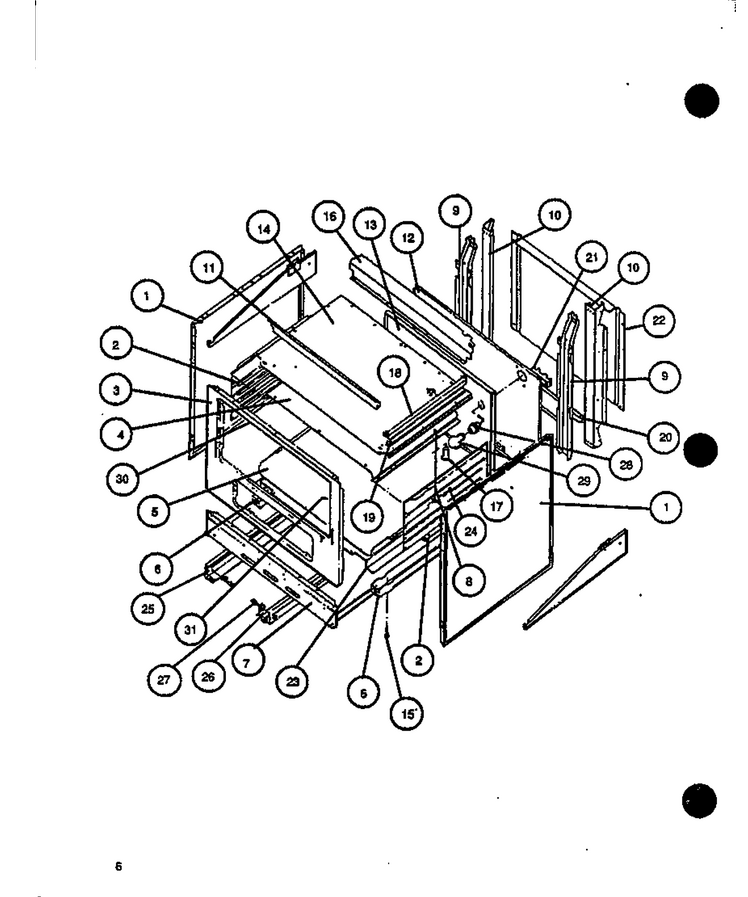

03 - Page 2

...
...
NI
Snap-In Tee Nut WPL-Y0088571
...
1
Panel,body Side (Al) WPL-311003N
...
2
Liner,oven Side WPL-0311807
...
3
See Note Main Front -- (Not Field Replaceable) WPL-Y00000000
...
4
Liner, Oven Top WPL-310096E
...
5
Liner, Oven Bottom WPL-88898CG
...
6
Rail, Base WPL-0088654
...
7
Toe Panel (J) WPL-0052744
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Switch Cover WPL-Y0086935
...
12
Main Back WPL-Y0088752
...
13
Oven Backliner WPL-311030E
...
14
Burner Box, Bottom Elect. WPL-311002E
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Rear Burner Box WPL-311014E
...
17
Tube, Oven Vent WPL-Y0056015
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire WPL-0312153
...
21
Block-Term WPL-WP8203546
...
22
Cover Wire WPL-Y0088833
...
23
Support, Oven Bottom Insul. WPL-Y0088820
...
27
See Note Roller And Rivet -- (Part Of Track Assembly) WPL-Y00000000
...
30
Seal, Oven Door WPL-0056089
...
31
Seal, Oven-Sides WPL-Y0056090

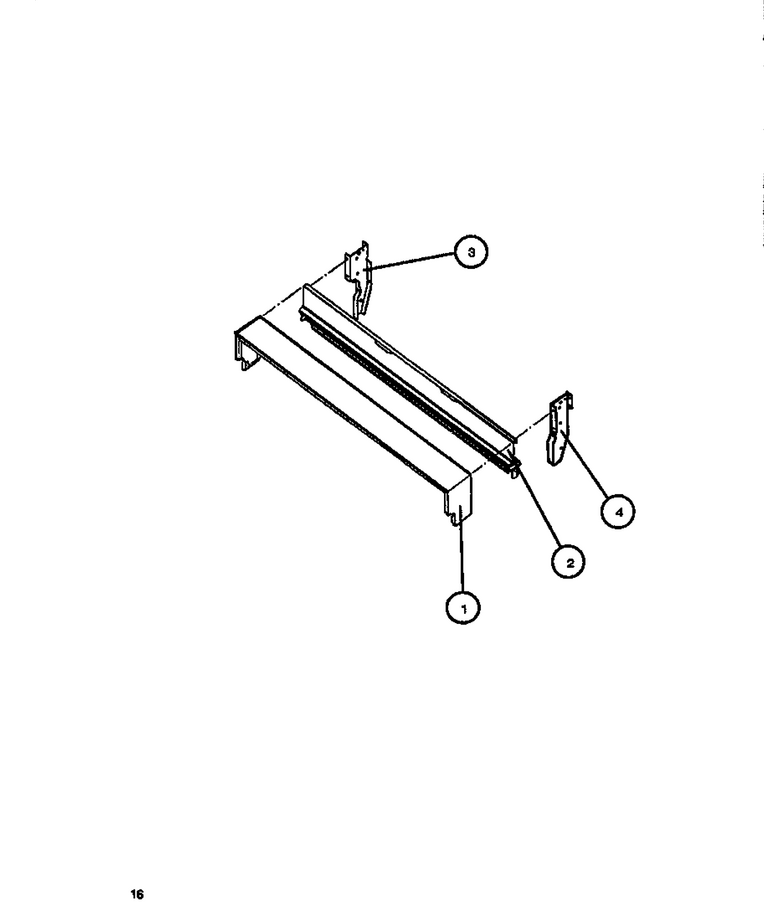

05 - Page 8

...
...
1
Backguard Frame (J) WPL-0057319
...
2
Panel Backguard 30`` WPL-Y0312816
...
3
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
4
Support, Bkgd. (Low, Lh) {j} WPL-0310811

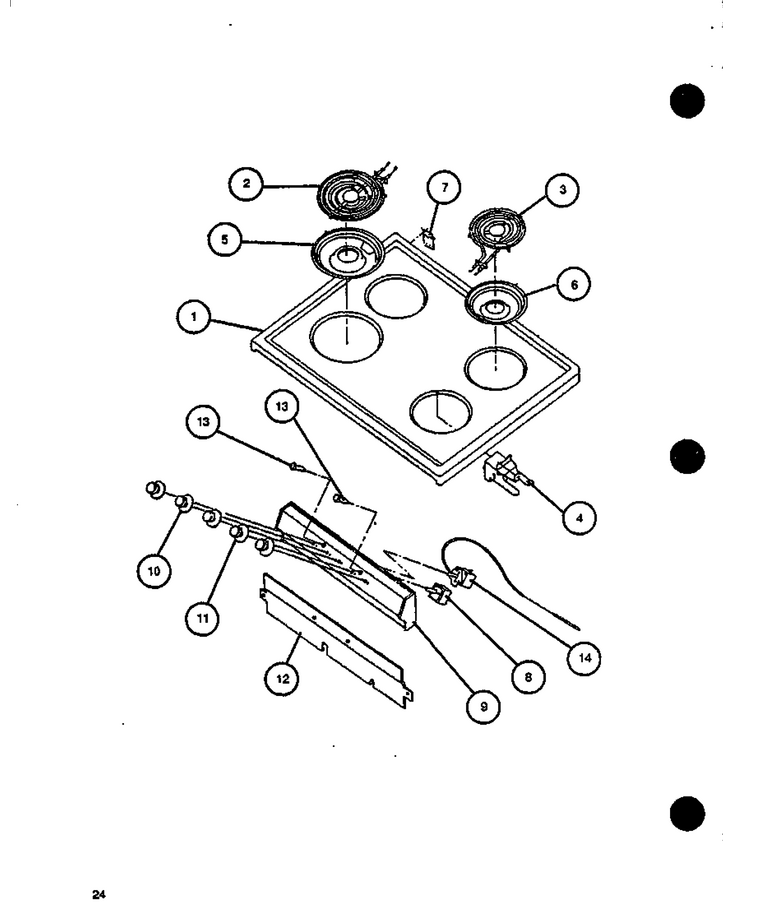

01 - Page 12

...
...
NI
Wire Harness WPL-Y0312804
...
1
Main Top, Harvest WPL-Y086931H
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Manifold Panel, 30`` WPL-Y0310481
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Switch Cover WPL-Y0086935
...
13
Light, Indicator WPL-Y0088777
...
14
Thermo-Elect. WPL-0088758
