Amana CBE24CB5 (BOM: P1137945N L)

Model: CBE24CB5 (BOM: P1137945N L)

Save Part Not Listed?
product name

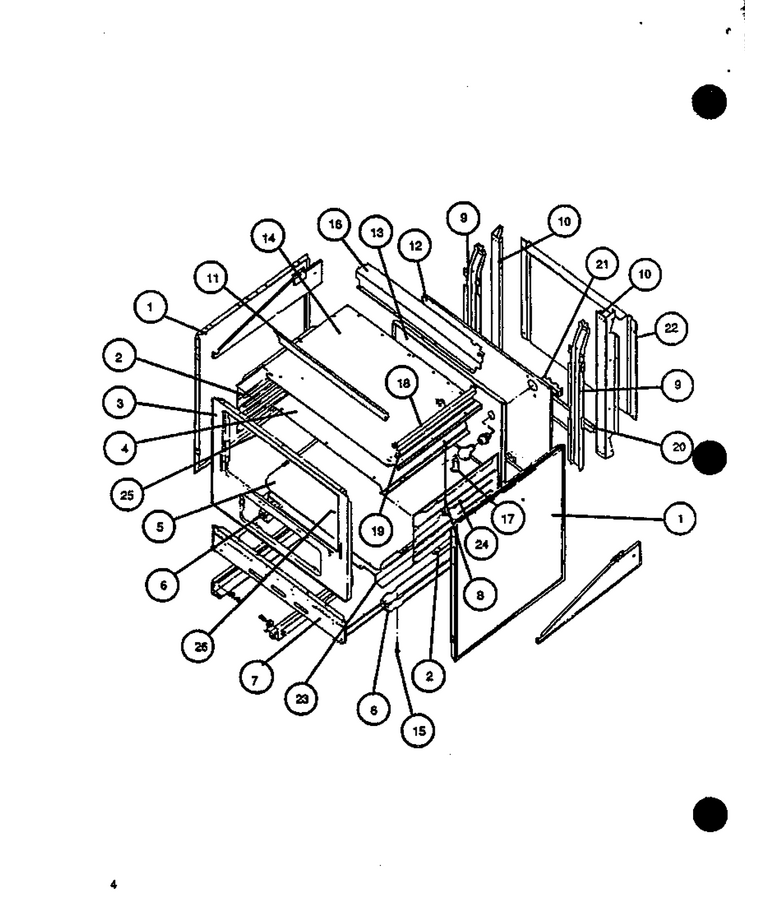

01 - Page 1

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
5
Oven Bottom (24``) (Enam) WPL-310689E
...
6
Rail, Base WPL-0312165
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
8
Support Rod WPL-0087023
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Switch Cover WPL-0086933
...
12
Main Back (24`` Gas) {j} WPL-Y0086756
...
13
Oven Backliner, Porcelain WPL-311060E
...
14
Burner Box Bottom WPL-311001E
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Burner Box Rear WPL-311013E
...
17
Oven Vent WPL-0088761
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086753
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0086751
...
23
Support WPL-Y0057214
...
24
Shoulder Screw WPL-0088779
...
25
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
26
Seal, Oven-Sides WPL-Y0056090

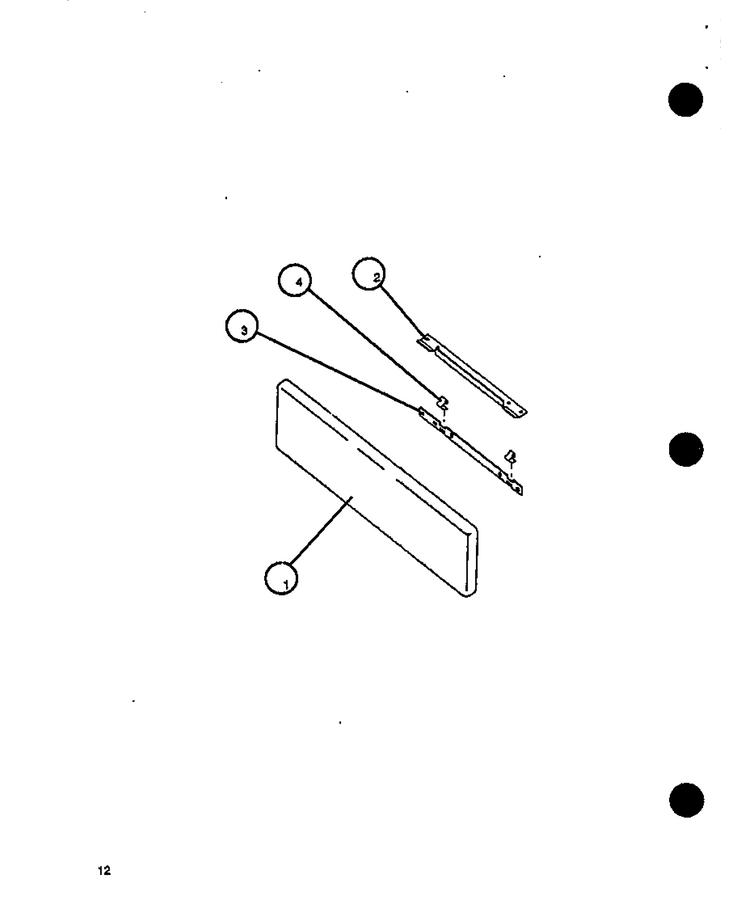

03 - Page 12

...
...
2
Procelain Broiler (Pan And Grid) WPL-4396923

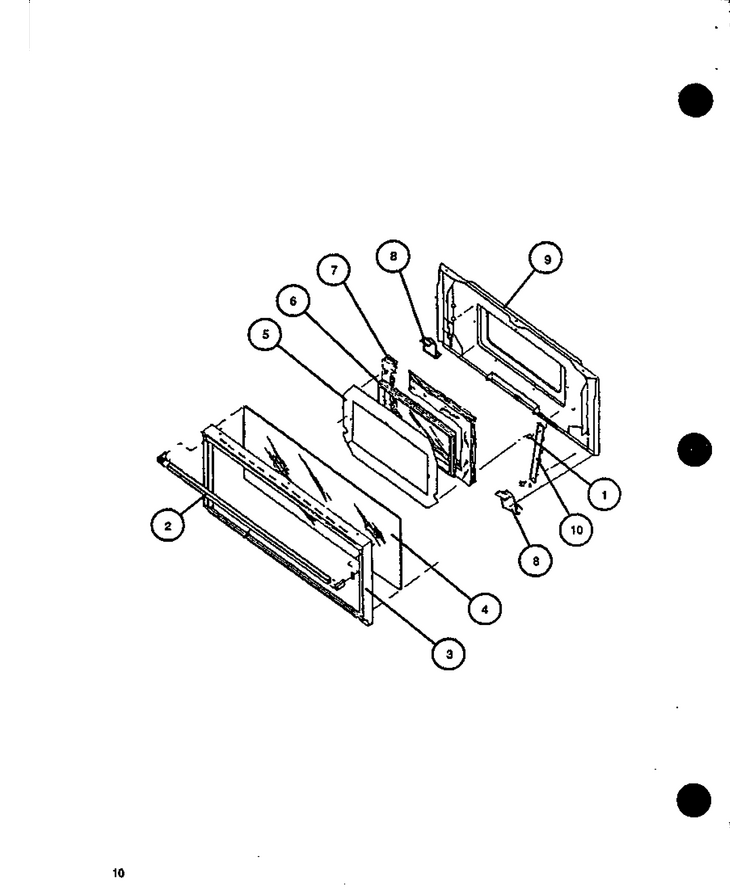

05 - Page 4

...
...
NI
Screw WPL-WP8281236
...
1
Bumper-Rubber 1/4`` WPL-Y02068200
...
2
Handle, Door (J) WPL-Y0057316
...
3
Frame, Oven Door {j} WPL-0086741
...
4
Glass, Outer {j} (Blk) WPL-Y0086780
...
5
Ring, Insulation Hold Down WPL-0311754
...
7
Insulation, Wrapper WPL-31975801
...
8
Support, Full Glass Dr {j} WPL-0310321
...
9
Backer, Oven Door WPL-88548CG
...
10
Support, Glass Panel{j} WPL-0088824

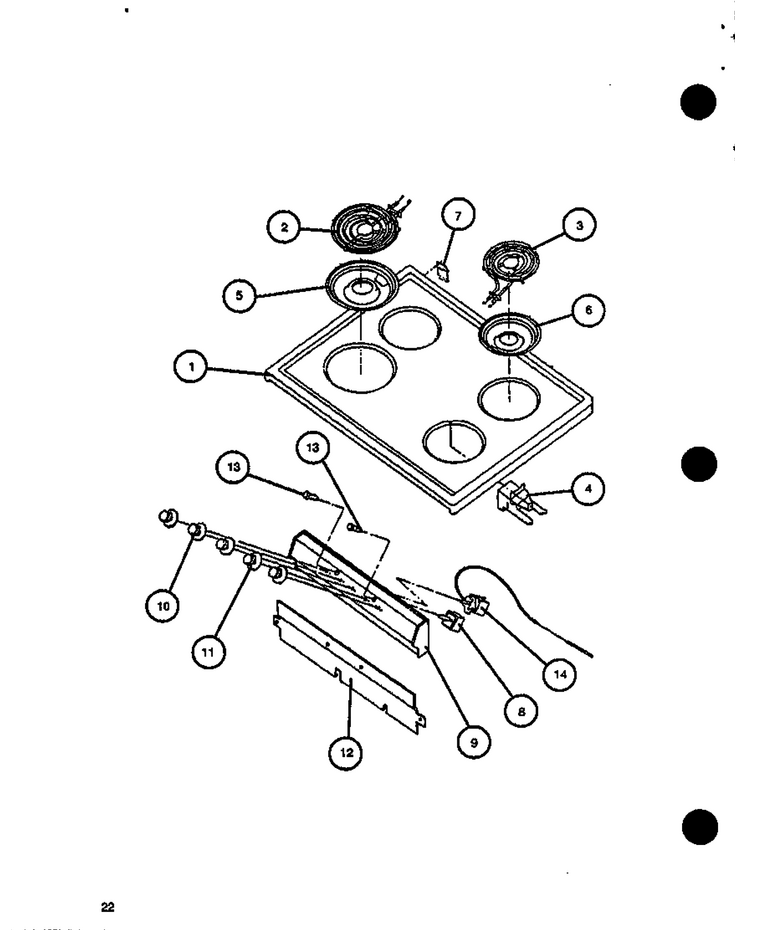

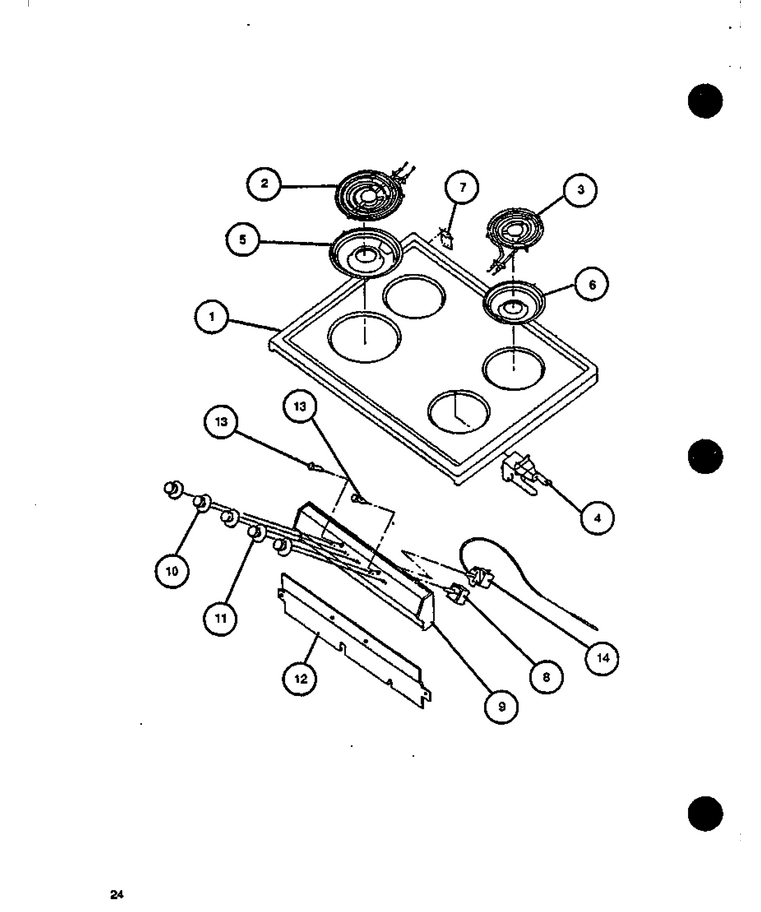

02 - Page 11

...
...
NI
Wire Harness WPL-Y0312804
...
1
Top, 24`` Main Electric (White) WPL-310080W
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Control Pa WPL-Y07621902
...
10
Knob WPL-WP4179304
...
11
Knob, Thermostat WPL-0086943
...
12
Cover Switch WPL-0086934
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758

07 - Page 9

...
...
NI
Bumper WPL-0310037
...
1
Frame, Backguard, 6`` WPL-Y0310466
...
2
Base- Bkgd WPL-Y02330014B
...
3
Glass, Backguard, 6`` WPL-Y0310509
...
4
Support, Backguard, 6`` Lh WPL-Y0310454
...
5
Support, Backguard, 6`` Rh WPL-Y0310453

04 - Page 13

...
...
NI
Disc, Thermo WPL-0053357
...
1
Oven Rack, 24`` WPL-Y0312235
...
3
Pan, Broiler WPL-87722CG
...
4
Bake Eleme WPL-WPY07409802
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343

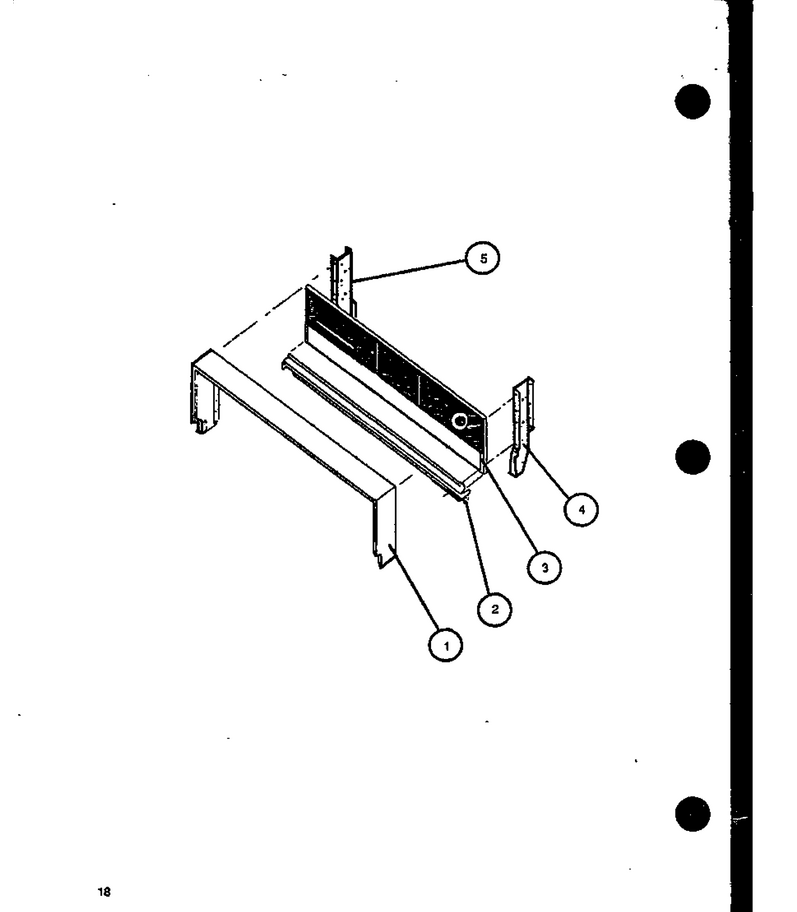

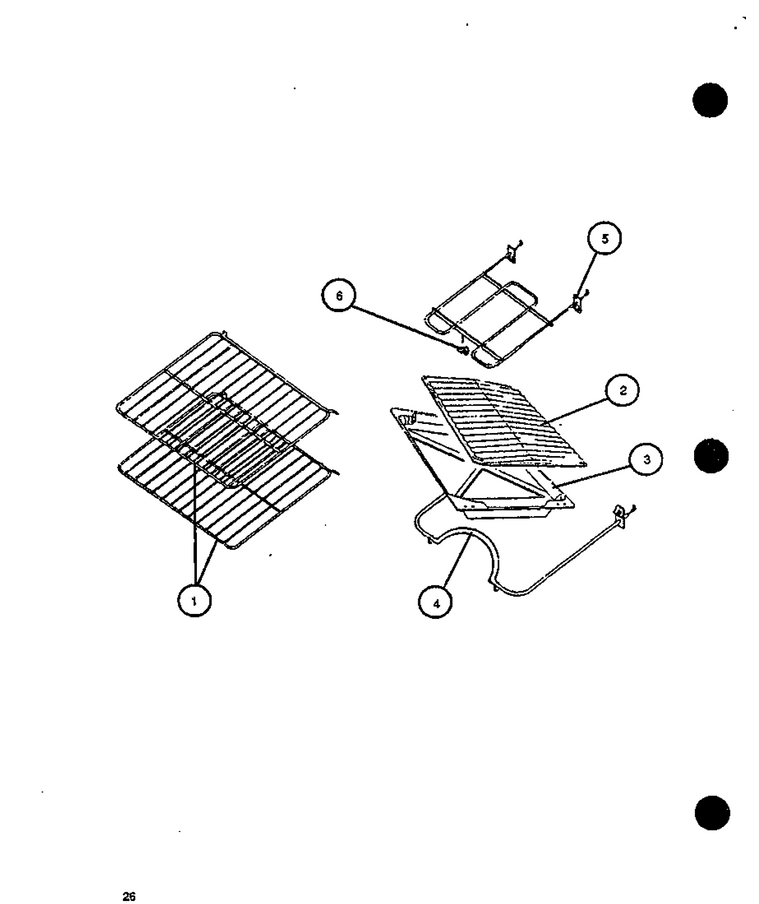

06 - Page 5

...
...
1
Panel, Fixed (Almond) WPL-Y06538900L
...
2
Flanged Bracket, Top WPL-0088839
...
3
Clip, Bracket, Bottom WPL-0088838
...
4
Spring Clip WPL-Y0088664
