Amana CBE24AAG (BOM: P1137944N G)

Model: CBE24AAG (BOM: P1137944N G)

Save Part Not Listed?
product name

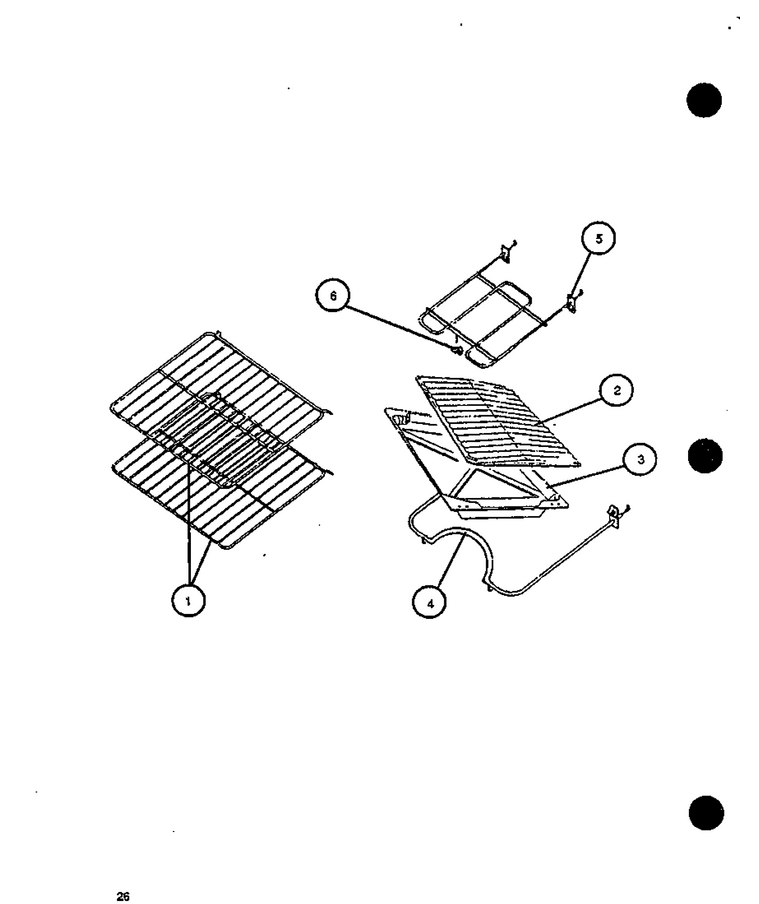

04 - Page 13

...
...
NI
Disc, Thermo WPL-0053357
...
1
Oven Rack, 24`` WPL-Y0312235
...
3
Pan, Broiler WPL-87722CG
...
4
Bake Eleme WPL-WPY07409802
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343

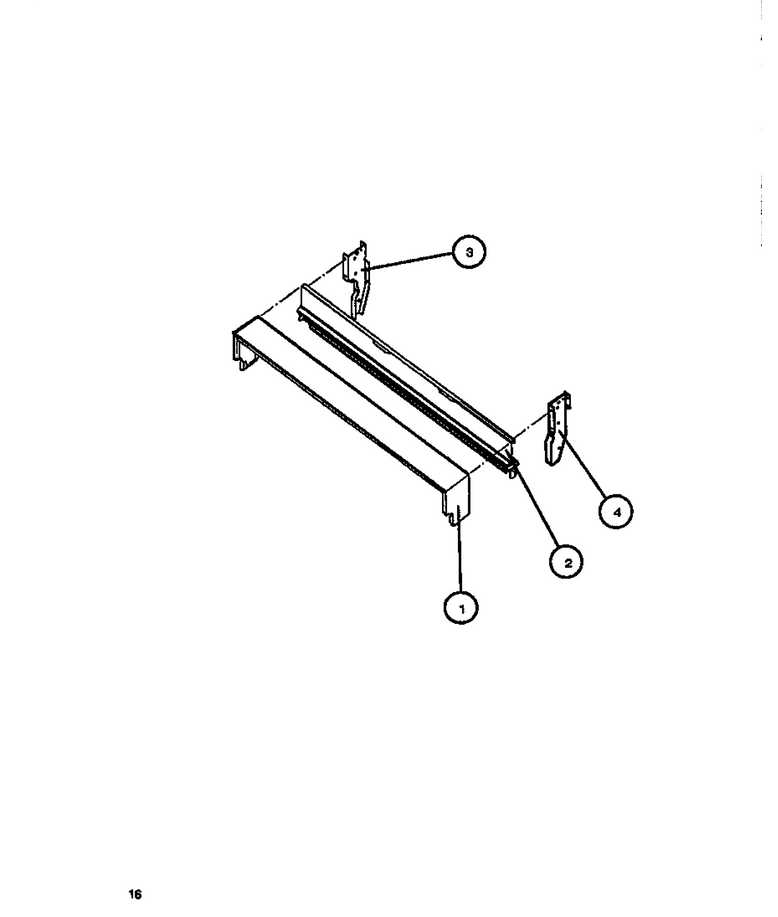

05 - Page 5

...
...
1
Panel Fixed (White) WPL-310533W
...
2
Flanged Bracket, Top WPL-0088839
...
3
Clip, Bracket, Bottom WPL-0088838
...
4
Spring Clip WPL-Y0088664

06 - Page 8

...
...
1
Backguard Frame (J) WPL-Y0057318
...
2
Panel Backguard 24`` WPL-Y0312815
...
3
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
4
Support, Bkgd. (Low, Lh) {j} WPL-0310811

03 - Page 12

...
...
2
Procelain Broiler (Pan And Grid) WPL-4396923

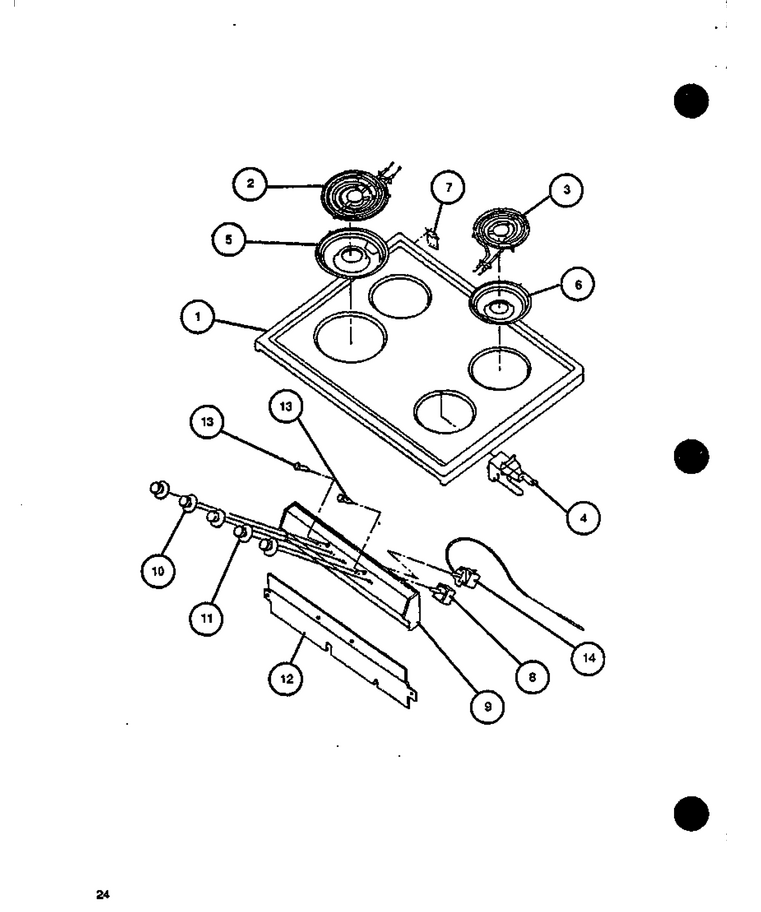

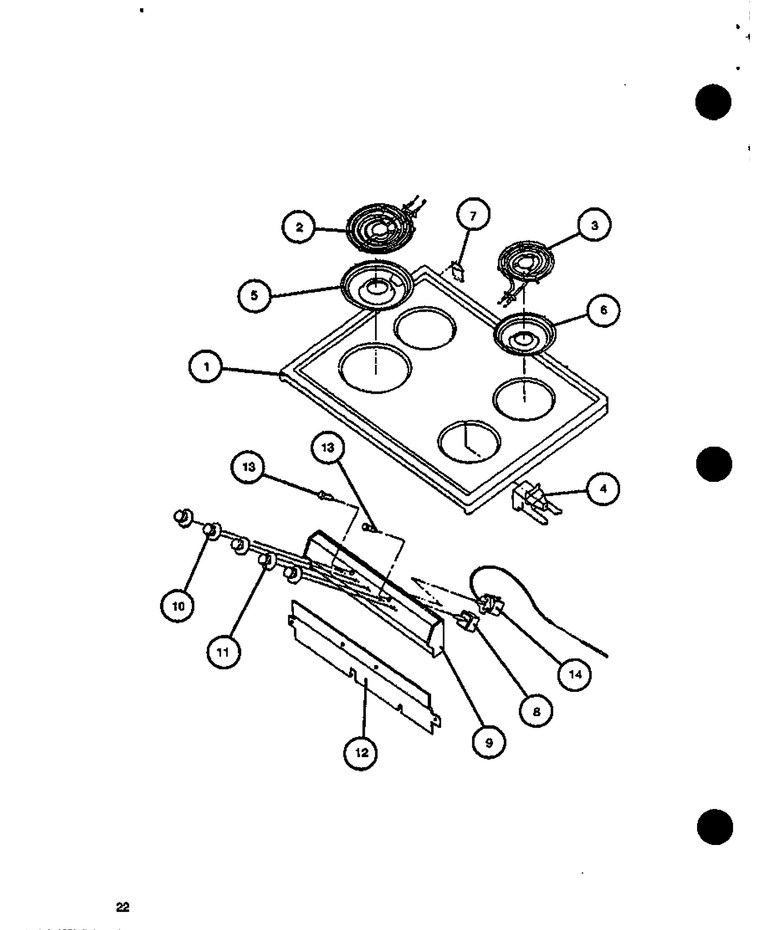

02 - Page 11

...
...
NI
Wire Harness WPL-Y0312804
...
1
Top, Main 24`` (Harvest) WPL-Y086930H
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Control Pa WPL-Y07621902
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Cover Switch WPL-0086934
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758

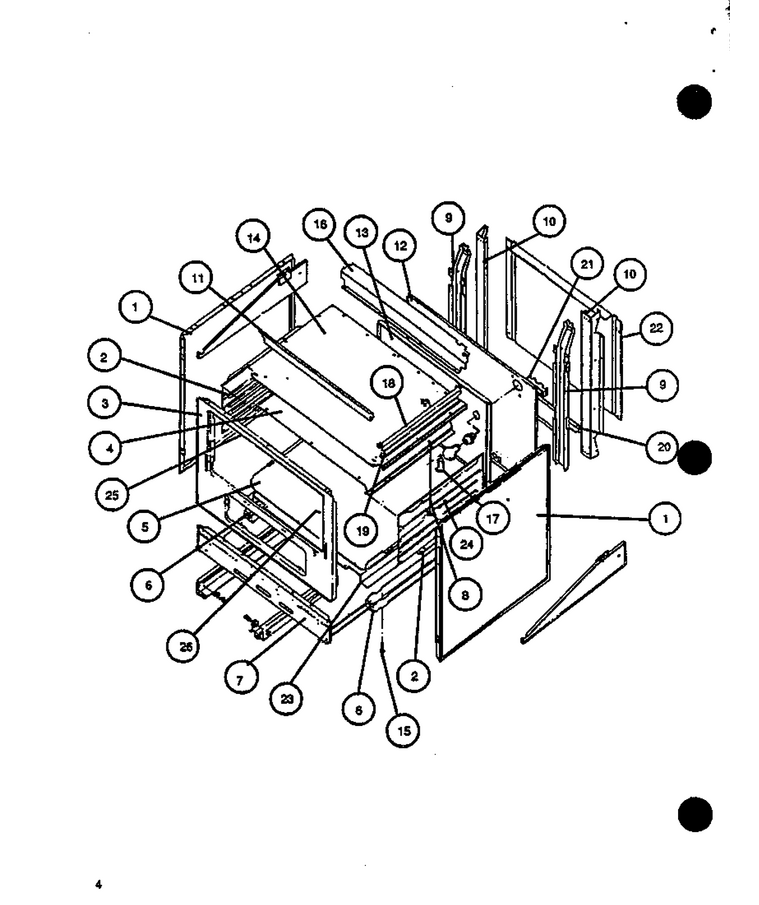

01 - Page 1

...
...
NI
Kit, Anti-Tip WPL-0312838
...
1
Panel, Side WPL-311003H
...
2
Liner,oven Side WPL-0311807
...
5
Oven Bottom (24``) (Enam) WPL-310689E
...
6
Rail, Base WPL-0312165
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Switch Cover WPL-0086933
...
12
Main Back (24`` Gas) {j} WPL-Y0086756
...
13
Oven Backliner, Porcelain WPL-311060E
...
14
Burner Box Bottom WPL-311001E
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Burner Box Rear WPL-311013E
...
17
Oven Vent WPL-0088761
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086753
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0086751
...
23
Support WPL-Y0057214
...
25
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
26
Seal, Oven-Sides WPL-Y0056090
