Amana CBE22AAG (BOM: P1137943N G)

Model: CBE22AAG (BOM: P1137943N G)

Save Part Not Listed?
product name

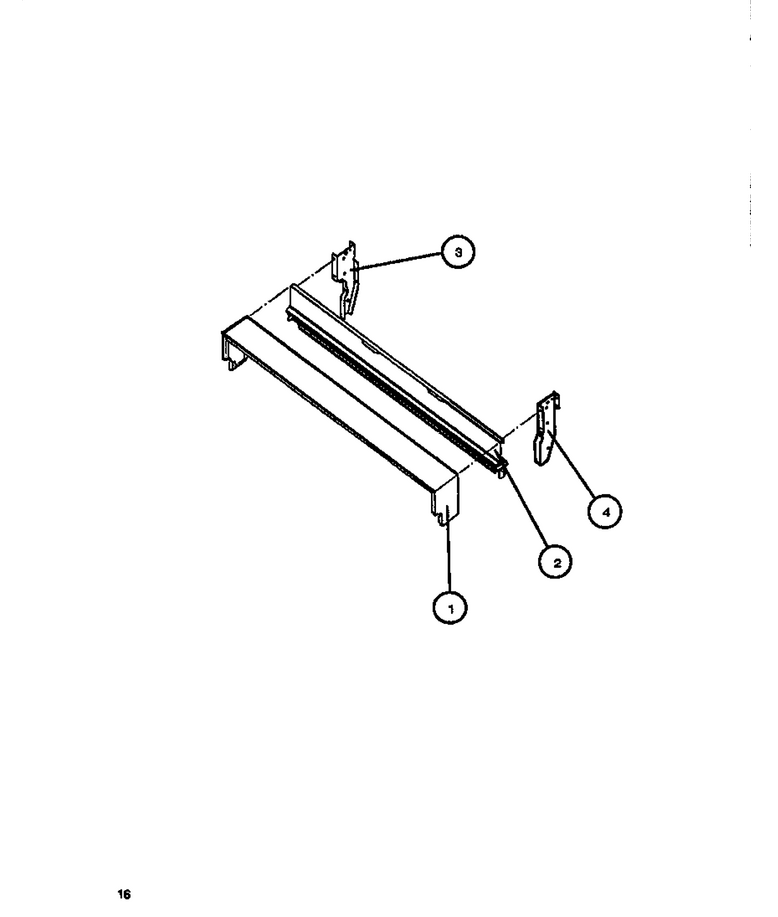

05 - Page 5

...
...
1
Panel, Fixed, Gold WPL-310532D
...
2
Flanged Bracket, Top WPL-0088841

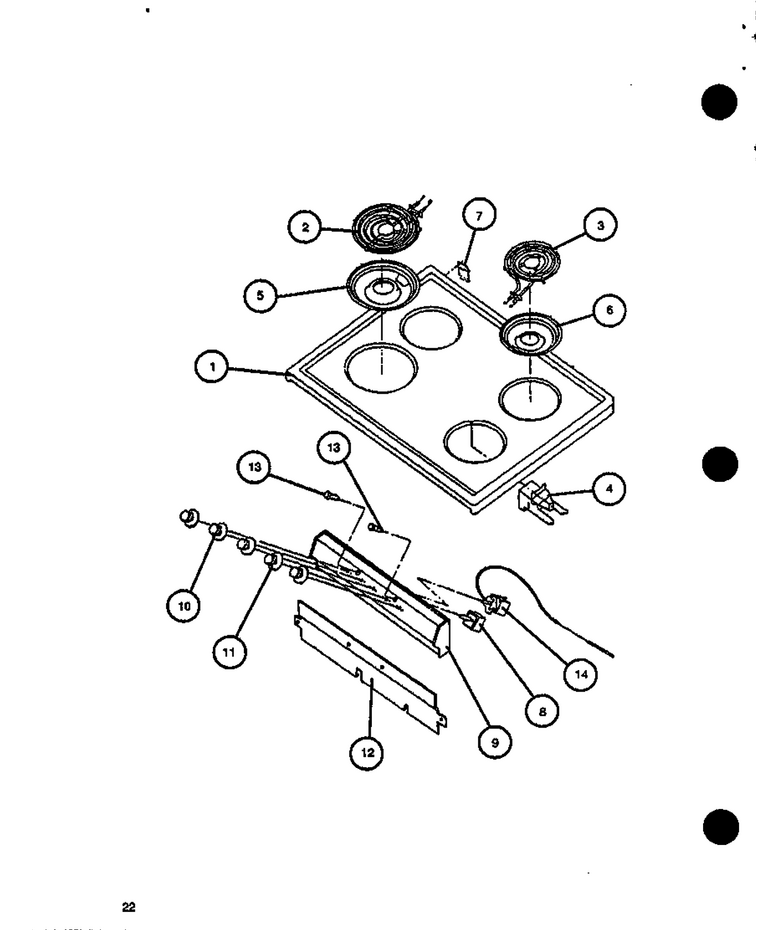

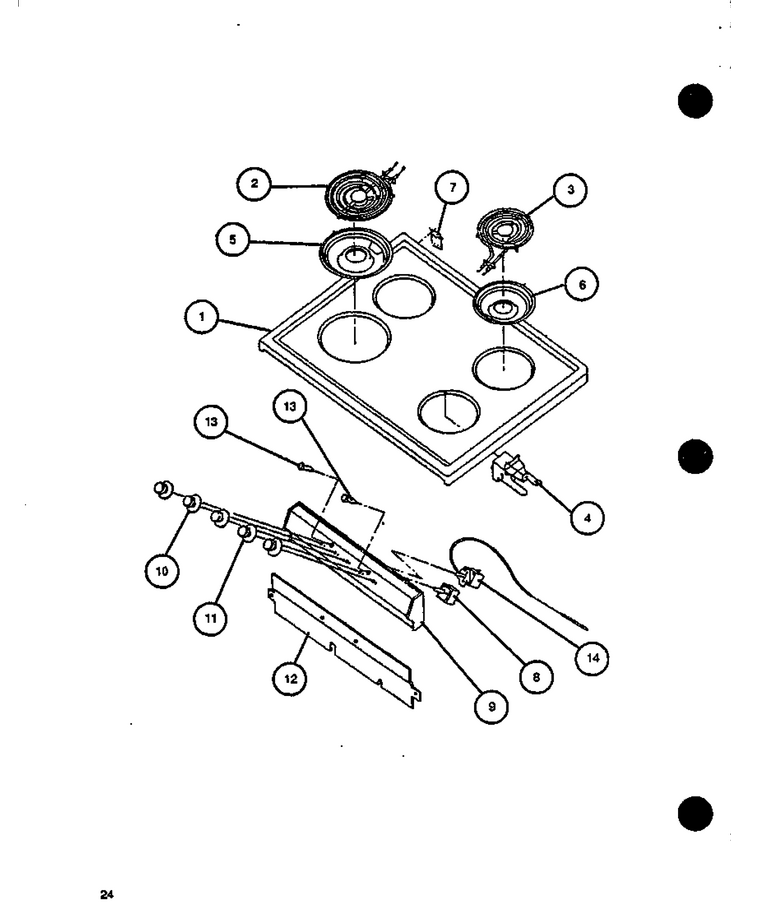

02 - Page 11

...
...
NI
Bracket WPL-W10116809
...
1
Main Top Harvest WPL-Y086929H
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Manifold Panel, 20`` WPL-Y0310479
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Switch Cover WPL-0086933
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758

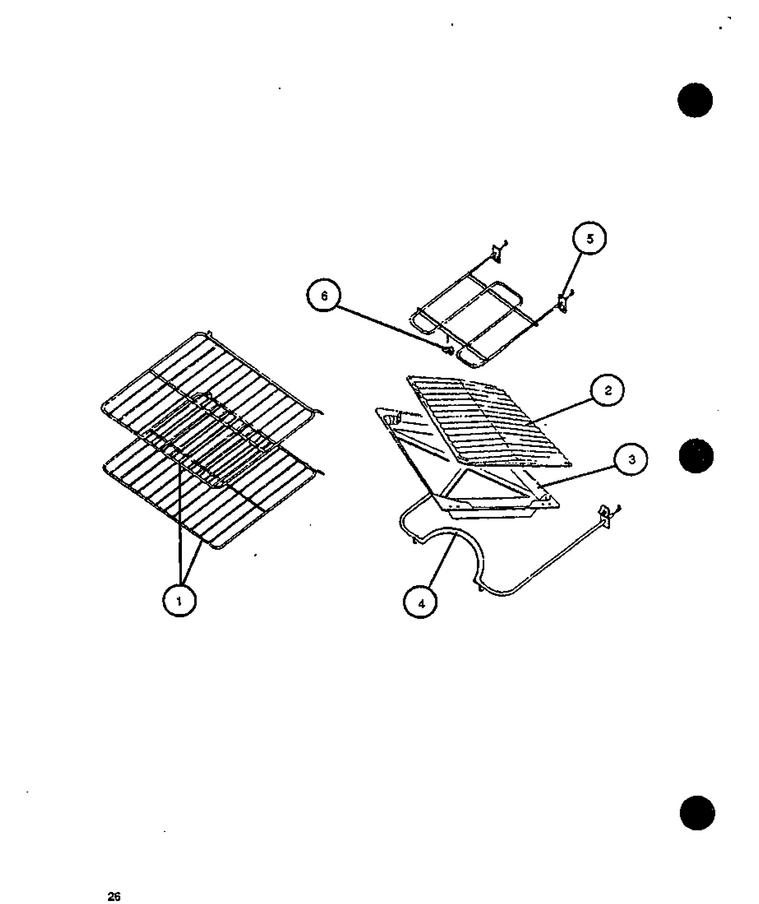

04 - Page 13

...
...
NI
Disc, Thermo WPL-0053357
...
1
Rack, Oven, 20`` WPL-Y07671000
...
3
Pan, Broiler WPL-87722CG
...
4
Element-Ba WPL-WPY07565600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343

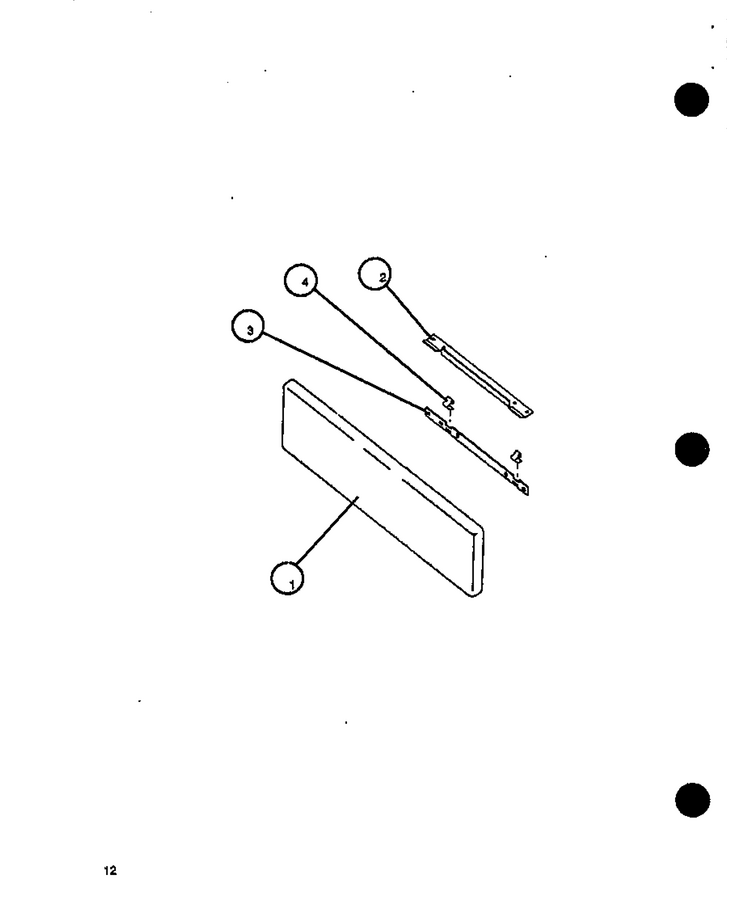

06 - Page 8

...
...
1
Wrapper, Backguard 4`` X 20`` WPL-Y0311508
...
2
Panel Backguard 20`` WPL-Y0312814
...
3
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
4
Support, Bkgd. (Low, Lh) {j} WPL-0310811

03 - Page 12

...
...
2
Procelain Broiler (Pan And Grid) WPL-4396923

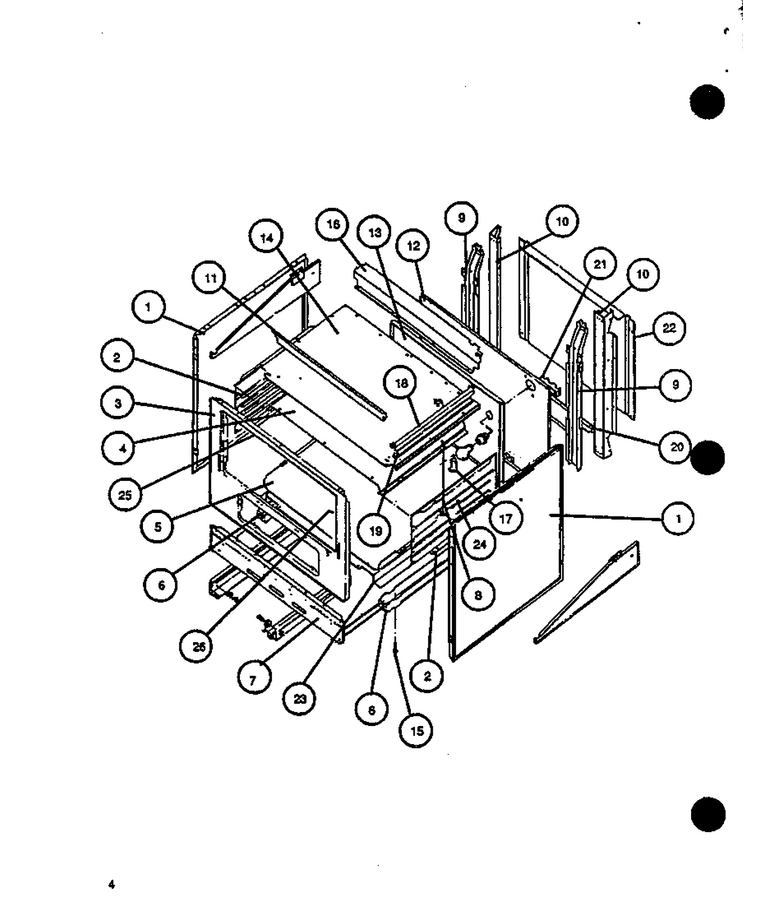

01 - Page 1

...
...
NI
Insulation, Back (J) WPL-Y0311949
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
4
Liner, Oven Top WPL-86924CG
...
5
Liner, Oven Bottom WPL-88586CG
...
6
Rail, Base WPL-0312165
...
7
Panel Base Toe WPL-Y0054694
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Switch Cover WPL-0086933
...
12
Shield, Main Back WPL-0311067
...
13
Back Liner, Oven WPL-Y0057215
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Rear B.b. (20``) WPL-311012E
...
17
Oven Vent WPL-0088761
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086754
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0086752
...
23
Support WPL-Y0057213
...
25
Seal, Oven Door-Top WPL-Y0056494
...
26
Seal, Oven-Sides WPL-Y0056090
