Amana CARR630WW/P1143437NWW Electric Range & Oven

Model: CARR630WW-P1143437NWW

Save
 Part Not Listed?Part Not Listed?
product name

Amana CARR630WW-P1143437NWW

...
...

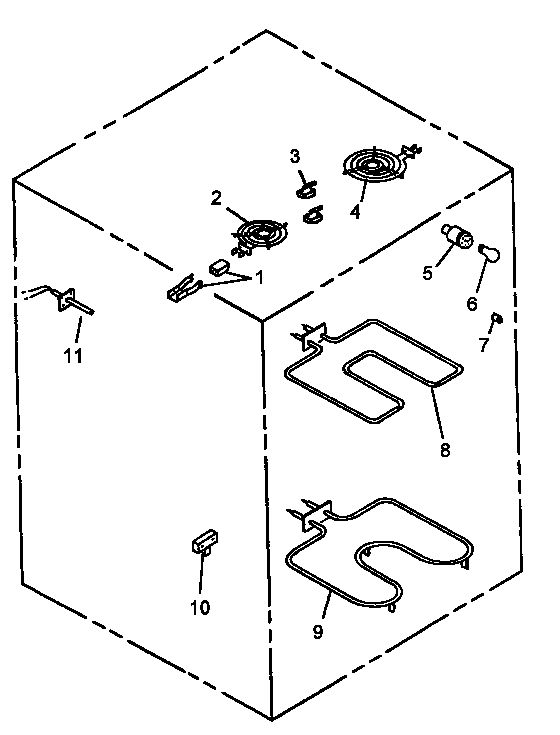

15
Range Surface Element Control Switch WPL-WP74011243

Amana CARR630WW-P1143437NWW

...
...
1
Range Surface Element Receptacle (Replaces W10841094) WPL-330031
...
2
Range Coil Surface Element, 6-In WPL-WPW10259868
...
4
Range Coil Surface Element, 8-In (Replaces 31734606, W10259865) WPL-WPW10259865
...
6
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
8
Range Broil Element WPL-WPY0061732
...
9
Range Bake Element (Replaces 77001094) WPL-WP77001094
...
10
Range Terminal Block WPL-WP8203546
...
11
Range Oven Temperature Sensor WPL-WPY0314907

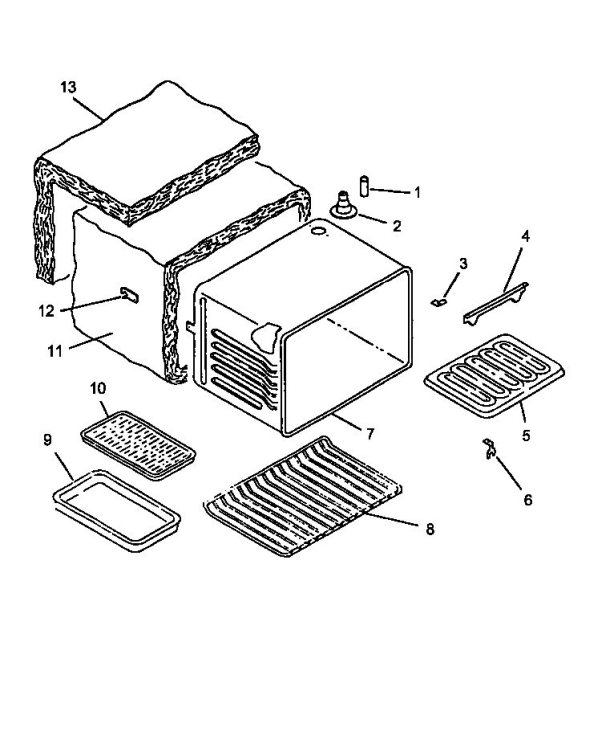

Amana CARR630WW-P1143437NWW

...
...
2
Spacer WPL-309882B
...
14
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
20
Refrigerator Screw WPL-W11245710

Amana CARR630WW-P1143437NWW

...
...
8
Range Oven Rack (Replaces 314763J) WPL-WP314763J
...
9
Range Broil Pan WPL-4396923
...
10
Range Broil Pan WPL-4396923

Amana CARR630WW-P1143437NWW

...
...
1
Range Coil Surface Element, 8-In (Replaces 31734606, W10259865) WPL-WPW10259865
...
2
Range Coil Surface Element, 6-In WPL-WPW10259868
...
3
Range Drip Pan, 8-In WPL-W10290350RW
...
3
Range Drip Pan (Replaces 242955, 305840T, 308648T, 308649T, 4396073, 4396090, 4396090Rw, 4396091, 4396091Rw, 74001520, 74003439, 74003440, 74003441, 814029, 814115, 814116, Y04100195, Y04100196) WPL-W10291024
...
4
Range Drip Pan (Replaces 242955, 305840T, 308648T, 308649T, 4396073, 4396090, 4396090Rw, 4396091, 4396091Rw, 74001520, 74003439, 74003440, 74003441, 814029, 814115, 814116, Y04100195, Y04100196) WPL-W10291024

Amana CARR630WW-P1143437NWW

...
...
NI
Refrigerator Screw WPL-W11245710
...
NI
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
NI
Thread-Cutting Screw WPL-STD610603
...
NI
Refrigerator Screw WPL-12991101
...
...
...
