Amana CAKDH5E (BOM: CAKDH5E/)

Model: CAKDH5E (BOM: CAKDH5E/)

Save Part Not Listed?
product name

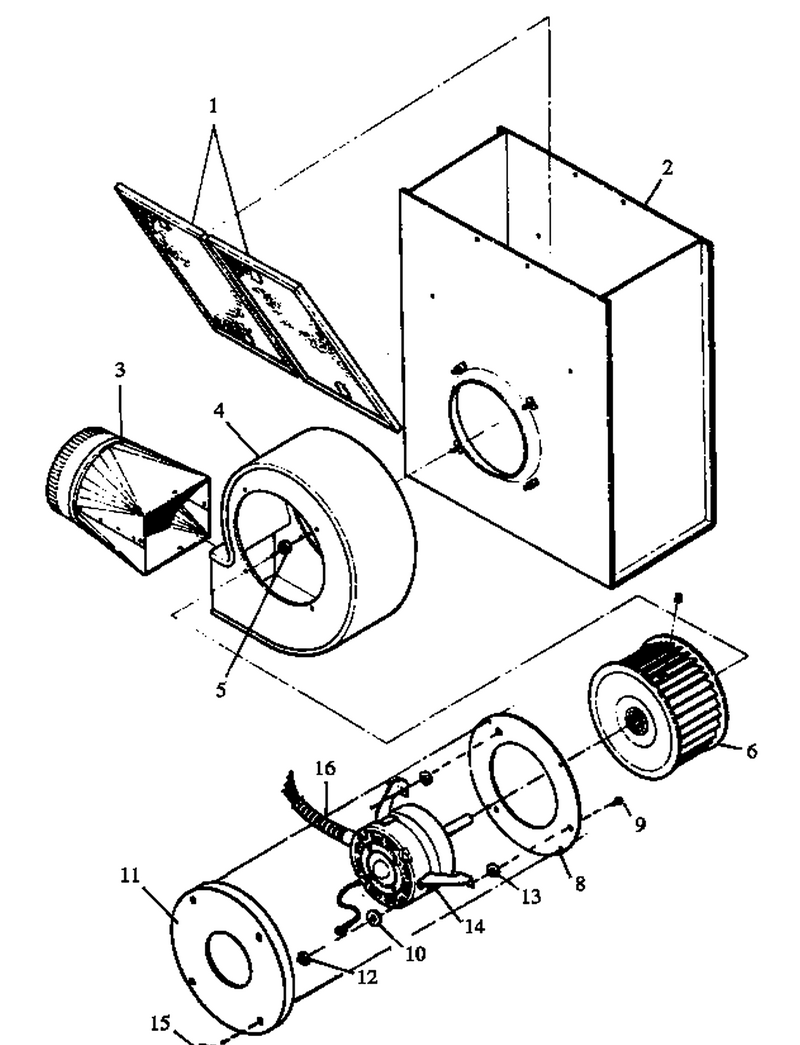

01 - Ventilation Section

...
...
NI
Connector 3/8`` 90`` WPL-Y0042079
...
1
Filter Exhaust Ket595 WPL-Y0042024
...
2
Plenum WPL-0059560
...
3
Transition WPL-Y0059493
...
4
Blower Housing W/a Ket595 WPL-0041093
...
5
Lock-Nut Nylon Ket595 WPL-0041862
...
6
Fan Wheel Ket595 WPL-Y0042752
...
8
Plate, Motor Mtg WPL-0059470
...
9
Bolt, Shoulder WPL-0303176
...
10
Washer K WPL-0041933
...
11
Motor Cover WPL-0059471
...
12
Nut WPL-M0282009
...
13
Rubber Grommet WPL-0041981
...
14
Motor, Fan 115v 60hz WPL-Y0058327
...
15
Screw WPL-WP8281227
...
16
Conduit (3/8 X 18) WPL-0042115
