Amana C7W (BOM: P6033006W)

Model: C7W (BOM: P6033006W)

Save Part Not Listed?
product name

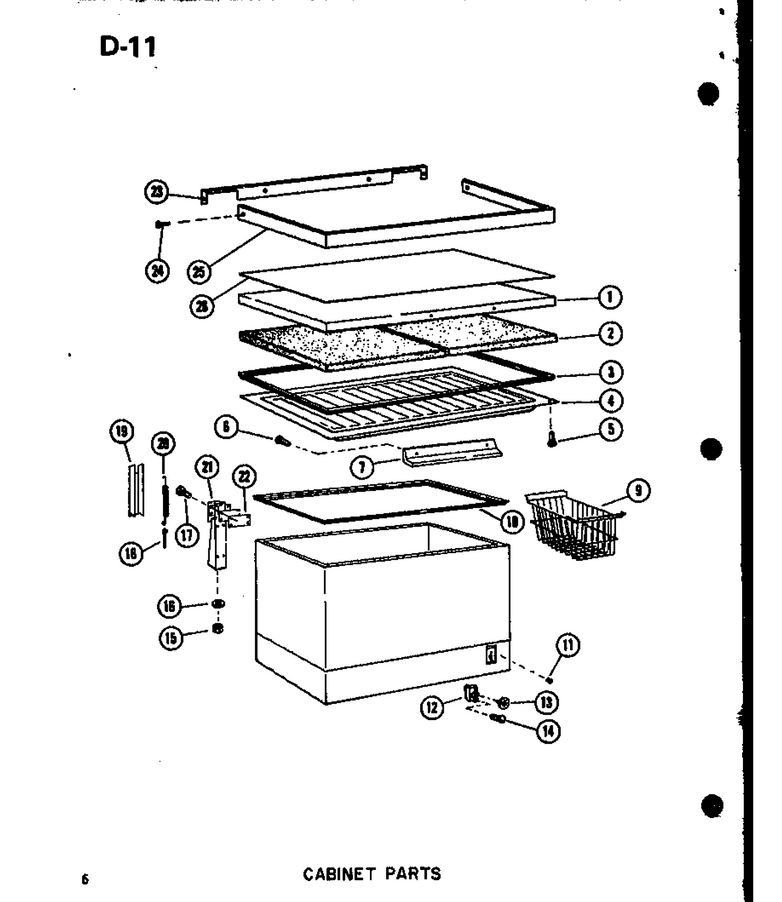

01 - Cabinet Parts

...
...
1
Lid Wld-G C7-Ec7 WPL-C8719024
...
2
Insulation WPL-A3073026
...
3
Gasket WPL-B5675702
...
4
Inner Lid Panel WPL-D7134301
...
5
Screw-Sm WPL-M0241118
...
6
Screw-Handle WPL-M0225244
...
7
Handle WPL-D7218302
...
10
Collar Breaker WPL-B5675804
...
11
Rivet Plastic WPL-A3032601
...
12
Cold Control WPL-C3628407
...
13
Knob K WPL-C3581901
...
14
Screw WPL-WPW10068250
...
15
Nut WPL-M0281007
...
16
Washer WPL-M0270513
...
17
Screw WPL-M0246033
...
18
Screw WPL-M0200102
...
19
Hinge Cover W WPL-B0583411
...
20
Hinge Spring WPL-B0551701
...
21
Hinge Assy-Gold WPL-C3582305
...
22
Shim WPL-A0383301

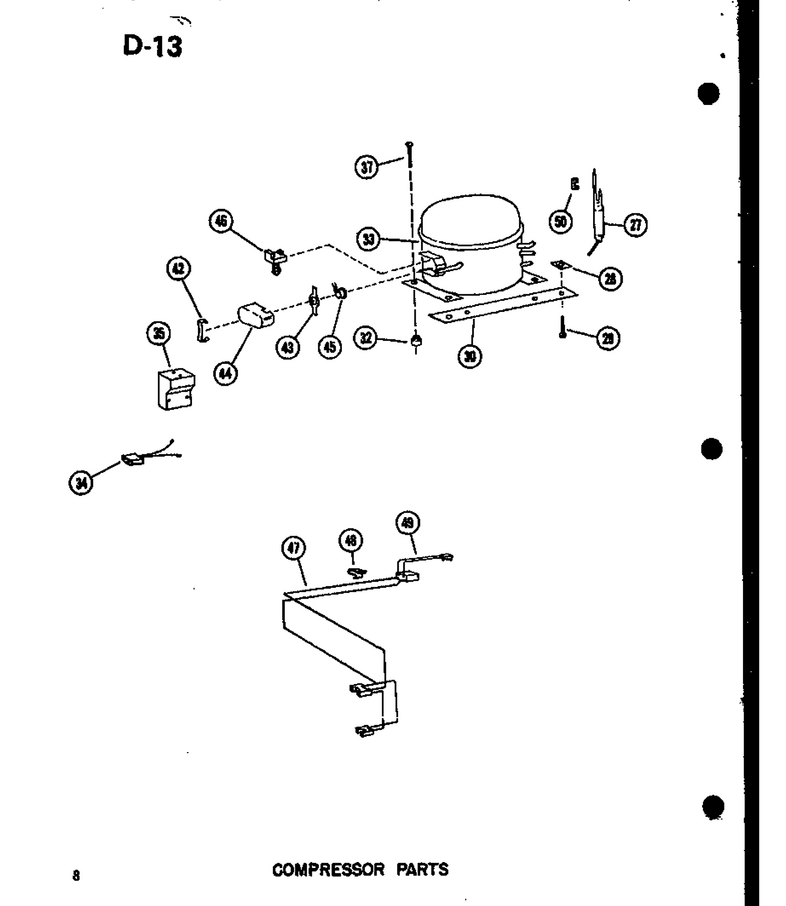

02 - Compressor Parts

...
...
27
Drier WPL-WPB2150504
...
28
Speed Nut-Angle Mt WPL-M0288109
...
29
Screw WPL-M0250531
...
30
Angle-Comp Mt WPL-B5675604
...
32
Grommet K WPL-A4002702
...
33
Kit- Compr WPL-R9900672
...
34
Wiring Harness-Comp WPL-B5680501
...
37
Screw WPL-M0221461
...
42
Strap K WPL-A3041801
...
43
Spring K WPL-A3043601
...
44
Cover K WPL-B0559501
...
45
Overload K WPL-C8704701
...
46
Relay K WPL-C8704801
...
47
Wiring Harness, Cabinet WPL-D7149701
...
48
Clip WPL-M0110502
...
49
Grommet, Cord WPL-211881
...
50
Clip WPL-M0113402
