Amana C72B (BOM: P1184002R)

Model: C72B (BOM: P1184002R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

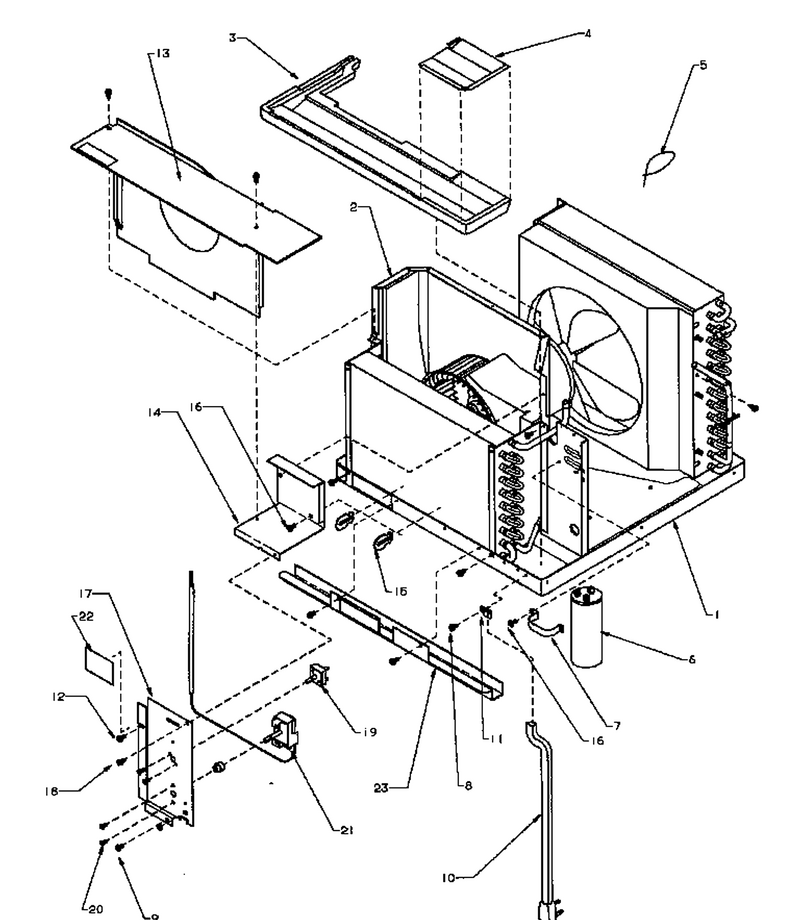

02 - Control Panel & Misc. Chassis Parts

...
...
1
Basepan, Pnt WPL-D9998112
...
2
Panel-Partition WPL-D6950507
...
3
Filler Block WPL-D6947901
...
4
Shield, Fill Block WPL-C6383501
...
5
Tie-Wire WPL-WPW10339879
...
6
Capacitor WPL-D6879820
...
7
Capacitor Strap K WPL-C6300502
...
8
Screw WPL-WP90767
...
9
Screw WPL-M0232012
...
10
Cord, Power WPL-C6351701
...
11
Clamp, Speed WPL-M0103904
...
12
Screw WPL-WP12990527
...
13
Panel-Inlet WPL-D6950802A
...
14
Control Barrier WPL-C6381404
...
15
Clip, Thermostat Bulb WPL-B1415601
...
16
Screw WPL-WP12990527
...
17
Panel, Control WPL-C6351807
...
18
Screw WPL-WP90767
...
19
Switch Rotary WPL-C6381702
...
20
Screw (3) WPL-67006425
...
21
Thermostat WPL-C6441104
...
22
Gasket WPL-10839707
...
23
Bottom Rail WPL-C6380302

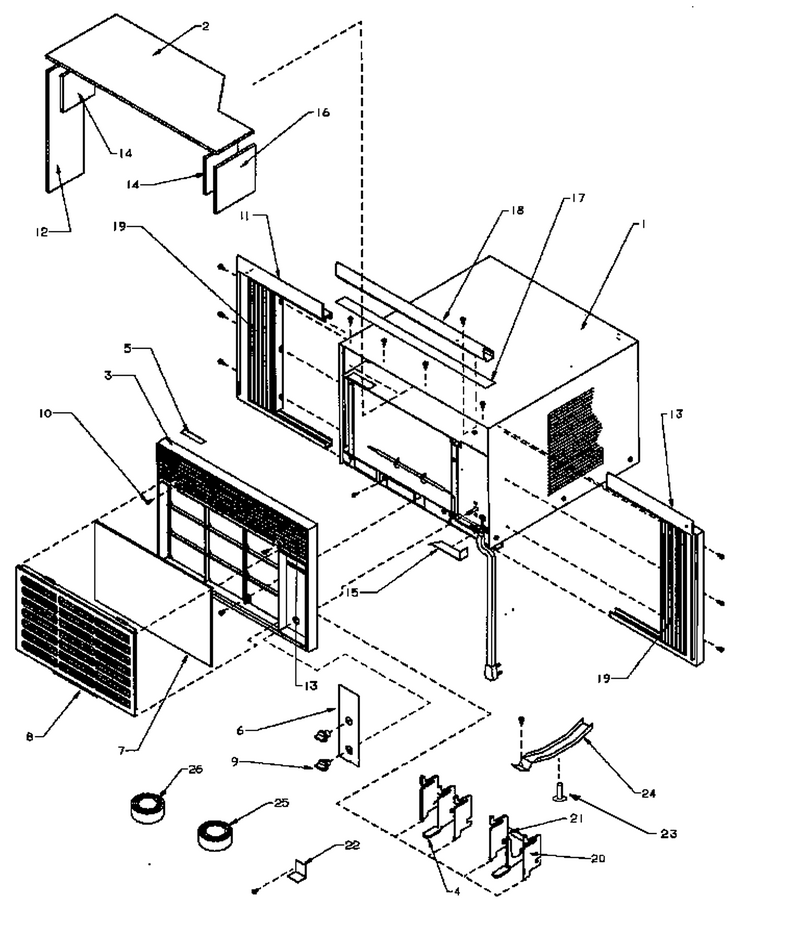

04 - Front & Outer Case Assy

...
...
1
Outer Case WPL-10690203
...
2
Insulation, Top WPL-10698801
...
3
Frame, Front Control WPL-10558205
...
4
Baffle, Air WPL-10558401
...
5
Gasket (per Foot) WPL-10839706
...
6
Escutcheon WPL-10394904
...
7
Filter, Air WPL-A3445901
...
8
Insert, Horizontal WPL-D6950706FY
...
9
Knob, Control WPL-D7795804
...
10
Screw-Sm WPL-M0241118
...
11
Sliding Frame-Lt WPL-10382601
...
12
Insulation, Side WPL-10671504
...
13
Sliding Frame-Rt WPL-10382602
...
15
Gasket-Urethane WPL-10839711
...
16
Insulation, Side WPL-10671505
...
17
Gasket-Urethane WPL-10839704
...
18
Top Rail-Painted WPL-C5903422
...
19
Curtain 1 WPL-11118401
...
20
Baffle, Air WPL-10558501
...
21
Bar, Lower Stabilizer WPL-20075501
...
22
Brkt, Window Stop WPL-10661401
...
23
Screw WPL-M0200001
...
24
Support, Safety WPL-11075307
...
25
Gasket (1=1ft.) WPL-10839705
...
26
Gasket WPL-10839702

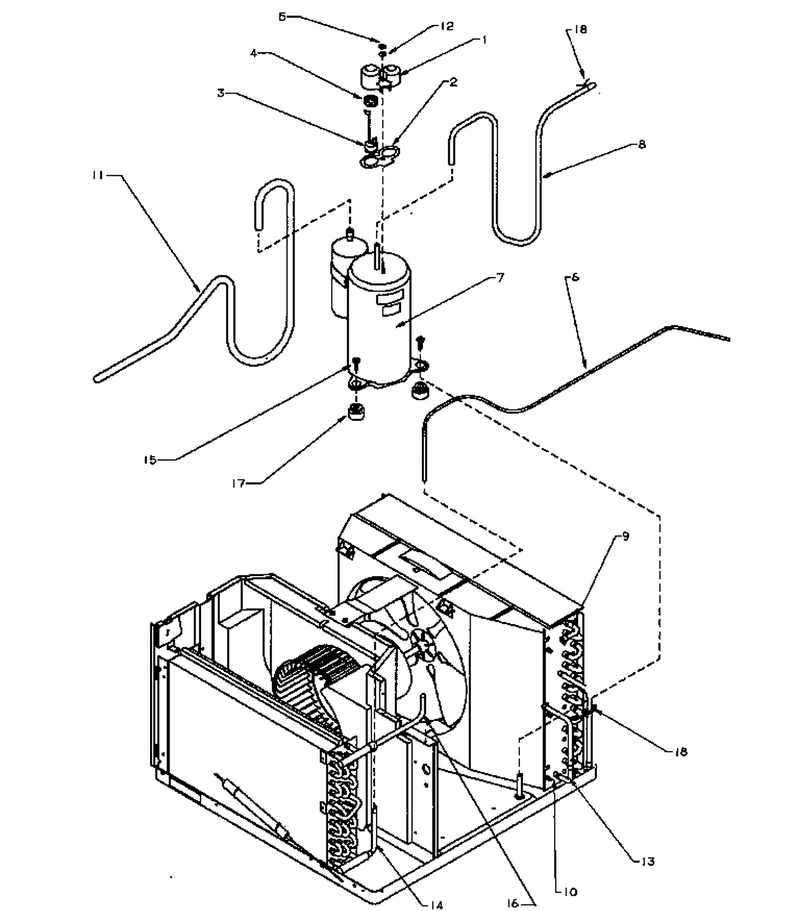

01 - Compressor & Tubing

...
...
1
Cover-Term WPL-10329001
...
2
Gasket, Terminal WPL-A3436701
...
3
Overload WPL-D6961635
...
4
Spring, Overload WPL-A3436901
...
5
Nut WPL-WP776338
...
6
Tube Capillary WPL-10398401
...
7
Comp-Pn2r1 WPL-D6887707H
...
8
Suction Tube WPL-C6483301
...
9
Elbow WPL-B1439301
...
10
Strainer WPL-B1394401
...
11
Tube, Discharge WPL-C6483201
...
12
Washer WPL-A3436801
...
13
Elbow WPL-D9818905
...
14
Elbow WPL-A4083932
...
15
Screw WPL-M0253665
...
16
Elbow WPL-B1439201
...
17
Grommet WPL-A4622801
...
18
Tie-Wire WPL-WPW10339879

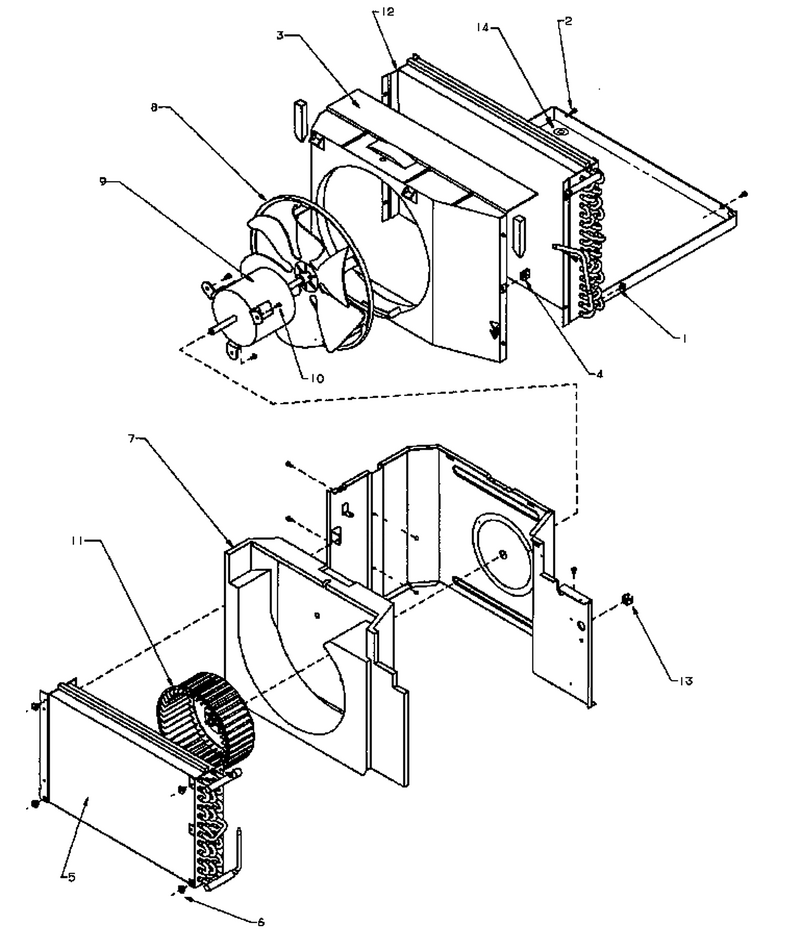

03 - Evap, Condenser & Air Flow Parts

...
...
1
Grommet WPL-A3315701
...
2
Screw WPL-WP12990527
...
3
Shroud-Condenser WPL-D6948901
...
4
Speed Nut WPL-M0288107
...
5
Evaporator Assy WPL-D9864902
...
6
Screw WPL-M0586001
...
7
Scroll WPL-10536202
...
8
Fan Blade, Plastic WPL-C6379801
...
9
Motor, Fan WPL-C6382806
...
10
Screw WPL-WP489427
...
11
Wheel, Blower WPL-10558601
...
12
Assy Condenser WPL-D9864803
...
13
Clip-Guide WPL-M0118702
...
14
Plug Button WPL-A3080003
