Amana C72A (BOM: P1167501R)

Model: C72A (BOM: P1167501R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

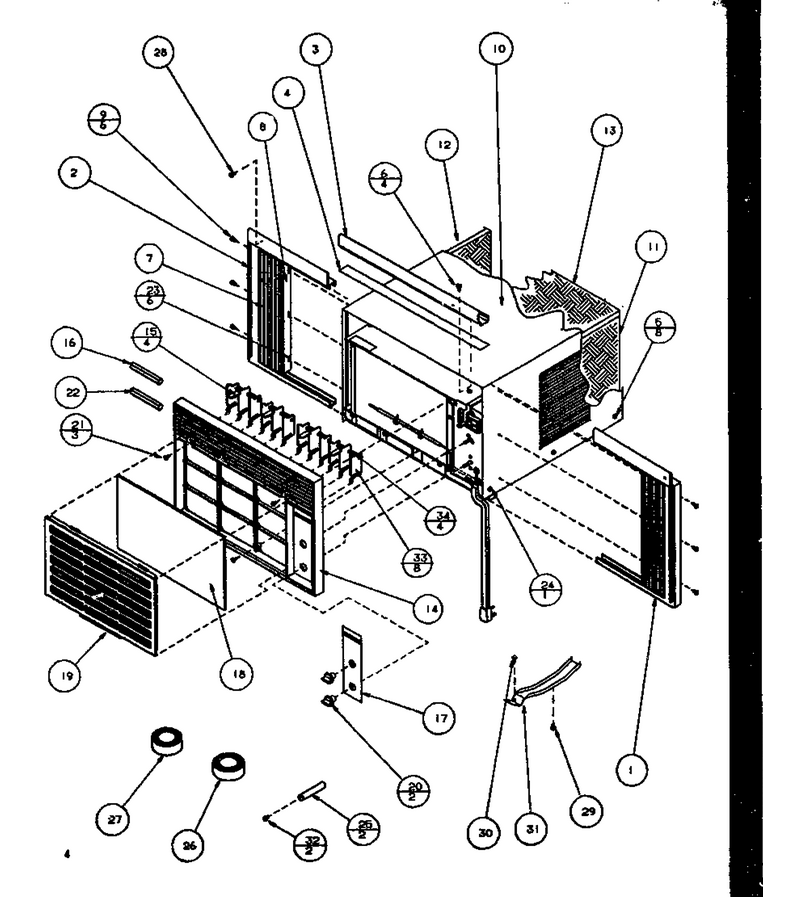

02 - Page 1

...
...
NI
Clip,retainer WPL-M0115902
...
1
Curtain Frame Kit Rh WPL-10659802
...
2
Curtain & Frame Kit Lh WPL-10659801
...
3
Top Rail-Painted WPL-C5903406
...
4
Gasket (inch) WPL-A3030301
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP12990527
...
7
Curtain 1 WPL-11118401
...
8
Curtain Frame Kit Rh WPL-10659802
...
9
Screw WPL-WP489349
...
10
Outer Case WPL-D6947610
...
11
Insulation, Side WPL-B1390501
...
12
Insulation R Side WPL-B1395801
...
13
Insulation Top WPL-B1390601
...
14
Frame, Front Control WPL-10558205
...
15
Baffle Air WPL-C6444102
...
16
Gasket (per Foot) WPL-A3030303
...
17
Escutcheon WPL-10394902
...
18
Filter, Air WPL-A3445901
...
19
Net-Insert,verticle WPL-D6954202
...
20
Knob WPL-D7009803
...
21
Screw-Sm WPL-M0241118
...
22
Gasket WPL-10839712
...
23
Screw WPL-WP489349
...
24
Screw WPL-WP90767
...
25
Spacer K WPL-A4065501
...
26
Gasket WPL-A3030302
...
27
Gasket WPL-10839702
...
28
Screw WPL-M0213032
...
29
Screw WPL-M0200001
...
30
Screw WPL-M0211020
...
31
Support, Safety WPL-11075307
...
32
Screw WPL-M0212062
...
34
Bar, Lower Stabilizer WPL-20075501

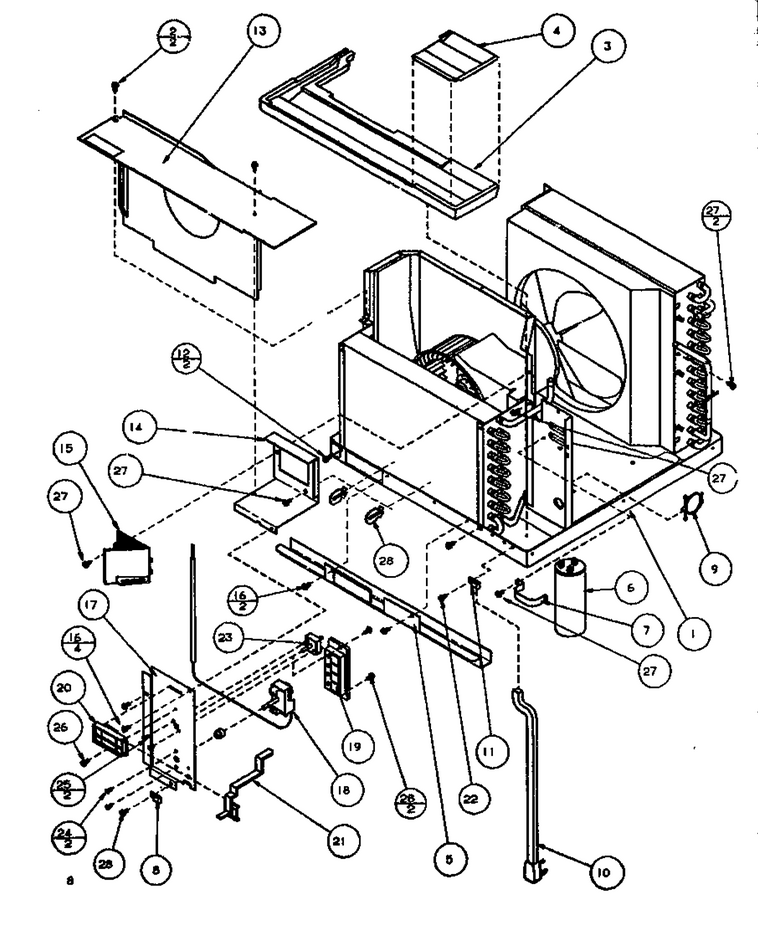

04 - Page 3

...
...
1
Basepan WPL-D9998102
...
2
Screw WPL-WP12990527
...
3
Filler Block WPL-D6947901
...
4
Shield, Fill Block WPL-C6383501
...
5
Bottom Rail WPL-C6380302
...
6
Capacitor WPL-D6879820
...
7
Capacitor Strap K WPL-C6300502
...
9
Clip-Guide WPL-M0118702
...
10
Cord, Power WPL-C6351701
...
11
Clamp WPL-M0103901
...
12
Screw (3) WPL-67006425
...
13
Panel, Inlet WPL-D6950802
...
14
Control Barrier WPL-C6381404
...
16
Screw WPL-WP90767
...
17
Panel, Control WPL-C6351807
...
18
Thermostat WPL-C6441104
...
22
Screw WPL-WP90767
...
23
Switch Rotary WPL-C6381702
...
24
Screw WPL-M0232012
...
25
Screw WPL-W11214483
...
27
Screw WPL-WP12990527
...
28
Clip, Thermostat Bulb WPL-B1415601

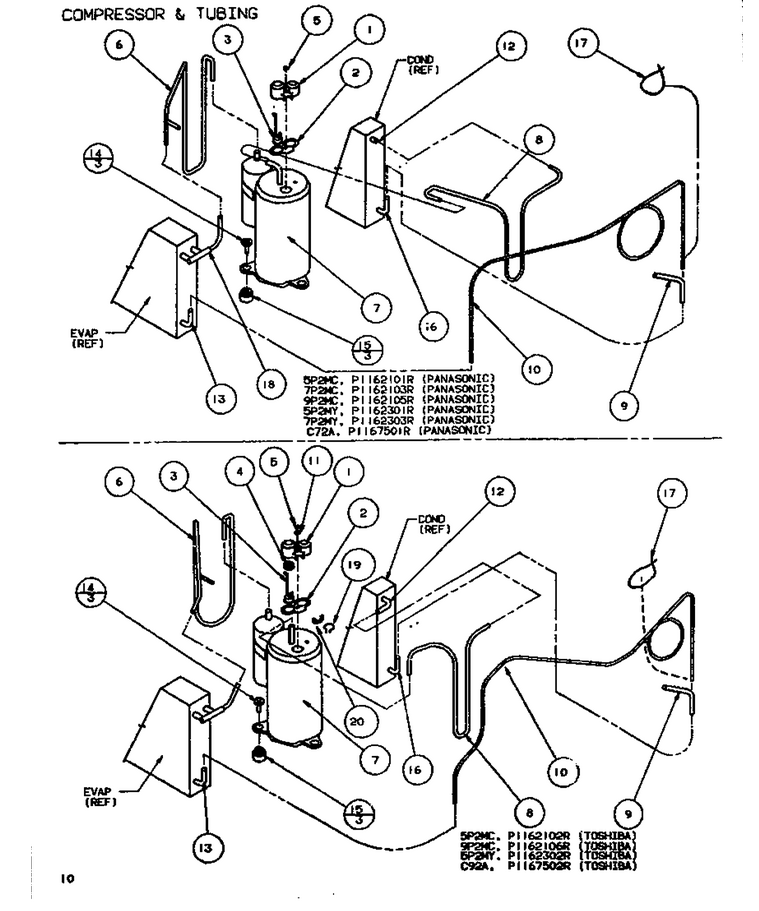

01 - Compressor & Tubing

...
...
1
Cover-Term WPL-10329001
...
2
Gasket, Terminal WPL-A3436701
...
3
Overload WPL-D6961635
...
4
Spring, Overload WPL-A3436901
...
5
Nut WPL-A9036601
...
6
Tube, Discharge WPL-C6483201
...
7
Comp-Pn2r1 WPL-D6887707H
...
8
Suction Tube WPL-C6483301
...
9
Strainer WPL-B1394401
...
10
Tube Capillary WPL-10398401
...
11
Washer WPL-A3436801
...
12
Elbow WPL-B1439301
...
13
Elbow WPL-A4083932
...
14
Screw WPL-M0253665
...
15
Grommet WPL-A4622801
...
16
Elbow WPL-D9818905
...
17
Tie-Wire WPL-WPW10339879
...
18
Elbow WPL-B1439201

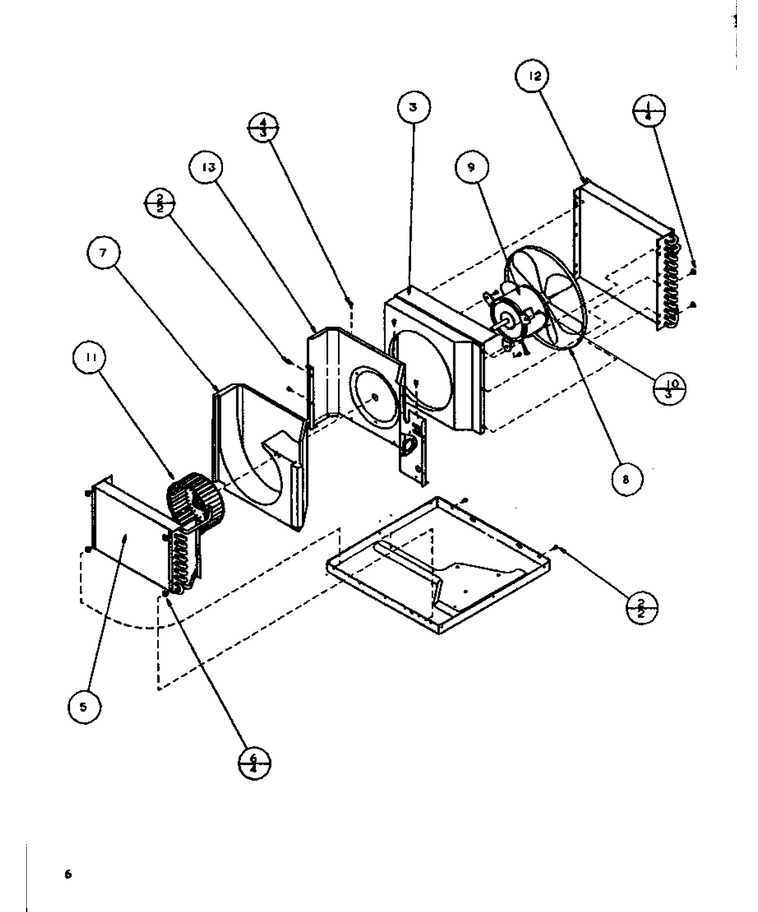

03 - Page 2

...
...
1
Grommet WPL-A3315701
...
2
Screw WPL-WP12990527
...
3
Condenser Shroud WPL-10253402
...
4
Screw WPL-WP90767
...
5
Evaporator Assy WPL-D9864902
...
6
Screw WPL-M0586001
...
7
Scroll WPL-10536201
...
8
Fan Blade, Plastic WPL-C6379801
...
9
Motor Fan WPL-C6382805
...
10
Screw, Tap WPL-M0224955
...
11
Wheel, Blower WPL-10558601
...
12
Assy Condenser WPL-D9864803
...
13
Panel-Partition WPL-D6950507
