Amana C70FW (BOM: P1125108W W)

Model: C70FW (BOM: P1125108W W)

Save Part Not Listed?
product name

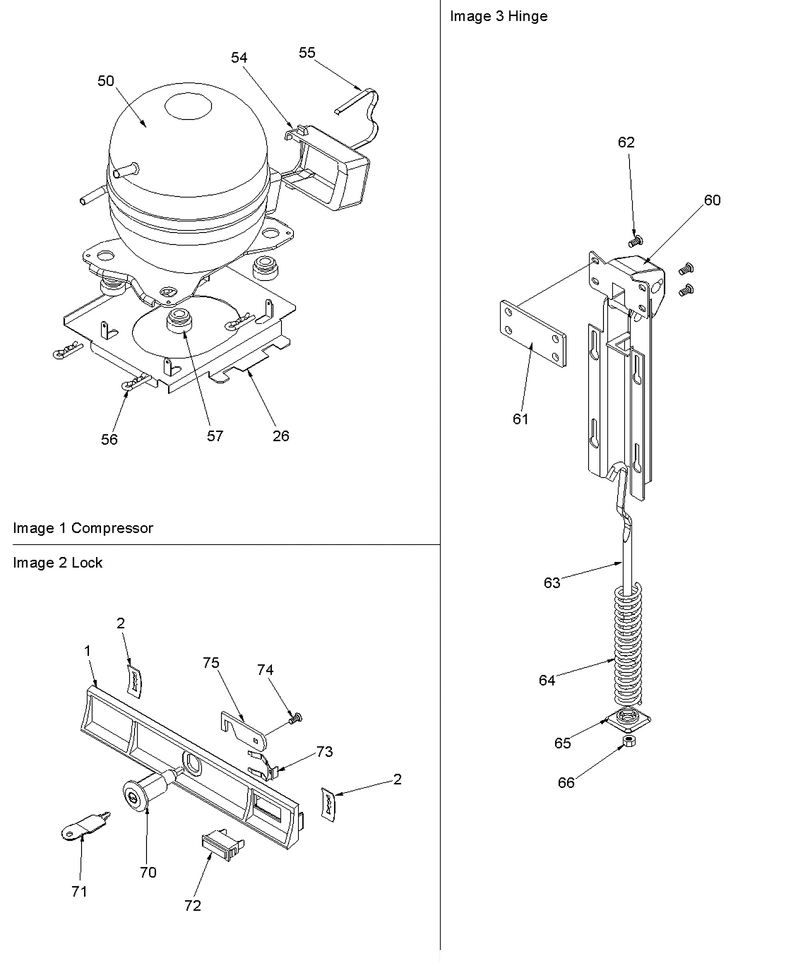

02 - Compressor And Wiring Harness

...
...
NI
Clamp, Tubing WPL-488946
...
1
Handle WPL-R0651010
...
2
Clip, Oblong WPL-3-24059-024
...
26
Base, Compressor WPL-R0660035
...
50
Compressor WPL-W10823815
...
54
Cover, Overload WPL-R0660031
...
55
Clip-Cover WPL-R0659508
...
56
Clip Hitch Pin WPL-R0651503
...
57
Compressor, Grommet WPL-4356335
...
60
Hinge Assembly WPL-4356749
...
61
Shim, Hinge WPL-R0655505
...
62
Screw WPL-4356491
...
63
Tie Bolt - Hinge WPL-Y09100033
...
64
Spring, Hinge (White) WPL-68001040
...
65
Hinge Guide WPL-R0651510
...
66
Nut, Hinge WPL-68001005

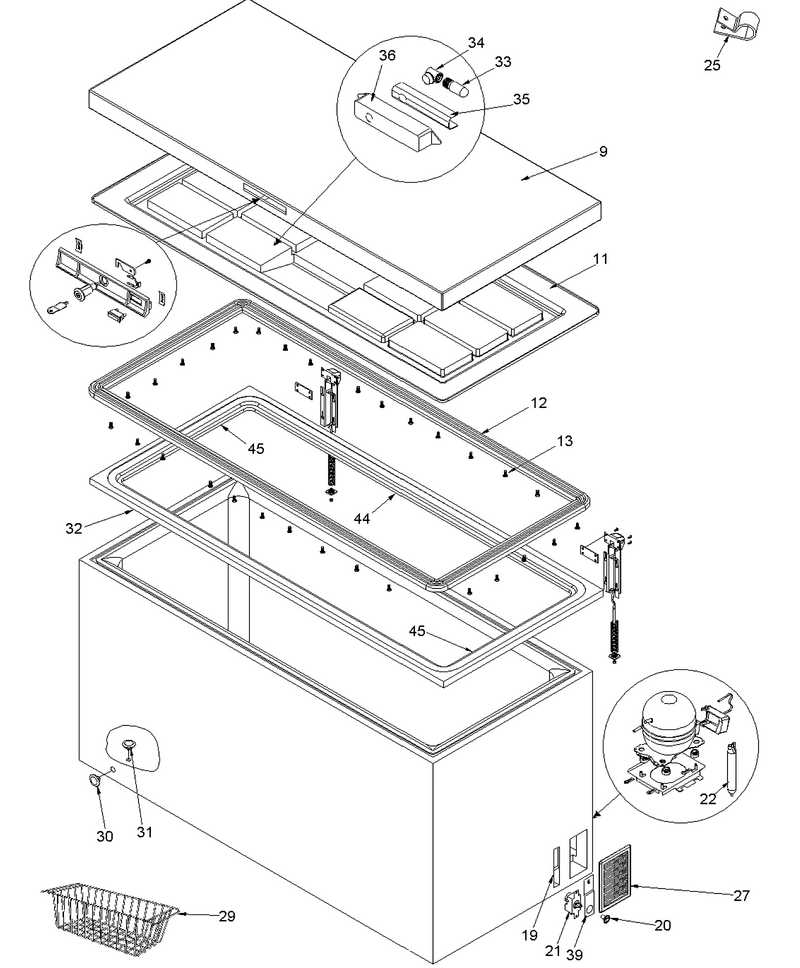

01 - Cabinet And Lid Assy

...
...
NI
Insert, Nameplate Amana WPL-R9800517
...
9
Assy, Foamed Lid Shell(Foamed) WPL-R0653518
...
11
Liner, Lid WPL-R0653514
...
12
Gasket-Dor WPL-4-35260-002
...
13
Clip, Gasket WPL-4356703
...
19
Control Box WPL-R0660020
...
20
Knob, Temp. Control WPL-68001452
...
21
Temperature - Control WPL-Y09100006
...
22
Drier WPL-WPB2150504
...
25
Clip, Gasket WPL-4356703
...
27
Access Panel WPL-4356622
...
29
Basket WPL-8210434A
...
30
Drain Defrost Cap WPL-R0653510
...
31
Drain Defrost Plug WPL-R0653511
...
32
Assy, Brkr Strip WPL-R0653530
...
39
Insert, Control WPL-4356584
