Amana C28F (BOM: P6011605W)

Model: C28F (BOM: P6011605W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

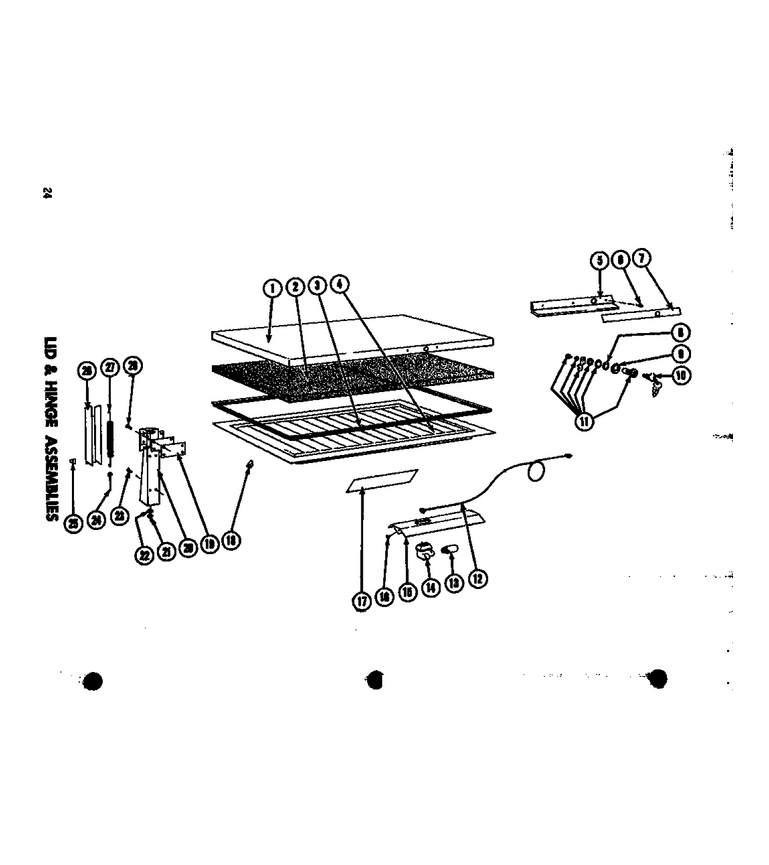

02 - Lid & Hinge Assemblies

...
...
NI
Clip WPL-M0114401
...
1
Lid C-28-C-P WPL-C3582208
...
2
Insulation Sheet WPL-B0523814
...
3
Gasket, Lid WPL-B0585703
...
4
Inner Lid Panel WPL-D3943203
...
5
Handle WPL-C3581001
...
6
Screw WPL-M0247031
...
7
Nameplate Handle WPL-B0585601
...
8
Washer WPL-M0274016
...
9
Washer WPL-A3072301
...
10
Keys WPL-A0382001
...
11
Lock Assy W/keys WPL-B0585201
...
12
Wiring Harness WPL-B5646701
...
13
Bulb-Light WPL-WPA3073101
...
14
Socket & Switch WPL-B0585402
...
15
Housing, Light WPL-C3581402
...
16
Screw WPL-M0211530
...
17
Lite Shield WPL-A3074101
...
18
Clip WPL-M0112201
...
19
Shim WPL-A0383301
...
20
Hinge Assy Pmt WPL-C3582301
...
21
Nut WPL-M0281007
...
22
Washer WPL-M0270513
...
23
Screw WPL-M0246033
...
24
Screw WPL-M0200108
...
25
Spacer WPL-M0114501
...
26
Hinge Cover W WPL-B0583411
...
27
Hinge Spring WPL-B0551703
...
28
Screw WPL-M0246033

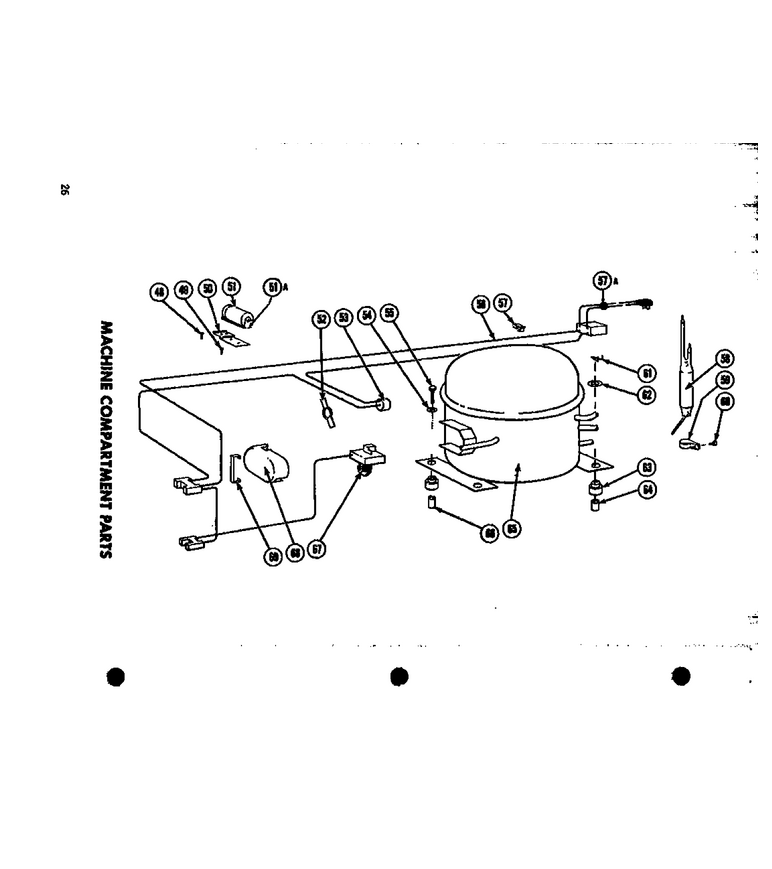

03 - Machine Compartment Parts

...
...
52
Spring K WPL-A3043601
...
53
Xoverload WPL-C3556301
...
56
Wiring Harness WPL-D7105001
...
57
Grommet, Cord WPL-211881
...
58
Drier WPL-WPB2150504
...
59
Clamp WPL-M0102315
...
60
Screw WPL-WP98165
...
61
Clip K WPL-A3140801
...
62
Washer,fibre WPL-M0274008
...
63
Grommet K WPL-A3026101
...
64
Sleeve K WPL-A3072001
...
65
Compressor, Production WPL-D3871801
...
67
Relay WPL-C3553301
...
68
Terminal Cover WPL-B0551801
...
69
Strap K WPL-A3041801

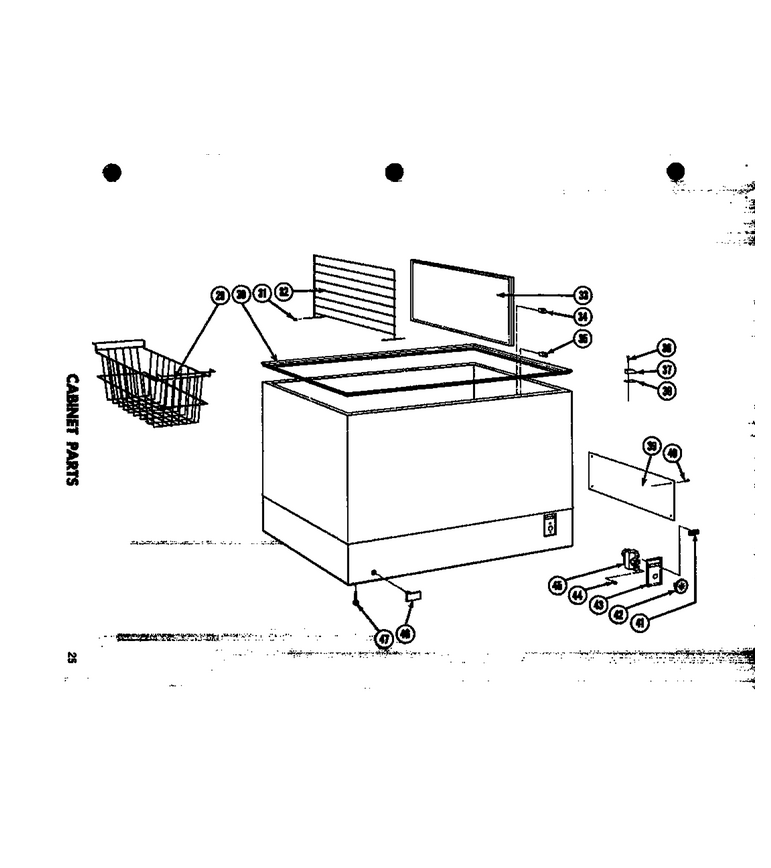

01 - Cabinet Parts

...
...
29
Basket WPL-D3946601
...
30
Collar-Breaker WPL-B0585903
...
31
Bumper WPL-A1781101
...
32
Divider (Optional) WPL-4356477
...
33
Divider WPL-D7039601
...
34
Support WPL-B0585101
...
35
Support WPL-B0585801
...
36
Screw WPL-M0228732
...
37
Strike Lock WPL-B0570101
...
38
Shim WPL-A3063204
...
39
Panel M.c WPL-C3580801
...
40
Screw, No.8-32 X1/2 Nyl Hex Hd WPL-31750417
...
41
Light, Signal WPL-R9800548
...
42
Knob K WPL-C3581901
...
43
Escutcheon WPL-C3582001
...
44
Screw WPL-WPW10068250
...
45
Control, Temperature WPL-C3628403
...
46
Plug WPL-B0564701
...
47
Glider Bolt WPL-M0266510
