Amana C221FW (BOM: P1125114W)

Model: C221FW (BOM: P1125114W)

Save Part Not Listed?
product name

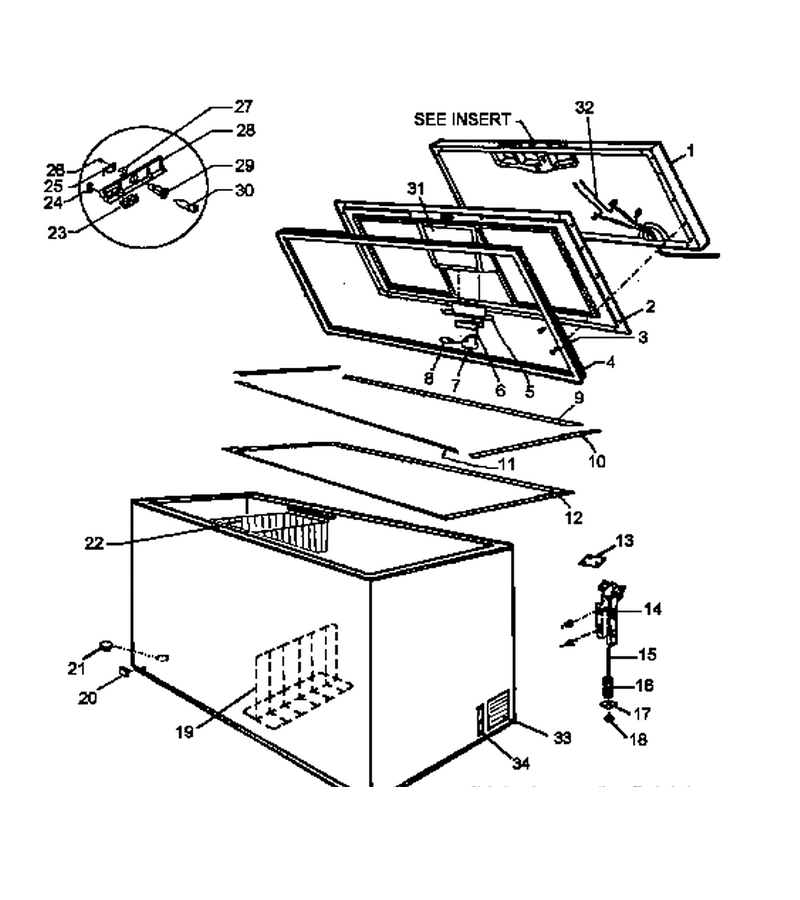

01 - Cabinet And Lid Assy

...
...
NI
Adptr-Hose WPL-W11663505
...
1
Exterior Door Panel WPL-4390903
...
2
Liner, Lid WPL-R0653519
...
3
Clip, Gasket WPL-4356703
...
4
Gasket WPL-R0654502
...
5
Reflector Housing WPL-R0653502
...
6
Heat Shield-Light WPL-R0655519
...
7
Lamp Socket WPL-4356309
...
8
Bulb-Light WPL-WPA3073101
...
9
Breaker Strip. Back WPL-R0653508
...
10
Breaker Strip End WPL-R0653509
...
11
Front, Breaker Strip WPL-4356641
...
13
Shim, Hinge WPL-R0655505
...
14
Hinge-Door WPL-W11192185
...
15
Tie Bolt - Hinge WPL-Y09100033
...
16
Spring, Hinge WPL-68001046
...
17
Hinge Guide WPL-R0651510
...
18
Nut, Hinge WPL-68001005
...
19
Divider (Optional) WPL-4356477
...
20
Drain Defrost Cap WPL-R0653510
...
21
Drain Defrost Plug WPL-R0653511
...
22
Wire Basket WPL-4356322
...
23
Light, Signal WPL-R9800548
...
24
Clip, Oblong WPL-3-24059-024
...
25
Lock Kit WPL-3-35284-001
...
26
Screw WPL-W11233072
...
27
Clip, Spring WPL-1-26359
...
28
Handle Kit WPL-68001525
...
29
Lock Kit WPL-3-35284-001
...
30
Key WPL-R0660002
...
31
Sticker, Food Guide WPL-R0660009
...
32
Wiring Harness, Internal WPL-4356618
...
33
Access Panel WPL-4356622
...
34
Control Box WPL-R0660021

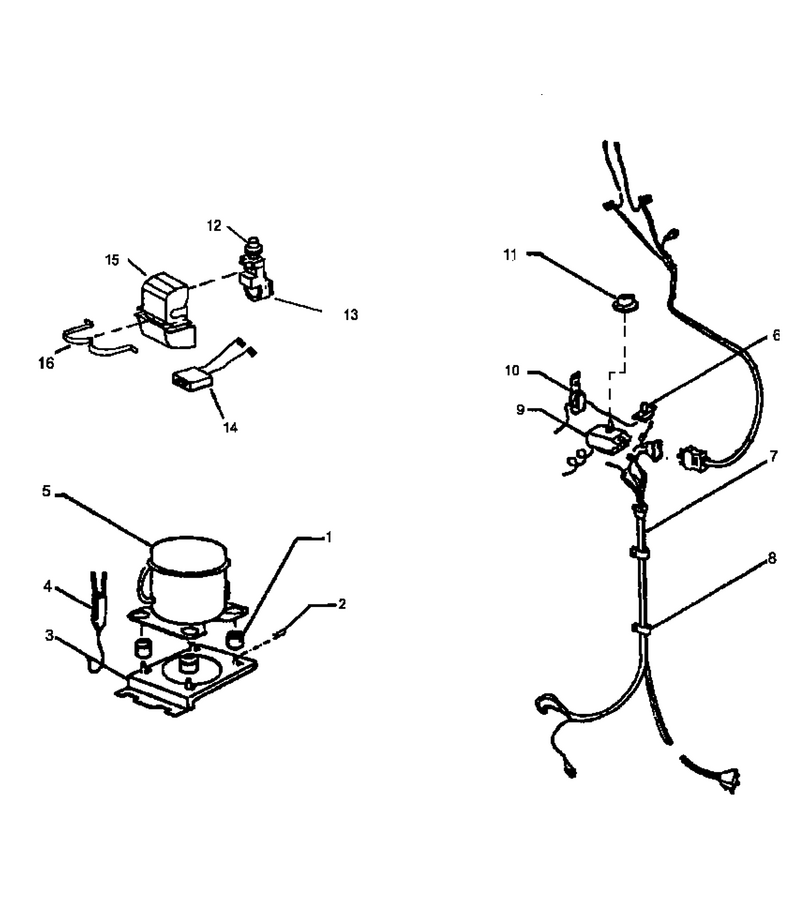

02 - Compressor And Wiring Harness

...
...
1
Compressor, Grommet WPL-4356335
...
2
Clip Hitch Pin WPL-R0651503
...
3
Base, Compressor WPL-R0660035
...
4
Drier WPL-WPB2150504
...
5
Compressor WPL-W10309990
...
6
Switch WPL-8210322
...
7
Harness, Compressor WPL-R0660034
...
8
Clamp, Tubing WPL-488946
...
9
Temperature - Control WPL-Y09100006
...
10
Buzzer, Door Alarm WPL-2-32304
...
11
Knob, Temp. Control WPL-68001452
...
12
Overload, Protector WPL-R0660042
...
13
Relay WPL-R0659506
...
14
Capacitor WPL-WPW10662129
...
15
Cover, Terminal WPL-R0659503
...
16
Clamp, Term. Cover WPL-10899501
