Amana C151FW (BOM: P1125112W W)

Model: C151FW (BOM: P1125112W W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

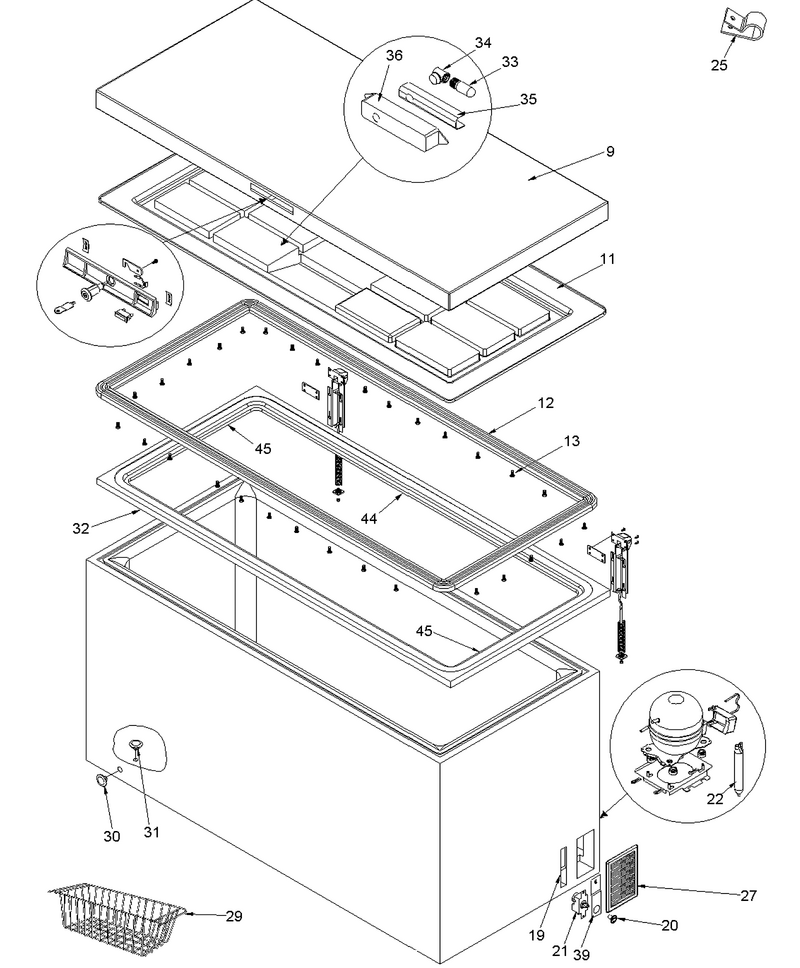

01 - Cabinet And Lid Assy

...
...
NI
Screw WPL-3-24004-049
...
9
Lid Kit (Wht) WPL-68001175
...
11
Lid Liner, W/light WPL-R0651020
...
12
Gasket WPL-R0654503
...
13
Clip, Gasket WPL-4356703
...
19
Control Box WPL-R0660020
...
20
Knob, Temp. Control WPL-68001452
...
21
Temperature - Control WPL-Y09100006
...
22
Drier WPL-WPB2150504
...
25
Clip, Gasket WPL-4356703
...
27
Access Panel WPL-4356622
...
29
Wire Basket WPL-4356322
...
30
Drain Defrost Cap WPL-R0653510
...
31
Drain Defrost Plug WPL-R0653511
...
32
Breaker Strip, Front WPL-4-35011-004
...
33
Bulb-Light WPL-WPA3073101
...
34
Lamp Socket WPL-4356309
...
35
Heat Shield-Light WPL-R0655519
...
36
Reflector Housing WPL-R0653502
...
39
Insert, Control WPL-4356584
...
44
Breaker Strip, Rear WPL-4-35010-004
...
45
Breaker Strip End WPL-R0653509

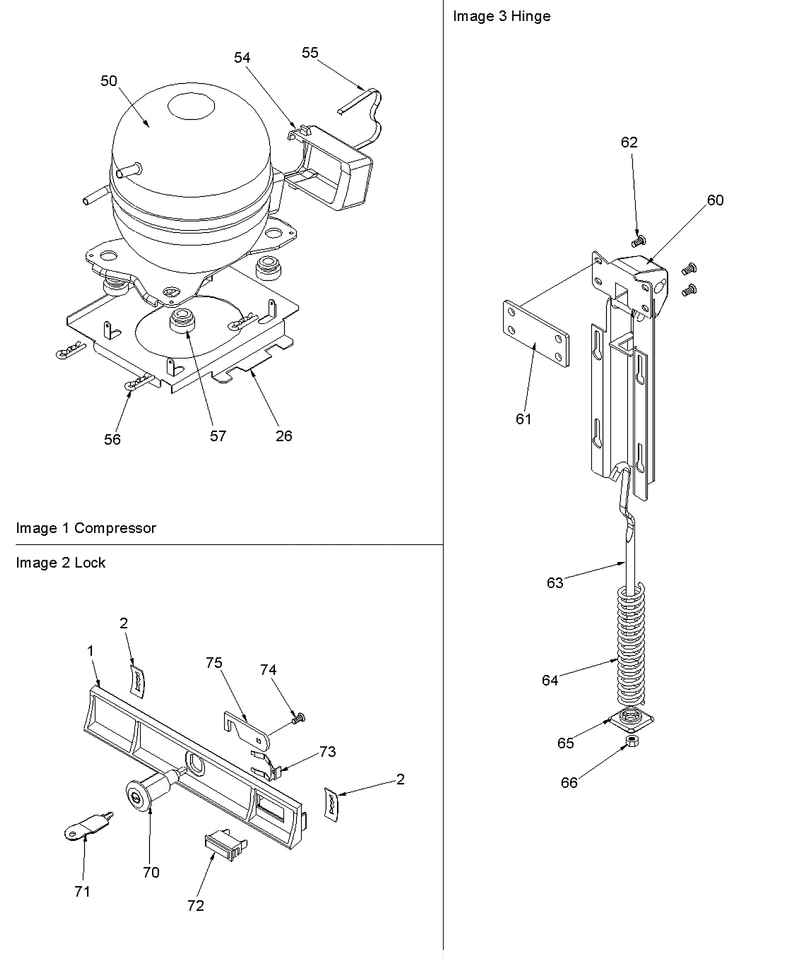

02 - Compressor And Wiring Harness

...
...
NI
Clamp, Tubing WPL-488946
...
1
Handle Kit WPL-68001525
...
2
Clip, Oblong WPL-3-24059-024
...
26
Base, Compressor WPL-R0660035
...
50
Compressor WPL-W10473567
...
54
Cover-Protector WPL-R0659507
...
55
Clip-Cover WPL-R0659508
...
56
Clip Hitch Pin WPL-R0651503
...
57
Compressor, Grommet WPL-4356335
...
60
Hinge Assembly (With Spring) WPL-4356490
...
61
Shim, Hinge WPL-R0655505
...
62
Screw WPL-4356491
...
63
Tie Bolt - Hinge WPL-Y09100033
...
64
Spring, Hinge (White) WPL-68001040
...
65
Hinge Guide WPL-R0651510
...
66
Nut, Hinge WPL-68001005
...
70
Lock Kit WPL-3-35284-001
...
71
Key WPL-R0660002
...
72
Light, Signal WPL-R9800548
...
73
Clip, Spring WPL-1-26359
...
74
Screw WPL-W11233072
...
75
Lock Kit WPL-3-35284-001
