Amana C150FW (BOM: P1125111W W)

Model: C150FW (BOM: P1125111W W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

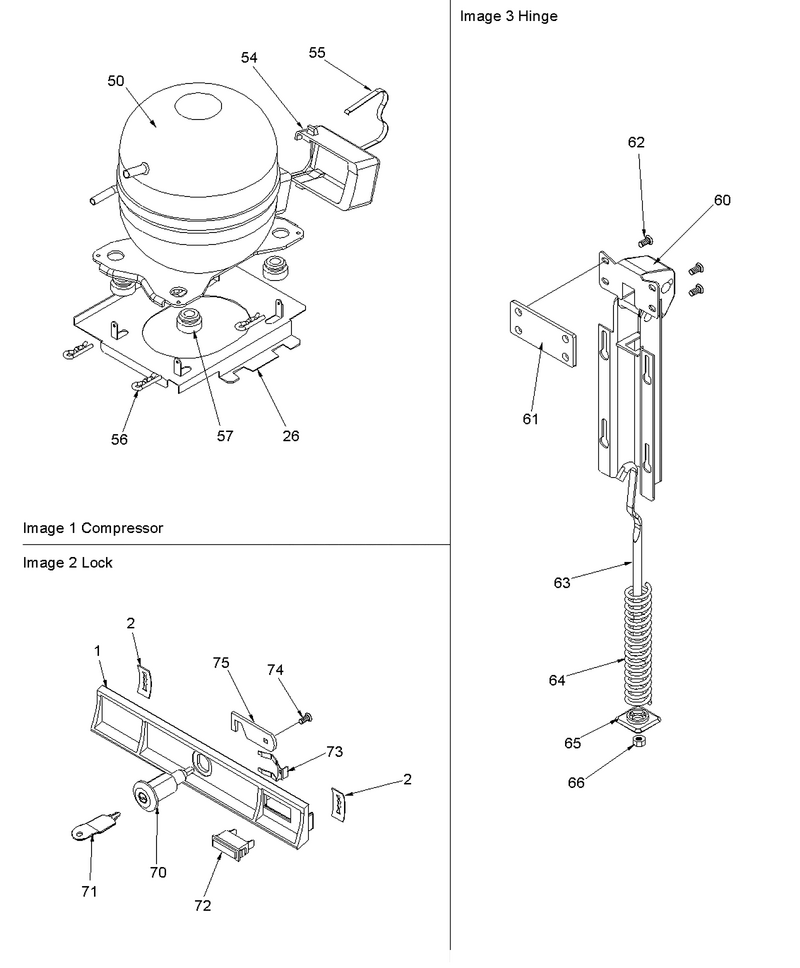

02 - Compressor And Wiring Harness

...
...
NI
Capacitor WPL-WPW10662129
...
1
Handle WPL-R0655514
...
2
Clip, Oblong WPL-3-24059-024
...
26
Base, Compressor WPL-R0660035
...
50
Compressor WPL-W10473567
...
54
Cover-Protector WPL-R0659507
...
55
Clip-Cover WPL-R0659508
...
56
Clip Hitch Pin WPL-R0651503
...
57
Compressor, Grommet WPL-4356335
...
60
Hinge Assembly (With Spring) WPL-4356490
...
61
Shim, Hinge WPL-R0655505
...
62
Screw WPL-4356491
...
63
Tie Bolt - Hinge WPL-Y09100033
...
64
Spring, Hinge (White) WPL-68001040
...
65
Hinge Guide WPL-R0651510
...
66
Nut, Hinge WPL-68001005
...
70
Lock Kit WPL-3-35284-001
...
71
Key WPL-R0660002
...
73
Clip, Spring WPL-1-26359
...
74
Screw WPL-W11233072
...
75
Lock Kit WPL-3-35284-001

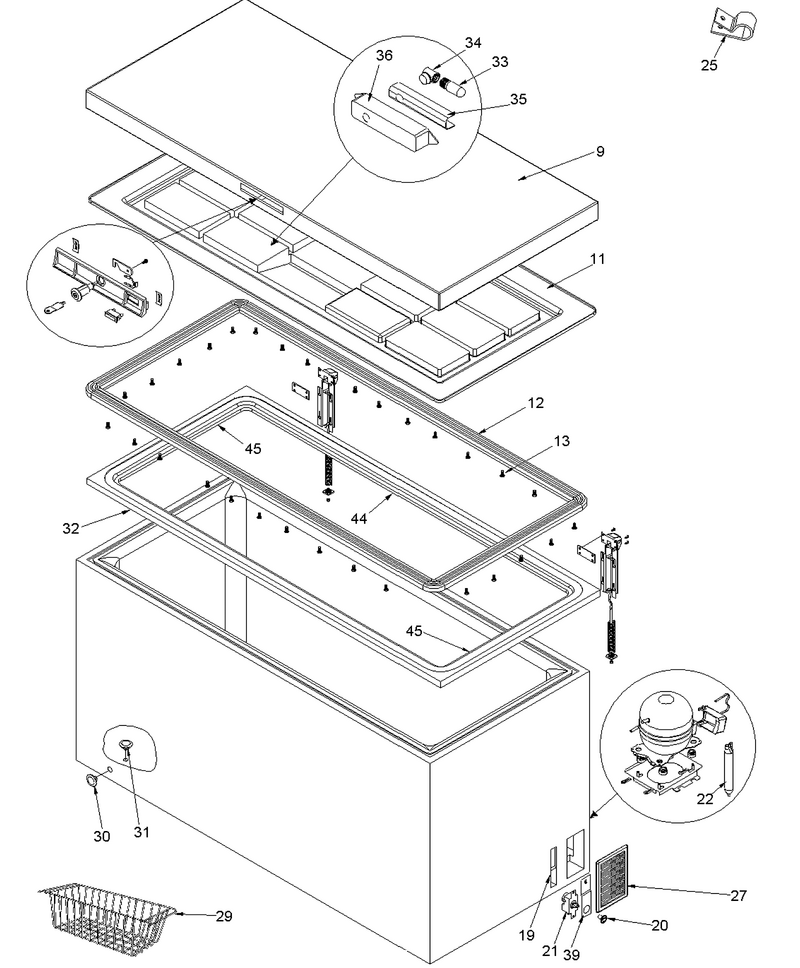

01 - Cabinet And Lid Assy

...
...
NI
Adptr-Hose WPL-W11663505
...
9
Assy, Lid Shell (Foamed) WPL-R0653521
...
11
Liner Kit WPL-R0651015
...
12
Gasket WPL-R0654503
...
13
Clip, Gasket WPL-4356703
...
19
Control Box WPL-R0660020
...
20
Knob, Temp. Control WPL-68001452
...
21
Temperature - Control WPL-Y09100006
...
22
Drier WPL-WPB2150504
...
25
Clip, Gasket WPL-4356703
...
27
Access Panel WPL-4356622
...
29
Wire Basket WPL-4356322
...
30
Drain Defrost Cap WPL-R0653510
...
31
Drain Defrost Plug WPL-R0653511
...
32
Breaker Strip, Front WPL-4-35011-004
...
39
Insert, Control WPL-4356584
...
44
Breaker Strip, Rear WPL-4-35010-004
...
45
Breaker Strip End WPL-R0653509
