Amana C102B (BOM: P1184103R)

Model: C102B (BOM: P1184103R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

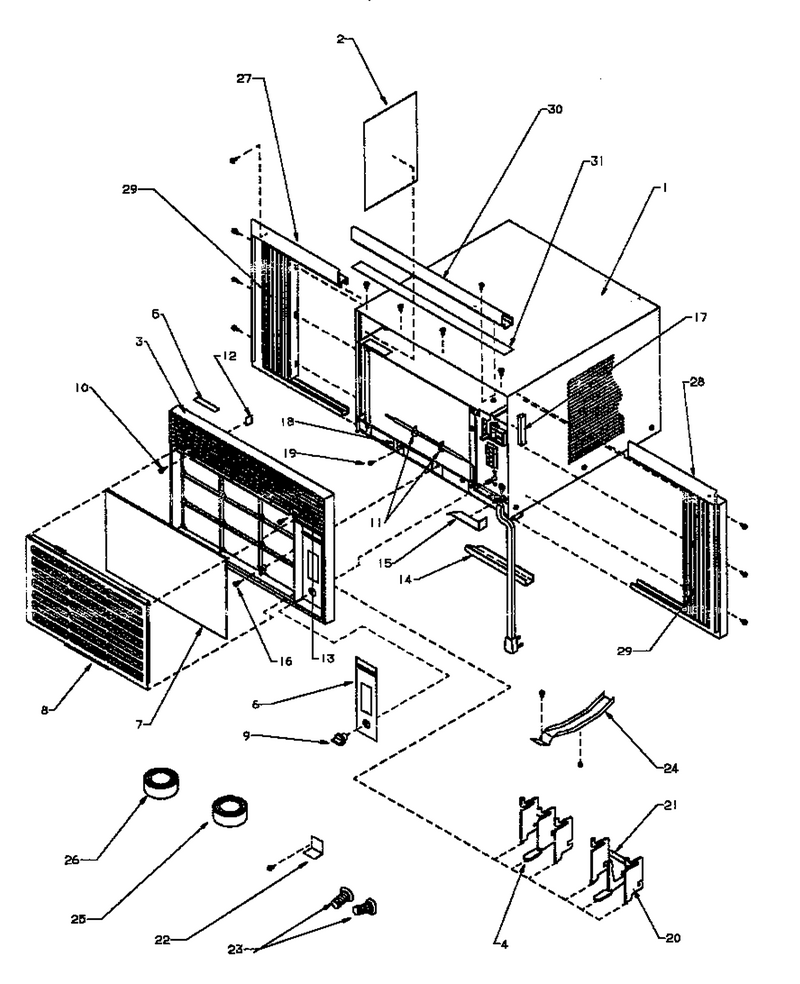

04 - Front & Outer Case Assy

...
...
1
Outer Case, Tan WPL-10266908
...
2
Insulation WPL-C6430401
...
3
Frame-Front WPL-D9969905
...
4
Baffle, Air WPL-10558401
...
5
Gasket (per Foot) WPL-A3030303
...
6
Escutcheon WPL-C6399810
...
7
Filter, Air WPL-A3445902
...
8
Insert-Horz WPL-D6972202FY
...
9
Knob, Control WPL-D7795807
...
10
Screw-Sm WPL-M0241118
...
11
Clip, Thermostat Bulb WPL-B1415601
...
12
Clip WPL-B1404802
...
13
Louver Box WPL-D6972101
...
14
Bottom Rail-Painted WPL-B1124711
...
15
Gasket, Per Foot WPL-A3030352
...
16
Screw WPL-WP693995
...
17
Gasket (1=1ft.) WPL-10839713
...
18
Clamp-Retaining WPL-A9035301
...
19
Screw WPL-WP12990527
...
20
Baffle, Air WPL-10558501
...
21
Bar, Lower Stabilizer WPL-20075501
...
22
Brkt, Window Stop WPL-10661401
...
23
Screw WPL-M0200001
...
24
Support, Safety WPL-11075307
...
25
Gasket WPL-A3030302
...
26
Gasket WPL-10839702
...
27
Sliding Frame-Lt WPL-10382603
...
28
Sliding Frame-Rt WPL-10382604
...
29
Curtain WPL-11118402
...
30
Top Rail-Painted WPL-C5903420
...
31
Gasket (per Foot) WPL-A3030313

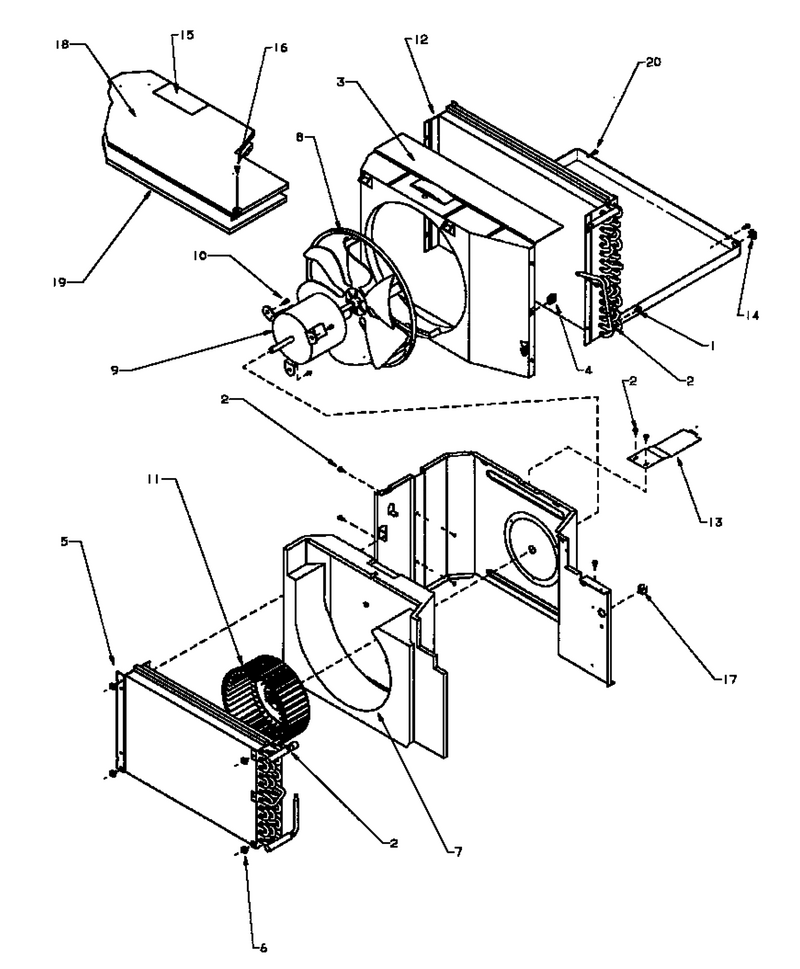

03 - Ctrl Pan & Evap, Cond & Air Flow Parts

...
...
1
Grommet WPL-A3315701
...
2
Screw WPL-WP12990527
...
3
Shroud, Condenser WPL-D6974702
...
4
Speed Nut WPL-M0288107
...
5
Evaporator Assy WPL-D9878703
...
6
Screw WPL-M0586001
...
7
Scroll, Evap. WPL-10671601
...
8
Fan Blade WPL-C6399901
...
9
Motor, Fan WPL-C6460301Q
...
10
Screw WPL-WP489427
...
11
Blower Wheel WPL-C6172701
...
12
Assy, Condenser WPL-D9892007
...
13
Brace-Tie WPL-B1399601
...
14
Plug Button WPL-A3080003
...
15
Gasket WPL-A3030302
...
16
Screw WPL-WP90767
...
17
Clip-Guide WPL-M0118702
...
18
Cover, Top WPL-D6982005
...
19
Insul, Top Cover WPL-10671301
...
20
Screw WPL-WP98165

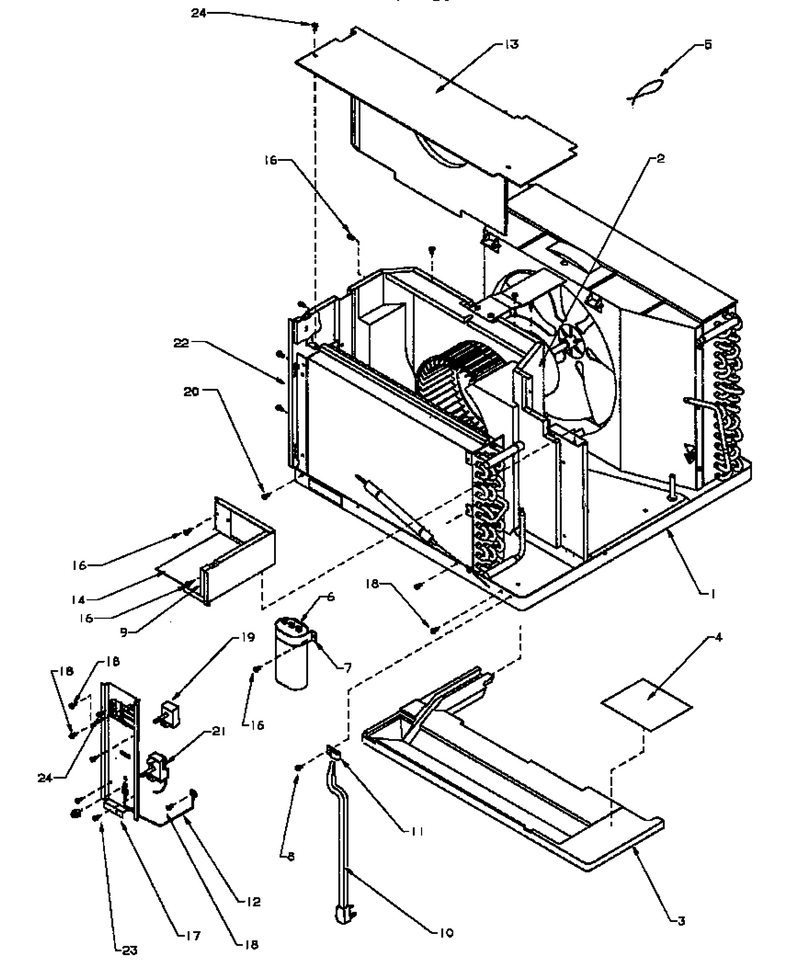

02 - Control Panel & Misc Chassis Parts

...
...
1
Pan, Base (pnt) WPL-D6975510
...
2
Panel, Partion WPL-D9928103
...
3
Filler Block WPL-D6976601
...
4
Shield, Filler Blk WPL-C6399601
...
5
Tie-Wire WPL-WPW10339879
...
6
Capacitor WPL-D6879722
...
7
Strip-Capacitor WPL-B1399901
...
8
Screw WPL-WP90767
...
9
Insul., Side WPL-10671503
...
10
Cord, Power WPL-Y20057501
...
11
Clamp, Speed WPL-M0103904
...
12
Wire Jumper WPL-C5946467
...
13
Panel-Inlet WPL-D9961801A
...
14
Back, Cont. Barrier WPL-C6481704
...
16
Screw WPL-WP12990527
...
17
Panel, Control WPL-10680501
...
18
Screw WPL-WP90767
...
19
Switch, Rotary WPL-10710602
...
20
Screw (3) WPL-67006425
...
21
Thermostat WPL-10711202
...
22
Ext Part. Panel WPL-D6982601
...
23
Screw WPL-M0232012
...
24
Screw WPL-WP12990527

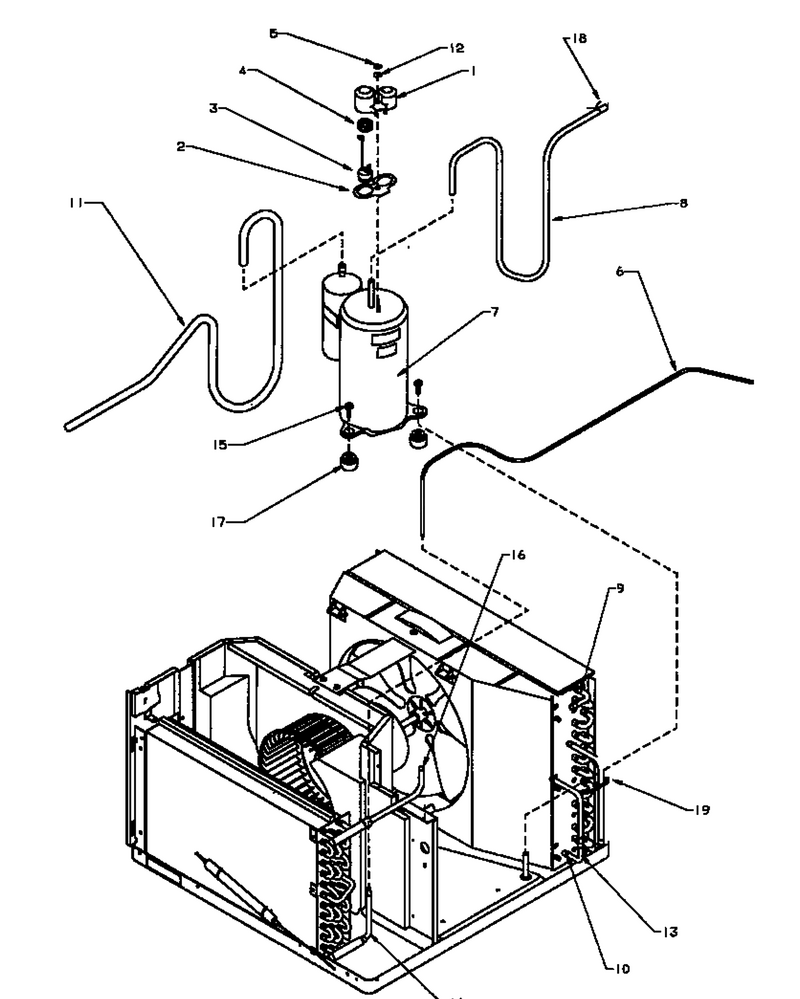

01 - Compressor & Tubing

...
...
1
Cover Terminal WPL-C6470701
...
2
Gasket, Term. Cover WPL-B1434901
...
3
Overload WPL-D6961630
...
5
Nut WPL-A9036601
...
6
Capillary Tube WPL-10069601
...
7
Compressor WPL-D9831802
...
8
Suction Tube WPL-10069501
...
9
Elbow WPL-B1439301
...
10
Strainer WPL-B1394401
...
11
Discharge Tube WPL-D9669002
...
13
Elbow WPL-D9818909
...
14
Elbow WPL-D9873802
...
15
Screw, Shldr WPL-M0253610
...
16
Elbow WPL-A4083933
...
17
Grommet. Comp WPL-A3448601
...
18
Wire Tie WPL-M0321204
...
19
Tie-Wire WPL-WPW10339879
