Amana BW20K (BOM: P7812516W W)

Model: BW20K (BOM: P7812516W W)

Save Part Not Listed?
product name

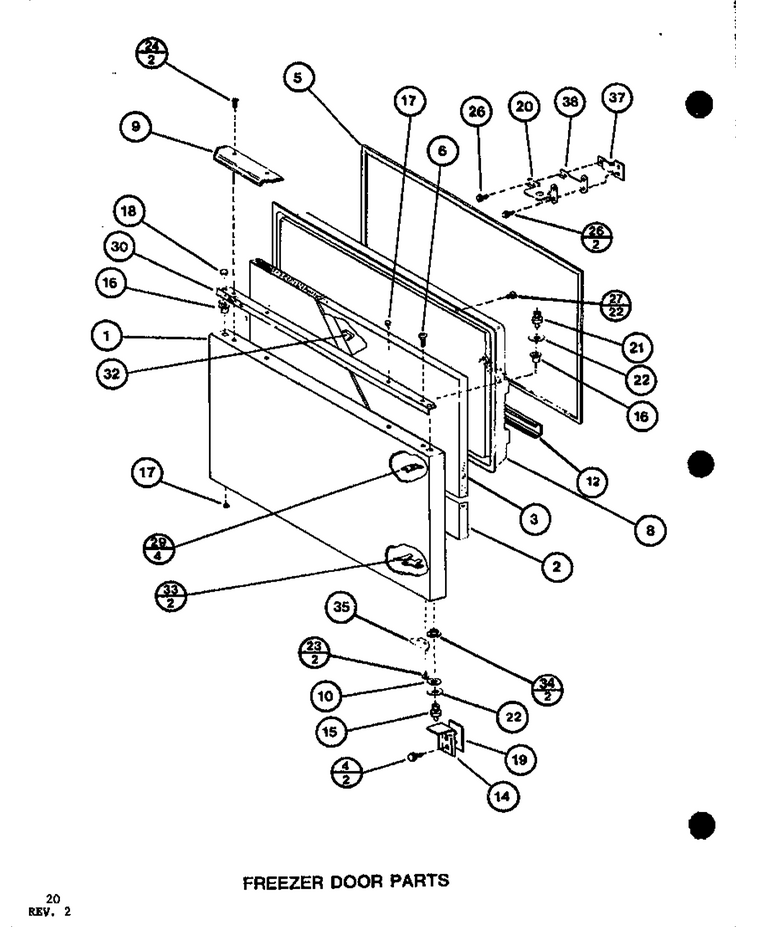

02 - Fz Door Parts

...
...
NI
Foam Slab 2pcs. = 1 WPL-D7398701
...
1
Upper Door Pan, White WPL-D7728201
...
2
Insulation WPL-B0523574
...
4
Screw WPL-WP67006715
...
5
Gasket WPL-D7605110
...
6
Screw WPL-WPW10348409
...
8
Inner Dr Panel Frz WPL-D7689101
...
9
Frz Door Handle Assy WPL-C8944903
...
10
Washer WPL-M0274050
...
12
Retainer, Package WPL-C8907220
...
14
Bracket Lower Hinge WPL-10163605
...
15
Pin, Hinge K WPL-C8814901
...
16
Bushing, Hinge Pin WPL-C3652901
...
19
Shim WPL-B5744802
...
20
Center Hinge Bracket WPL-C8948601
...
21
Center Pin Hinge WPL-B8373101
...
22
Washer WPL-M0274049
...
23
Screw WPL-M0203458
...
24
Screw WPL-WPW10348409
...
26
Screw WPL-M0226831
...
27
Screw WPL-WPM0219730
...
29
Nut WPL-B8361401
...
30
Cap Door WPL-D3958305
...
32
Clamp-Wiring WPL-A3195601
...
33
Nut WPL-B8363501
...
34
Bearing, Hinge WPL-C8852202
...
35
Door Stop WPL-C8894802
...
37
Kit- Tap P WPL-R0194684
...
38
Shim K WPL-B8351401

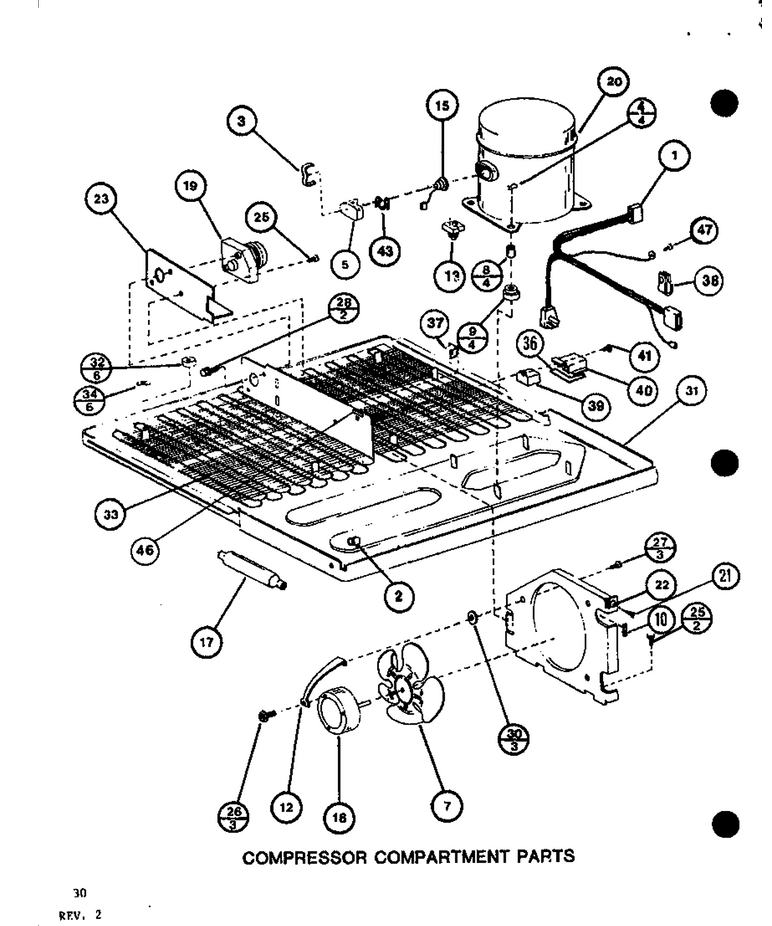

01 - Compressor Compartment Parts

...
...
1
Clip WPL-M0110508
...
3
Bale Strap WPL-YB8358601
...
4
Clip Comp WPL-B8352901
...
5
Term Cover WPL-C8960801
...
7
Blade, Fan WPL-B5742603
...
8
Sleeve K WPL-A3072001
...
9
Grommet, Compressor WPL-67003493
...
10
Gasket WPL-B5759604
...
12
Bracket, Cond Motor WPL-C8982101
...
13
Relay WPL-C8931503
...
15
Overload WPL-10377005
...
17
Drier WPL-WPB2150504
...
18
Motor-Cond WPL-833697
...
19
Timer-Def WPL-R0168027
...
20
Compressor WPL-C3667102H
...
21
Screw WPL-WP489069
...
22
Cond. Fan Shrd WPL-D7691002
...
23
Timer Bracket WPL-D7690801
...
25
Screw WPL-WP90767
...
26
Screw WPL-M0223803
...
27
Screw Shoulder WPL-M0238833
...
28
Screw WPL-M0218118
...
30
Grommet K WPL-M0500107
...
31
Base Pan WPL-D7595410
...
32
Spacer Cond. WPL-B8346301
...
33
Condenser Pntd WPL-D7654301
...
34
Speednut WPL-M0293703
...
36
Grommet Per In. WPL-A3261703
...
37
Tie-Wire WPL-WPW10339879
...
38
Clamp WPL-M0103901
...
39
Capacitor WPL-WPW10662129
...
40
Shield, Capacitor WPL-10266402
...
41
Screw WPL-WP489464
...
43
Spring, Overload WPL-B8358301
...
46
Felt WPL-A9008301
...
47
Screw WPL-M0253916

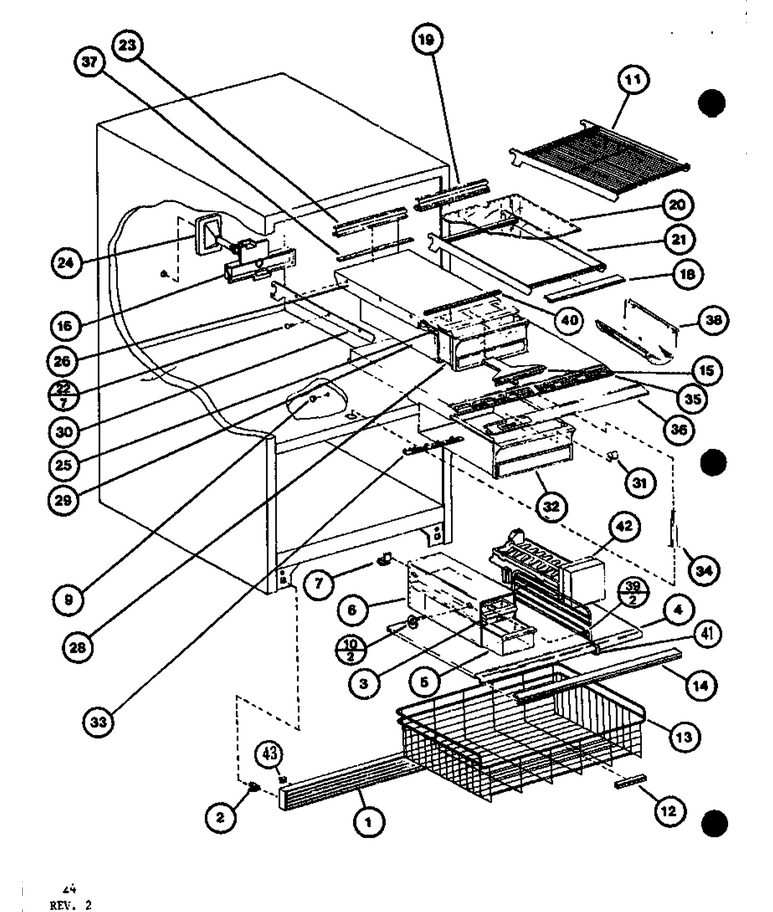

03 - Page 10

...
...
NI
Glass Shelf Assy WPL-D7714636
...
1
Grille-Toe-B K WPL-D7520510
...
2
Clip WPL-WPM0117303
...
3
Tray WPL-WP841180A
...
4
Shelf WPL-D7681202
...
5
Ice Bin WPL-D7620009
...
6
Rack, Ice Service WPL-D7620106
...
7
Clip WPL-B5720301
...
9
Button- Pl WPL-WP67001130
...
10
Washer WPL-M0270519
...
12
Handle Basket WPL-B0571806
...
13
Basket Frz WPL-D7677401
...
14
Trim Shelf WPL-C8832508
...
15
M.k. Control Slide WPL-D7697903
...
16
Housing M.k. Slide WPL-D7698003
...
18
Trim, Shelf A WPL-C8913501
...
19
Trim, Shelf WPL-C8913601
...
20
Glass Shelf WPL-D7421237
...
21
Frame, Cantilever WPL-D7602303
...
22
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
23
Trim Shelf WPL-C8831808
...
24
Grommet Mk WPL-D7701202
...
25
Trim Shelf WPL-C8913505
...
26
Top M.k WPL-D7698205
...
28
Meat Pan WPL-D7698314
...
29
Sleeve, Meat Keeper WPL-D7698105
...
30
Side Plate Mk WPL-D7600030
...
31
Knob Humidity A-K WPL-C8908301
...
32
Crisper Pan WPL-D7581024
...
33
Slide Humidity WPL-D7587705
...
34
Crisper Support Post WPL-D7602202
...
35
Top,crisper A-K WPL-D7616505
...
36
Trim, Crisper Top A WPL-D7616607
...
37
Tape Per Roll WPL-M0275163
...
38
Bottle Rack WPL-D7547604
...
39
Screw Shoulder WPL-M0238833
...
41
Divider, Frz Shelf WPL-D7815401
...
42
See Note Ice Maker WPL-Y00000000
...
43
Grille-Toe-B K WPL-D7520510

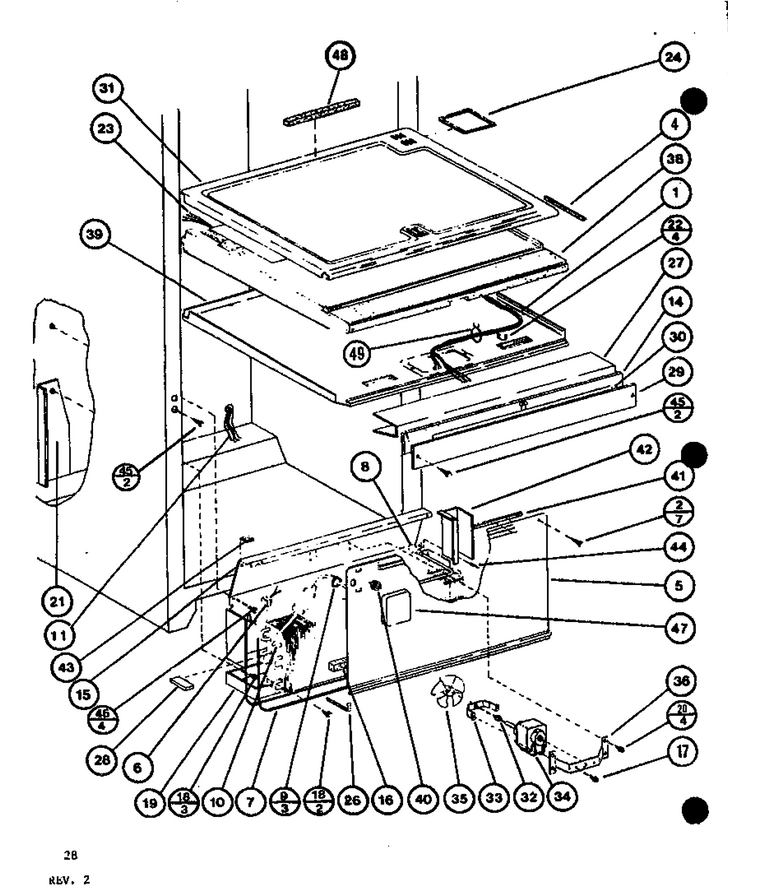

04 - Page 11

...
...
1
Ladder Side WPL-D7599103
...
2
Screw (3) WPL-67006425
...
3
Switch WPL-W11384469
...
4
Insert, Control WPL-C8902601
...
5
Knob WPL-D7009802
...
6
Insul. Damper WPL-D7687701
...
7
Cover, Refr Control WPL-D7687507
...
8
Damper Control Kit WPL-D7547403
...
9
Clip, Ground WPL-B5733302
...
10
Screw (3) WPL-67006425
...
11
Housing-Ref Light WPL-D7716409
...
12
Insulation WPL-C8778301
...
13
Cover, Light Sw WPL-D7297604
...
14
Shield Light WPL-D7288103
...
15
Socket, Dual Lamp WPL-D7808602
...
16
Screw WPL-WP98165
...
17
Light Bulb WPL-8009
...
18
Harness Heater WPL-B8366001
...
19
Plug, Button (wht) WPL-M0310308
...
20
Ladder Center WPL-D7599001
...
21
Gasket, Damper WPL-B8345401
...
22
Plug WPL-M0310720
...
23
Bracket Control WPL-C8943301
...
24
Pop Rivet WPL-M0010215
...
25
Diode WPL-M0305301
...
26
Switch WPL-M0341202
...
27
Insulation WPL-B8362503
...
28
Socket-Light WPL-D7714407
...
29
Shield, Light WPL-R0176034
...
30
Gasket WPL-B5759607
...
31
Knob, Control WPL-D7689901
...
32
Gasket WPL-B8314801
...
33
Barrier Lt. S.w. WPL-C8940401
...
34
Cover, Frz Control WPL-D7690202
...
35
Control Temp WPL-C8946701
...
37
Screw WPL-WP489464
...
38
Screw (3) WPL-67006425
...
40
Screw WPL-WP489464
...
41
Screw-Sm WPL-M0238636
...
42
Screw WPL-M0253916
...
43
Screw WPL-M0216531
...
44
Gasket 1 WPL-10839714
...
45
Gasket Air Block WPL-B5759618

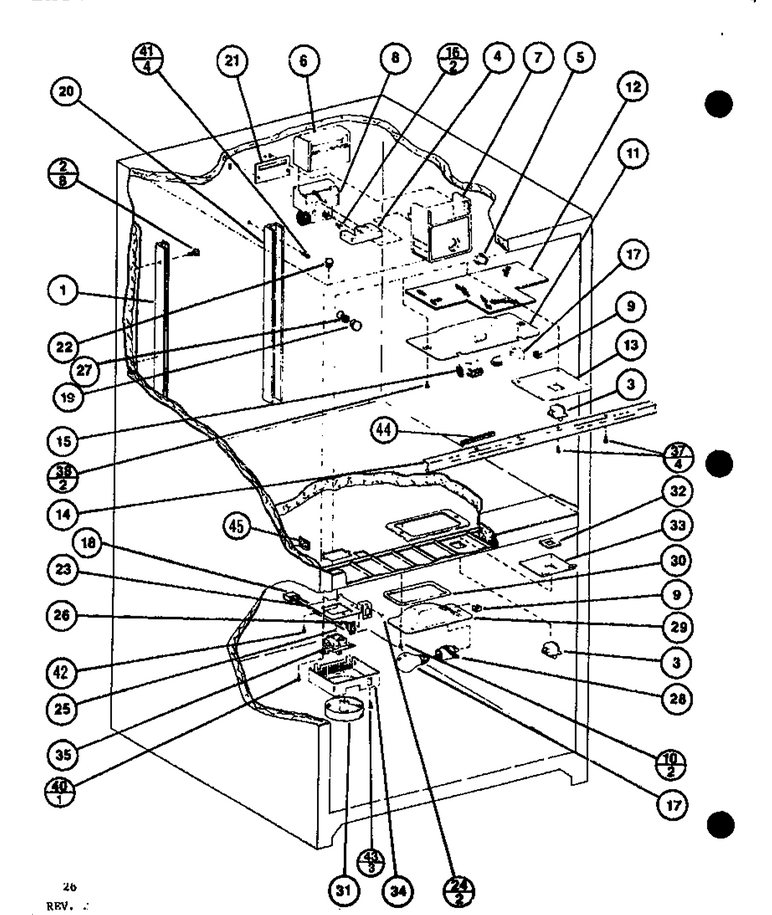

05 - Page 12

...
...
1
Harness, Mullion WPL-D7742801
...
2
Screw (3) WPL-67006425
...
4
Gasket, Sealing WPL-B5759617
...
5
Cover, Evaporator WPL-D7677801
...
6
Thermostat WPL-WP10442411
...
7
Heater Defrost WPL-D7718301
...
8
Heat Exchanger WPL-D7759001
...
9
Tie-Wire WPL-WPW10339879
...
10
Assy,low Side WPL-R0170030
...
11
Harness Liner WPL-D7711701
...
14
Insulation Per Ft. WPL-B0523584
...
15
Shroud Evap Fan WPL-D7691104
...
16
Gasket, Bottom WPL-A3189394
...
17
Kit, Screw WPL-R9800670
...
18
Screw (3) WPL-67006425
...
19
Tray, Drip WPL-D7679402
...
20
Screw WPL-WP489464
...
21
Barrier WPL-C8953701
...
22
Clamp-Wiring WPL-A3195601
...
23
Heater-Ref Bottom WPL-D7742901
...
24
Gasket WPL-A3030302
...
26
Clamp WPL-M0103502
...
27
Breaker, Center Mullion WPL-D7678401
...
28
Block Evap Coil WPL-B8373201
...
29
Center Mullion, Almond WPL-C8842513
...
30
Heater, Mullion WPL-D7654503
...
31
Bottom Ref. WPL-D7681701
...
32
Grommet WPL-WP2264462
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Blade, Evap Fan WPL-C8927801
...
36
Brkt Evap Fan Shroud WPL-D7524501
...
38
Block-Waxed Ctr WPL-D7713301
...
39
Top, Freezer WPL-D7681401
...
40
Grommet WPL-A3138301
...
41
Gasket 1 WPL-10839714
...
42
Duct, Returnair WPL-D7680901
...
43
Gasket WPL-B8358502
...
44
Pop Rivet WPL-A4539602
...
45
Kit, Screw WPL-R9800670
...
46
Screw WPL-WP98165
...
47
Cover-Fl Tb/plug WPL-D7604903
...
48
Gasket WPL-B5759616
...
49
Lock, Purse WPL-74007369

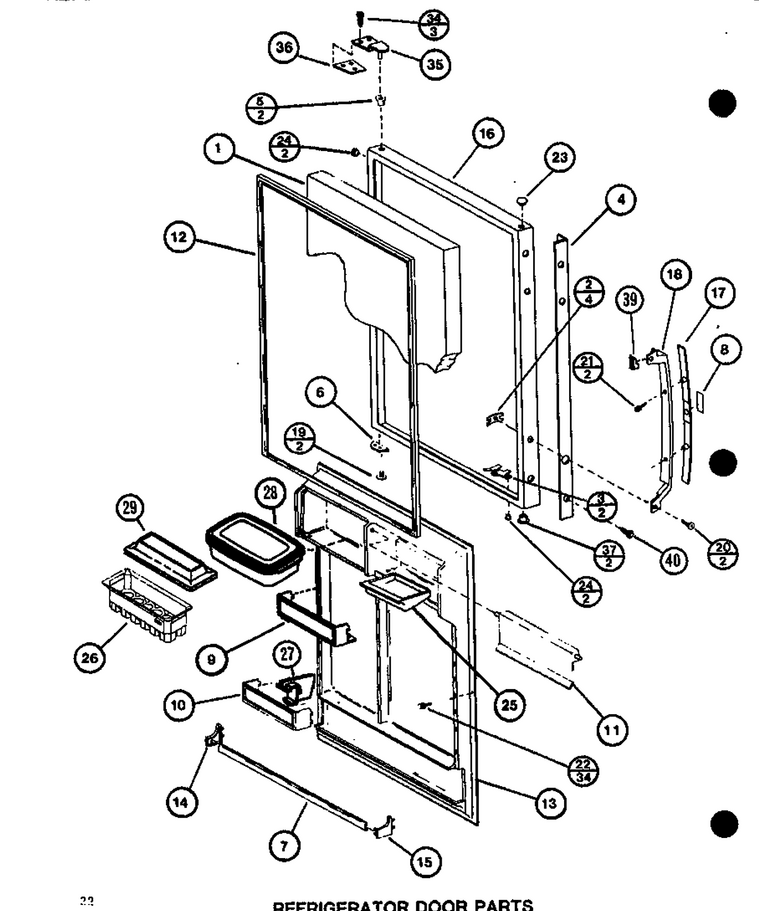

07 - Ref Door Parts

...
...
1
Insulation, Bat WPL-B5683516
...
2
Nut WPL-B8361401
...
3
Nut WPL-B8363501
...
4
Trim G WPL-D7739605
...
5
Bushing, Hinge Pin WPL-C3652901
...
6
Door Stop WPL-C8894802
...
7
Retainer, Pkg WPL-C8907222
...
8
Nameplate WPL-C8945003
...
9
Door Shelf WPL-D7565406
...
10
Retainer- WPL-67003698
...
11
Dairy Door WPL-D7805702
...
12
Gasket WPL-D7605111Q
...
13
Inner Door, Ref WPL-D7811902
...
14
Cap, Pkg Retainer End WPL-D7681803
...
15
Cap Pkg Ret End Cap WPL-D7681802
...
16
Ref Door, Gold WPL-D7728349
...
17
Insert, L Handle WPL-D7694708
...
18
Handle WPL-WPD7694803
...
19
Screw WPL-M0203458
...
20
Screw WPL-M0203458
...
21
Screw WPL-WP8281236
...
22
Screw WPL-WPM0219730
...
23
Plug WPL-M0310608
...
24
Plug Button WPL-M0311302
...
25
Butter Tray WPL-D3799802
...
26
Assy,egg Bkt W/ Lid WPL-12460016
...
27
Snugger Door Shelf WPL-D7806102
...
28
Container Sec. Ser. WPL-D7806401
...
29
Cover, Egg Bucket WPL-D7805911
...
34
Kit, Screw WPL-R9800670
...
35
Hinge WPL-B5744301
...
36
Shim Kit WPL-A3270303
...
37
Bearing, Hinge WPL-C8852202
...
40
Screw WPL-74009538

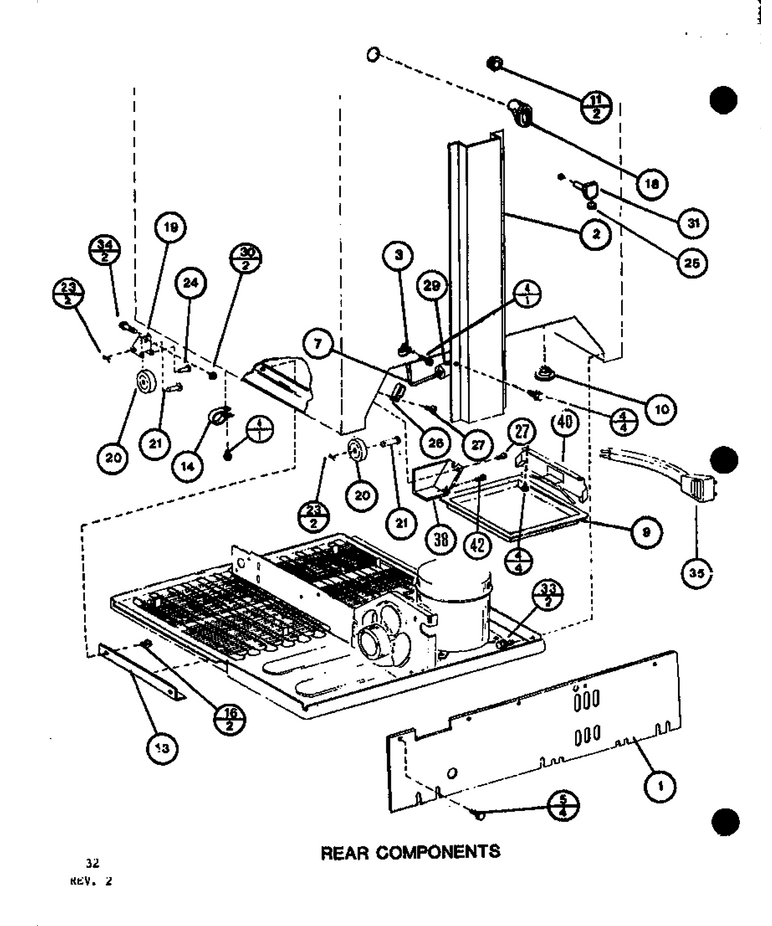

06 - Rear Components

...
...
1
Mc Back Assy WPL-C8890206
...
2
Cover Ht. Exh WPL-D7539413
...
3
Clamp WPL-M0102325
...
4
Screw WPL-WP489069
...
5
Screw-Sm WPL-M0241118
...
7
Drain Tube WPL-D7813901
...
9
Drain Pan WPL-D7790601
...
10
Plug, Button WPL-A3076901
...
11
Plug, Button (blk) WPL-A3080001
...
13
Support M.c. WPL-D7835501
...
14
Clamp WPL-M0102303
...
16
Screw WPL-M0211530
...
18
Tunnel-Heat Ex WPL-B5749501
...
19
Assy, Roller Bracket WPL-12452602Q
...
20
Roller WPL-M0520102
...
21
Pin K WPL-M1200202
...
23
Cotter Pin K WPL-M1200004
...
24
Rivet WPL-M1205302
...
25
Plug Button WPL-M0310319
...
26
Clamp WPL-M0103901
...
27
Screw WPL-WP90767
...
29
Insul Tubing 1=12`` WPL-A0329806
...
30
Nut, Speed WPL-M0286708
...
31
Fill Tube WPL-R0182123
...
33
Screw WPL-M0294459
...
34
Screw, Mach WPL-M0206313
...
35
Power Cord WPL-R0157154
...
38
Cover, Wiring WPL-D7663301
...
40
Support Drain Pan WPL-D7790501
...
42
Screw WPL-M0253916
