Amana BRF520T1W (BOM: P1321304W W)

Model: BRF520T1W (BOM: P1321304W W)

Save Part Not Listed?
product name

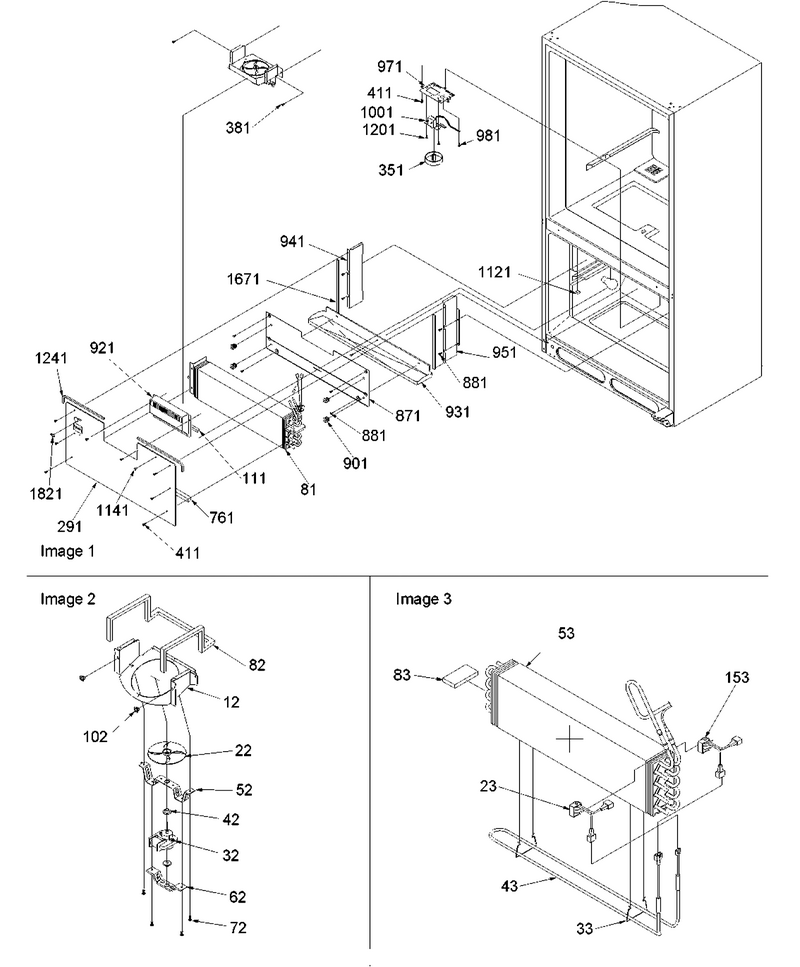

07 - Evaporator Assy

...
...
12
Shroud,evap Fan-Pnt WPL-10954106
...
22
Blade-Fan WPL-W10116797
...
23
T Stat WPL-10789104
...
32
Motor-Evap WPL-WP10449503
...
33
Clip WPL-W11673433
...
42
Grommet WPL-WP2264462
...
43
Kit,defrost Heater(240v) WPL-R0000338
...
52
Brkt Mtr WPL-10656101
...
53
Low Side Assembly WPL-R0170047
...
62
Bracket WPL-WP10909401
...
72
Screw WPL-WP90767
...
81
Evap Assy WPL-10479911
...
82
Gasket WPL-B8386609
...
83
Block-Evap WPL-WP12141902
...
102
Grommet, Screw WPL-M0580007
...
111
Gasket WPL-10839710
...
153
Thermostat, Defrost WPL-12028301
...
291
Evap Cover-Pnt WPL-12032202
...
351
Knob, Control WPL-D7689906
...
381
Screw WPL-WP98165
...
411
Screw (3) WPL-67006425
...
761
Gasket, Bottom WPL-A3189394
...
871
Shield, Evaporator- E Ct WPL-12032404
...
881
Screw (3) WPL-67006425
...
901
Clip, Evaporator WPL-10623002
...
921
Cover, Fan Shroud WPL-10952502
...
931
Tray, Drip WPL-12031804
...
941
Dam-Rtn Air L WPL-12059702
...
951
Dam-Rtn Air R WPL-12059701
...
971
Bracket, Control WPL-12271401
...
981
Screw WPL-M0253916
...
1001
Control -Temp WPL-C8946704
...
1121
Plug, Button (wht) WPL-M0310308
...
1141
Plug, Button (wht) WPL-M0310305
...
1201
Screw WPL-WP90767
...
1241
Gasket WPL-A3030353
...
1671
Gasket (1=1ft.) WPL-10839713
...
1821
Gasket WPL-12169701

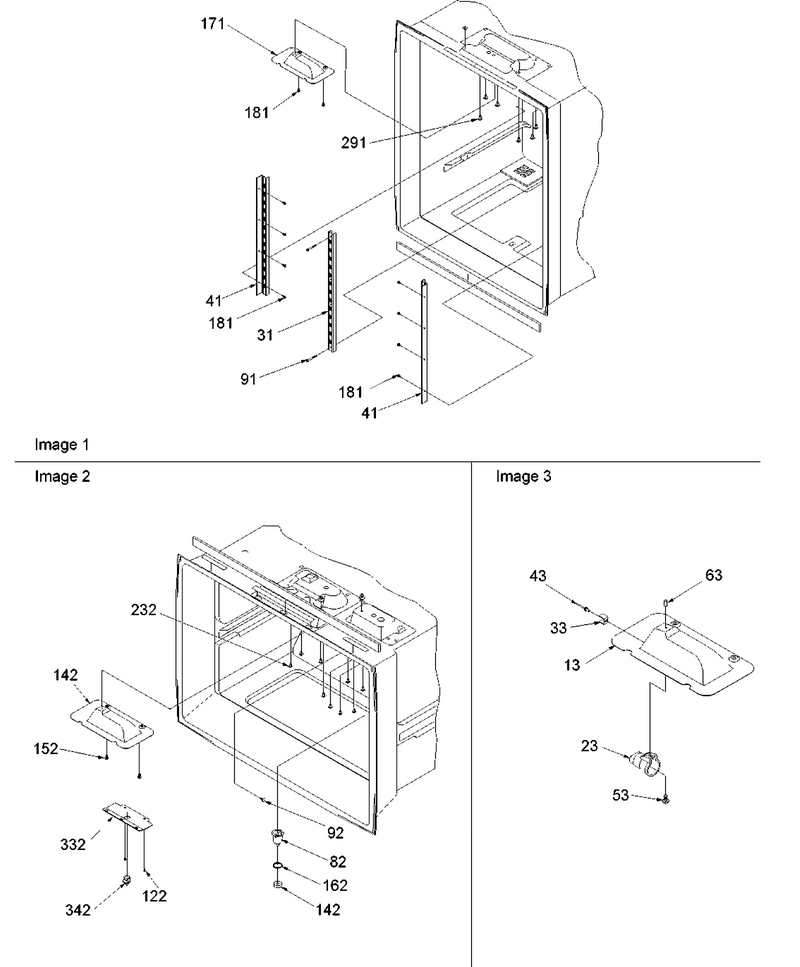

09 - Ladders/light Assy

...
...
13
Housing, Frz Light WPL-D7863904
...
23
Socket, Light WPL-D7845103
...
31
Ladder, Center WPL-12435801
...
33
Term WPL-M0320910
...
41
Ladder, Side (l/r) WPL-12435701
...
43
Pop Rivet WPL-A4539626
...
53
Screw WPL-W10856125
...
63
Cap-Vinyl Tube WPL-A1781112
...
82
Funnel WPL-W10815413
...
91
Screw WPL-M0231426
...
92
Screw, Handle (black) WPL-12991101
...
122
Screw (3) WPL-67006425
...
132
Gasket- Dr WPL-WPB8381501
...
142
Assy,fz Light WPL-12266401Q
...
152
Screw (3) WPL-67006425
...
162
Seal- O Ri WPL-WPM0500703
...
171
Assy,fz Light WPL-12266401Q
...
181
Screw (3) WPL-67006425
...
232
Grommet, Screw WPL-M0581001
...
291
Grommet, Screw WPL-M0581001
...
332
Cover, Frz Light Sw WPL-12056101
...
342
Switch WPL-W11384469

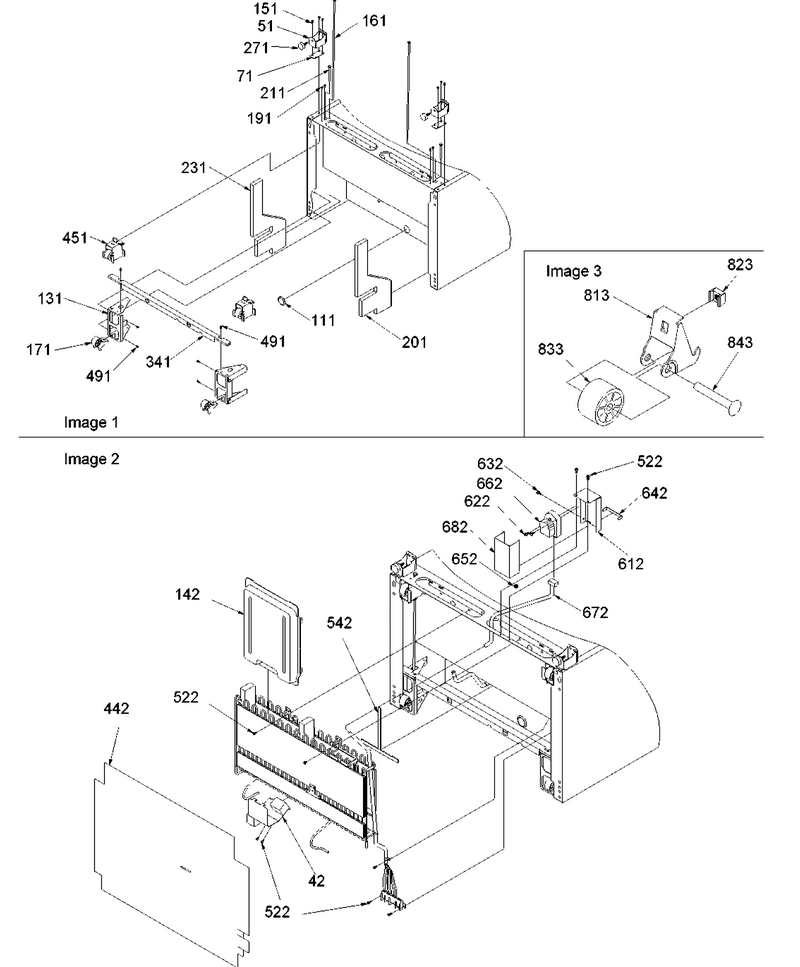

01 - Bottom Hinge, Roller, And Condenser Assy

...
...
42
Assy,cond Coil Hgr WPL-12443701
...
51
Hinge, Btm-E Ct WPL-12050712WD
...
71
Shim, Btm Hinge WPL-10447903
...
111
Plug, Button WPL-A3076901
...
131
Bracket, Rear Roller WPL-12039102
...
142
Pan, Drain WPL-12045303
...
151
Screw WPL-WP67006715
...
161
Kit- Machi WPL-R0000213
...
171
Assy, Roller Brkt WPL-10476101Q
...
191
Screw WPL-W11573574
...
201
Insulation, Right Foot WPL-10987526
...
211
Screw, Adj Roller WPL-M0204336
...
231
Insulation, Left Foot WPL-10987525
...
271
Feet-Lvlng WPL-W11177593
...
341
Rail, Comp Supp WPL-12038901
...
442
Assy, Mc Bot Cover WPL-12098203
...
451
Assy, Roller Bracket WPL-12452601Q
...
491
Screw, Sm WPL-M0211357
...
522
Screw, Sm WPL-M0227217
...
542
Gasket (ft.) WPL-10839803
...
612
Brkt, Defrost Timer WPL-12094004
...
622
Screw WPL-M0216705
...
632
Screw WPL-WP489399
...
642
Gasket (ft.) WPL-10839803
...
652
Bushing-Snap WPL-A3293505
...
662
Kit, Defrost Timer (230 Vac) WPL-R0168029
...
672
Harness, Mach Comp WPL-12167701
...
682
Encl, Def Timer WPL-12167102
...
813
Assy, Roller Brkt WPL-10476101Q
...
823
Nut, Speed WPL-M0286708
...
833
Roller WPL-WP10450603
...
843
Rivet WPL-M1205302

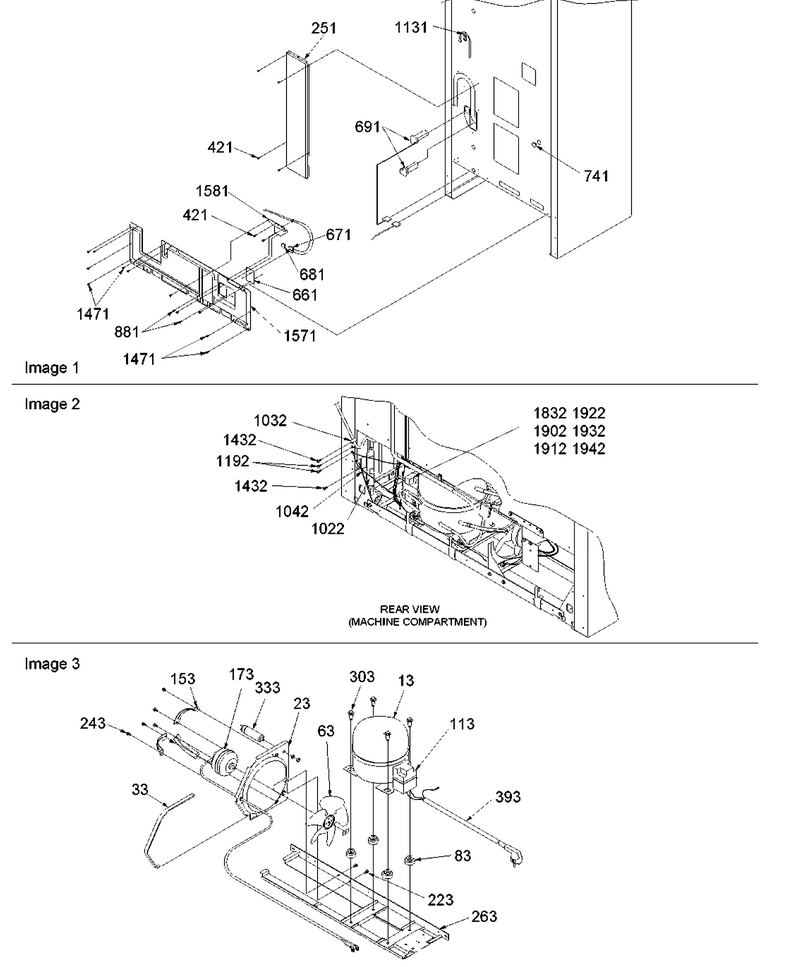

02 - Cabinet Back And Compressor

...
...
13
Compressor WPL-W10309997
...
23
Shroud, Cond Fan-E Ct WPL-12051110
...
33
Gasket WPL-A3030359
...
63
Blade, Fan WPL-B5742604
...
83
Grommet, Compressor WPL-67003493
...
113
Overload/relay WPL-10899601
...
153
Bracket, Cond. Motor WPL-10582501
...
173
Motor-Condenser WPL-D7846901
...
223
Screw WPL-WP90767
...
243
Screw WPL-WPM0223816
...
251
Assy,heat Ex Cover WPL-12443901
...
263
Weld, Comp Frnt WPL-12152903
...
303
Screw, Shldr WPL-M0221523
...
333
Start-Dev WPL-W10848274
...
393
Assy, Power Cord WPL-12459101
...
421
Screw, Sm WPL-M0227217
...
661
Plate,cover WPL-12496403
...
671
Harness, Control WPL-12093802
...
681
Cap-Rect Vinyl WPL-A1781111
...
691
Plug, Tunnel WPL-12060601
...
741
Plug, Im Tunnel WPL-10544301
...
881
Screw (3) WPL-67006425
...
1022
Drier WPL-WPB2150504
...
1032
Clamp WPL-M0102327
...
1042
Clip, Drier WPL-10547002
...
1131
Clip WPL-WPM0104106
...
1192
Screw WPL-WP489399
...
1432
Screw WPL-WP489069
...
1471
Screw WPL-WP489464
...
1571
Assy, Mc Back WPL-12180003
...
1581
Bracket, Water Valve Mtg WPL-12088401
...
1832
Cover, Terminal WPL-10899701
...
1902
Clamp, Term. Cover WPL-10899501
...
1912
Clamp-Cord WPL-12192501
...
1922
Assy, Screw Clamp WPL-12192601
...
1932
Screw-Mach WPL-M0239015
...
1942
Screw, Machine WPL-M0239018

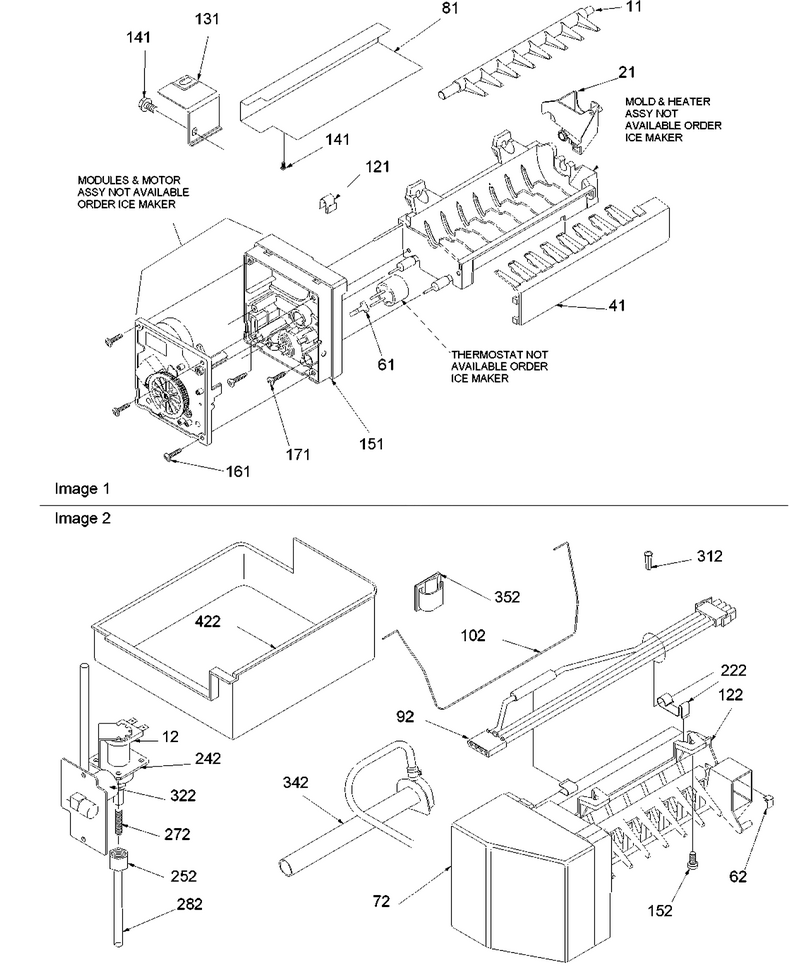

08 - Ice Maker Assy And Parts

...
...
NI
Label, Caution (ice Maker) WPL-10549601
...
11
Arm-Ejectr WPL-WP627843
...
12
Harness, Water Valve WPL-10525901
...
21
Cup-Fill WPL-WP628356
...
41
Arm-Stripr WPL-WP2182124
...
61
Clip WPL-WP2315522
...
62
Clip WPL-B5720301
...
72
Cover-Frnt WPL-WPW10289690
...
81
Shield, Ice Maker WPL-D7846203
...
92
Harness Im Gg WPL-10179201
...
102
Arm-Shut WPL-WP67004028
...
121
Clip WPL-WP628379
...
122
Icemaker WPL-WPW10190972
...
131
Bracket, I/m WPL-B8391802
...
141
Screw (3) WPL-67006425
...
151
Housing-Im WPL-WP2195914
...
152
Screw WPL-WP98165
...
161
Screw WPL-R0186041
...
171
Screw WPL-R0186040
...
222
Clamp, Wire WPL-10526701
...
242
Valve-Water WPL-10524603
...
252
Nut WPL-WP627018
...
272
Spring WPL-WPA1055105
...
282
Tube WPL-WPB5705307
...
312
Insert- Pl WPL-WPA3223101
...
322
Coupling WPL-10244905
...
342
Tube-Water WPL-W11176463
...
352
Clip WPL-WPM0104106
...
422
Pan-Ice WPL-WP67001255

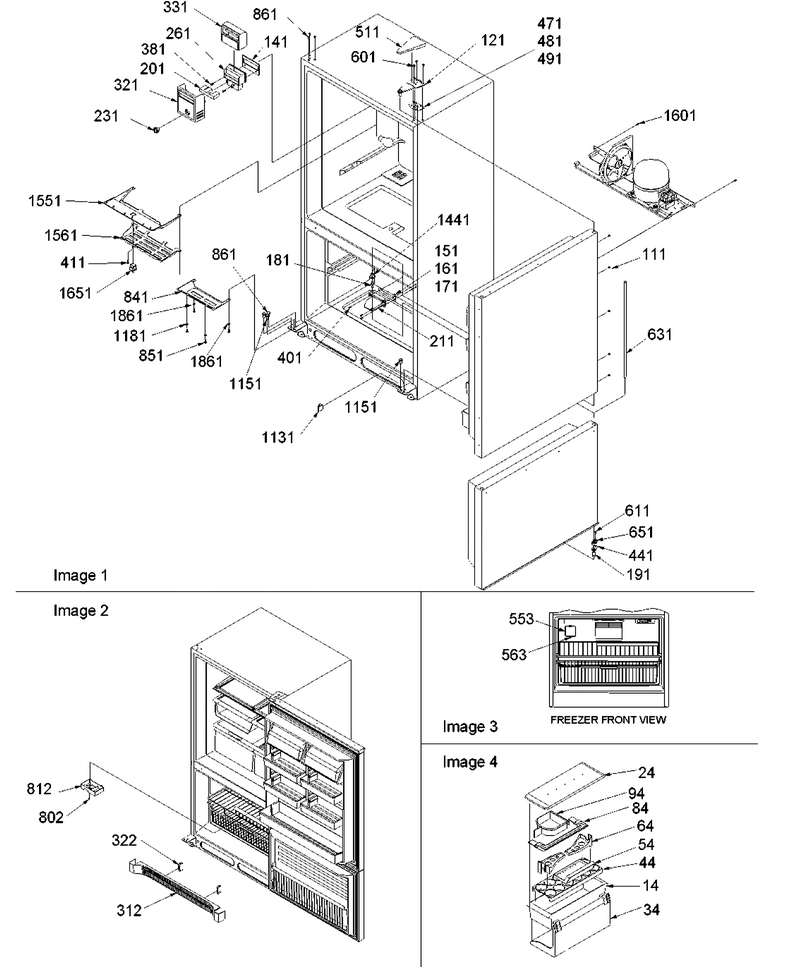

04 - Controls, Hinges, & Accessories

...
...
14
Container WPL-WP10423131
...
24
Lid, Utility WPL-10436404
...
34
Rack, Wine WPL-10448902
...
44
Tray, Egg WPL-10436504
...
54
Tray, Butter WPL-10310901
...
64
Snugger, Door Shelf WPL-12103905
...
84
Retainer, Tall Pkg WPL-10468004
...
94
Hugger, Bottle (shelf Divider) WPL-10441102
...
111
Button- Pl WPL-WP67001130
...
121
Hinge, Top WPL-12077304
...
141
Gasket, Damper WPL-B8345401
...
151
Shim, Center Hinge WPL-10562201
...
161
Shim, Center Hinge WPL-10562202
...
171
Shim, Center Hinge WPL-10562203
...
181
Pin, Hinge (ctr) WPL-10351002
...
191
Pin, Door Hinge WPL-10561602
...
201
Insert, Control WPL-C8902601
...
211
Hinge,ctr-E Ct(white) WPL-12446503
...
231
Knob, Control (wht) WPL-D7795826
...
261
Damper Control Kit WPL-R0161050
...
312
Grille, Toe (wht) WPL-12045101
...
321
Cover-Ref Cont WPL-12045401
...
322
Clip- Toe WPL-WP10551502
...
331
Insul, Damper WPL-12060101
...
381
Screw WPL-WP98165
...
401
Screw WPL-WP67006380
...
411
Screw (3) WPL-67006425
...
441
Shim-W Dr Closure WPL-Y12060001
...
471
Shim, Top Hinge WPL-10451301
...
481
Shim, Top Hinge WPL-10451302
...
491
Shim, Top Hinge WPL-10451303
...
511
Cover, Hinge (wht) WPL-12076302
...
553
Cover-Fl Tb/plug WPL-D7874403
...
563
Screw (3) WPL-67006425
...
601
Screw WPL-WP489349
...
611
Screw WPL-WP8281227
...
631
Support, Pin WPL-10391302
...
651
Closure, Door (wht) WPL-12113301
...
802
Screw WPL-M0216531
...
812
Cover, Frz Cont WPL-D7878825
...
841
Cover, Frz Light WPL-10493302
...
851
Screw-Sm WPL-M0238846
...
861
Button- Pl WPL-WP67001130
...
1131
Clip WPL-WPM0104106
...
1151
Plug, Button (wht) WPL-M0311701
...
1181
Washer WPL-M0270538
...
1441
Closure, Door (wht) WPL-12028501
...
1551
Shield, Ref Light Sw WPL-12056201
...
1561
Cover, Ref Light WPL-12056301
...
1601
Screw, Sm WPL-M0211357
...
1651
Switch WPL-W11384469
...
1861
Washer WPL-M0270519

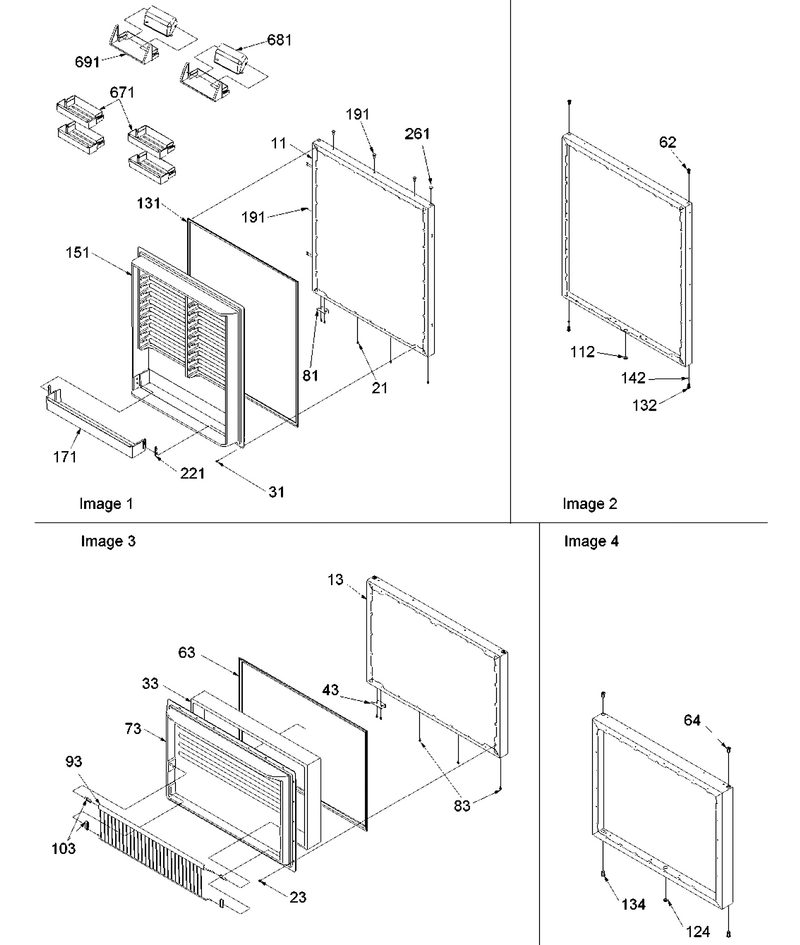

06 - Door Assy

...
...
11
Assy, Ref Dr Fm(wht) WPL-12082503W
...
13
Assy, Fz Dr Fm(wht) WPL-12081703W
...
21
Screw WPL-WPW10348409
...
23
Screw WPL-WPM0219730
...
31
Screw WPL-WPM0219730
...
33
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
43
Stop, Door (wht) WPL-12051013
...
62
Bushing, Door (wht) WPL-10961001
...
63
Gasket- Fr WPL-WP12550105Q
...
64
Bushing- D WPL-WP67004977
...
73
Liner, Frz Door WPL-12031501
...
81
Stop, Door (white) WPL-12968202W
...
83
Screw WPL-WPW10348409
...
93
Retainer, Package WPL-12051601
...
103
Glide, Frz Dr Rack WPL-12051501
...
112
Plug, Button (wht) WPL-M0310308
...
124
Plug, Button (wht) WPL-M0310308
...
131
Gasket,ref Dr(white) WPL-10456848
...
132
Bushing, Door (wht) WPL-12028601
...
134
Closure, Door (wht) WPL-12050103
...
142
Filter, Bushing WPL-10252903
...
151
Liner, Ref Door WPL-12031401
...
171
Retainer, Ref Door WPL-10609805
...
191
Button- Pl WPL-WP67001130
...
221
Clip, Retainer WPL-10202001
...
261
Plug Button WPL-10686401
...
671
Shelf, Ref Door WPL-10420007
...
681
Door, Dairy WPL-12163301
...
691
Shelf, Dairy WPL-12163202

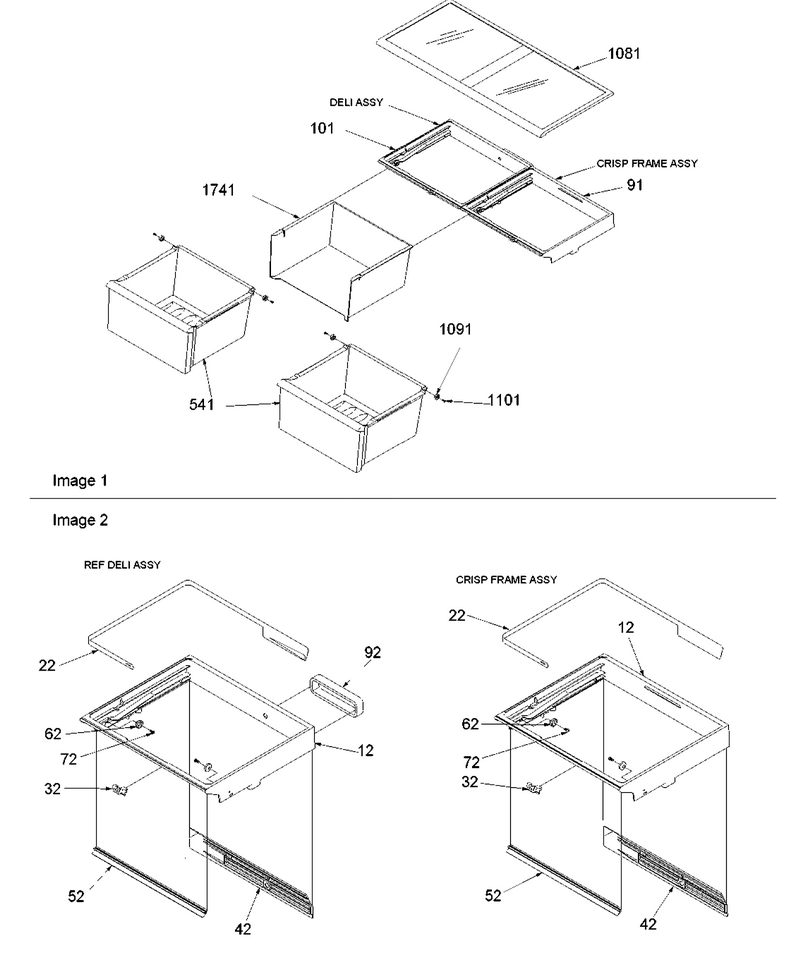

05 - Deli And Crisper Assy

...
...
12
Frame, Crisper WPL-12031902
...
22
Band, Crisper Cont WPL-12059502
...
32
Slide, Crisper/deli WPL-12051201
...
42
Insert, Band Guide WPL-12050801
...
52
Seal, Crisper Front WPL-10968802
...
62
Roller, Pan WPL-10481001
...
72
Screw WPL-67006692
...
91
Assy, Crisper Frame WPL-12079906Q
...
92
Seal, Ref Deli WPL-12079801
...
101
Assy, Ref Deli WPL-12079905Q
...
541
Pan, Crisper WPL-12032001
...
1081
Shelf, Top Crisper WPL-12024902
...
1091
Roller, Pan WPL-10481001
...
1101
Screw WPL-67006692
...
1741
Sleeve, Mk WPL-12045203

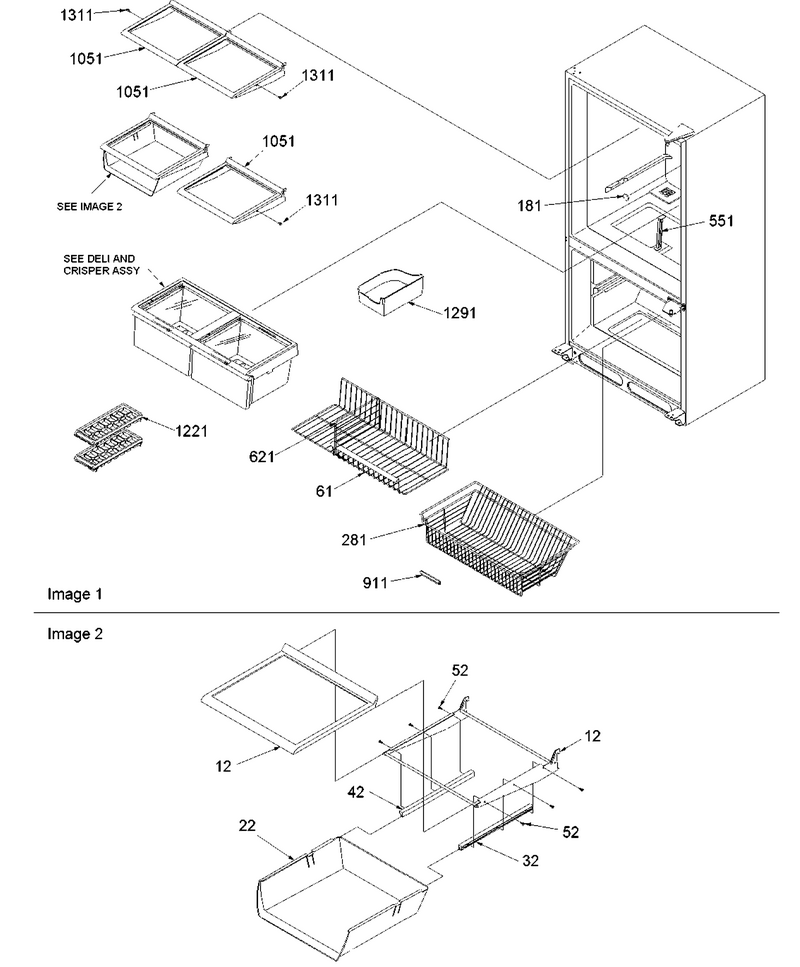

03 - Cabinet Shelving

...
...
12
Shelf, Party Tray WPL-12024802
...
22
Tray, Party WPL-12046001
...
32
Glide, Party (lt) WPL-12046101
...
42
Glide, Party (rt) WPL-12046102
...
52
Screw WPL-W11233072
...
61
Shelf, Frz Glide WPL-12204705
...
181
Plug, Button (wht) WPL-M0310342
...
281
Basket, Freezer WPL-12433801
...
551
Post-Crisp Supp WPL-10461902
...
621
Divider, Wire WPL-D7806002
...
911
Handle, Basket/shelf WPL-10508506
...
1051
Shelf, Glide WPL-12024801
...
1221
Tray WPL-WP841180A
...
1291
Pan, Ice WPL-12045503
...
1311
Stop, Shelf WPL-10875101
