Amana BRD18V2S (BOM: P1326504W S)

Model: BRD18V2S (BOM: P1326504W S)

Save Part Not Listed?
product name

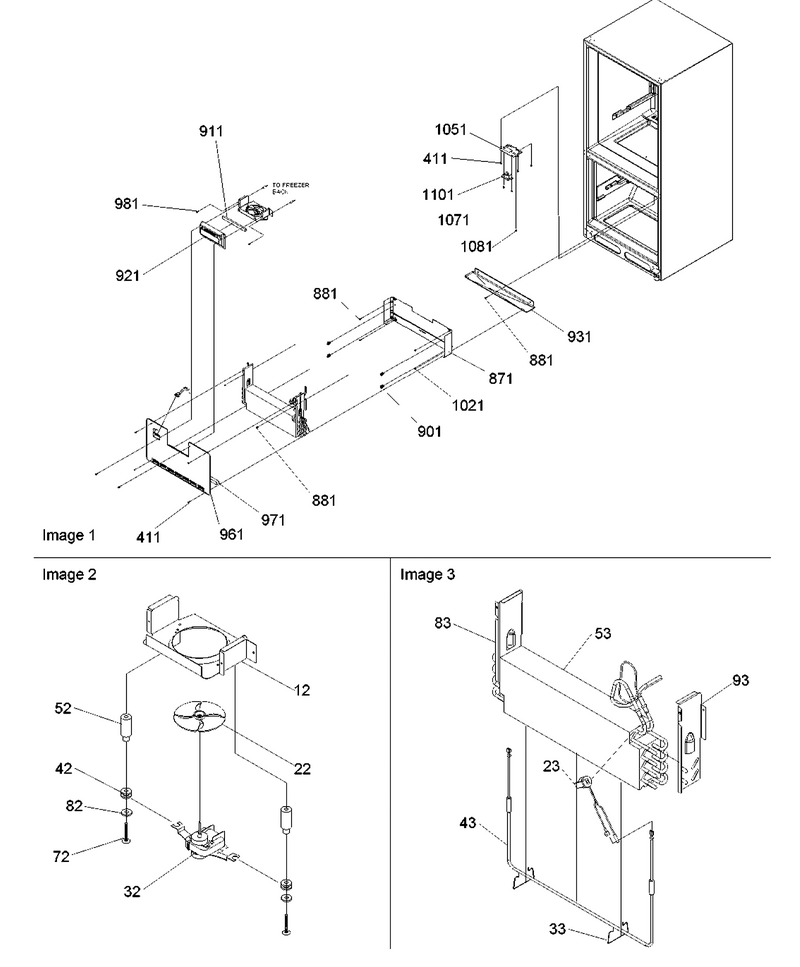

05 - Evaporator & Freezer Control Assy

...
...
NI
Tie-Wire WPL-WPW10339879
...
12
Shroud, Evap Fan - E Ct WPL-10619310
...
22
Blade-Fan WPL-WP2169142
...
23
Thermostat WPL-WP10442411
...
32
Evaporator WPL-WP12013211Q
...
33
Clip WPL-W11673433
...
42
Grommet WPL-12442501
...
43
Heater- Ev WPL-WP12219401
...
52
Post, Evap Motor WPL-12442401
...
53
Assy,low Side WPL-R9900032
...
72
Screw WPL-M0219711
...
82
Washer,flat WPL-M0270547
...
83
Dam, Left Return WPL-12227701
...
93
Dam, Right Return WPL-12227801
...
411
Screw (3) WPL-67006425
...
871
Shield, Evap-E Ct WPL-12209502
...
881
Screw (3) WPL-67006425
...
901
Clip, Evaporator WPL-10623002
...
911
Gasket WPL-B5759611
...
921
Grille, Frz Air WPL-10502401
...
931
Drip Tray, E Ct WPL-12226502
...
961
Cover, Evap-E Ct WPL-12226005
...
971
Gasket, Bottom WPL-A3189394
...
981
Screw WPL-WP98165
...
1021
Screw (3) WPL-67006425
...
1051
Bracket, Control WPL-12271401
...
1071
Screw WPL-WP90767
...
1081
Screw WPL-M0253916
...
1101
Thermostat WPL-W10752646

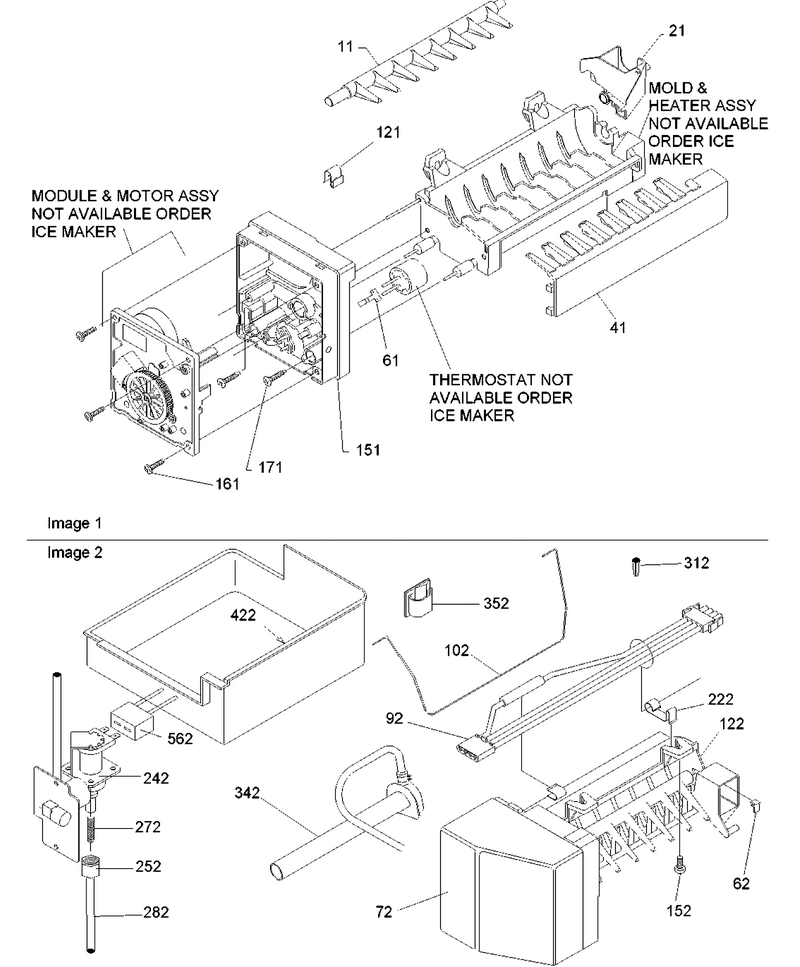

07 - Ice Maker Assy & Parts

...
...
NI
Screw, 8-32 X 3/8 WPL-681390
...
11
Arm-Ejectr WPL-WP627843
...
21
Cup-Fill WPL-WP628356
...
41
Arm-Stripr WPL-WP2182124
...
61
Clip WPL-WP2315522
...
62
Clip WPL-B5720302
...
72
Cover-Frnt WPL-WPW10289690
...
92
Harns-Wire WPL-WPD7813010
...
102
Arm-Shut WPL-WP67004028
...
121
Clip WPL-WP628379
...
122
Ice Maker Assy. WPL-D7824706Q
...
151
Housing-Im WPL-WP2195914
...
152
Screw WPL-WP98165
...
161
Screw WPL-R0186041
...
171
Screw WPL-R0186040
...
222
Clamp, Wire WPL-10526701
...
242
Valve-Inlt WPL-W10833899
...
252
Nut WPL-WP627018
...
272
Spring WPL-WPA1055105
...
282
Tube WPL-WPB5705307
...
312
Insert- Pl WPL-WPA3223101
...
342
Tube-Water WPL-W11176463
...
352
Clip WPL-WPM0104106
...
422
Pan-Ice WPL-WP67001255
...
562
Harness, Water Valve WPL-10525901

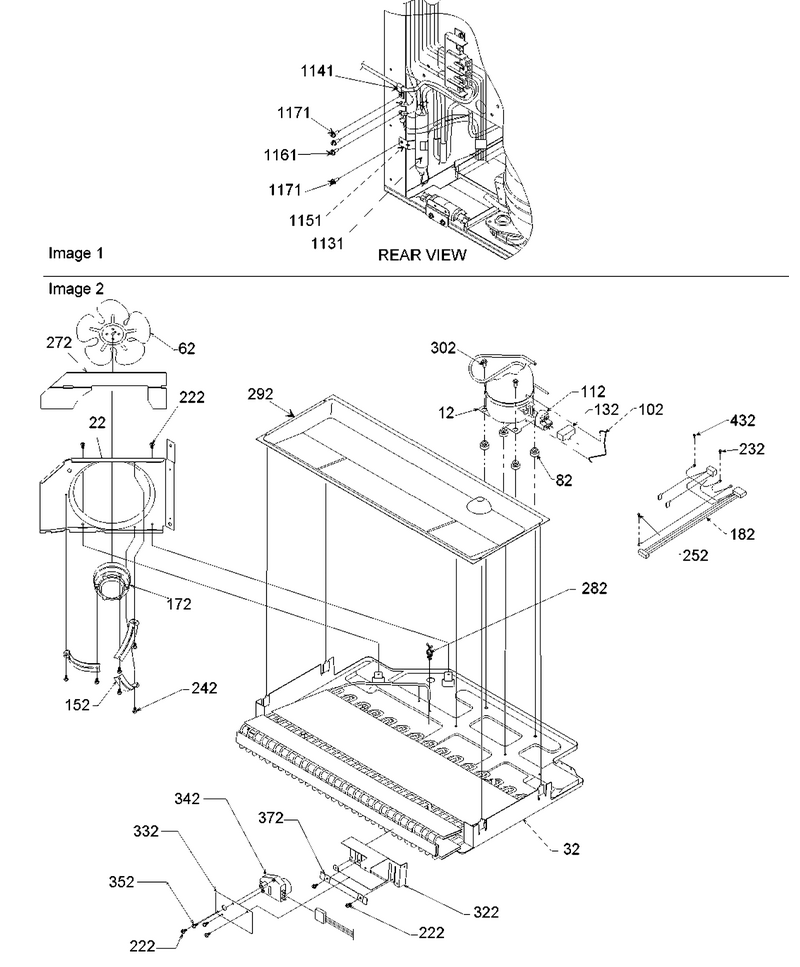

10 - Machine Compartment

...
...
12
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
22
Cond Fan Shrd-E Ct WPL-10426911
...
32
Assy,cond/pan-E Ct WPL-10481224
...
62
Blade, Fan WPL-B5742604
...
82
Grommet, Compressor WPL-67003493
...
102
Strap, Bale WPL-12576801
...
112
Overload WPL-WP12555902
...
132
Capacitor WPL-WP65889-4
...
152
Bracket, Cond. Motor WPL-10582501
...
172
Motor, Psc WPL-10522105
...
182
Harness, Mc WPL-12606001
...
222
Screw WPL-WP90767
...
232
Screw WPL-WP489399
...
242
Screw WPL-WPM0223816
...
252
Screw WPL-M0253916
...
272
Gasket, Cond. Fan WPL-10442702
...
282
Wire Clip WPL-B5667304
...
292
Pan, Drain WPL-10427404
...
302
Screw, Shldr WPL-M0221523
...
322
Brkt, Timer WPL-10503201
...
332
Cover, Timer Brkt WPL-12515801
...
342
Timer-Def WPL-R0131577
...
352
Screw WPL-M0216705
...
372
Washer, Brkt WPL-10542701
...
432
Screw WPL-12992301
...
1131
Drier WPL-WPB2150504
...
1141
Clamp, Speed WPL-M0103904
...
1151
Clip, Drier WPL-10547001
...
1161
Screw WPL-WP489399
...
1171
Screw WPL-WP489069

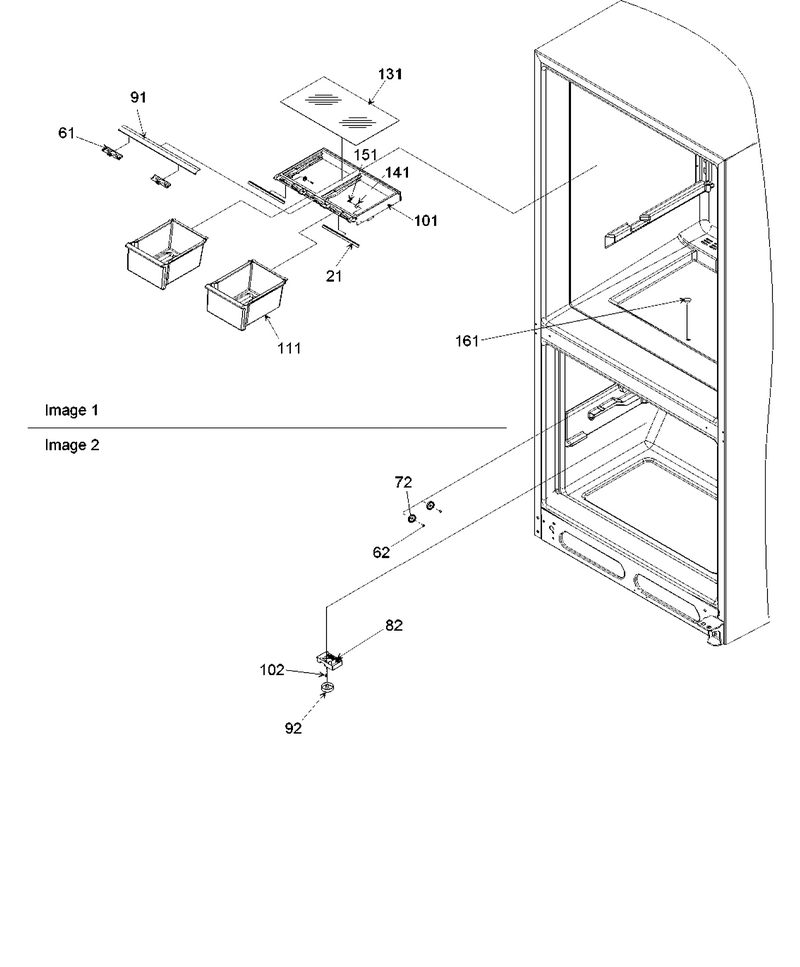

02 - Crisper Assy & Freezer Control

...
...
21
Seal, Crisper WPL-12226401
...
61
Knob, Control WPL-12227101
...
62
Screw WPL-WP67006908
...
72
Spacer- Ic WPL-WP10972101
...
82
Cover, Frz Cont WPL-D7878825
...
91
Ext, Crisper WPL-10688081
...
92
Knob, Control WPL-D7689905
...
101
Frame, Crisper WPL-12227201
...
102
Screw WPL-M0216531
...
111
Pan,crisper WPL-12226703
...
131
Glass- Cri WPL-12204807
...
141
Roller, Pan WPL-10481001
...
151
Screw WPL-67006692
...
161
Plug, Button White WPL-M0310330

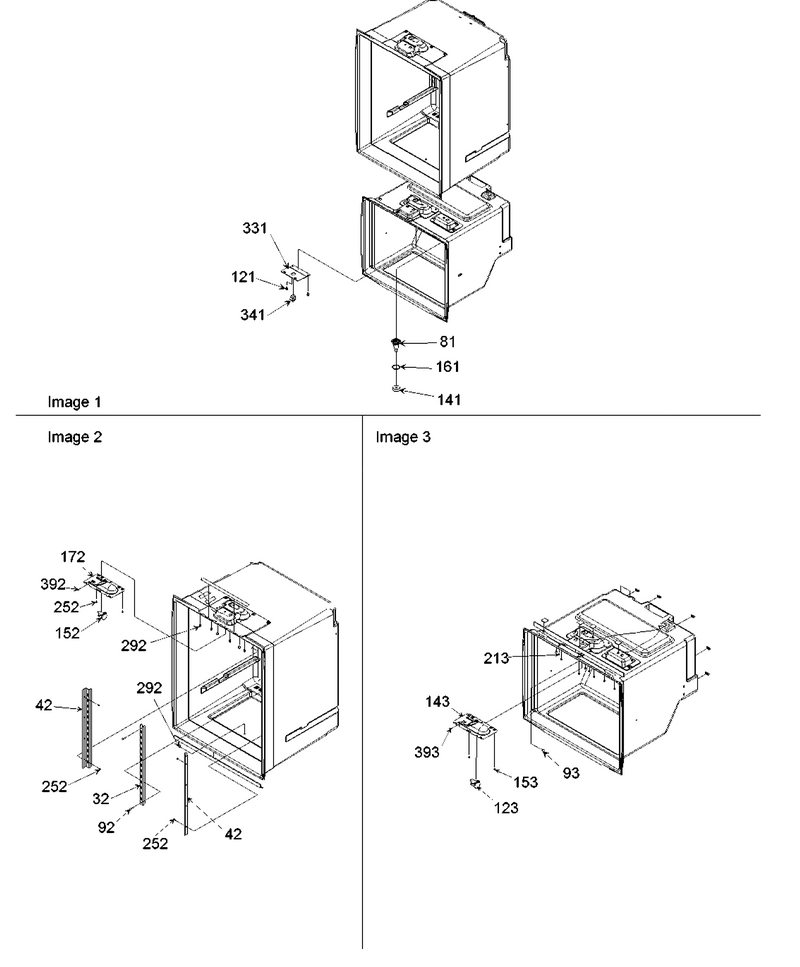

09 - Light Switches & Drain Funnel

...
...
32
Ladder, Center WPL-12435801
...
42
Ladder, Sides WPL-12614201
...
81
Funnel WPL-W10815413
...
92
Screw WPL-W10709795
...
93
Screw, Handle (black) WPL-12991101
...
121
Screw (3) WPL-67006425
...
123
Socket, Light WPL-D7714408
...
141
Gasket, Drain Tube WPL-B8381502
...
143
Housing, Light WPL-12427502
...
152
Socket, Light WPL-D7714408
...
153
Screw (3) WPL-67006425
...
161
Seal- O Ri WPL-WPM0500703
...
172
Housing, Light WPL-12427502
...
213
Grommet, Screw WPL-M0581001
...
252
Screw (3) WPL-67006425
...
292
Grommet, Screw WPL-M0581001
...
331
Cover, Light Sw WPL-D7297604
...
341
Switch WPL-W11396033
...
392
Clip, Ground WPL-B5733302
...
393
Clip, Ground WPL-B5733302

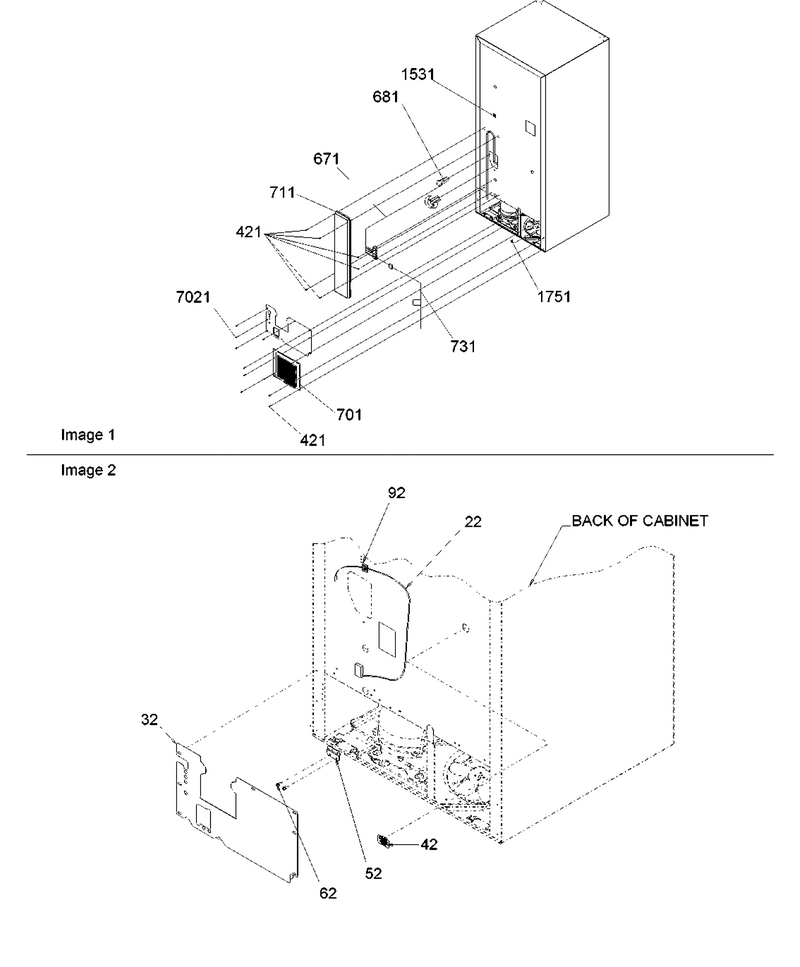

01 - Cabinet Back

...
...
22
Harness, Water Valve WPL-10525901
...
32
Assy, Mc Back WPL-12041854
...
42
Plug, Im Tunnel WPL-10544301
...
52
Plate-Water Valve WPL-12047201
...
62
Screw, Sm WPL-M0227217
...
92
Clip WPL-WPM0104106
...
421
Screw, Sm WPL-M0227217
...
671
Harness,control WPL-12581902
...
681
Plug, Tunnel WPL-12060601
...
701
Back, Mach Comp WPL-12039807
...
711
Cover, Ht Exch WPL-10502303
...
731
Cord, Power WPL-10916502
...
1531
Clip WPL-WPM0104106
...
1751
Clip WPL-B5720303
...
7021
Screw WPL-WP489464

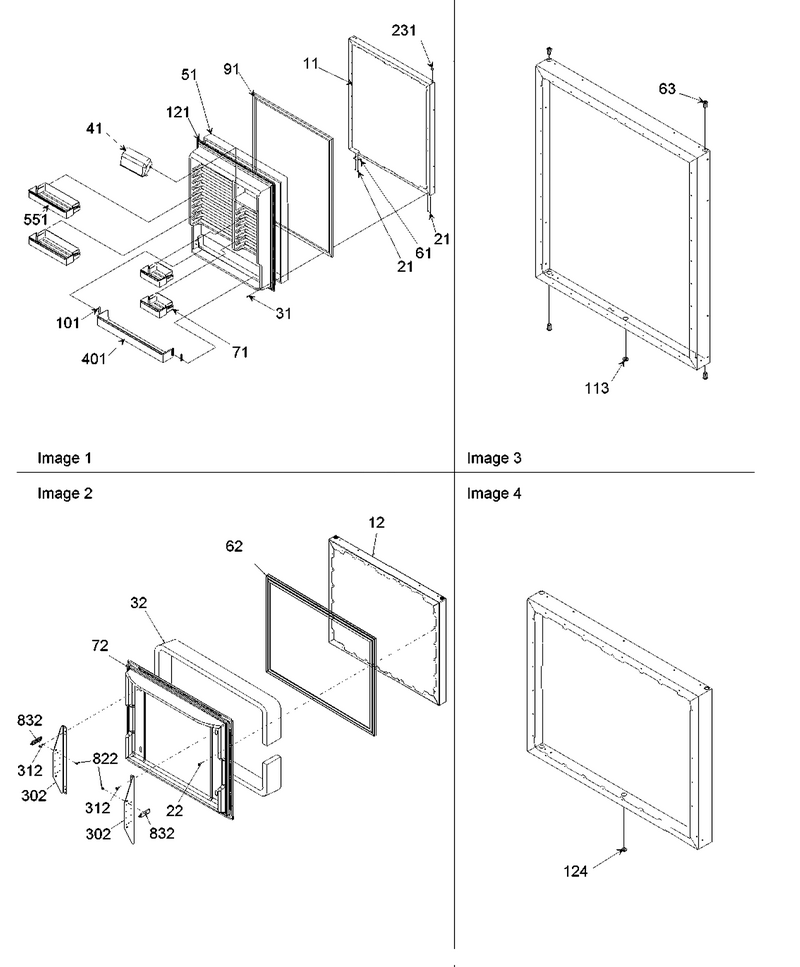

03 - Door Assemblies

...
...
11
Assy,ref Dr Foam(stn Stl) Btm WPL-12206803S
...
12
Assy,fz Dr Foam(stn Stl) Btm WPL-12589401S
...
21
Screw WPL-WPW10348409
...
22
Screw WPL-WPM0219730
...
31
Screw WPL-WPM0219730
...
32
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
41
Door,dairy WPL-10423420
...
51
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
61
Stop-Door WPL-W11708403
...
62
Gasket-Frz WPL-WP12550124Q
...
63
Hing-Bushg WPL-10961005B
...
71
Bucket, Ref Door (plain) WPL-10502911
...
72
Liner,fz Door WPL-12564002
...
91
Gasket,refrig Dr(black) WPL-12550123
...
101
Clip, Retainer WPL-10202001
...
121
Liner, Ref Door WPL-12228701
...
231
Plug,grey Button WPL-10686409
...
302
Bracket,vertical-E Ct WPL-12564202WD
...
312
Screw WPL-WP489474
...
401
Retainer, Door Ref. WPL-10419108
...
551
Shelf, Ref Door WPL-10419707
...
822
Screw WPL-WP90767
...
832
Stop,basket WPL-12653401

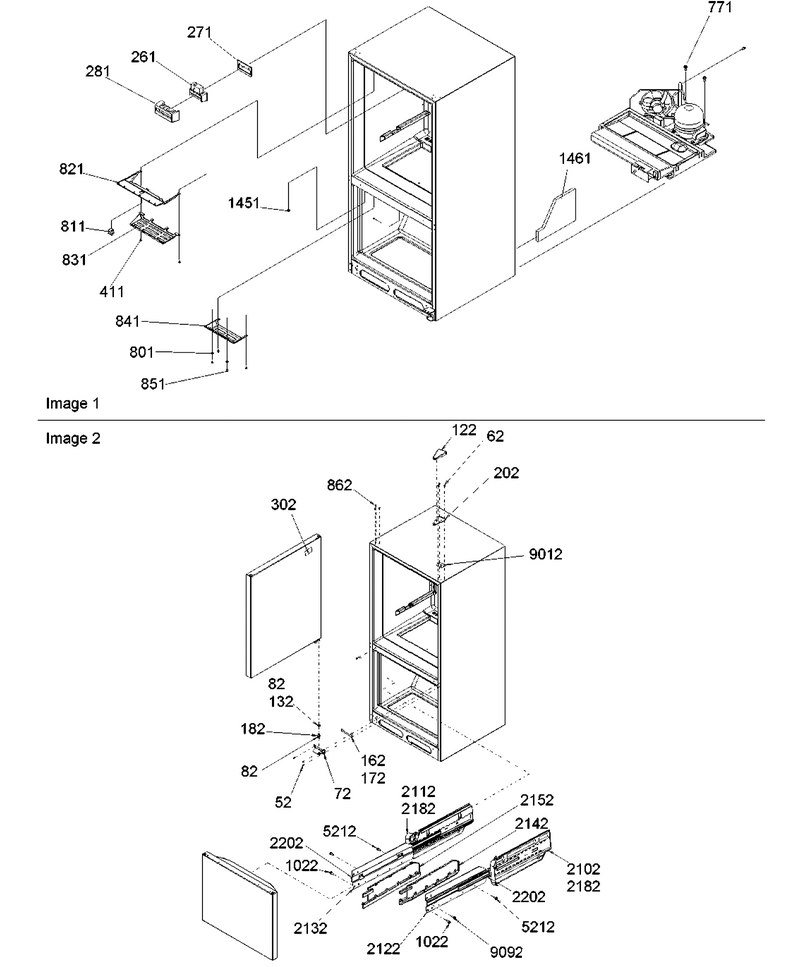

06 - Hinges, Light Covers & Fz Drawers

...
...
52
Screw WPL-WP67006380
...
62
Screw WPL-WP489349
...
72
Hinge, Ctr- E Ct (blk) WPL-12446514
...
82
Shim- Non WPL-WPM0274062
...
122
Cover, Hinge (blk) WPL-12076301
...
132
Shim- Non WPL-WPM0274058
...
162
Shim, Center Hinge WPL-10562211
...
172
Shim, Center Hinge WPL-10562203
...
182
Closer WPL-12002311
...
202
Hinge, Top-E Ct WPL-12077316
...
261
Damper Control Kit WPL-R0161050
...
271
Gasket, Damper WPL-B8345401
...
281
Insul- Dam WPL-12205501Q
...
302
Nameplate (amana Plus) WPL-Y12528501
...
411
Screw (3) WPL-67006425
...
771
Screw, Shldr WPL-M0221523
...
801
Washer WPL-M0270538
...
811
Switch WPL-W11384469
...
821
Shield, Ref Light Sw WPL-12056201
...
831
Cover, Ref Light WPL-12056301
...
841
Cover, Frz Light WPL-10493302
...
851
Screw-Sm WPL-M0238846
...
862
Plug, Top Hinge Button (blk) WPL-M0310731
...
1022
Screw (3) WPL-67006425
...
1451
Plug, Button (wht) WPL-M0310308
...
1461
Insul., L. Foot WPL-10663002
...
2102
Adapter,r.h. Side WPL-12564601
...
2112
Adapter,l.h. Side WPL-12564602
...
2122
Plate,door Supp-E Ct WPL-12564501WD
...
2132
Plate,door Supp-E Ct WPL-12564502WD
...
2142
Support,r.h. Basket WPL-12564101
...
2152
Support,l.h. Basket WPL-12564102
...
2182
Screw WPL-WP489474
...
2202
Slide- Dra WPL-WP67002767
...
5212
Screw WPL-WP90767
...
9012
Shim, Posi Pin WPL-12545201
...
9092
Screw WPL-WP488234

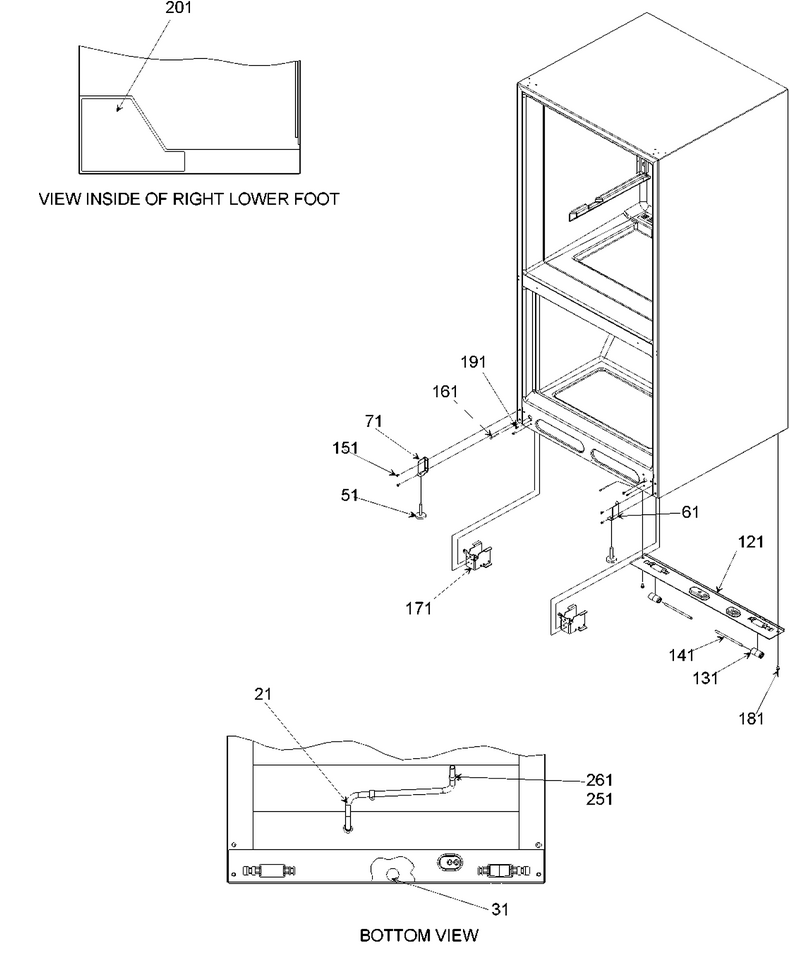

08 - Insulation & Roller Assy

...
...
21
Tube, Drain WPL-12205401
...
31
Plug, Button WPL-A3076901
...
51
Feet-Lvlng WPL-W11177593
...
61
Foot -Anti Tip WPL-12525403BD
...
71
Foot Anti-Tip WPL-12525404BD
...
121
Cabinet Brace-Pnt WPL-10427110
...
131
Roller, Rear WPL-10450701
...
141
Axle, Roller WPL-10450901
...
151
Screw WPL-WP67006715
...
161
Screw, Adj Roller WPL-M0204336
...
171
Assy, Roller Bracket WPL-12452601Q
...
181
Screw, Tf WPL-M0260242
...
191
Screw WPL-W11573574
...
201
Insul., R. Foot WPL-10663001
...
251
Screw, Sm WPL-M0227217
...
261
Clamp WPL-M0102303

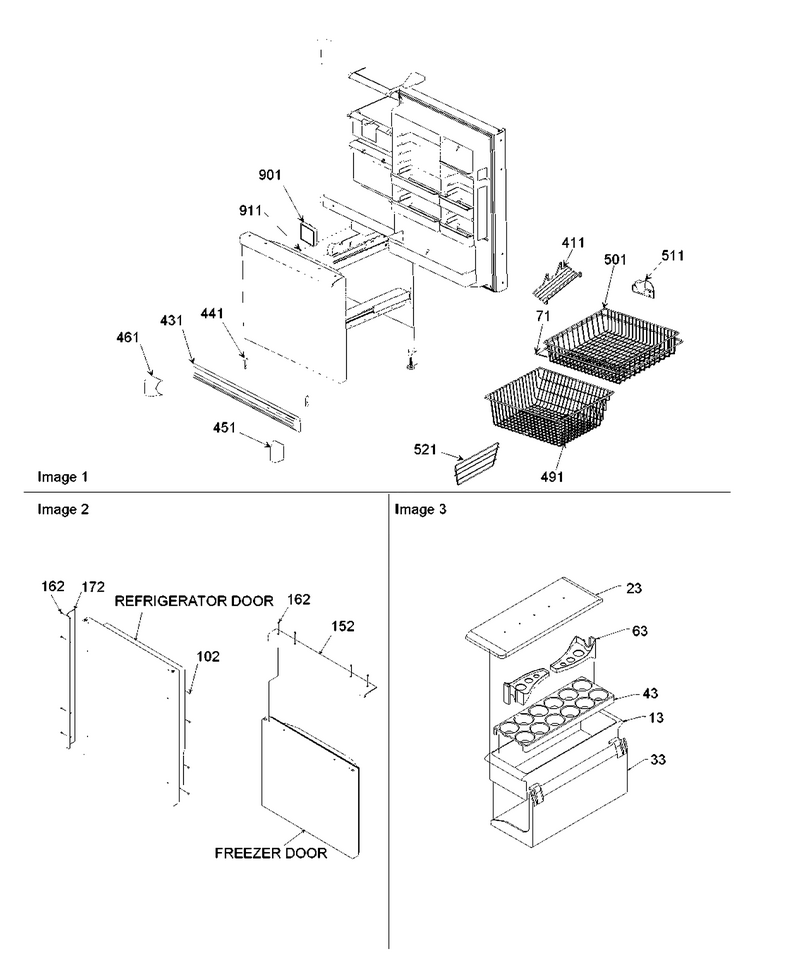

04 - Door Handles & Accessories

...
...
13
Container WPL-WP10423131
...
23
Lid, Utility WPL-10436404
...
33
Rack, Bottle WPL-10448903
...
43
Tray, Egg WPL-10436506
...
63
Snugger, Door Shelf WPL-12103905
...
71
Handle, Basket/shelf WPL-10508506
...
102
Plug-Hndle WPL-WP12246610
...
103
Tray WPL-WP841180A
...
152
Handle,extr Fz(stn Stl) WPL-12572604S
...
162
Screw, Handle WPL-67006529
...
172
Handle,extr Ref(stn Stl) WPL-12572603S
...
411
Rack, Ice Tray WPL-12646501
...
431
Grille, Toe (18) WPL-10474901
...
441
Clip,toe Grille WPL-12582301
...
451
Cover,anti Tip-R.h.(black) WPL-12596701B
...
461
Cover,anti Tip-L.h.(black) WPL-12596702B
...
491
Basket,30 Fz Lwr WPL-12564302
...
501
Basket,30 Fz Uppr WPL-12564402
...
511
Shield, Ice WPL-12351101
...
521
Divider,fz Basket WPL-12525301
...
1001
Cover-Fl Tb/plug WPL-D7874403
...
1011
Screw (3) WPL-67006425

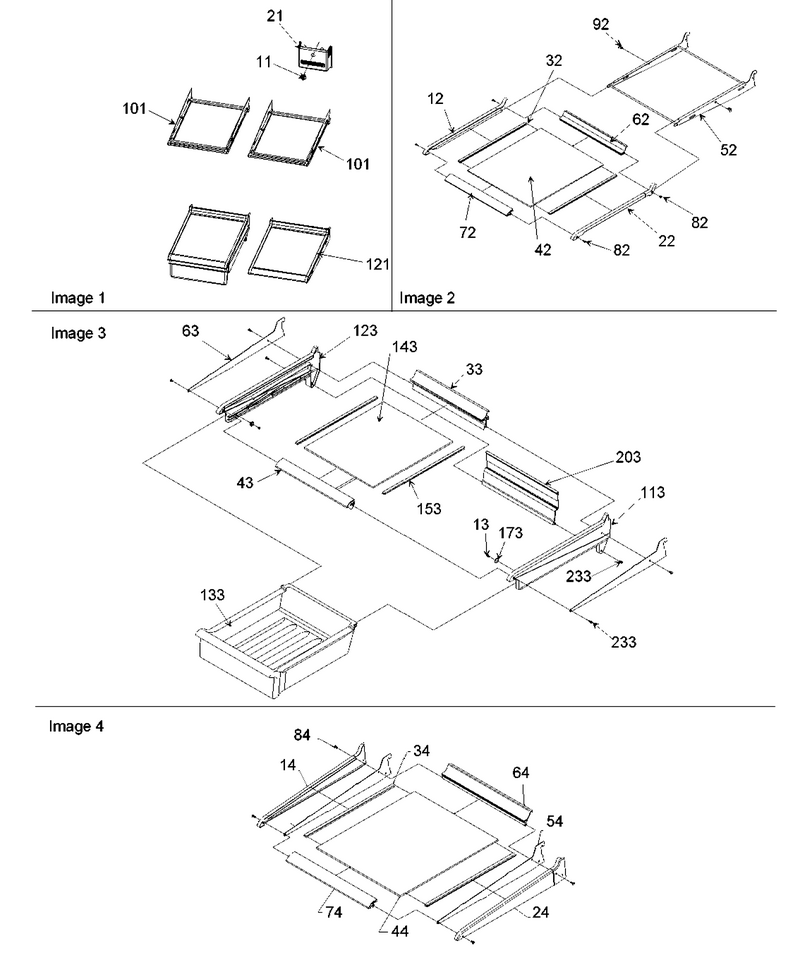

11 - Refrig. Feature, Shelf, & Deli Assy

...
...
11
Knob, Control (wht) WPL-D7795826
...
12
Glide, L. Side Shelf WPL-12325201
...
13
Screw WPL-67006692
...
14
Cover, Shelf Rail L.h. WPL-10436601
...
21
Cover, Damper WPL-12219302
...
22
Glide, R. Side Shelf WPL-12325202
...
24
Cover, Shelf Rail WPL-10436602
...
32
Ext, Gl Shelf Side WPL-10562503
...
33
Ext, Mk Rear WPL-10502203
...
34
Ext, Gl Shelf Side WPL-10562503
...
42
Shelf, Glass WPL-12204806
...
43
Ext, Shelf Front WPL-10436822
...
44
Shelf, Glass WPL-12204806
...
52
Frame,spl Svr Glide WPL-12120205
...
54
Rail, Painted WPL-10681401
...
62
Ext, Gl Shelf Rear WPL-12120304
...
63
Rail, Painted WPL-10681401
...
64
Extr, Gl Shelf Rear WPL-10436906
...
72
Ext-Gl Shlf Front WPL-10436816
...
74
Ext-Gl Shlf Front WPL-10436816
...
82
Screw WPL-WPW10348409
...
84
Screw WPL-WPW10348409
...
92
Stop, Shelf WPL-10875101
...
101
Assy, Glide Shelf WPL-12204902Q
...
113
Glide, R. Mk WPL-10485501
...
121
Assy, Shelf (spl Prf) WPL-10480722Q
...
123
Glide, L. Mk WPL-10485601
...
133
Pan,meatkeeper WPL-10417119
...
143
Shelf, Glass WPL-12204806
...
153
Ext, Gl Shelf Side WPL-10562503
...
173
Roller, Pan WPL-10481001
...
203
Ext, Mk Band WPL-10502504
...
233
Screw WPL-WPW10348409
