Amana BR22VC (BOM: P1325015W C)

Model: BR22VC (BOM: P1325015W C)

Save Part Not Listed?
product name

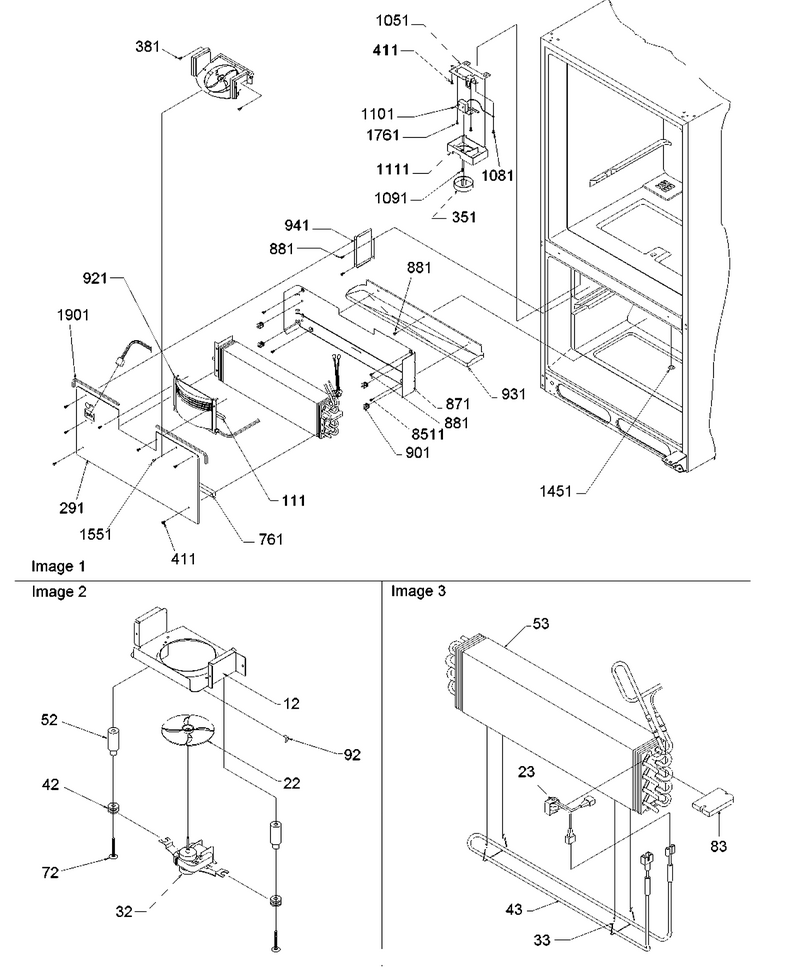

05 - Evaporator & Freezer Control Assy

...
...
NI
Tie-Wire WPL-WPW10339879
...
12
Shroud, Evap Fan - E Ct WPL-10619310
...
22
Blade-Fan WPL-WP2169142
...
23
Thermostat WPL-WP10442411
...
32
Evaporator WPL-WP12013209Q
...
33
Clip WPL-W11673433
...
42
Grommet WPL-12442501
...
43
Heater- Ev WPL-WP10428409
...
52
Post, Evap Motor WPL-12442401
...
53
Low Side Assembly WPL-R0170047
...
72
Screw WPL-M0219711
...
83
Block, Evap (r) WPL-10519101
...
92
Clip, Ground WPL-B5733302
...
111
Gasket WPL-B5759611
...
291
Cover, Evap. WPL-10485406
...
351
Knob, Control WPL-D7689905
...
381
Screw WPL-WP98165
...
411
Screw (3) WPL-67006425
...
761
Gasket, Bottom WPL-A3189394
...
871
Shield, Evap WPL-10427716
...
881
Screw (3) WPL-67006425
...
901
Clip, Evaporator WPL-10623002
...
921
Grille, Frz Air WPL-10502401
...
931
Tray, Drip WPL-10486104
...
941
Duct, Return Air WPL-10638601
...
1051
Bracket, Control WPL-12271401
...
1081
Screw WPL-M0253916
...
1091
Screw WPL-M0216531
...
1101
Thermostat WPL-W10752646
...
1111
Cover, Frz Cont WPL-D7878825
...
1451
Plug, Button (wht) WPL-M0310308
...
1551
Plug, Button (wht) WPL-M0310305
...
1761
Screw WPL-WP90767
...
1901
Gasket WPL-A3030353
...
8511
Screw (3) WPL-67006425

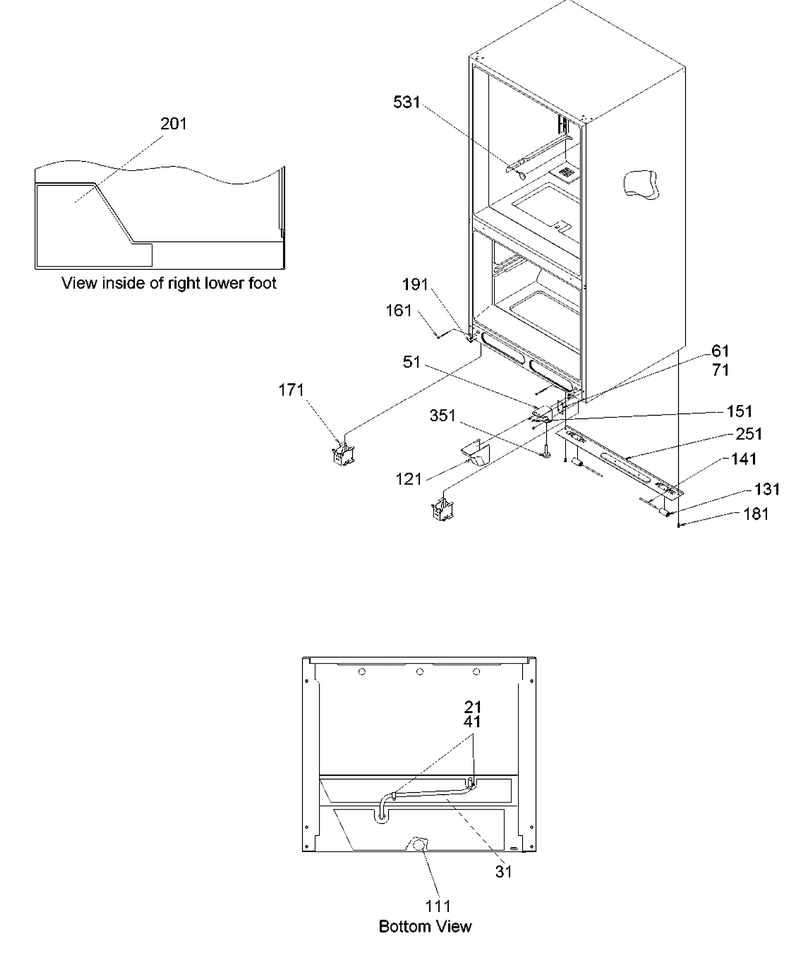

07 - Insulation & Rollers

...
...
21
Screw, Sm WPL-M0227217
...
31
Tube, Drain WPL-10513302
...
41
Clamp WPL-M0102303
...
51
Hinge,btm(white)e Ct WPL-10825305
...
61
Shim, Hinge (btm) WPL-10447905
...
71
Shim Hinge WPL-10447906
...
111
Plug, Button WPL-A3076901
...
121
Cover,hinge Lwr(bisque) WPL-10462706
...
131
Roller, Rear WPL-10450701
...
141
Axle, Roller WPL-10450901
...
151
Screw WPL-WP67006715
...
161
Screw, Adj Roller WPL-M0204336
...
171
Assy, Roller Bracket WPL-12452601Q
...
181
Screw, Tf WPL-M0260242
...
191
Screw WPL-W11573574
...
201
Insulation, Sound WPL-12403608
...
251
Brace WPL-10427112
...
351
Feet-Lvlng WPL-W11177593
...
531
Plug, Button (wht) WPL-M0310342

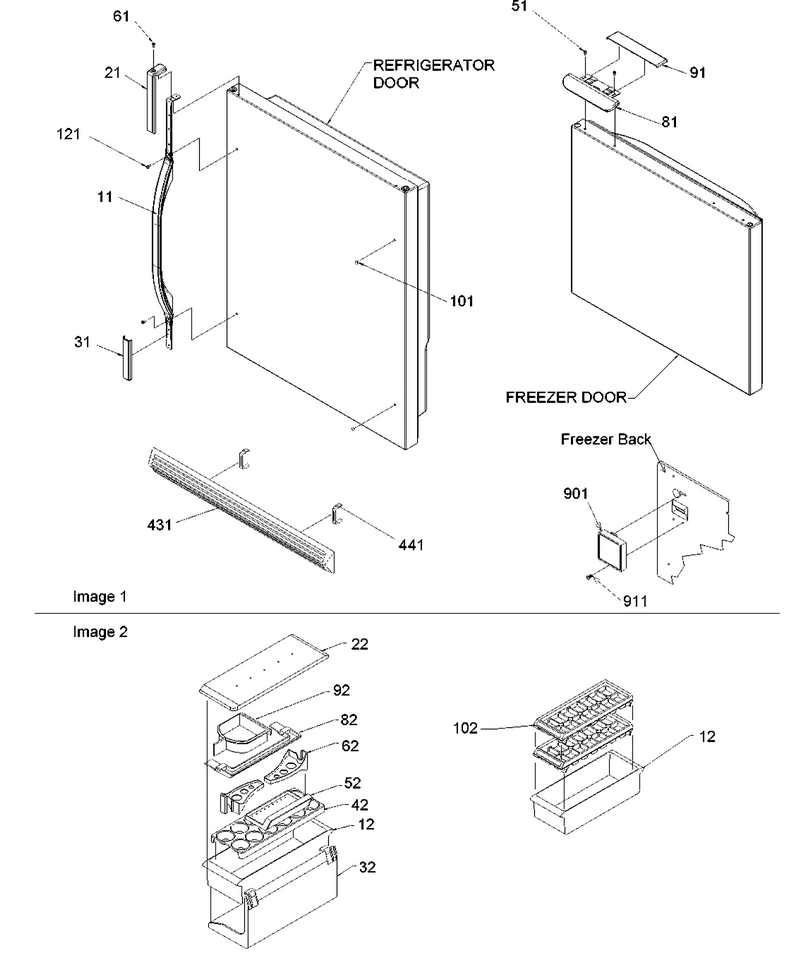

04 - Door Handles & Accessories

...
...
11
Handle,ref Dr(bisque) WPL-12443505C
...
12
Container WPL-WP10423131
...
21
Trim,upper Hndl(bisque) WPL-12443304
...
22
Lid, Utility WPL-10436404
...
31
Trim, Bot Mt(bisque) WPL-12273516
...
32
Rack, Utility WPL-10992303
...
42
Tray, Egg WPL-10436506
...
51
Screw WPL-WPW10348409
...
52
Tray, Butter WPL-10310901
...
61
Screw WPL-WP12248201
...
62
Snugger, Door Shelf WPL-12103905
...
81
Handle WPL-WP67005141
...
82
Retainer, Tall Pkg WPL-10468004
...
91
Cap,fz Handle(bisque) WPL-12285504
...
92
Hugger, Bottle (shelf Divider) WPL-10441102
...
101
Plug-Hndle WPL-W10709784
...
102
Tray WPL-WP841180A
...
121
Kit, Screw WPL-R9800670
...
431
Grille, Toe (bisque) WPL-10474806
...
441
Clip- Toe WPL-WP10551502
...
901
Cover-Fl Tb/plug WPL-D7874403
...
911
Screw (3) WPL-67006425

01 - Cabinet Back

...
...
251
Cover, Ht Exch WPL-10502303
...
421
Screw, Sm WPL-M0227217
...
671
Harness, Cont Wire WPL-12509301
...
681
Grommet WPL-10699301
...
691
Plug, Ht Exch V WPL-10428001
...
701
Back, Mach Comp WPL-12039807
...
711
Assy, Mc Back WPL-12041850
...
731
Cord, Power WPL-10916502
...
741
Plug, Im Tunnel WPL-10544301
...
1531
Clip WPL-WPM0104106
...
7011
Plate-Water Valve WPL-12047201
...
7021
Screw WPL-WP489464

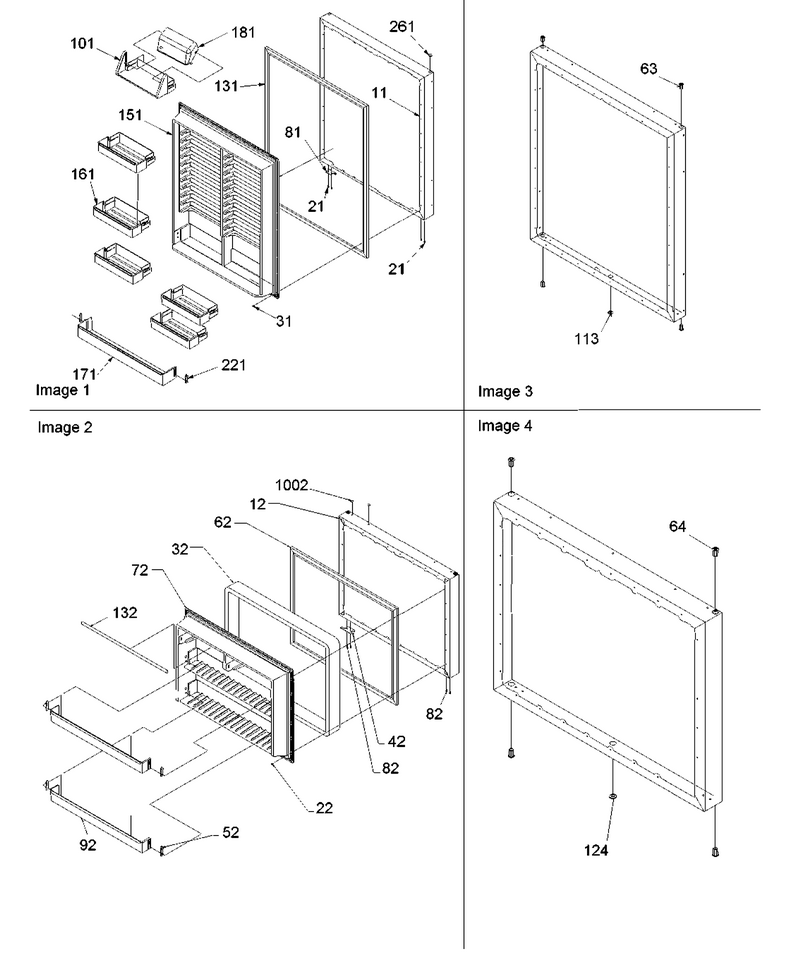

03 - Door Assy

...
...
11
Assy,ref Dr Foam(bisque) WPL-12258310C
...
12
Assy, Fz Dr Foam WPL-10537406C
...
21
Screw WPL-WPW10348409
...
22
Screw WPL-WPM0219730
...
31
Screw WPL-WPM0219730
...
32
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
42
Stop, Door (bisque) WPL-67003781
...
52
Clip, Retainer WPL-10202001
...
62
Gasket-Fz WPL-WP12550116Q
...
63
Bushing, Door (wht) WPL-10961001
...
64
Bushing, Door (wht) WPL-10961001
...
72
Liner, Frz Door WPL-12372501
...
81
Stop, Door (bisque) WPL-67003781
...
82
Screw WPL-WPW10348409
...
92
Retainer, Ref Door WPL-10419015
...
101
Shelf, Dairy WPL-12348002
...
113
Plug, Button (bsq) WPL-M0310344
...
124
Plug, Button (bsq) WPL-M0310344
...
131
Gasket-Ref WPL-WP12550115Q
...
132
Extrs, Shelf WPL-10304111
...
151
Liner, Ref. Door WPL-10462101
...
161
Shelf, Ref Door WPL-10183021
...
171
Retainer- WPL-WP10183120
...
181
Door- Dairy WPL-12348101
...
221
Clip, Retainer WPL-10202001
...
261
Plug,button(bisque) WPL-10686407
...
1002
Plug-Hndle WPL-W10709784

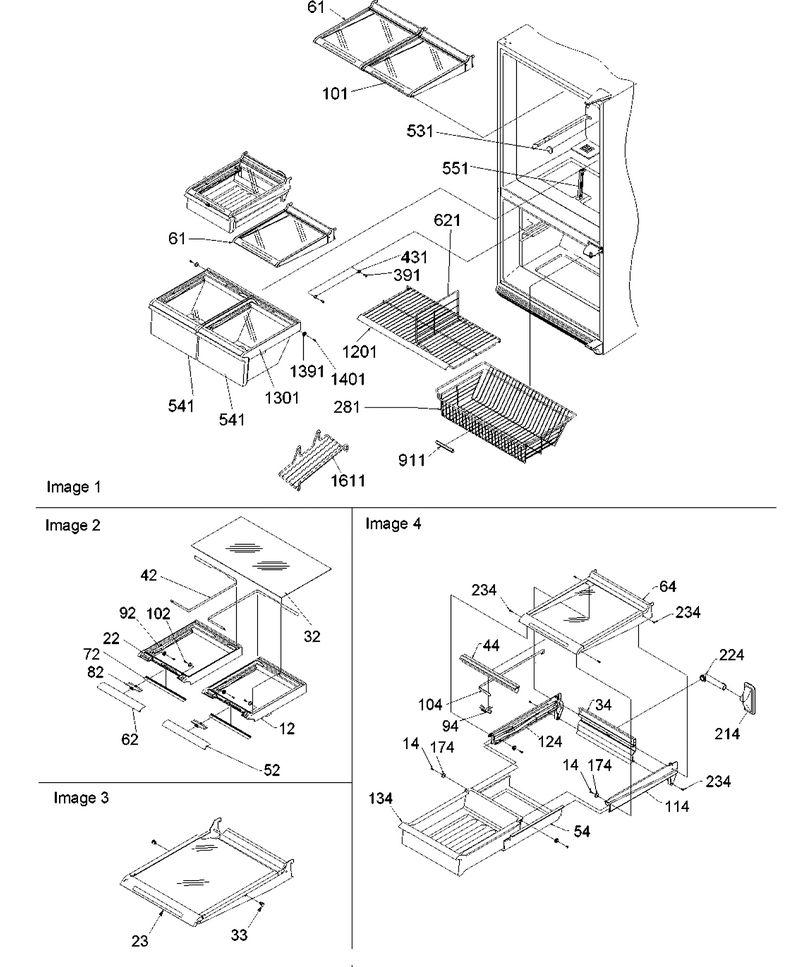

10 - Shelving Assy

...
...
12
Frame, Crisper (r) WPL-10485901
...
14
Screw WPL-67006692
...
22
Frame, Crisper (l) WPL-10485902
...
23
Assy, Shelf Hlf Gls WPL-10926204Q
...
32
Shelf-Glas WPL-WP10370035
...
33
Stop, Shelf WPL-10875101
...
34
Extrusion Mk Rear WPL-10934903
...
42
Band, Crisper Control WPL-10514002
...
44
Extrusion, Mk Frt WPL-10920303
...
52
Trim-Crsp Front WPL-10530318
...
54
Sleeve, Mk WPL-10437305
...
61
Assy, Shelf Hlf Gls WPL-10926204Q
...
62
Trim- Crsp Front WPL-10530319
...
64
Shelf-Sta WPL-10895708
...
72
Seal- Cris WPL-WP10530204
...
82
Slide, Crisper WPL-10797501
...
92
Roller, Pan WPL-10481001
...
94
Slide, Mk Control WPL-10920401
...
101
Shelf, Stationary WPL-10895714
...
102
Screw WPL-67006692
...
104
Band, Mk Control WPL-10935002
...
114
Glide, Mk R WPL-10880202
...
124
Glide, L. Mk WPL-10897102
...
134
Pan,meatkeeper WPL-10417013
...
174
Roller, Pan WPL-10481001
...
214
Grommet, Mt. Kpr. WPL-10501901
...
224
Tunnel, Air Mt Kp WPL-10486401
...
234
Screw WPL-WPW10348409
...
281
Basket, Freezer WPL-12433501
...
391
Screw WPL-WP67006908
...
431
Spacer- Ic WPL-WP10972101
...
531
Plug, Button (wht) WPL-M0310343
...
541
Pan-Crispe WPL-WP10432015
...
551
Post, Crisper Support WPL-10461901
...
621
Divider, Wire WPL-D7806002
...
911
Handle, Basket/shelf WPL-10508506
...
1201
Shelf, Frz Glide WPL-12204704
...
1301
Assy, Crisper WPL-12431806Q
...
1391
Roller, Pan WPL-10481001
...
1401
Screw WPL-67006692
...
1611
Rack, Ice Tray WPL-12228201

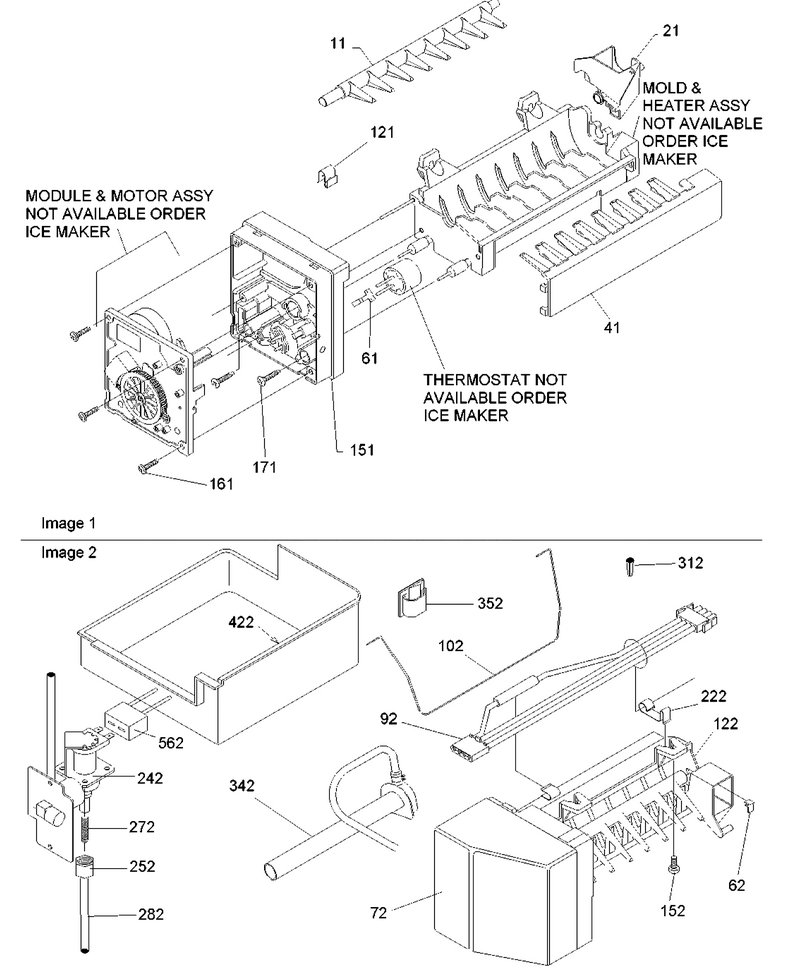

06 - Ice Maker Assy & Parts

...
...
NI
Clamp WPL-W10833902
...
11
Arm-Ejectr WPL-WP627843
...
21
Cup-Fill WPL-WP628356
...
41
Arm-Stripr WPL-WP2182124
...
61
Clip WPL-WP2315522
...
62
Clip WPL-B5720302
...
72
Cover-Frnt WPL-WPW10289690
...
92
Harns-Wire WPL-WPD7813010
...
102
Arm-Shut WPL-WP67004028
...
121
Clip WPL-WP628379
...
122
Ice Maker Assy. WPL-D7824706Q
...
151
Housing-Im WPL-WP2195914
...
152
Screw WPL-WP98165
...
161
Screw WPL-R0186041
...
171
Screw WPL-R0186040
...
222
Clamp, Wire WPL-10526701
...
242
Valve-Inlt WPL-W10833899
...
252
Nut WPL-WP627018
...
272
Spring WPL-WPA1055105
...
282
Tube WPL-WPB5705307
...
312
Insert- Pl WPL-WPA3223101
...
342
Tube-Water WPL-W11176463
...
352
Clip WPL-WPM0104106
...
422
Pan-Ice WPL-WP67001255
...
562
Harness, Water Valve WPL-10525901

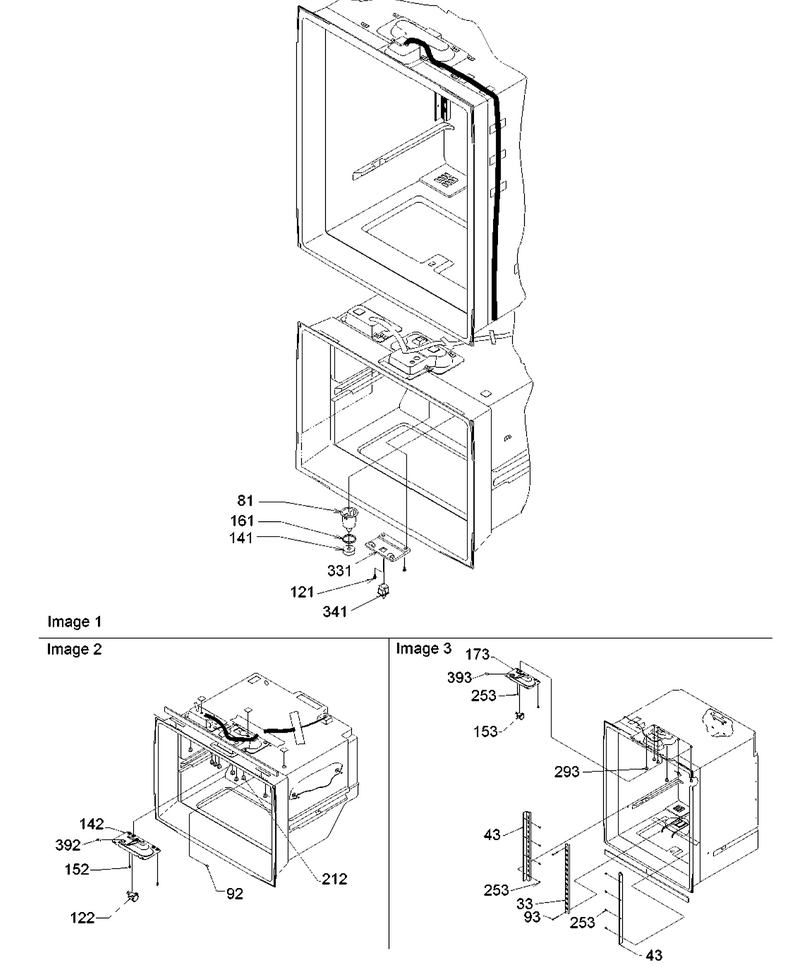

08 - Light Switches & Drain Funnel

...
...
33
Ladder, Center WPL-12435801
...
43
Ladder, Side (l/r) WPL-12435701
...
81
Funnel WPL-W10815413
...
92
Screw, Handle (black) WPL-12991101
...
93
Screw WPL-M0231426
...
121
Screw (3) WPL-67006425
...
122
Socket, Light WPL-D7714408
...
141
Gasket- Dr WPL-WPB8381501
...
142
Housing, Light WPL-12427502
...
152
Screw (3) WPL-67006425
...
153
Socket, Light WPL-D7714408
...
161
Seal- O Ri WPL-WPM0500703
...
173
Housing, Light WPL-12427502
...
212
Grommet, Screw WPL-M0581001
...
253
Screw (3) WPL-67006425
...
293
Grommet, Screw WPL-M0581001
...
331
Cover, Light Sw WPL-D7297604
...
341
Switch WPL-W11384469
...
392
Clip, Ground WPL-B5733302
...
393
Clip, Ground WPL-B5733302

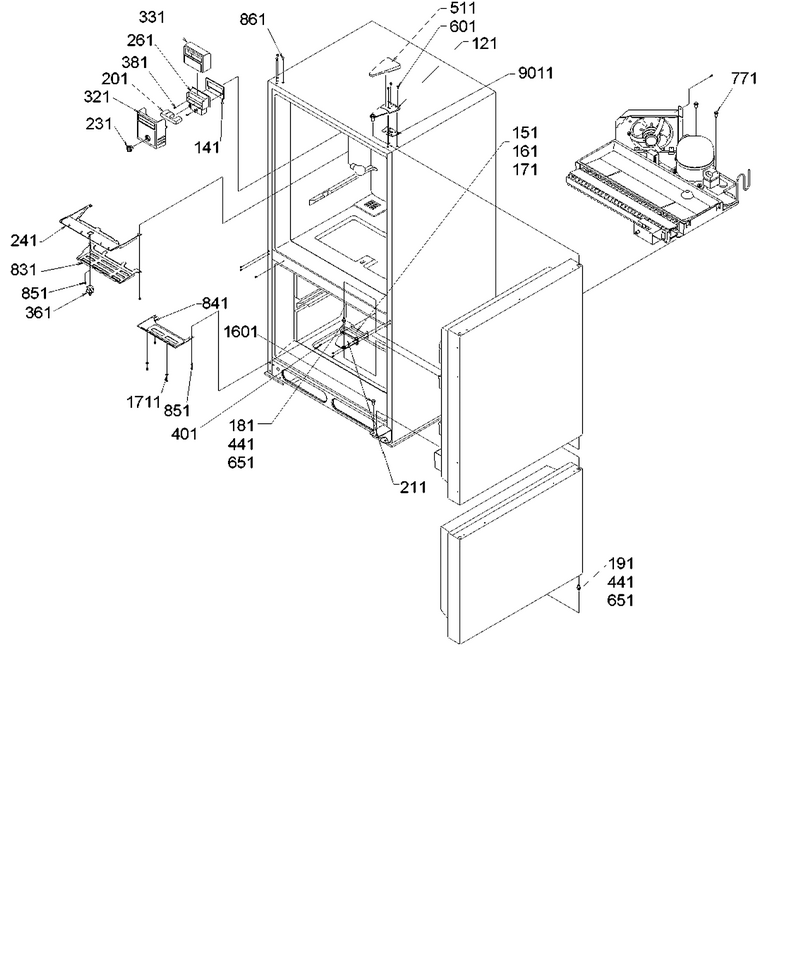

02 - Controls & Light Covers

...
...
121
Hinge, Top-E Ct WPL-12077318
...
141
Gasket, Damper WPL-B8345401
...
151
Shim, Center Hinge WPL-10562201
...
161
Shim, Center Hinge WPL-10562202
...
171
Shim, Center Hinge WPL-10562203
...
181
Pin- Cente WPL-WP67006744
...
191
Pin Hinge Bottom WPL-67007018
...
201
Insert, Control WPL-C8902601
...
211
Hinge, Center-E Ct (white) WPL-12446507
...
231
Knob, Control (wht) WPL-D7795826
...
241
Shield, Ref Light Sw WPL-12056201
...
261
Damper Control Kit WPL-R0161050
...
321
Cover, Refr Control WPL-D7687535
...
331
Insul. Damper WPL-D7687701
...
361
Switch WPL-W11384469
...
381
Screw WPL-WP98165
...
401
Screw WPL-WP67006380
...
441
Shim- Non WPL-WPM0274057
...
511
Cover,hinge(bisque) WPL-10444810
...
601
Screw WPL-WP489349
...
651
Shim- Non WPL-WPM0274058
...
771
Screw, Shldr WPL-M0221523
...
831
Cover, Ref Light WPL-12056301
...
841
Cover, Frz Light WPL-10493302
...
851
Screw-Sm WPL-M0238846
...
861
Plug, Top Hinge Button (bsq) WPL-M0310738
...
1601
Plug, Button White WPL-M0310330
...
1711
Washer WPL-M0270538
...
9011
Shim, Posi Pin WPL-12545201

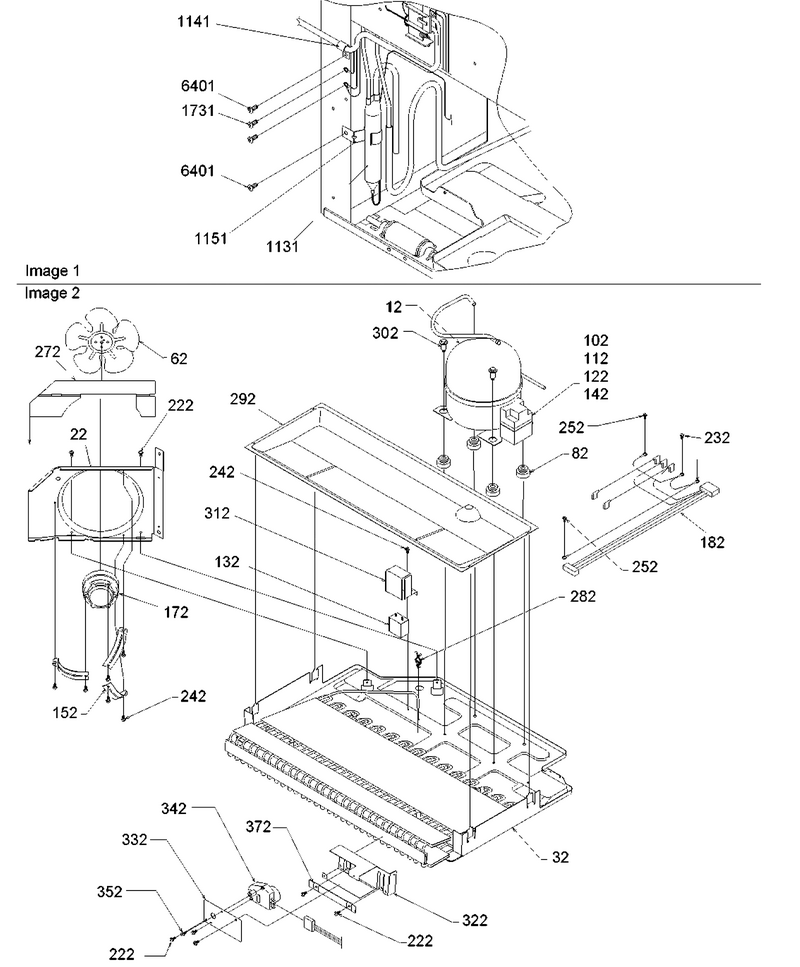

09 - Machine Compartment

...
...
12
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
22
Cond Fan Shrd-E Ct WPL-10426911
...
32
Assy, Cond Pan WPL-10481220
...
62
Blade, Fan WPL-B5742604
...
82
Grommet, Compressor WPL-67003493
...
102
Bale Strap WPL-YB8358601
...
112
Overload-Tm(panasonic) WPL-10377025
...
122
Relay-Strt WPL-WP10097204
...
132
Capacitor WPL-WP65889-4
...
142
Term Cover WPL-C8960801
...
152
Bracket, Cond. Motor WPL-10582501
...
172
Motor-Cond WPL-833697
...
182
Harness, Mc WPL-12458101
...
222
Screw WPL-WP90767
...
232
Screw WPL-WP489399
...
242
Screw WPL-WPM0223816
...
252
Screw WPL-M0253916
...
272
Gasket, Cond. Fan WPL-10442702
...
282
Wire Clip WPL-B5667304
...
292
Pan, Drain WPL-10427405
...
302
Screw, Shldr WPL-M0221523
...
312
Shield, Capacitor WPL-10266402
...
322
Brkt, Timer WPL-10503201
...
332
Cover, Timer Brkt WPL-12515801
...
342
Timer-Def WPL-R0131577
...
352
Screw WPL-M0216705
...
372
Washer, Brkt WPL-10542701
...
1131
Drier WPL-WPB2150504
...
1141
Clamp, Speed WPL-M0103904
...
1151
Clip, Drier WPL-10547001
...
1731
Screw WPL-WP489399
...
6401
Screw WPL-WP489069
