Amana BR20N (BOM: P7812526W W)

Model: BR20N (BOM: P7812526W W)

Save Part Not Listed?
product name

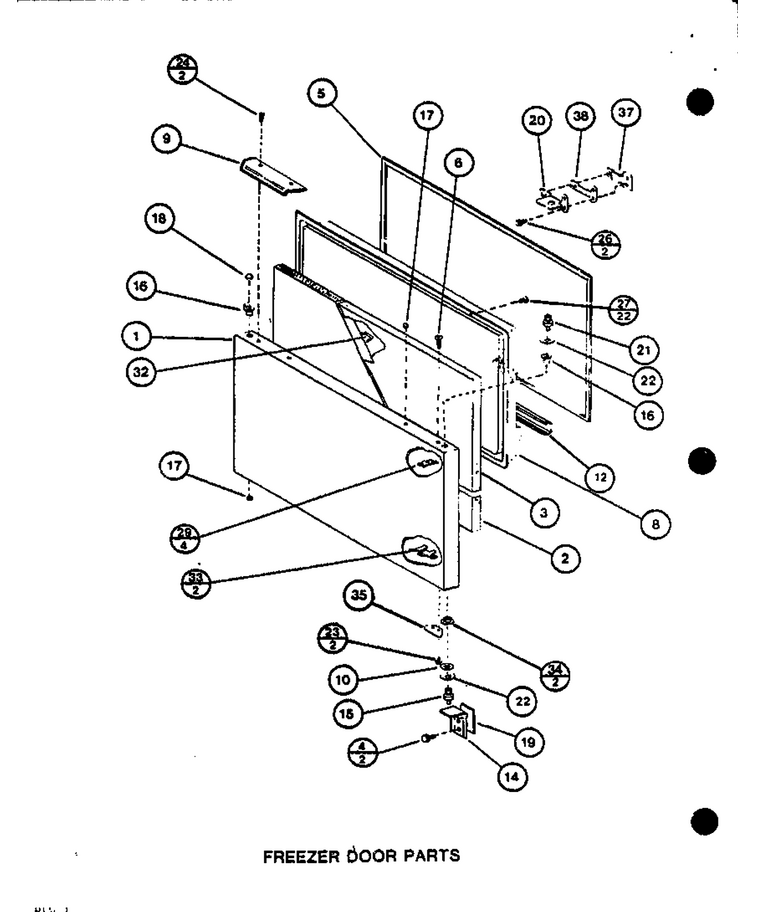

02 - Fz Door Parts

...
...
1
Dr Fr-L-T Bc20h WPL-D7728203
...
2
Insulation WPL-B0523574
...
3
Foam Slab 2pcs. = 1 WPL-D7398701
...
4
Screw WPL-WP67006715
...
5
Gasket- Do WPL-WPD7605115Q
...
6
Screw WPL-WPW10348409
...
8
Inner Dr Panel, Frz WPL-D7689102
...
9
Fz. Door Handle Assy WPL-C8944912
...
10
Washer WPL-M0274050
...
12
Retainer, Package WPL-C8907207
...
14
Bracket Lower Hinge WPL-10163605
...
15
Pin, Hinge K WPL-C8814901
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug Button WPL-M0311303
...
19
Kit,btm Hinge Shim WPL-B5744801
...
20
Center Hinge Bracket WPL-C8948601
...
21
Center Pin Hinge WPL-B8373101
...
22
Washer WPL-M0274049
...
23
Screw WPL-M0203458
...
24
Screw WPL-WPW10348409
...
26
Screw WPL-M0226831
...
27
Screw WPL-WPM0219730
...
29
Nut WPL-B8361401
...
32
Clamp-Wiring WPL-A3195601
...
33
Nut WPL-B8363501
...
34
Bearing, Hinge WPL-C8852202
...
35
Door Stop WPL-C8894802
...
37
Kit- Tap P WPL-R0194684
...
38
Shim, Center Hinge WPL-B8351403

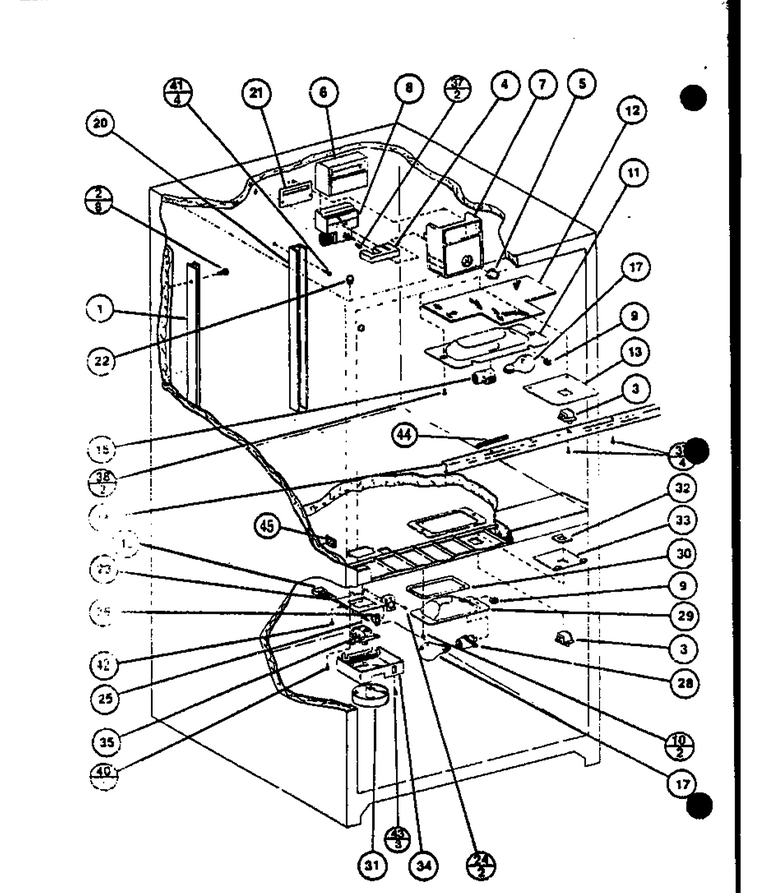

04 - Page 4

...
...
1
Ladder, Side WPL-D7599105
...
2
Screw (3) WPL-67006425
...
3
Switch WPL-W11384469
...
4
Insert, Control WPL-C8902601
...
5
Knob WPL-D7009802
...
6
Insul. Damper WPL-D7687701
...
7
Cover Ref Control WPL-D7687508
...
8
Damper Control Kit WPL-D7547404
...
9
Clip, Ground WPL-B5733302
...
10
Screw (3) WPL-67006425
...
11
Housing-Ref Light WPL-D7716409
...
12
Insulation WPL-C8778301
...
13
Cover, Light Sw WPL-D7297604
...
14
Shield, Light WPL-D7288109
...
15
Socket, Dual Lamp WPL-D7808602
...
17
Light Bulb WPL-8009
...
18
Harness Heater WPL-B8366001
...
20
Ladder, Center WPL-D7599002
...
21
Gasket, Damper WPL-B8345401
...
22
Plug Button (almond) WPL-M0310730
...
23
Bracket Control WPL-C8943301
...
24
Pop Rivet WPL-M0010215
...
25
Diode WPL-M0305301
...
26
Switch WPL-M0341202
...
28
Socket-Light WPL-D7714407
...
29
Shield, Light WPL-R0176034
...
30
Gasket WPL-B5759607
...
31
Knob, Control WPL-D7689901
...
32
Gasket WPL-B8314801
...
33
Barrier Lt. S.w. WPL-C8940401
...
34
Cover, Frz Control WPL-D7878807
...
35
Control Temp WPL-C8946701
...
37
Screw WPL-WP98165
...
38
Screw (3) WPL-67006425
...
40
Screw WPL-WP489464
...
41
Screw-Sm WPL-M0238636
...
42
Screw WPL-M0253916
...
43
Screw WPL-M0216531
...
44
Gasket 1 WPL-10839714
...
45
Gasket Air Block WPL-B5759618

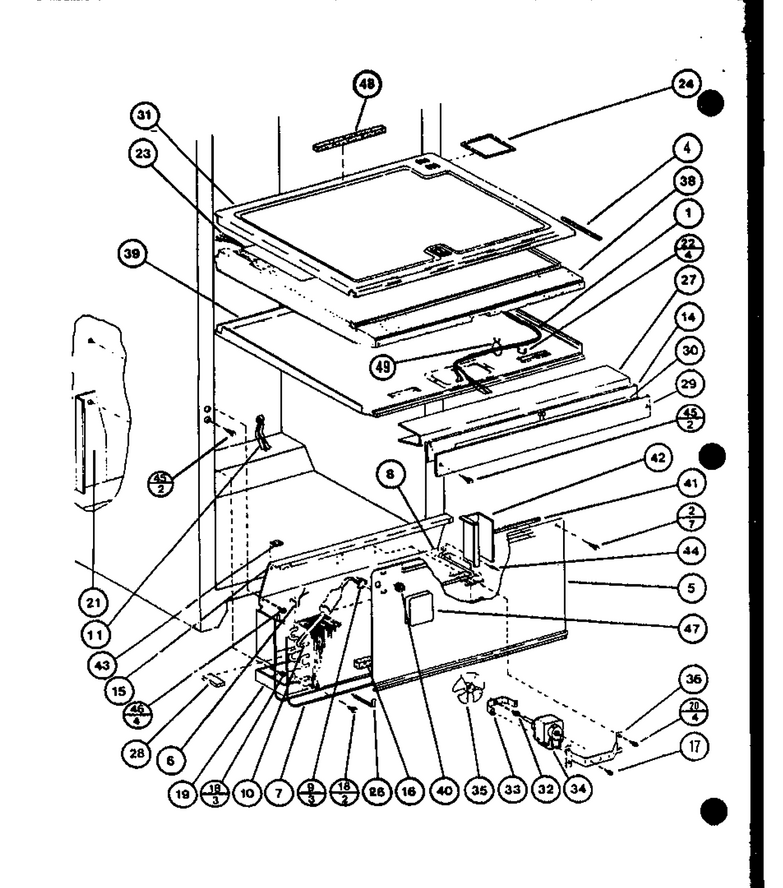

05 - Page 5

...
...
1
Harness, Mullion WPL-D7742801
...
2
Screw (3) WPL-67006425
...
4
Gasket, Sealing WPL-B5759617
...
5
Cover, Evap WPL-D7874701
...
6
Thermostat WPL-WP10442411
...
7
Heater Defrost WPL-D7718301
...
8
Heat Exchanger WPL-D7759001
...
9
Tie-Wire WPL-WPW10339879
...
10
Assy,low Side WPL-R0170030
...
11
Harness Liner WPL-D7711701
...
14
Insulation Per Ft. WPL-B0523584
...
15
Shroud Evap Fan WPL-D7691104
...
16
Gasket, Bottom WPL-A3189394
...
17
Kit, Screw WPL-R9800670
...
18
Screw (3) WPL-67006425
...
19
Tray, Drip WPL-D7679402
...
20
Screw WPL-WP489464
...
21
Barrier WPL-C8953701
...
22
Clamp-Wiring WPL-A3195601
...
23
Heater-Ref Bottom WPL-D7742901
...
24
Gasket WPL-A3030302
...
26
Clamp WPL-M0103502
...
27
Breaker, Center Mullion WPL-D7678401
...
28
Block Evap Coil WPL-B8373201
...
29
Center Mullion, Almond WPL-C8842513
...
30
Heater, Mullion WPL-D7654503
...
31
Bottom Ref. WPL-D7681701
...
32
Grommet WPL-WP2264462
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Blade, Evap Fan WPL-C8927801
...
36
Brkt Evap Fan Shroud WPL-D7524501
...
38
Block-Waxed Ctr WPL-D7713301
...
39
Top Freezer WPL-D7878701
...
40
Grommet WPL-A3138301
...
41
Gasket 1 WPL-10839714
...
42
Duct, Returnair WPL-D7680901
...
43
Gasket WPL-B8358502
...
44
Pop Rivet WPL-A4539602
...
45
Screw WPL-WP98165
...
46
Screw WPL-WP98165
...
47
Cover-Fl Tb/plug WPL-D7874402
...
48
Gasket WPL-B5759616
...
49
Lock, Purse WPL-74007369

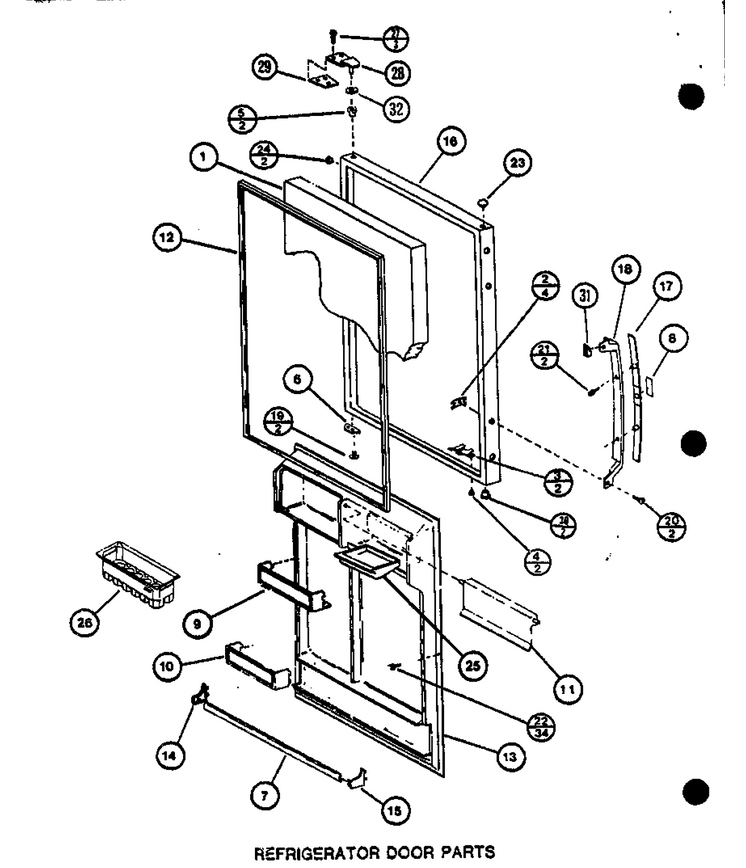

07 - Ref Door Parts

...
...
1
Insulation, Bat WPL-B5683516
...
2
Nut WPL-B8361401
...
3
Nut WPL-B8363501
...
4
Screw WPL-WPW10348409
...
5
Bushing, Hinge Pin WPL-C3652901
...
6
Door Stop WPL-C8894802
...
7
Retainer Pkg WPL-C8907221
...
8
Nameplate WPL-C8945003
...
9
Door Shelf WPL-D7565408
...
10
Retainer- WPL-67003698
...
11
Dairy Door WPL-D7604417
...
12
Gasket, Door WPL-D7605116
...
13
Inner Dr Panel, Ref WPL-D7677202
...
14
Cap, Pkg Retainer End WPL-D7681803
...
15
Cap, Pkg Retainer End WPL-D7681804
...
16
Ref Dr Foamd As Cfc11 WPL-D7728308
...
17
Insert K WPL-D7694707
...
18
Handle WPL-WPD7694803
...
19
Screw WPL-M0203458
...
20
Screw WPL-M0203458
...
21
Screw WPL-WP8281236
...
22
Screw WPL-WPM0219730
...
23
Plug WPL-M0310601
...
24
Plug Button WPL-M0311303
...
25
Butter Tray WPL-D3799802
...
26
Assy,egg Bkt W/ Lid WPL-12460016
...
27
Kit, Screw WPL-R9800670
...
28
Hinge WPL-B5744301
...
29
Shim, Top Hinge, .016 WPL-B8389003
...
30
Bearing, Hinge WPL-C8852202
...
31
Spacer, Handle WPL-B8372001
...
32
Washer WPL-M0274049

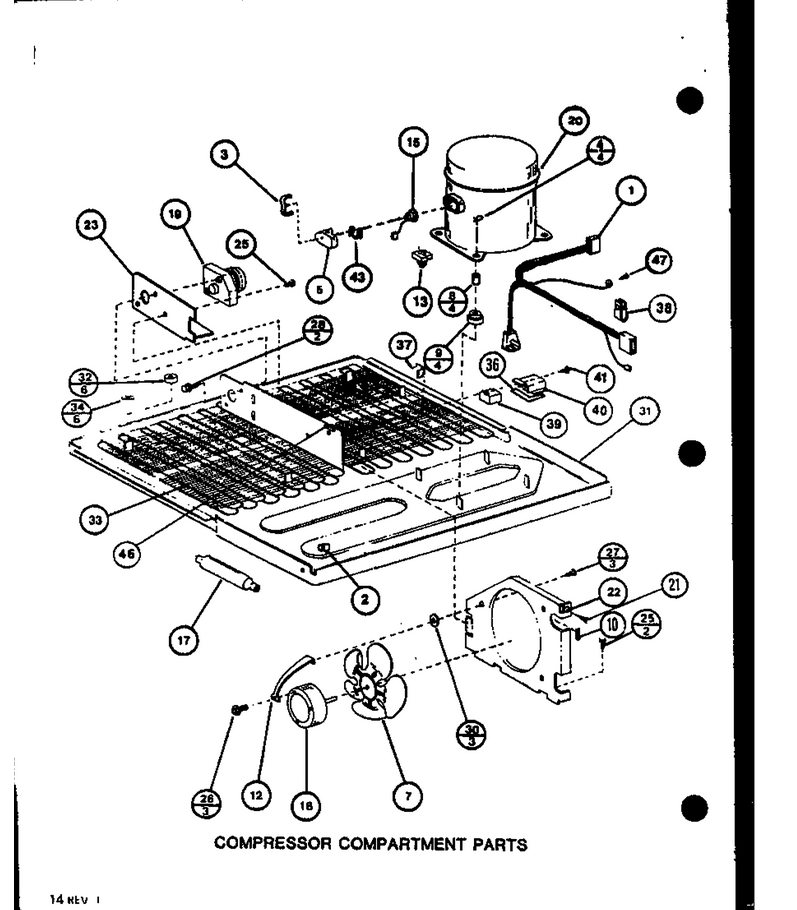

01 - Compressor Compartment Parts

...
...
1
Harness Mc WPL-D7708401
...
3
Bale Strap WPL-YB8358601
...
4
Clip Comp WPL-B8352901
...
5
Term Cover WPL-C8960801
...
7
Blade, Fan WPL-B5742603
...
8
Sleeve K WPL-A3072001
...
9
Grommet, Compressor WPL-67003493
...
10
Gasket WPL-B5759604
...
12
Bracket, Cond Motor WPL-C8982101
...
13
Relay WPL-C8931503
...
15
Overload WPL-10377005
...
17
Drier WPL-WPB2150504
...
18
Motor-Cond WPL-833697
...
19
Timer-Def WPL-R0168027
...
20
Compressor WPL-C3667102H
...
21
Screw WPL-WP489069
...
22
Cond. Fan Shrd WPL-D7691002
...
23
Timer Bracket WPL-D7690801
...
25
Screw WPL-WP90767
...
27
Screw Shoulder WPL-M0238833
...
28
Screw WPL-M0218118
...
30
Grommet K WPL-M0500107
...
31
Base Pan WPL-D7595410
...
32
Spacer Cond. WPL-B8346301
...
33
Condenser Pntd WPL-D7654301
...
34
Speednut WPL-M0293703
...
36
Grommet Per In. WPL-A3261703
...
37
Tie-Wire WPL-WPW10339879
...
38
Clamp WPL-M0103901
...
39
Capacitor WPL-WPW10662129
...
40
Shield, Capacitor WPL-10266402
...
41
Screw WPL-WP489464
...
43
Spring, Overload WPL-B8358301
...
46
Felt WPL-A9008301
...
47
Screw WPL-M0253916

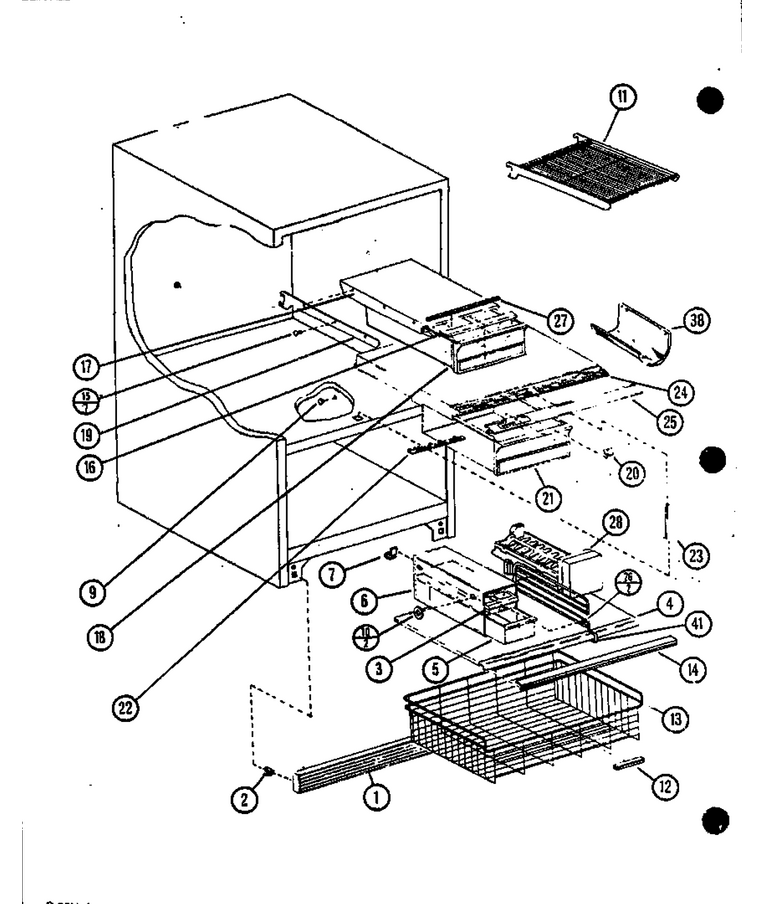

03 - Page 3

...
...
NI
Crisper Top Assy WPL-R0179090
...
1
Grille-Toe-B K WPL-D7520510
...
2
Clip WPL-WPM0117303
...
3
Tray WPL-WP841180A
...
4
Shelf WPL-D7681202
...
5
Ice Bin WPL-D7620011
...
6
Rack, Ice Service WPL-D7620107
...
7
Clip WPL-B5720301
...
9
Button- Pl WPL-WP67001130
...
10
Washer WPL-M0270519
...
11
Shelf, Wire WPL-D7654908
...
12
Handle Basket WPL-B0571806
...
13
Basket WPL-D7677402
...
14
Trim Shelf WPL-C8832510
...
15
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
16
Trim Frz Door WPL-C8913535
...
17
Top M.k WPL-D7698205
...
18
Net-Drawer,deli WPL-D7710516
...
19
Blank Side Rail WPL-D7862940
...
20
Knob Humidity A-K WPL-C8908301
...
21
Pan, Crisper WPL-D7581023
...
22
Slide Humidity WPL-D7587705
...
23
Crisper Support Post WPL-D7602202
...
24
Top,crisper A-K WPL-D7616505
...
25
Trim WPL-D7616617
...
26
Screw Shoulder WPL-M0238833
...
27
Seal Meat Pan WPL-D7718401
...
28
See Note Ice Maker WPL-Y00000000

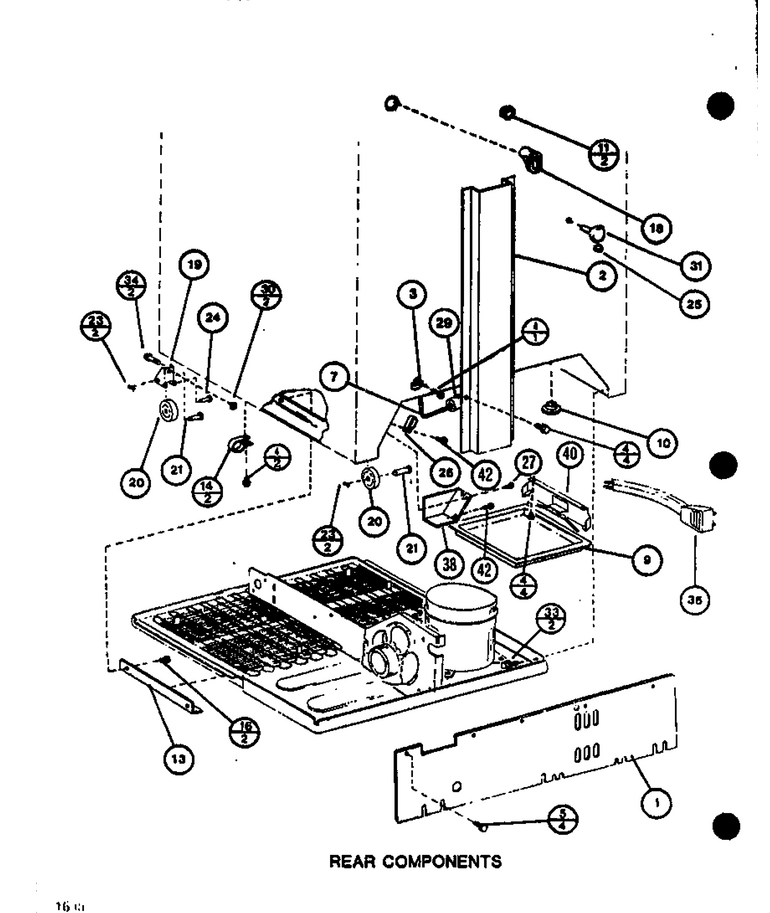

06 - Rear Components

...
...
1
Mc Back Assy WPL-C8890206
...
2
Cover Ht. Exh WPL-D7539413
...
3
Clamp WPL-M0102325
...
4
Screw WPL-WP489069
...
5
Screw-Sm WPL-M0241118
...
7
Drain Tube WPL-D7813901
...
9
Drain Pan WPL-D7790601
...
10
Plug, Button WPL-A3076901
...
11
Plug, Button (blk) WPL-A3080001
...
13
Support M.c. WPL-D7835501
...
14
Clamp WPL-M0102303
...
16
Screw WPL-M0211530
...
18
Tunnel-Heat Ex WPL-B5749501
...
19
Assy, Roller Bracket WPL-12452602Q
...
20
Roller WPL-M0520102
...
21
Pin K WPL-M1200202
...
23
Cotter Pin K WPL-M1200004
...
24
Rivet WPL-M1205302
...
25
Plug Button WPL-M0310319
...
26
Clamp WPL-M0103901
...
27
Screw WPL-WP90767
...
29
Insulation, Tube WPL-A0329813
...
30
Nut, Speed WPL-M0286708
...
31
Fill Tube WPL-R0182123
...
33
Screw WPL-M0294459
...
34
Screw, Mach WPL-M0206313
...
35
Power Cord WPL-R0157154
...
38
Cover, Wiring WPL-D7663301
...
40
Support Drain Pan WPL-D7790501
...
42
Screw WPL-M0253916
