Amana BP22AW (BOM: P1161605W W)

Model: BP22AW (BOM: P1161605W W)

Save Part Not Listed?
product name

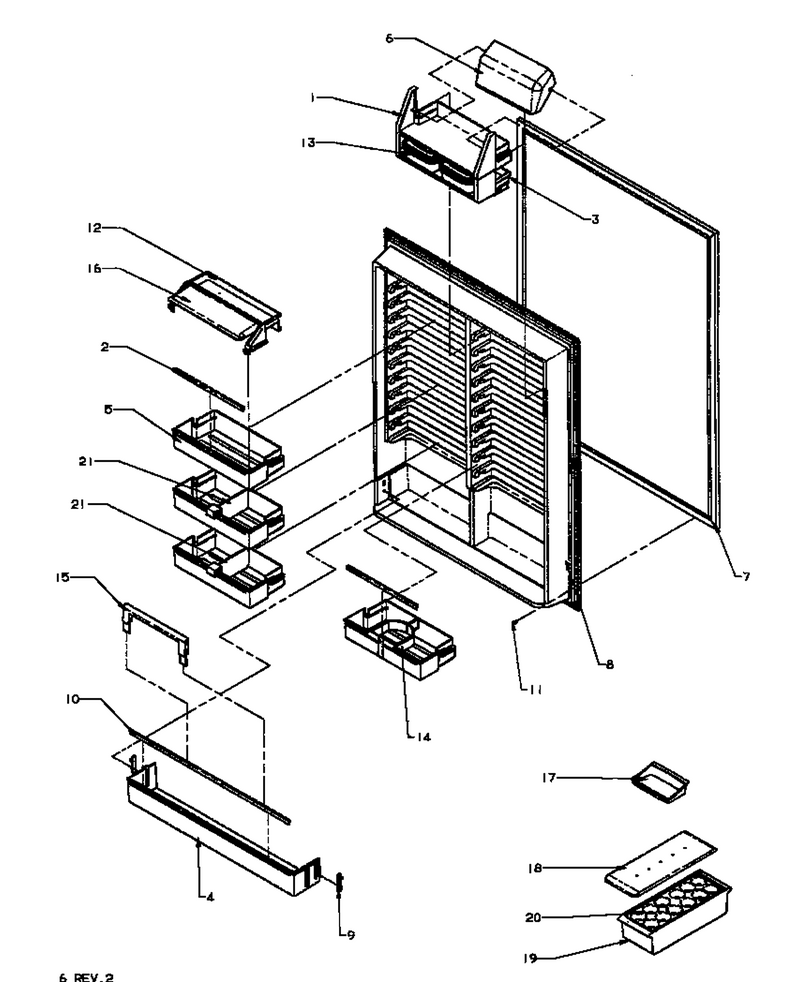

06 - Ref Inner Door

...
...
1
Shelf, Dairy WPL-10182702
...
2
Trim, Door Shelf WPL-10183938
...
3
Shelf, Container Ser. WPL-10182802
...
4
Retainer- WPL-WP10183120
...
5
Shelf, Ref Door WPL-10183021
...
6
Door, Dairy WPL-10422605
...
7
Gasket- Re WPL-WP12550108Q
...
8
Liner, Ref. Door WPL-10462101
...
9
Clip, Retainer WPL-10202001
...
10
Trim, Door Shelf WPL-10183970
...
11
Screw WPL-WPM0219730
...
12
Shelf, Snack Stop WPL-10431101
...
13
Container WPL-10185001
...
14
Hugger, Bottle (shelf Divider) WPL-10441102
...
16
Door, Snack Stop WPL-10431007
...
17
Tray, Butter WPL-10310901
...
18
Lid, Utility WPL-10436404
...
19
Container WPL-WP10423131
...
20
Tray, Egg WPL-10436504
...
21
Snugger, Door Shelf (shelf Div WPL-10467501

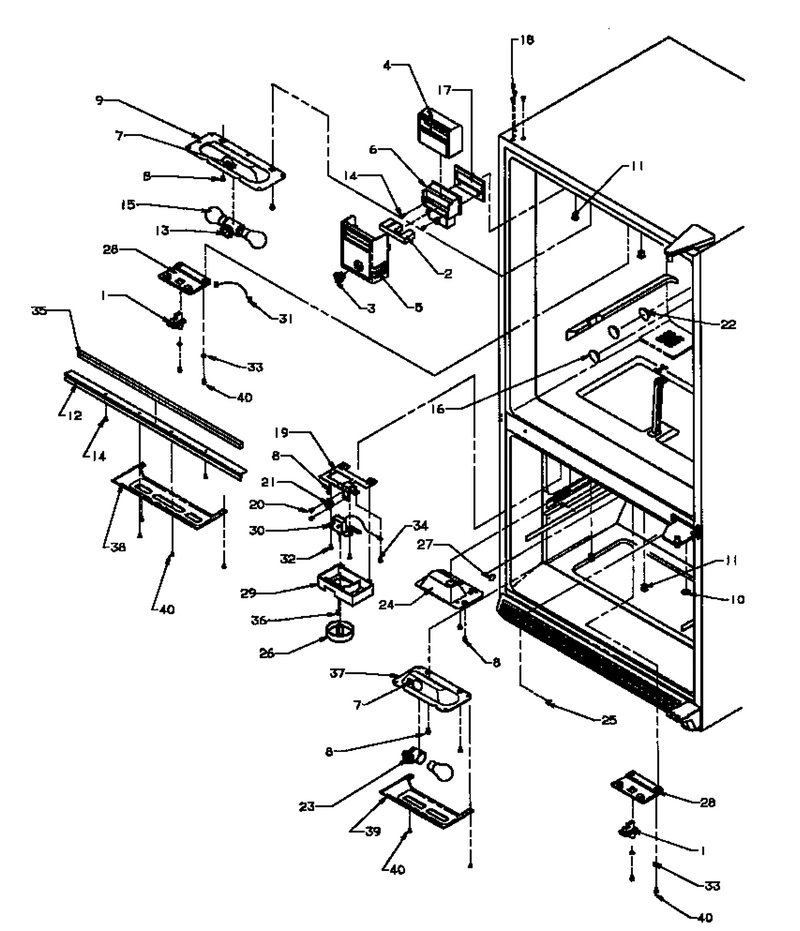

08 - Ref/fz Control Switches & Lights

...
...
NI
Harness, Mullion WPL-10734001
...
1
Switch WPL-W11384469
...
2
Insert, Control WPL-C8902601
...
3
Knob, Control WPL-D7795822
...
4
Insul. Damper WPL-D7687701
...
5
Cover Refrig. Cont. WPL-D7687521
...
7
Clip, Ground WPL-B5733302
...
8
Screw (3) WPL-67006425
...
9
Housing-Ref Light WPL-D7716409
...
10
Plug, Button (wht) WPL-M0310308
...
11
Grommet, Screw WPL-M0580007
...
12
Shield, Light WPL-D7288117
...
13
Socket, Dual Lamp WPL-D7808602
...
14
Screw WPL-WP98165
...
15
Light Bulb WPL-8009
...
16
Kit, Plug Button WPL-M0310303
...
17
Gasket, Damper WPL-B8345401
...
18
Button- Pl WPL-WP12246608
...
19
Bracket, Control WPL-12271401
...
22
Insul. Mk Plug WPL-B8362504
...
23
Socket-Light WPL-C8973404
...
24
Housing, Frz. Cont. WPL-10649702
...
25
Button- Pl WPL-WP67001130
...
26
Knob, Control WPL-D7689905
...
27
Plug Button WPL-M0311301
...
28
Cover, Light Sw WPL-D7297604
...
29
Cover, Temp. Control WPL-D7878813
...
30
Thermostat WPL-W10752646
...
31
Jumper Wire WPL-B5781002
...
32
Screw WPL-WP90767
...
33
Washer WPL-M0270538
...
34
Screw WPL-M0253916
...
35
Gasket 1 WPL-10839714
...
36
Screw WPL-M0216531
...
37
Housing, Light WPL-D7760104
...
38
Cover, Ref. Light WPL-10493201
...
39
Cover, Frz Light WPL-10493301
...
40
Screw WPL-M0219546

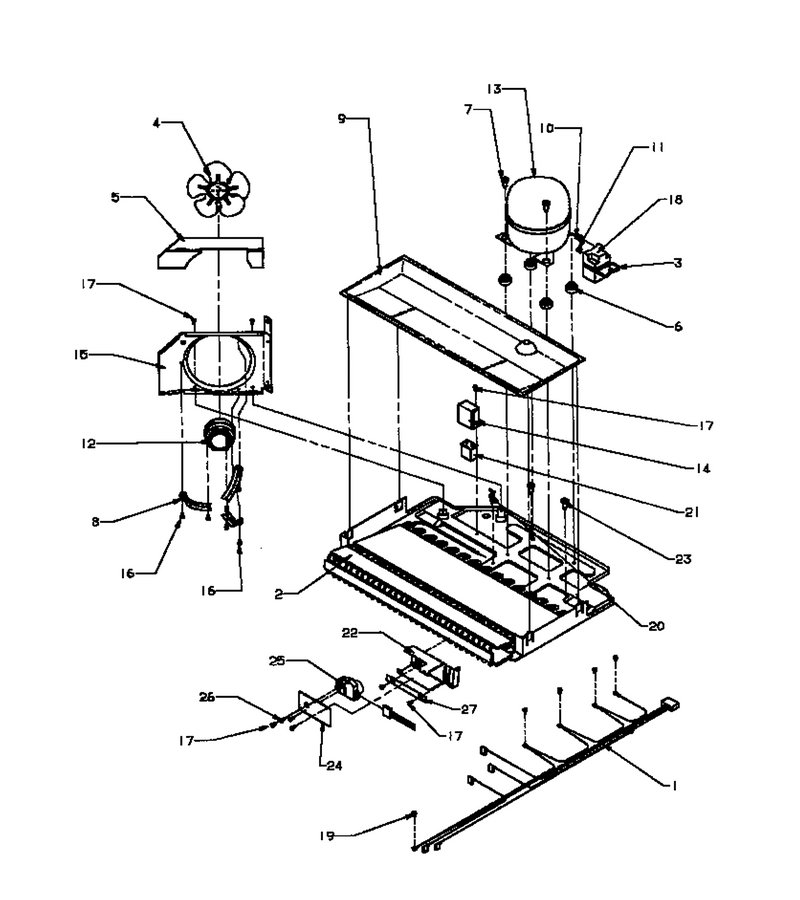

02 - Compressor Compartment

...
...
NI
Clip WPL-WPM0104106
...
1
Harness, M.c. WPL-10823801
...
2
Assy, Cond Pan WPL-10481204
...
3
Bale Strap WPL-YB8358601
...
4
Blade, Fan WPL-B5742602
...
5
Gasket, Cond. Fan WPL-10442702
...
6
Grommet, Compressor WPL-67003493
...
7
Screw, Shoulder WPL-M0221548
...
8
Bracket, Cond. Motor WPL-10582501
...
9
Pan, Drain WPL-10427405
...
10
Overload WPL-10377003
...
11
Relay WPL-2154436
...
12
Motor-Cond WPL-833697
...
13
Compressor WPL-W10439652
...
14
Shield, Capacitor WPL-10266402
...
15
Cond Fan Shrd-E Ct WPL-10426911
...
16
Screw WPL-M0223803
...
17
Screw WPL-WP12990527
...
18
Term Cover WPL-C8960801
...
19
Screw WPL-M0253916
...
20
Wire Clip WPL-B5667304
...
21
Capacitor WPL-WPW10662129
...
22
Brkt, Timer WPL-10503201
...
23
Screw, Shoulder WPL-M0221548
...
24
Cover, Timer Brkt WPL-10503101
...
25
Timer-Def WPL-R0131577
...
26
Screw WPL-M0218118
...
27
Washer, Brkt WPL-10542701

04 - Evap Area

...
...
NI
Heater- Ev WPL-WP10428409
...
1
Harness, Liner WPL-10538401
...
2
Screw (3) WPL-67006425
...
3
Screw WPL-WP12990527
...
4
Gasket WPL-B5759611
...
5
Cover, Evap. WPL-10485406
...
6
Thermostat WPL-WP10442411
...
7
Heater- Ev WPL-WP10428409
...
8
Pop Rivet WPL-A4539607
...
9
Low Side Assembly WPL-R0170047
...
10
Screw (3) WPL-67006425
...
11
Shield, Evap WPL-10427716
...
12
Gasket, Bottom WPL-A3189394
...
13
Screw WPL-WP98165
...
14
Tray, Drip WPL-10486102
...
15
Screw WPL-WP489128
...
16
Clip WPL-W11673433
...
17
Block, Evap (r) WPL-10519101
...
18
See Note Center Mullion, White WPL-Y00000000
...
20
Grommet WPL-WP2264462
...
21
Brakt-Mtr WPL-WP10492701
...
22
Motor-Evap WPL-WP10513803
...
23
Blade-Fan WPL-W10116797
...
24
Brkt, Up Evap. Fan WPL-10492801
...
25
Plug, Button (wht) WPL-M0310305
...
26
Gasket WPL-A3030353
...
27
Duct, Return Air WPL-10638601
...
28
Clip, Evaporator WPL-10623002
...
29
Plug, Top Hinge Button (blk) WPL-M0310731
...
30
Cover-Fl Tb/plug WPL-D7874402
...
31
Grille, Frz Air WPL-10502401
...
32
Shroud, Evap Fan WPL-10619304
...
33
Clip, Ground WPL-B5733302

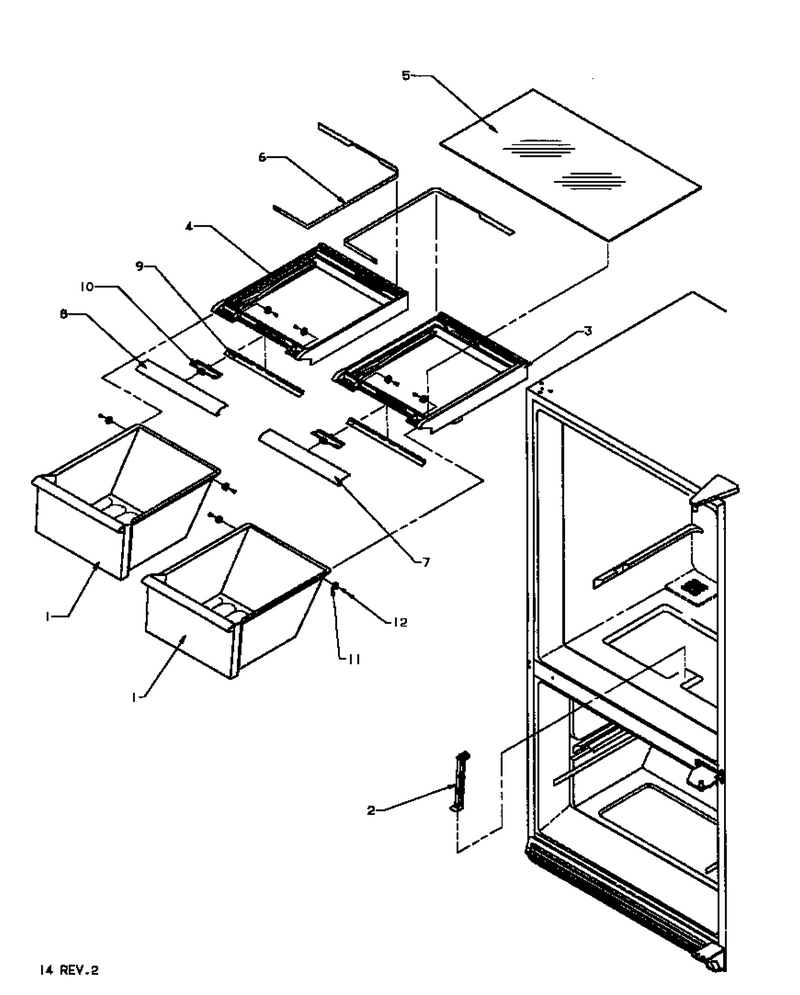

03 - Crisper Compartment

...
...
1
Pan-Crispe WPL-WP10432015
...
2
Post, Crisper Support WPL-10461901
...
3
Frame, Crisper (r) WPL-10485901
...
4
Frame, Crisper (l) WPL-10485902
...
5
Shelf-Glas WPL-WP10370035
...
6
Band, Crisper Control WPL-10514002
...
7
Trim, Crisper (front) WPL-10530305
...
8
Trim, Crisper (front) WPL-10530306
...
9
Seal- Cris WPL-WP10530204
...
10
Slide, Crisper WPL-10797501
...
11
Roller, Pan WPL-10481001
...
12
Screw WPL-67006692

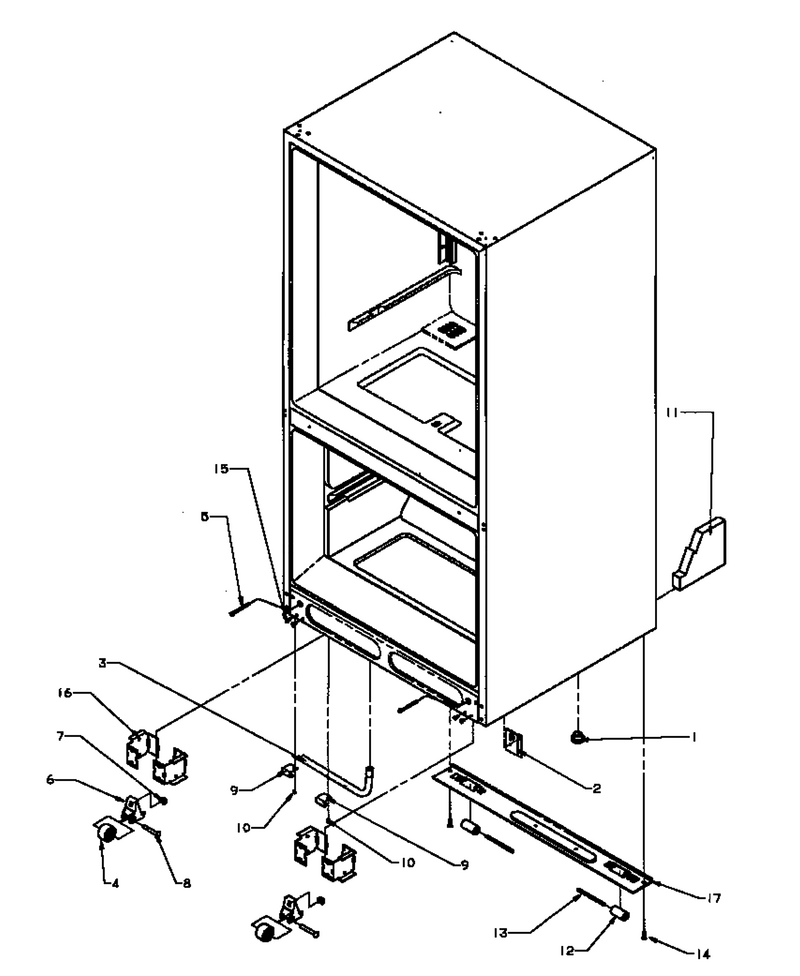

10 - Rollers/drain Tube

...
...
NI
Assy, Roller Brkt WPL-10476101Q
...
1
Plug, Button WPL-A3076901
...
2
Kit, Lw Hinge Plate WPL-R0194687
...
3
Tube, Drain WPL-10513302
...
4
Roller WPL-WP10450603
...
5
Screw, Mach WPL-M0204338
...
6
Assy, Roller Brkt WPL-10476101Q
...
7
Nut, Speed WPL-M0286708
...
8
Rivet WPL-M1205302
...
9
Clamp WPL-M0102303
...
10
Screw, Sm WPL-M0227217
...
11
Insul., R. Foot WPL-10663001
...
12
Roller, Rear WPL-10450701
...
13
Axle, Roller WPL-10450901
...
14
Screw, Tf WPL-M0260242
...
15
Screw WPL-WP98165
...
16
Housing-Roller WPL-10427204
...
17
Brace WPL-10427104

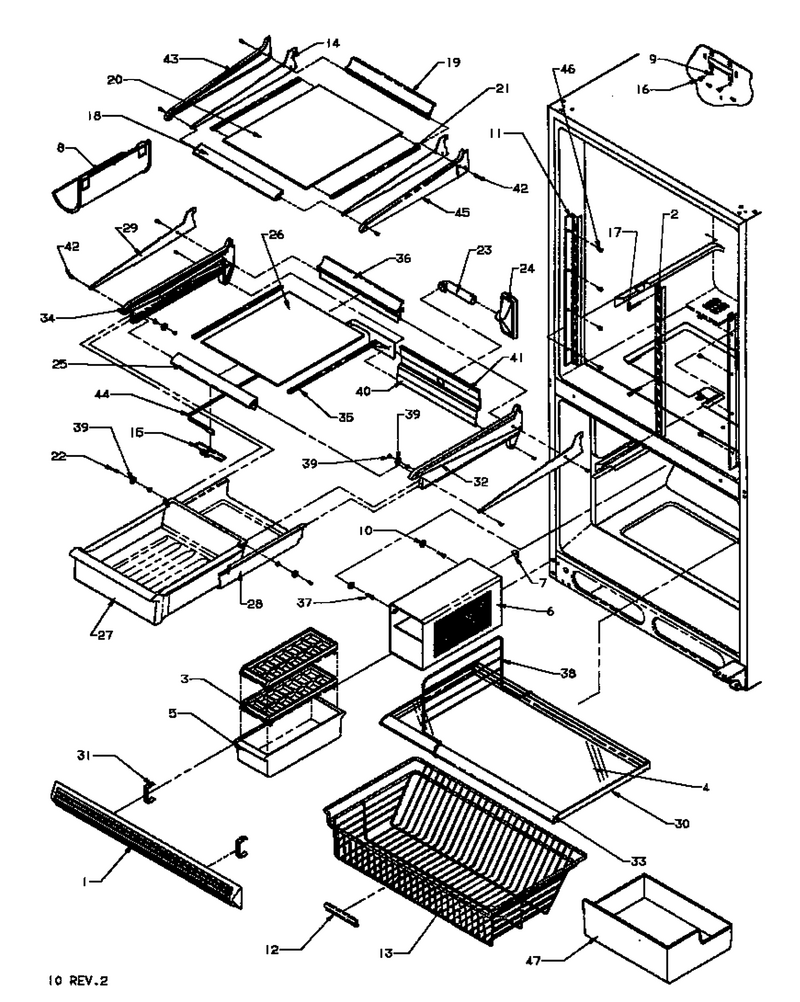

09 - Ref/fz Shelving

...
...
NI
Assy, Split Shelf WPL-10480704
...
1
Grille, Toe (white) WPL-10474802
...
2
Ladder, Center WPL-D7599002
...
3
Tray WPL-WP841180A
...
4
Glass, Shelf WPL-10370036
...
5
Container WPL-WP10423131
...
6
Rack, Ice WPL-D7620104
...
9
Nut, Speed WPL-M0288214
...
10
Washer WPL-M0270519
...
11
Ladder, Side WPL-D7599105
...
12
Handle, Basket/shelf WPL-10508506
...
13
Basket, Freezer WPL-12433501
...
14
Rail, Painted WPL-10681401
...
15
Slide, Mtkp Cont. WPL-10588201
...
16
Screw WPL-WP90767
...
17
Screw WPL-M0231426
...
18
Ext, Gl Shelf Front WPL-10436804
...
19
Extr, Gl Shelf Rear WPL-10436905
...
20
Glass, Shelf WPL-10370033
...
21
Ext, Gl Shelf Side WPL-10562503
...
22
Screw WPL-67006692
...
23
Tunnel, Air Mt Kp WPL-10486401
...
24
Grommet, Mt. Kpr. WPL-10501901
...
25
Ext, Meat Kpr. Front WPL-10450304
...
26
Glass, Shelf (mk Top) WPL-10370049
...
27
Pan,meatkeeper WPL-10417010
...
28
Sleeve, Mk WPL-10437305
...
29
Rail, Painted WPL-10681401
...
30
Frame, Glass Shelf WPL-10505801
...
31
Clip- Toe WPL-WP10551502
...
32
Glide, R. Mk WPL-10485501
...
33
Extr., Shelf WPL-10505611
...
34
Glide, L. Mk WPL-10485601
...
35
Ext, Gl Shelf Side WPL-10562503
...
36
Extrsn, Meatkeeper WPL-10502201
...
37
Screw Shoulder WPL-M0238833
...
38
Divider, Frz. Shelf WPL-10509001
...
39
Roller, Pan WPL-10481001
...
40
Gasket, Foam WPL-A3189356
...
41
Ext, Mt Kpr Band WPL-10502501
...
42
Screw WPL-WPW10348409
...
43
Cover, Shelf Rail L.h. WPL-10436601
...
44
Band, Mk Control WPL-10513503
...
45
Cover, Shelf Rail WPL-10436602
...
46
Screw (3) WPL-67006425
...
47
Pan-Ice WPL-WP67001255

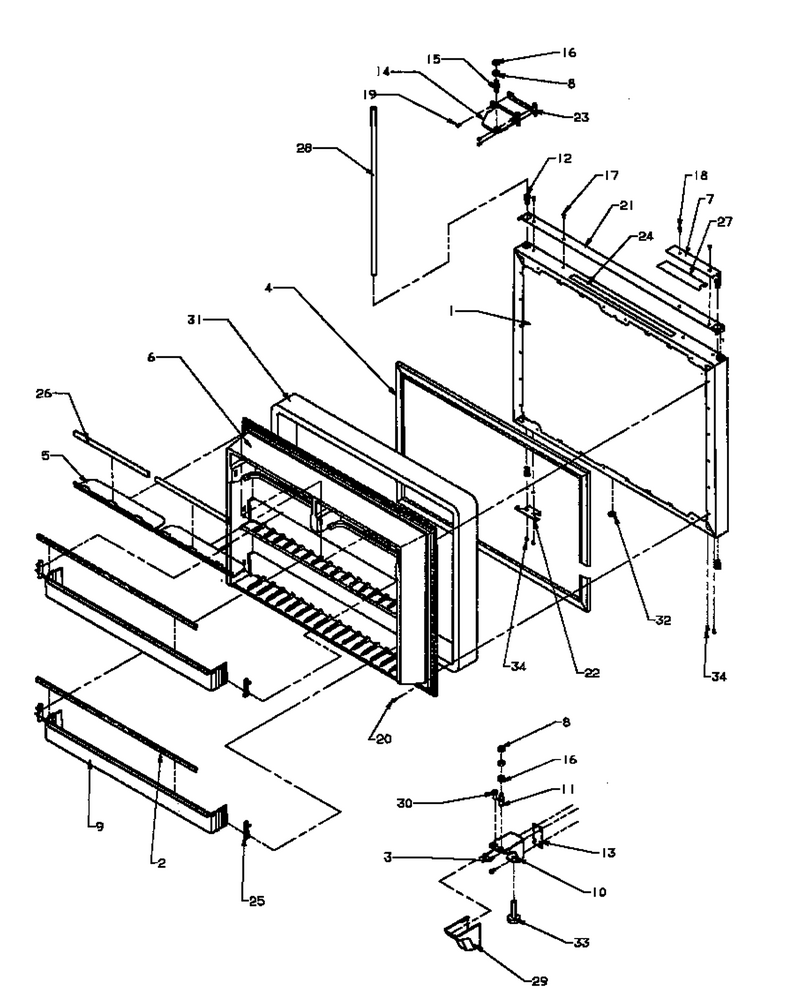

05 - Fz Door

...
...
1
Assy Frz. Door WPL-10537403L
...
2
Trim, Door Shelf WPL-10183970
...
3
Screw WPL-WP67006715
...
4
Gasket-Fz WPL-WP12550101Q
...
5
Assy, Liner Frz Dr (bm) WPL-R9700028
...
6
Assy, Liner Frz Dr (bm) WPL-R9700028
...
7
Fz. Door Handle Assy WPL-C8944912
...
8
Shim- Non WPL-WPM0274062
...
9
Retainer,ref/fz Dr WPL-10419020
...
10
Assy-Hinge WPL-R0000002
...
11
Pin Hinge Bottom WPL-67007018
...
12
Bushing, Top WPL-C8964402
...
13
Shim Hinge WPL-10447902
...
14
Hinge-Center WPL-10433511
...
15
Pin- Cente WPL-WP67006744
...
16
Shim- Non WPL-WPM0274058
...
17
Screw WPL-WPW10348409
...
18
Screw WPL-WPW10348409
...
19
Screw WPL-WP67006380
...
20
Screw WPL-WPM0219730
...
21
Cap, Door WPL-10201510
...
22
Stop-Door WPL-W11708403
...
23
Shim, Ctr. Hinge WPL-10562206
...
24
Tape Per Roll WPL-M0275163
...
25
Clip, Retainer WPL-10202001
...
26
Extrsn, Shelf WPL-10304106
...
27
Shim-Fz Door Handle WPL-10377801
...
28
Support, Pin WPL-10391302
...
29
Cover-L Hinge Lw WPL-10462704
...
30
Plug, Button Almond WPL-M0310331
...
31
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
32
Plug, Button (wht) WPL-M0310308
...
33
Feet-Lvlng WPL-W11177593
...
34
Screw WPL-WPW10348409

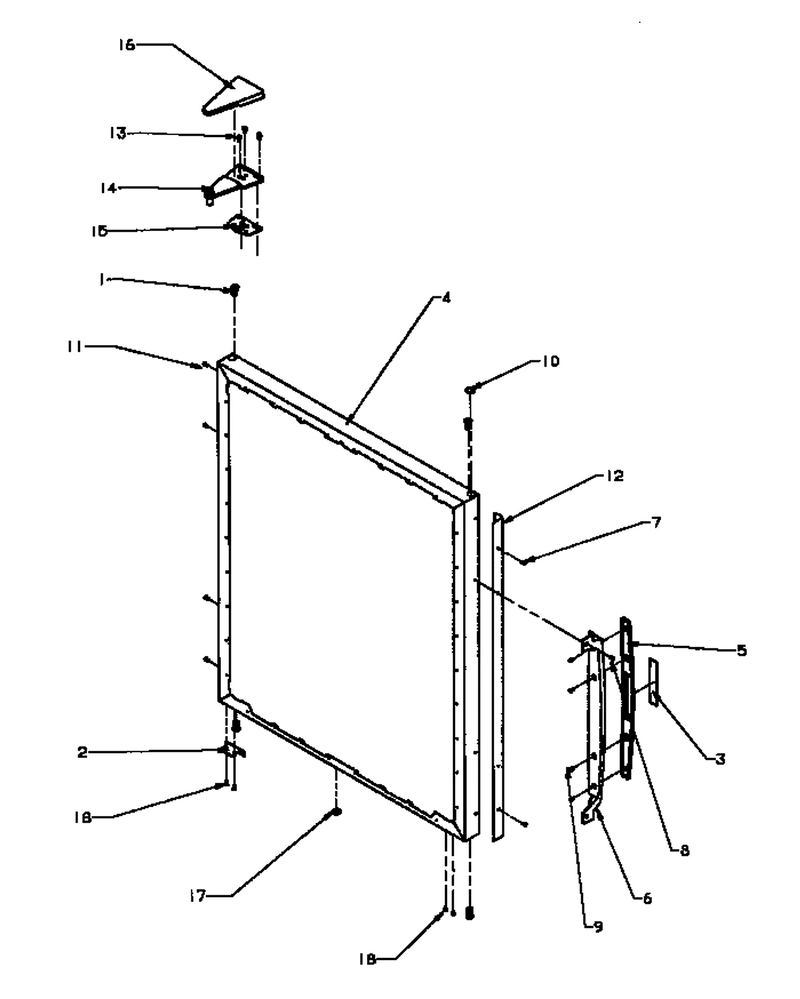

07 - Ref Outer Door

...
...
1
Hing-Bushg WPL-10961005B
...
2
Stop, Door (18) WPL-10447101
...
3
Nameplate WPL-C8945004
...
4
Rfr Dr Asy WPL-10537206W
...
5
Insert, Handle WPL-D7694704
...
6
Handle WPL-WPD7694803
...
7
Screw WPL-WPW10348409
...
8
Screw, Handle WPL-67006529
...
9
Screw WPL-WP8281236
...
10
Plug,button(bisque) WPL-10686407
...
11
Plug, Top Hinge Button (blk) WPL-M0310731
...
12
Trim, L WPL-D7739606
...
13
Kit, Screw WPL-R9800670
...
14
Hinge, Top WPL-12077305
...
15
Shim, Top Hinge WPL-10451302
...
16
Cover, Hinge (almond) WPL-10444809
...
17
Plug, Button (blk) WPL-M0310336
...
18
Screw WPL-WPW10348409

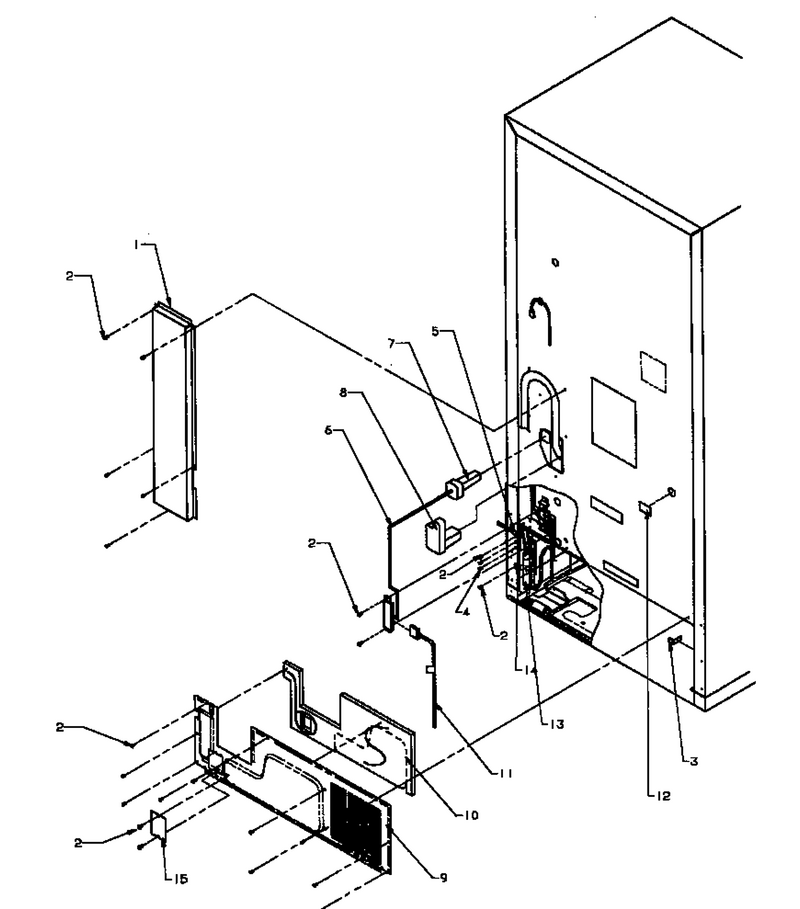

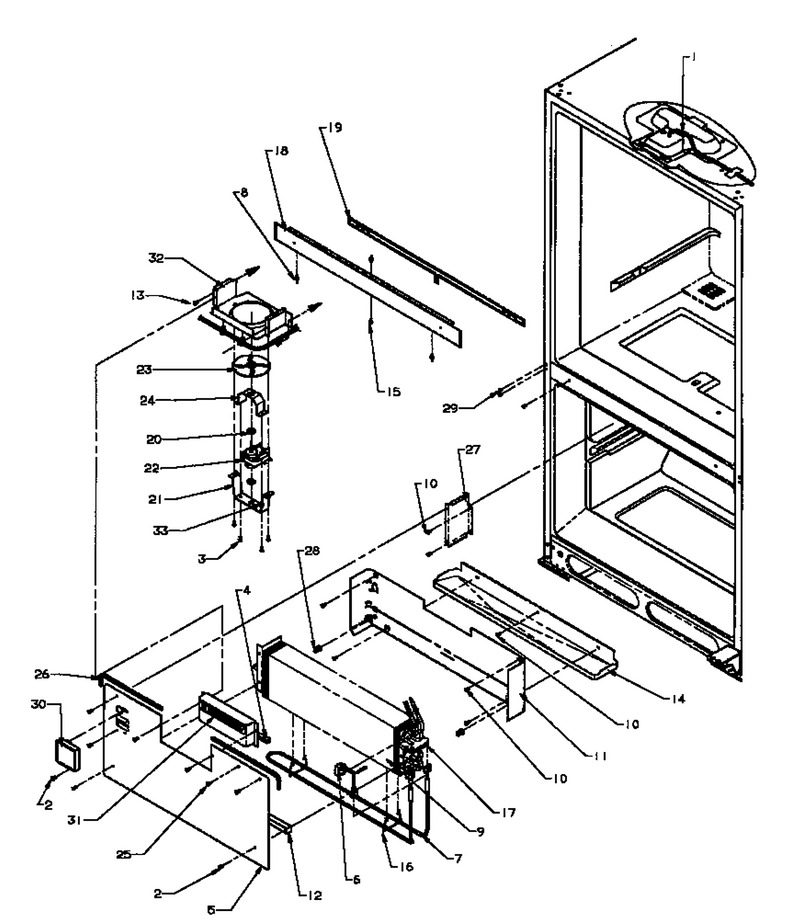

01 - Cabinet Back

...
...
1
Cover, Ht Exch WPL-10502302
...
2
Screw, Sm WPL-M0227217
...
3
Clip WPL-B5720303
...
4
Screw, Spextite WPL-M0232330
...
5
Clamp, Speed WPL-M0103904
...
6
Harness, Control WPL-10614303
...
7
Grommet WPL-10699301
...
8
Plug, Ht Exch V WPL-10428001
...
9
Back, Machine Comp. WPL-10467914
...
10
Insul, M.c. Back WPL-10584602
...
11
Cord, Power WPL-10678502
...
12
Plug, Im Tunnel WPL-10544301
...
13
Drier WPL-WPB2150504
...
14
Clip, Drier WPL-10547001
...
15
Cover, Water Valve WPL-10541403
