product name

Amana BKI20EL (BOM: P7470207W L)

Model: BKI20EL (BOM: P7470207W L)

Save Part Not Listed?
product name

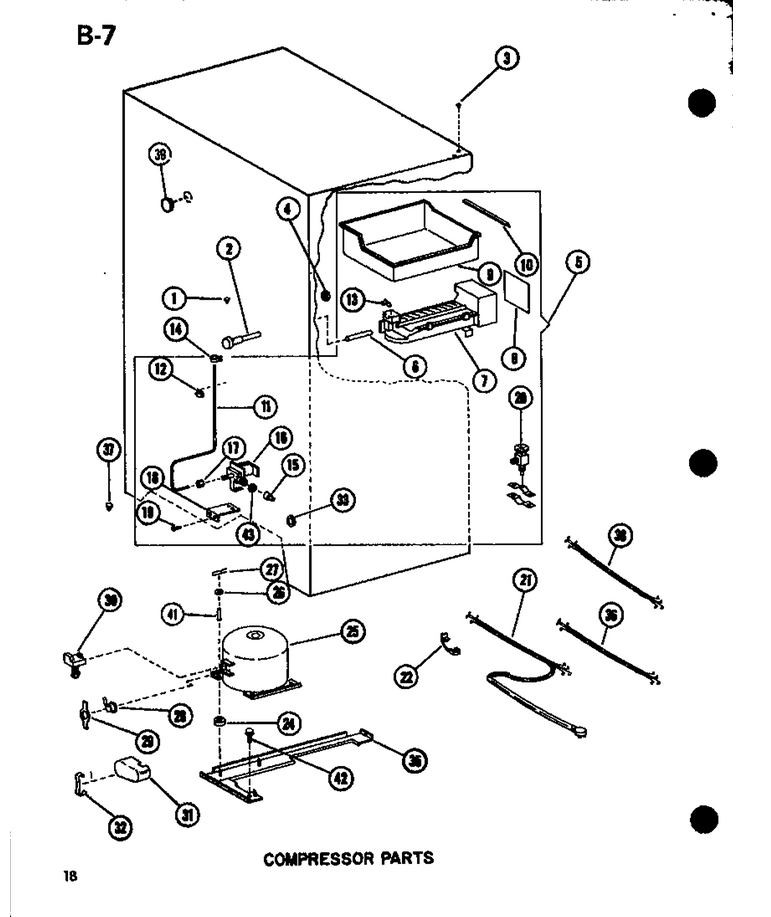

02 - Compressor Parts

...
...
NI
Power Cord WPL-R0157154
...
2
Fill Tube WPL-R0182123
...
3
Plug WPL-M0310724
...
6
Ext-Fill Tube WPL-A3127402
...
7
Ic2-(ice Maker) WPL-D7261701
...
8
Insert-Im WPL-B5662401
...
9
Pan-Ice WPL-WP67001255
...
10
Trim-Ice Container WPL-C8831601
...
11
Tubing Plastic K WPL-B5705312
...
12
Clip WPL-WPM0104106
...
13
Clip WPL-B5720301
...
14
Clip- Spee WPL-WPM0114003
...
15
Coupling WPL-10244903
...
16
Valve-Inlt WPL-4318047
...
17
Nut WPL-WP627018
...
18
Bracket WPL-B5630701
...
19
Screw WPL-M0251017
...
20
Saddle Valve WPL-A3034801
...
21
Wiring Harness, Machine Compar WPL-D7528102
...
22
Grommet, Cord WPL-211881
...
24
Grommet K WPL-A4002702
...
25
Compressor-Ae1410a-1/4 WPL-D7485501
...
26
Washer, Nylon K WPL-M0590101
...
27
Clip K WPL-A3140801
...
28
Overload WPL-C3689108
...
29
Spring, Overload WPL-B8329601
...
30
Relay WPL-C3689203
...
31
Cover WPL-C8867301
...
32
Strap Bale WPL-B8329701
...
33
Plug, Button (wht) WPL-A3080002
...
35
Weld Comp Supt Pntd WPL-C8820409
...
36
Wiring Harness WPL-B5730802
...
37
Plug Button WPL-A1004301
...
38
Wiring Harness WPL-D7551401
...
39
Plug, Button (wht) WPL-A3080002
...
41
Sleeve K WPL-A3072001
...
42
Screw WPL-WP67006715

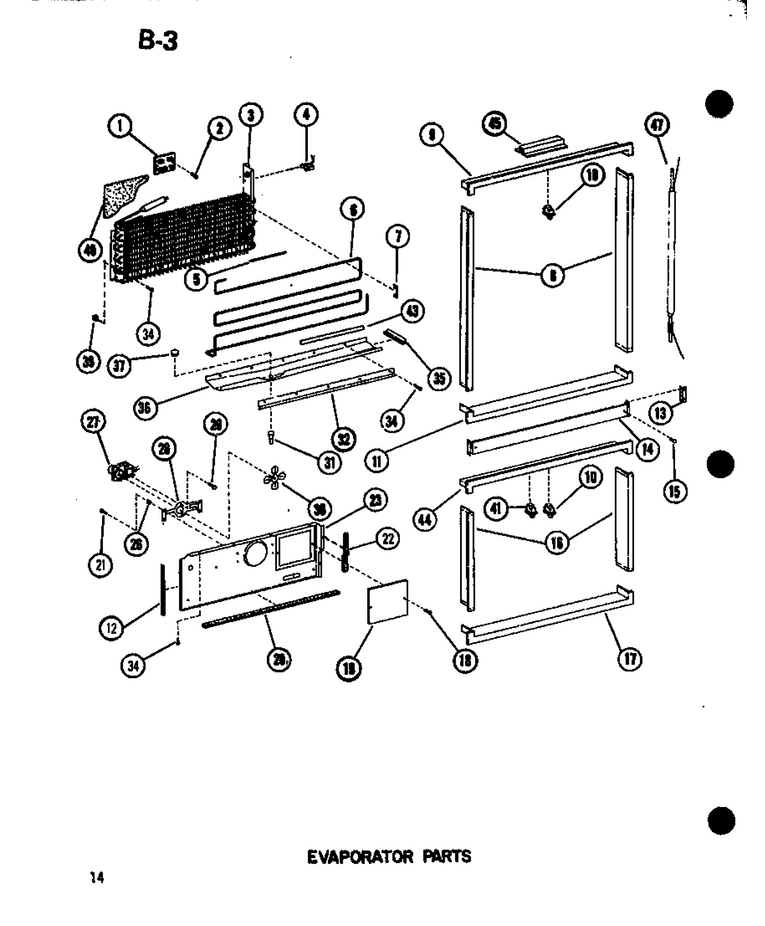

04 - Evap Parts

...
...
1
Terminal Block WPL-B5677203
...
2
Screw WPL-WP489464
...
3
Evaporator Assy WPL-R0170013
...
4
Thermostat K WPL-C3686602
...
5
Control Well WPL-A3205801
...
6
Heater WPL-D7153801
...
7
Clip WPL-M0110301
...
8
Breaker Frame WPL-D7424107
...
9
Frame-Breaker-Frt WPL-D7462901
...
10
Switch WPL-W11384469
...
11
Br Frame WPL-D7463101
...
12
Gasket (per Foot) WPL-10839706
...
13
Tap Strip-Hinge WPL-A3140702
...
14
Ctr Mullion WPL-C8807501
...
15
Plug Button (almond) WPL-M0310730
...
16
Breaker Frame WPL-D7424106
...
17
Frame-Breaker-Rb WPL-D7463003
...
18
Screw WPL-WP90767
...
19
Plate-Cover WPL-A3201501
...
20
Gasket WPL-A3189305
...
21
Screw WPL-WP98165
...
22
Gasket WPL-B5697501
...
23
Orifice Plate WPL-D7153201
...
26
Eyelet K WPL-A0381401
...
27
Motor Kit WPL-C3689302
...
28
Bracket WPL-C3681601
...
29
Screw WPL-WP3400094
...
30
Fan Blade WPL-B5687301
...
31
Drain Tube WPL-C3607401
...
32
Clamp WPL-B5686801
...
34
Screw WPL-WP489464
...
35
Gasket Drip Tray K WPL-A3098301
...
36
Drip Tray WPL-D7155701
...
37
Drain Screen WPL-A3113702
...
39
Grommet WPL-M0580009
...
40
Gasket WPL-B5692301
...
41
Switch WPL-C3680306
...
43
Sealer, Gum (4 Feet) WPL-212643
...
44
Frame-Breaker WPL-D7463002
...
45
Cover-Switch WPL-B5743601
...
47
Heat Exchanger WPL-D7491401

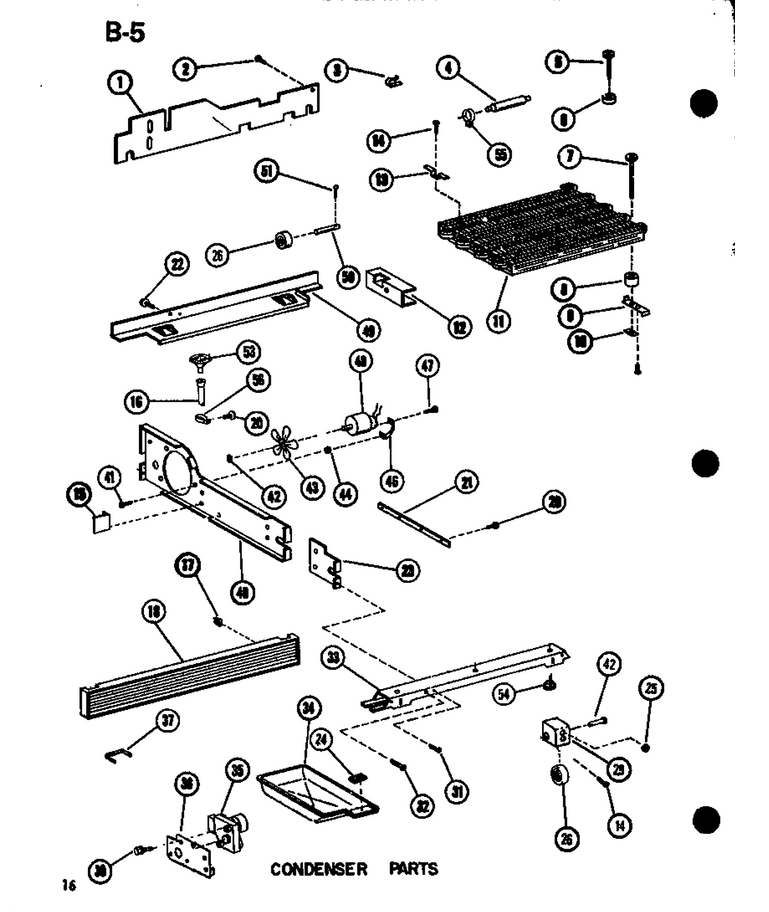

03 - Condenser Parts

...
...
1
Back, Mach Compt K WPL-C3655001
...
2
Screw-Sm WPL-M0241118
...
3
Clip-Cable WPL-M0110505
...
4
Drier WPL-WPB2150504
...
5
Sems Fastner WPL-M0257037
...
6
Spacer WPL-A3013906
...
7
Sems Fastner WPL-M0257039
...
8
Spacer WPL-A3013907
...
9
Bracket, Support WPL-A3085401
...
10
Nut A WPL-M0286003
...
11
Condenser Assy Pnt WPL-C8860803
...
12
Spacer WPL-B0544101
...
13
Clip-Cond WPL-A3054502
...
14
Kit, Screw WPL-R9800670
...
15
Stop,drain Pan WPL-A3125701
...
16
Drain Tube WPL-D7384701
...
17
Clip WPL-WPM0117303
...
18
Grille-Toe-B K WPL-D7520510
...
20
Screw WPL-WP90767
...
21
Seal-Fan Shroud Q WPL-B8314102
...
23
Extension WPL-B5619802
...
24
Pad A WPL-B5691701
...
25
Screw K WPL-M0236230
...
26
Roller WPL-M0520102
...
29
Roller Kit WPL-C8836303
...
31
Screw WPL-WP489464
...
32
Screw WPL-M0294459
...
33
Rail, Front WPL-D7003305
...
34
Pan, Drain WPL-D7001001
...
35
Timer-Def WPL-R0131577
...
36
Timer Bracket WPL-C3647902
...
37
Clamp-Wiring WPL-A3195601
...
39
Screw WPL-8169474
...
40
Shroud, Fan WPL-D7446701
...
41
Screw Shoulder WPL-M0238833
...
42
Rivet WPL-M1205302
...
43
Blade, Fan WPL-B5742603
...
44
Grommet K WPL-M0500107
...
45
Screw WPL-M0216531
...
46
Bracket, Cond Motor WPL-B0598701
...
47
Screw WPL-WPM0223816
...
48
Motor-Cond WPL-833697
...
49
Rail Rear WPL-C3611303
...
50
Pivot Pin K WPL-M1210001
...
51
Cotter Pin K WPL-M1200001
...
53
Drain Cup WPL-C8820601
...
54
Glider Bolt WPL-M0266510
...
55
Clamp WPL-M0105301
...
56
Clamp WPL-M0102303

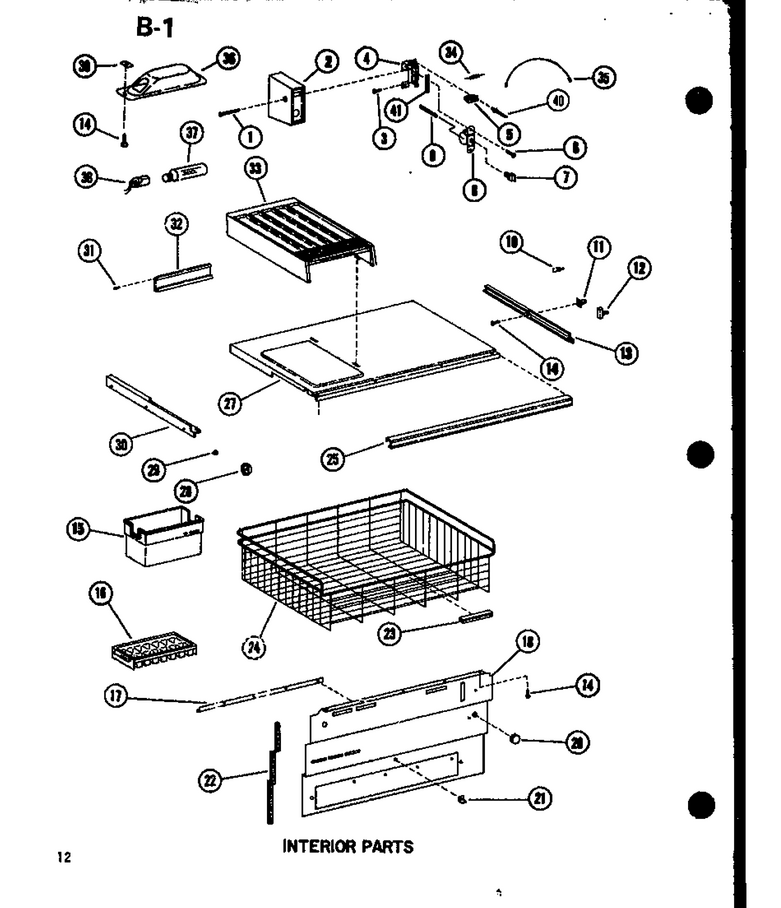

05 - Interior Parts

...
...
1
Screw WPL-M0230926
...
2
Escutcheon WPL-D7278007
...
3
Screw WPL-WP489464
...
4
Bracket WPL-C8850501
...
5
Switch WPL-M0341202
...
6
Screw WPL-WP90767
...
7
Knob WPL-D7009801
...
8
Control C H WPL-C3615017
...
9
Cover-Cap Tube WPL-B5636608
...
10
Clip,wire WPL-B5667301
...
11
Grommet, Screw WPL-M0580007
...
12
Support WPL-B5689501
...
13
Frame-Glide Out WPL-D3917304
...
14
Screw (3) WPL-67006425
...
17
Heat Conductor WPL-B5690901
...
18
Evaporator Cover WPL-D7153401
...
20
Plug WPL-A3069103
...
21
Shelf Support WPL-A3205701
...
22
Gasket, Foam WPL-A3189330
...
23
Handle Basket WPL-B0571806
...
24
Basket-Freezer WPL-D7157102
...
25
Trim-Fr Shelf WPL-C8832501
...
27
Shelf Frz Pnt WPL-C8841902
...
30
Frame-Glide Out WPL-D3917303
...
34
Diode WPL-M0305301
...
35
Wire-Jumper WPL-A3221101
...
36
Shield, Light WPL-R0176034
...
37
Light Bulb WPL-8009
...
38
Socket-Light WPL-D7714407
...
39
Speed Nut WPL-M0288010
...
40
Rivet A WPL-M0010202
...
41
Gasket-Per Ft WPL-A30303-35

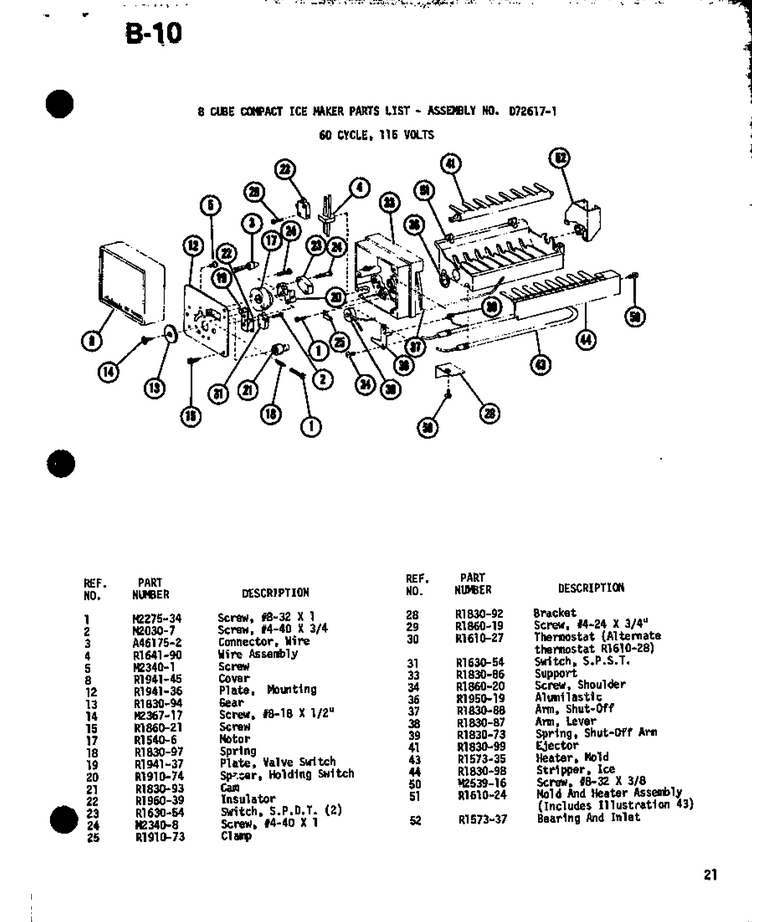

01 - 8 Cube Compact Ice Maker

...
...
1
Screw WPL-M0227534
...
2
Screw WPL-M0203007
...
3
Wire Nut K WPL-A4617502
...
4
Wire Assy WPL-R0164190
...
5
Screw WPL-W11084238
...
8
Cover WPL-R0194145
...
12
Mounting Plate WPL-R0194136
...
13
Gear WPL-WP628210
...
14
Screw WPL-WP489464
...
15
Screw WPL-R0186021
...
17
Motor WPL-R0154006
...
18
Spring WPL-R0183097
...
19
Plate WPL-R0194137
...
20
Spacer WPL-R0191074
...
21
Cam WPL-625913
...
22
Insulator WPL-R0196039
...
23
Switch, S.p.s.t. WPL-R0163054
...
24
Screw WPL-M0234008
...
25
Clamp WPL-R0191073
...
28
Bracket WPL-R0183092
...
29
Screw WPL-R0186019
...
30
Thermostat WPL-R0161028
...
31
Switch, S.p.s.t. WPL-R0163054
...
33
Support WPL-R0183086
...
34
Screw WPL-R0186020
...
36
Alumalastic WPL-R0195019
...
37
Arm, Shut-Off WPL-R0183088
...
38
Lever Arm WPL-R0183087
...
39
Spring WPL-R0183073
...
41
Ejector WPL-R0183099
...
43
Kit WPL-R0157335
...
44
Stripper WPL-R0183098
...
50
Screw WPL-M0253916
...
51
Mold & Heater Assy WPL-YR0161024
...
52
Inlet Kit WPL-R0157337
