Amana AZF33X20DW07

Model: AZF33X20DW07

Save Part Not Listed?
product name

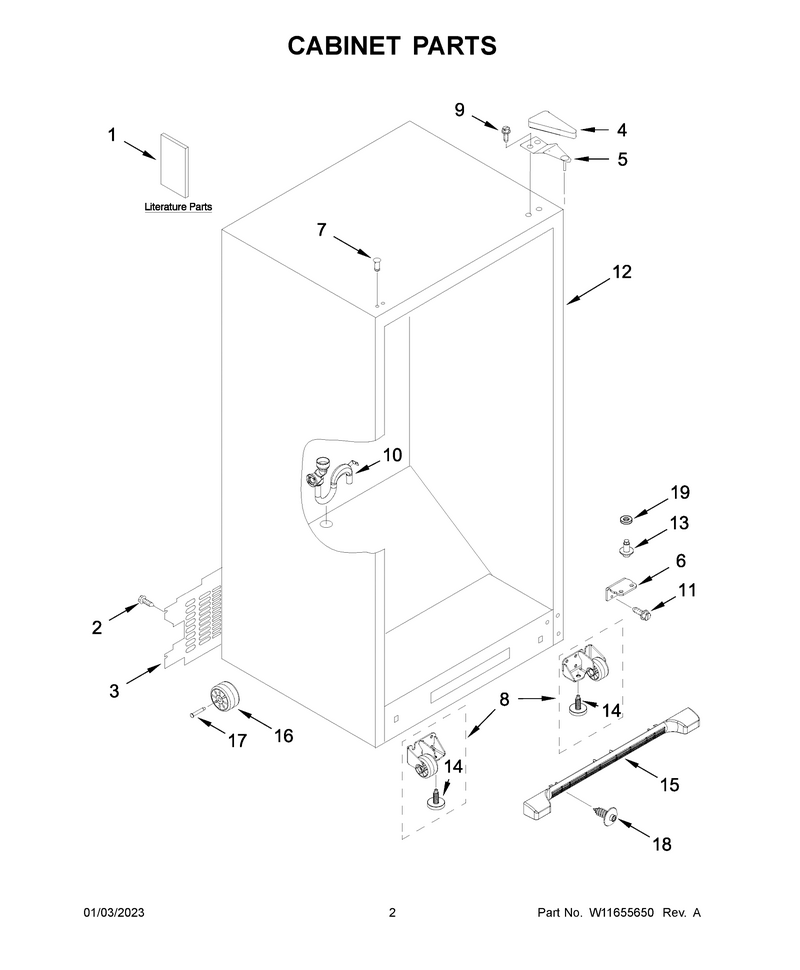

02 - Cabinet Parts

...
...
1
Owner's Manual WPL-W11507042
...
1B
Tech Sheet WPL-W11510229
...
1A
Energy Guide WPL-W11357348
...
2
Screw WPL-WP489478
...
3
Cover, Unit WPL-W11311063
...
4
Cover WPL-WP2213360
...
5
Hinge-Door WPL-WP2261963
...
6
Plate, Bottom Hinge (White) WPL-W10574264
...
7
Button-Plg WPL-WPW10520304
...
8
Roller-Cab WPL-WPW10515762
...
8A
Roller-Cab WPL-WPW10515763
...
9
Screw WPL-WP489497
...
10
Tube-Drain WPL-W11673435
...
11
Screw (8) WPL-67006564
...
12
Following Parts Not Illustrated WPL-N/P
...
13
Hinge-Pin WPL-W11676609
...
14
Leveler WPL-WPW10141622
...
15
Grille-Frt WPL-WPW10534161
...
16
Roller-Cab WPL-WPW10475495
...
17
Axle WPL-W11594405
...
18
Screw WPL-WPW10142283
...
19
Washer WPL-WP487576

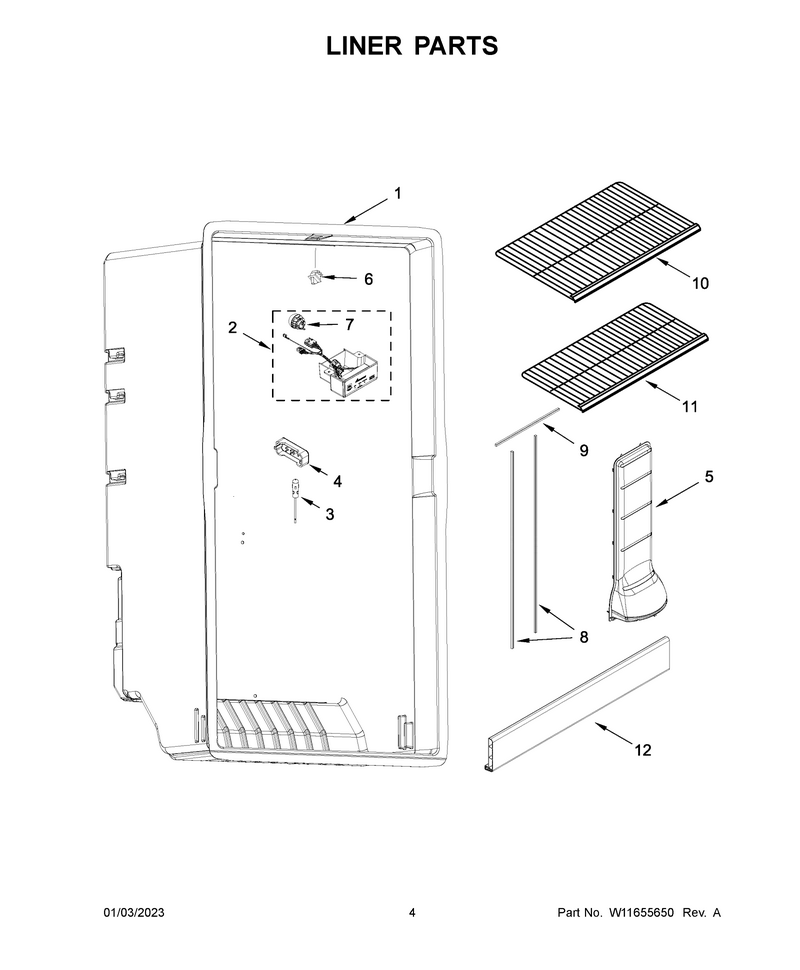

03 - Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Contrl-Box WPL-W11656967
...
3
Thermistor WPL-WPW10384183
...
4
Cover, Thermistor WPL-W10608692
...
5
Tower, Air WPL-W10574583
...
6
Switch WPL-W11727836
...
7
Bulb-Light WPL-W11502762
...
8
Gasket WPL-WPW10574368
...
9
Gasket WPL-WPW10574368
...
10
Shelf-Wire WPL-W10860909
...
11
Shelf-Wire WPL-W11679651
...
12
Trim, Door WPL-W10581590

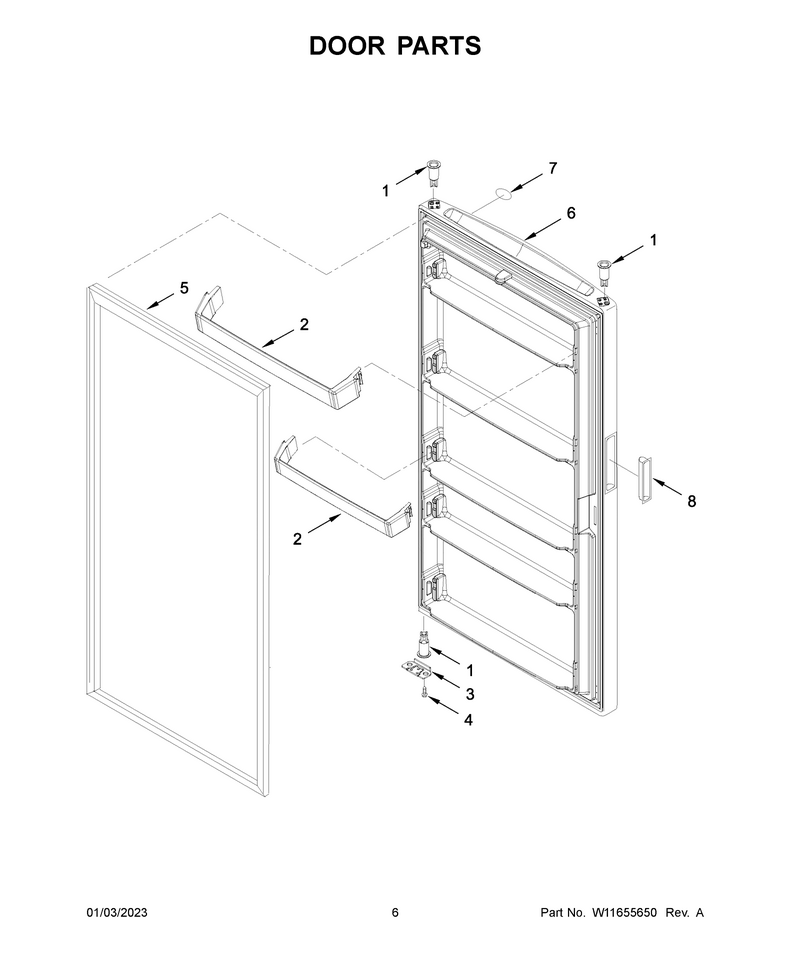

04 - Door Parts

...
...
1
Thimble WPL-WP2314293
...
2
Rail WPL-WP4-65451-001
...
3
Bracket, Door Stop WPL-W10628869
...
4
Screw WPL-WP7101P126-60
...
5
Gasket-Dor WPL-W11501317
...
6
Dor-Fmd WPL-W10746788
...
7
Nameplate WPL-W11428492
...
8
Handle, Cup (White) WPL-W10352523

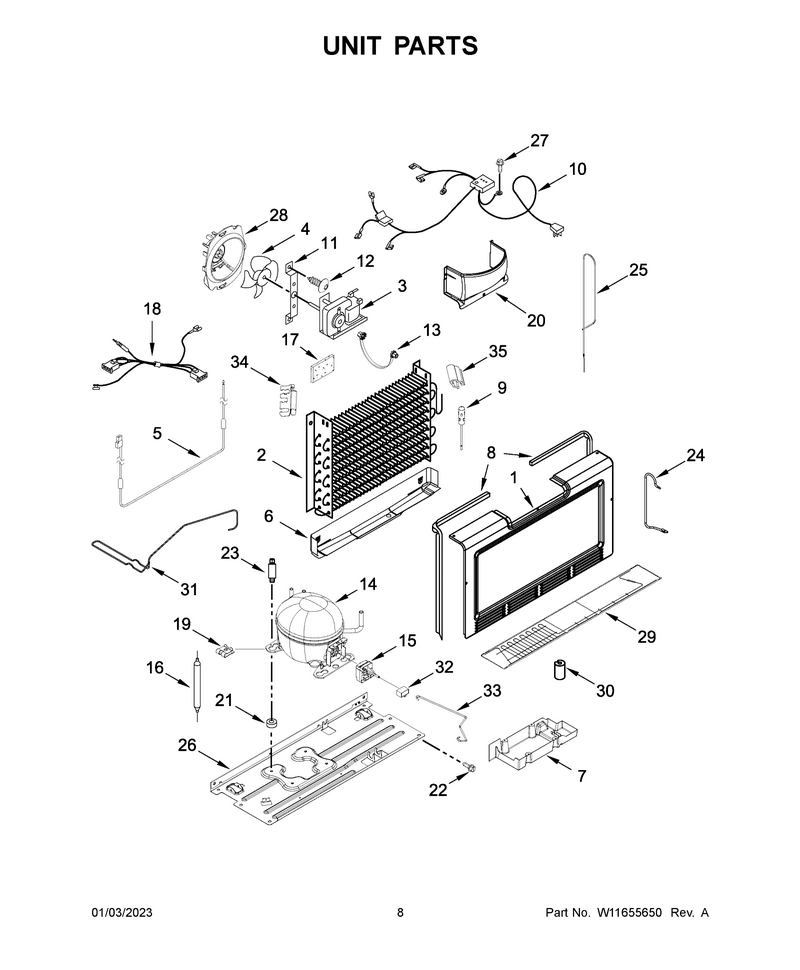

05 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Cover-Evap WPL-W11551256
...
2A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
2B
8/6 Nr Ms 00 (Suction Line To Evaporator) WPL-W11504420
...
2
Evaporator WPL-W11572047
...
3
Motor-Evap WPL-W11499658
...
4
Blade-Fan WPL-WP2169142
...
5
Heater WPL-W11562215
...
6
Shield WPL-W11562216
...
7
Pan, Evaporator Drain WPL-W10574291
...
8
Gasket WPL-WPW10574368
...
9
Thermistor WPL-WPW10384183
...
10
Harns-Wire WPL-W11648068
...
11
Clip, Evaporator Motor WPL-13058002
...
12
Screw WPL-W11233072
...
13
Grommet WPL-W11690160
...
14
Compressor WPL-W11547313
...
14A
8/6 Nr Ms 00 (Suction Line To Evaporator) WPL-W11504420
...
14B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
14C
6.35 Nk Al 00 (Charging Tube To Compressor) WPL-W11506622
...
14D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
15
Start-Dev WPL-W11524472
...
16B
5/1.8 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504448
...
16A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
16
Drier-Tube WPL-W11109499
...
17
Insulation WPL-W11553819
...
18
Harness WPL-W11741458
...
19
Clip, Retaining WPL-W10697017
...
20
Cover, Evaporator Fan WPL-W10574581
...
21
Grommet WPL-WPW10169124
...
22
Screw (6) WPL-3400524
...
23
Screw WPL-W11572046
...
24
Tube, Suction WPL-W11591093
...
25
Following Parts Not Illustrated WPL-N/P
...
26
Pan, Compressor WPL-W10574497
...
27
Screw, 8-32 X 3/8 WPL-681390
...
28
Shroud, Evaporator Fan WPL-W10574469
...
29
Following Parts Not Illustrated WPL-N/P
...
30
Grommet WPL-W10852725
...
31
Tube, Discharge (Also Order The Following Lokring Parts) WPL-W10574478
...
31A
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
31B
7/4.5 Nr Ms 00 (High Side To Condenser) WPL-W11578570
...
32
Capacitor WPL-W11631831
...
33
Clip WPL-W11524474
...
34
Bracket, Evaporator WPL-W11452250
...
35
Clip WPL-W11546684

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
