Amana AU2485.A

Model: AU2485.A

Save Part Not Listed?
product name

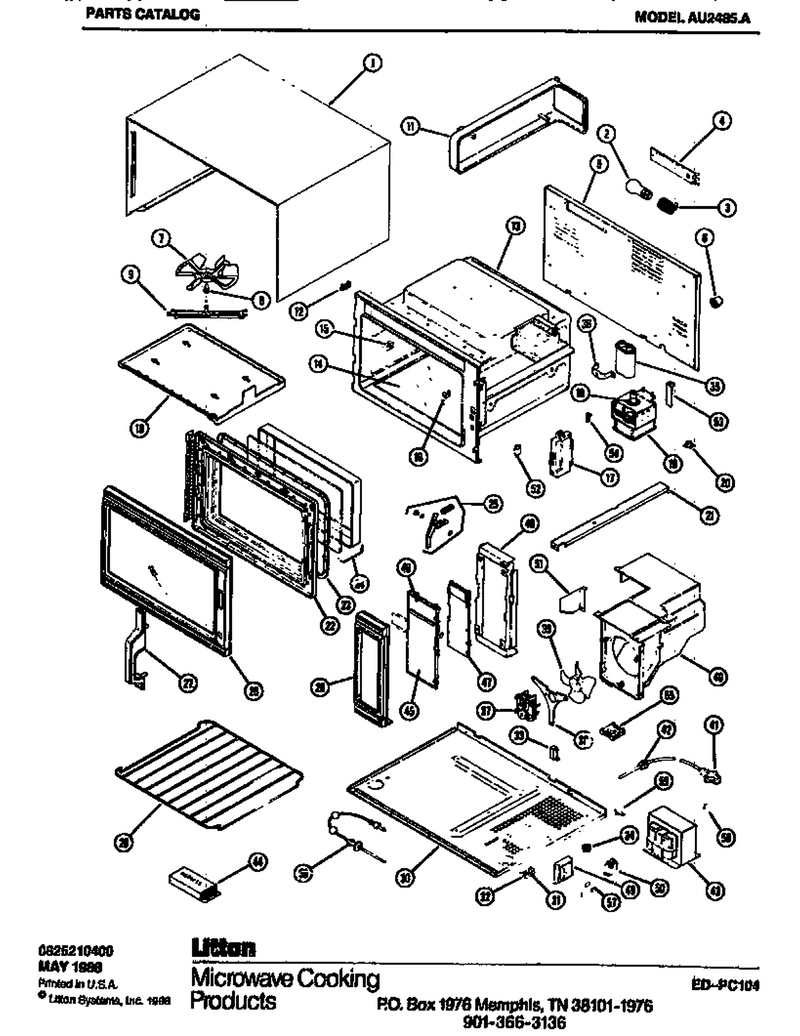

01 - Page 1

...
...
NI
Brown T/u Paint WPL-M13D36
...
1
Outer Case WPL-M80D121
...
2
Lamp, Cavity WPL-M9D54
...
3
Lamp Holder WPL-40082P01
...
4
Cover Lamp WPL-M7D309
...
5
Back Panel WPL-M82D225
...
6
Screw WPL-WP489474
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Ball WPL-38321P01
...
9
Rivet-Plastcx WPL-42192P01
...
10
Poly Button WPL-M1D832
...
11
Exhaust Duct WPL-M65D282
...
12
Fuse- Ther WPL-59001951
...
13
Trim Strip Kit WPL-M7D701
...
14
Adhesive WPL-W10841140
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Support Rack WPL-B8371001
...
17
Screw WPL-WP98165
...
18
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
19
Gasket-Rf WPL-M2D296
...
20
Screw Thrm WPL-M1D666
...
21
Brace-Front WPL-M20D343
...
22
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
23
Gasket-R.f. WPL-38874P01
...
24
Cap Inner Door Assy Kit WPL-M55D23
...
25
Kit, Latch Hook WPL-M2D739
...
26
Screw Frame WPL-41327P01
...
27
Screw, Handle Mtg WPL-Y05600099
...
28
Cont Pnl Frame WPL-M7D813
...
29
Rack (White) Kit WPL-M67D32
...
30
Rivet, Pop WPL-A4539629
...
31
Fuse, 10 Amp WPL-M0805106
...
32
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
33
Kit, Diode WPL-M3D71
...
34
Nut WPL-WP488130
...
35
Capacitor-Doubler WPL-10366913
...
36
Bracket WPL-10825501
...
37
Nut K WPL-M0282005
...
38
Bracket Blower WPL-M20D219
...
39
Fan Blade WPL-M35D40
...
40
Screw Plastc (25) WPL-M1D897
...
41
Power Cord WPL-M26D60
...
42
Bush, Strain Relf (10) WPL-M2D586
...
43
H.v. Xfmr WPL-M60D134
...
44
H.v. Lead Kit WPL-M5D350
...
45
Touch Panel Assembly WPL-M7D847
...
46
Display Window WPL-M2D722
...
47
Electronic Circuit Board WPL-M32D51
...
48
Screw WPL-WP90767
...
49
Screw, Tf WPL-M0231704
...
50
Screw, Tf WPL-M0231704
...
51
Not Available WPL-M65D366
...
52
No.3/8-32 Hex Nut (25) WPL-M1D615
...
53
Rivet, Pop WPL-A4539629
...
54
Wire Clip (10) WPL-M2D741
...
55
Screw (25) WPL-M1D590
...
56
Probe-Temp WPL-45584P01
...
57
Varistor Asy WPL-M3D87
...
58
Toroid (Arc Suppressor) WPL-44780P01
...
59
Line Filter WPL-M10D129
