Amana AU2075.A

Model: AU2075.A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

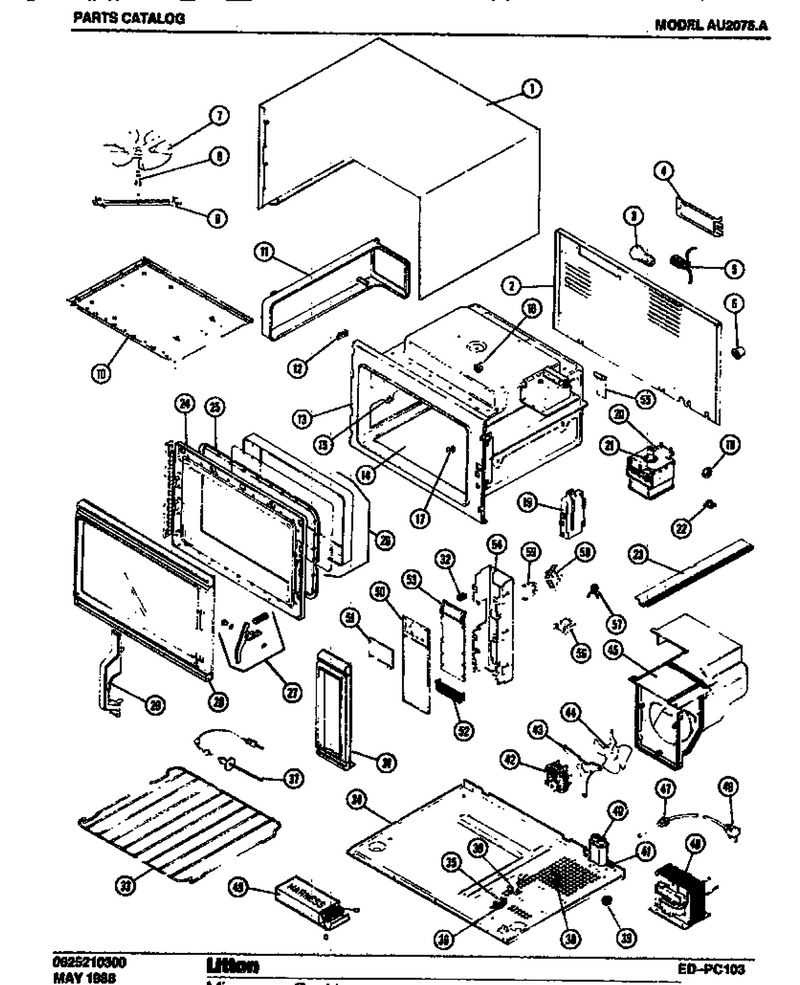

01 - Page 1

...
...
NI
U&c Mnl 2075.002 WPL-M94D473
...
1
Screw WPL-WP90767
...
2
Screw WPL-WP90767
...
3
Lamp, Cavity WPL-M9D54
...
4
Cover Lamp WPL-M7D309
...
5
Lamp Holder WPL-40082P01
...
6
Foot, Outer Case WPL-C8960601
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Rivet-Plastcx WPL-42192P01
...
10
Poly Button WPL-M1D832
...
11
Screw Plastc (25) WPL-M1D897
...
12
Fuse- Ther WPL-59001951
...
13
Wire Clip (10) WPL-M2D741
...
14
Shelf W/sealant Kit WPL-M50D40
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Probe Jack Asy WPL-M14D298
...
17
Support Rack WPL-B8371001
...
18
Toroid (Arc Suppressor) WPL-44780P01
...
19
Screw WPL-WP98165
...
20
Kit, Magnetron WPL-M57D36
...
21
Gasket-Rf WPL-M2D296
...
22
Screw Thrm WPL-M1D666
...
23
Screw WPL-WP90767
...
24
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
25
Gasket-R.f. WPL-38874P01
...
26
Cap Inner Door Assy Kit WPL-M55D23
...
27
Kit, Latch Hook WPL-M2D739
...
28
Screw Frame WPL-41327P01
...
29
Handle Asy WPL-M11D79
...
30
Line Filter Kit WPL-M10D90
...
31
Cont Pnl Frame WPL-M7D636
...
32
Speed Clip WPL-41657P01
...
33
Rack (White) Kit WPL-M67D32
...
34
Screw WPL-WP90767
...
35
Fuse, 10 Amp WPL-M0805106
...
36
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
37
Probe-Temp WPL-45584P01
...
38
Screw WPL-WPW10001160
...
39
Nut WPL-WP488130
...
40
Capacitor-Doubler WPL-10366913
...
41
Screw WPL-WP90767
...
42
Nut K WPL-M0282005
...
43
Screw (25) WPL-M1D903
...
44
Fan Blade WPL-M35D40
...
45
Blower Duct Assembly WPL-M65D283
...
46
Screw WPL-WPW10001160
...
47
Bush, Strain Relf (10) WPL-M2D586
...
48
H.v. Xfmr WPL-M60D134
...
49
Ground Lead Kit WPL-M5D351
...
50
Mem Tch Pnl Sa2075 WPL-M7D856
...
51
Display Window WPL-M2D684
...
52
Not Available WPL-M8D253
...
53
Elect Crkt Bd WPL-M32D33
...
54
Cont Pnl Hsg WPL-M7D703
...
55
Air Deflector WPL-M8D344
...
56
Screw WPL-WP90767
...
57
Varistor Assy WPL-M3D75
...
58
Screw, No.6-32 X 1/4 Inch WPL-212951
...
59
Relay WPL-38806P01
