Amana AU1430.002 (BOM: AU1430.00 2)

Model: AU1430.002 (BOM: AU1430.00 2)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Page 1

...
...
NI
Crow-Foot Driver WPL-M95D21
...
1
Bushing WPL-M2D578
...
2
Adhesive WPL-W10841140
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
.156 Dia Pop Rivet Alum (25) WPL-M1D891
...
5
Deflector WPL-M65D265
...
6
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
7
Stirrer Supt Bar Kit WPL-M20D327
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Blade, Stirrer WPL-10826002Q
...
10
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
11
Channel, Wire WPL-10826901
...
12
Bush, Strain Relf (10) WPL-M2D586
...
13
Power Cord WPL-M26D31
...
14
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
15
Fusex WPL-44163P01
...
16
Cable Clip WPL-M2D580
...
17
Lock Washer WPL-M0272803
...
18
Switch, Interlock WPL-M14D253
...
19
Pnl Access Side WPL-M53D49
...
20
Capacitor 1.60mf Kit WPL-M10D88
...
21
Screw WPL-WP90767
...
22
Transformer WPL-M60D108
...
23
No.10 T X 3/8`` Screw WPL-M1D479
...
24
Support-Mag WPL-M8D247
...
25
Duct Cav In WPL-40358P01
...
26
Barrier- Foil Tape WPL-92011P01
...
27
Sensor Magnetron Kit WPL-M4D101
...
28
Screw WPL-WPW10001160
...
29
Screw WPL-WP90767
...
30
Wheel Blower M35d37 WPL-45146P01
...
31
Blwr Hsg M65d293 WPL-42553P01
...
32
Retainer WPL-M1D892
...
33
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
34
Inlay Handlex WPL-M7D565
...
35
Groove Pin WPL-M2D577
...
36
Door Hook Kit WPL-M2D625
...
37
Bracket, Hinge Upper WPL-M8D249
...
38
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
39
Harness Package WPL-M27D309
...
40
Outer Door Asy Kit WPL-M70D89
...
41
Nylon Flat Washer WPL-40370P01
...
42
No.10 Wave Washer WPL-M2D583
...
43
Door Filler Kit WPL-M55D18
...
44
Outer Window Assy. Kit WPL-M51D53
...
45
No.8 Ab X 3/8`` Screw WPL-M1D906
...
46
Window, Inner Door WPL-10785001
...
47
Knob WPL-40369P01
...
48
Dec Pnl Inlay WPL-M7D575
...
49
Screw Thrm WPL-M1D666
...
50
Pct Timerx WPL-30001P02
...
51
Surge Resistor WPL-M3D36
...
52
Socket, Lamp WPL-2042100201
...
53
Light Bulb WPL-59002071
...
54
Screw WPL-WP90767
...
55
Light Cover WPL-M7D566
...
56
Cavity Plug (10) WPL-M1D755
...
57
Exhaust Baffle WPL-M65D269
...
58
Screw WPL-WP90767

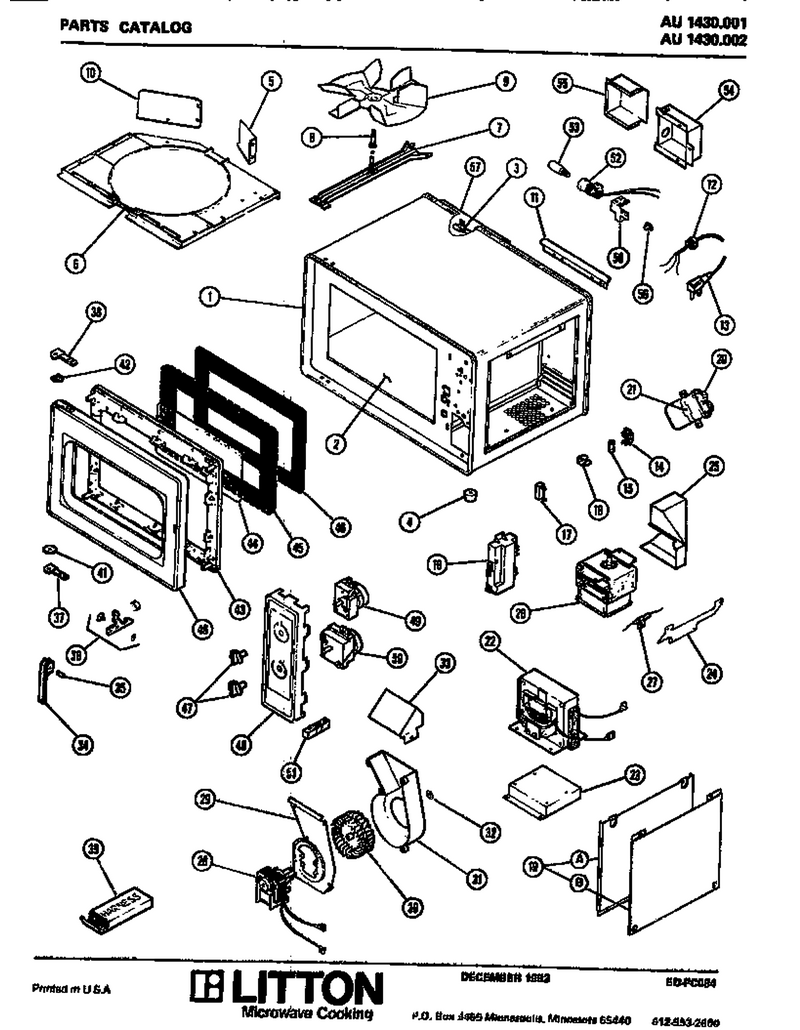

Schematic Image Zoomed
