Amana AU1075.001 (BOM: AU1075.00 1)

Model: AU1075.001 (BOM: AU1075.00 1)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

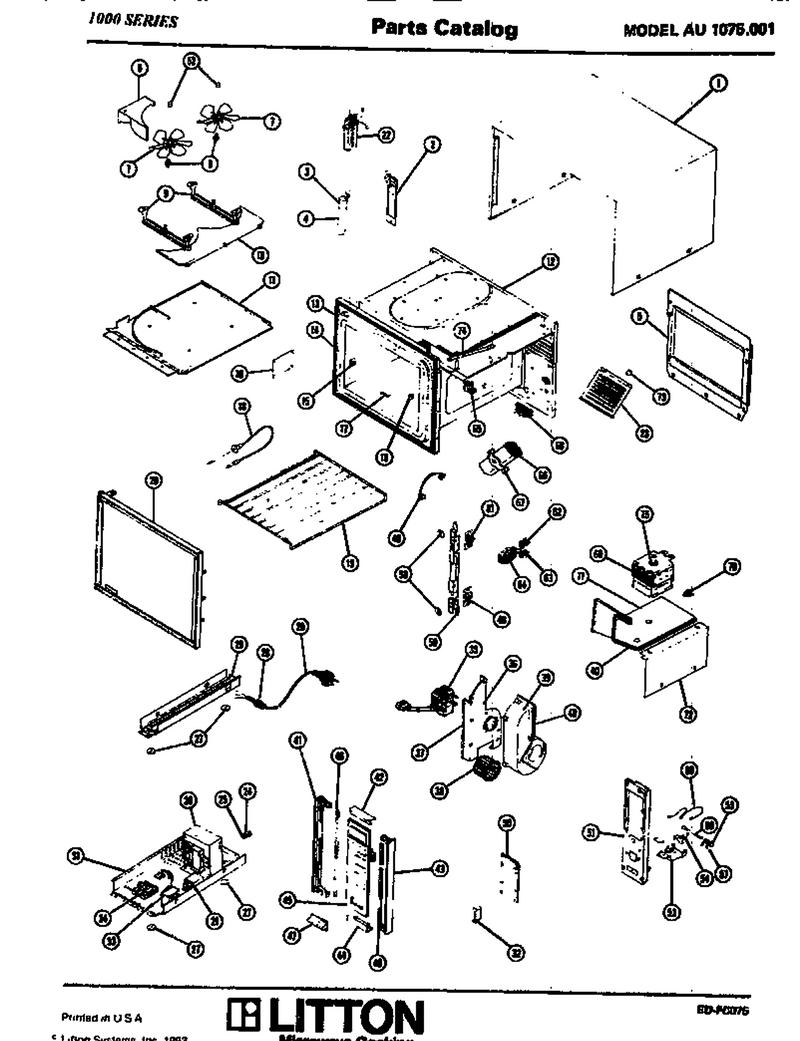

01 - Page 1

...
...
NI
Driver, Tri-Wing (M95d20) WPL-92458P01
...
1
Not Available WPL-M80D106
...
2
Screw (25) WPL-M1D827
...
3
Socket Light WPL-M5D270
...
4
Bulb WPL-36637P01
...
5
Screw (25) WPL-M1D827
...
6
Rivet WPL-35412P01
...
7
Blade, Fan WPL-M35D25
...
8
Insert, Stirrer WPL-M2D332
...
9
Tinnerman Clip (1) WPL-M1D833
...
10
Screw (25) WPL-M1D847
...
11
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
12
Not Available WPL-M77D91
...
13
Gasket WPL-M25D59
...
14
Choke Filler WPL-M55D15
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Support Rack WPL-B8371001
...
17
Adhesive WPL-W10841140
...
18
Temperature Probe WPL-M90D20
...
19
Rack Kit WPL-M67D27
...
20
Tri-Wing Screw WPL-M1D882
...
21
Relay WPL-M16D69
...
22
Main Harness WPL-M27D311
...
23
Baffle, Intr WPL-M65D207
...
24
Fuse, 10 Amp WPL-M0805106
...
25
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
26
Screw (25) WPL-M1D827
...
27
Foot 4/pkg WPL-M2D534
...
28
Bush, Strain Relf (10) WPL-M2D586
...
29
Pwr Cord WPL-M26D23
...
30
H.v. Transformer WPL-M60D87
...
31
Base Right WPL-M79D74
...
32
Insulator WPL-M5D279
...
33
Screw (25) WPL-M1D727
...
34
Screw (25) WPL-M1D590
...
35
Blower Assy Kit WPL-M41D29
...
36
Screw (25) WPL-M1D827
...
37
Edge Guard A WPL-M2D374
...
38
Blower Wheel WPL-M35D28
...
39
Blower Housing WPL-M65D199
...
40
Gasket WPL-A3030302
...
41
End Cap-Lft WPL-M7D402
...
42
Top Cap WPL-M7D403
...
43
Screw WPL-WP90767
...
44
Bottom Cap WPL-M7D401
...
45
Membrane Tch Pnl Kit WPL-M7D576
...
46
Spacer WPL-M2D440
...
47
Release Bar WPL-M11D53
...
48
Ia Screw No.10-32 WPL-M1D370
...
49
Ld Grn 16 Ga WPL-M5D120
...
50
Screw (25) WPL-M1D830
...
51
Screw (25) WPL-M1D827
...
52
Teflon Sleeve (1) WPL-M1D834
...
53
Not Available WPL-M8D185
...
54
Actuator WPL-36020P01
...
55
Clip WPL-M2D445
...
56
Pivot Pin WPL-M2D446
...
57
Spring WPL-M2D447
...
58
M2d479 Bearing WPL-M2D479
...
59
Plastic Washer WPL-M2D480
...
60
Ground Lead WPL-M5D266
...
61
Switch Assy M14d230 WPL-M14D229
...
62
Door Logic WPL-M14D222
...
63
Switch, Monitor WPL-35370P01
...
64
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
65
Washer (25) WPL-M1D617
...
66
Capacitor WPL-M10D68
...
67
Screw (25) WPL-M1D827
...
68
Nut (25) WPL-M1D809
...
69
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
70
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
71
Screw (25) WPL-M1D827
...
72
Screw (25) WPL-M1D827
...
73
Pivot Pin WPL-M2D446
...
74
H V Lead 35 WPL-M5D264
...
75
Gasket-Rf WPL-M2D296
...
76
Air Baffle WPL-M8D207
