Amana ATF1833MRB00 Top-Mount Refrigerator

Model: ATF1833MRB00

Save Part Not Listed?
product name

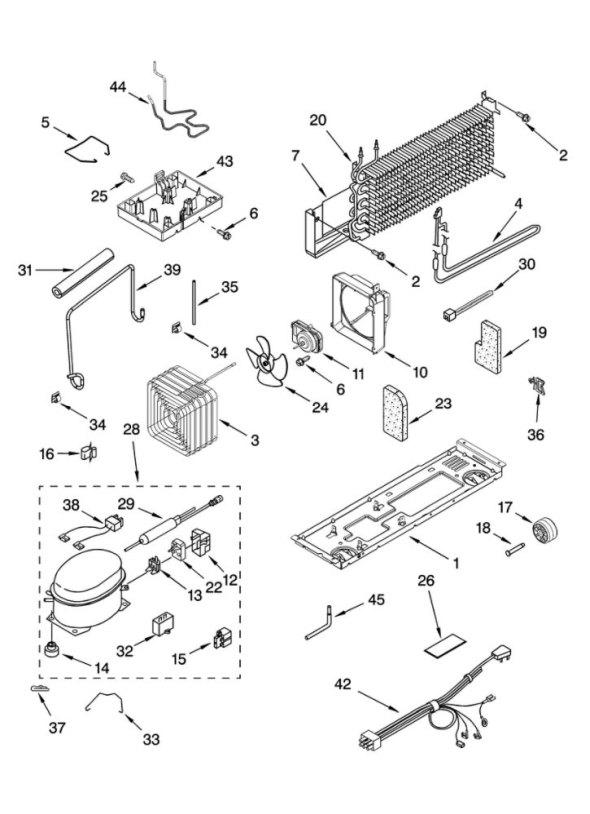

Amana ATF1833MRB00

...
...
NI
Refrigerator Service Valve (Replaces 876620) WPL-876764
...
NI
Refrigerator Service Valve (Replaces 978025) WPL-WP978025
...
NI
Refrigerator Service Valve WPL-978026
...
NI
Refrigerator Service Valve WPL-978027
...
NI
Refrigerator Service Valve WPL-978029
...
NI
Refrigerator Service Valve, 3/4-In WPL-978030
...
1
Refrigerator Support WPL-WPW10222450
...
2
Refrigerator Screw WPL-WP489442
...
4
Refrigerator Defrost Heater (Replaces 2263749) WPL-WP2263749
...
5
Refrigerator Clip WPL-2264835
...
6
Refrigerator Screw WPL-WPW10171469
...
10
Refrigerator Air Baffle WPL-WP2263929
...
11
Refrigerator Condenser Fan (Replaces 2188875) WPL-WP2188875
...
12
Refrigerator Compressor Overload And Start Relay Cover (Replaces 2162358) WPL-WP2162358
...
13
Refrigerator Compressor Overload Protector WPL-WP2214067
...
14
Refrigerator Grommet WPL-WP2163786
...
14A
Refrigerator Compressor Grommet WPL-WP4387558
...
15
Refrigerator Compressor Start Relay (Replaces W10919578, Wp2262185) WPL-W10920279
...
16
Refrigerator Clip WPL-W10812038
...
17
Refrigerator Roller WPL-WPW10475495
...
18
Refrigerator Rivet WPL-WP2264756
...
19
Refrigerator Evaporator Cover Insulation Pad WPL-8201619
...
20
Refrigerator Evaporator WPL-WP2263920
...
22
Refrigerator Compressor Start Relay (Replaces W10128795, W10197428) WPL-WPW10197428
...
23
Refrigerator Evaporator Cover Insulation Pad WPL-8201619
...
24
Refrigerator Fan Blade WPL-2264129
...
25
Refrigerator Screw WPL-WP489489
...
26
Refrigerator Shield WPL-2266360
...
28
Refrigerator Compressor (Replaces W10164016, W10170299) WPL-W10233960
...
29
Refrigerator Uv Filter Dryer (Replaces 2309242, W10143759) WPL-WPW10143759
...
30
Appliance Cable Tie WPL-WPW10339879
...
31
Refrigerator Sleeve WPL-2264838
...
32
Refrigeration Appliance Run Capacitor (Replaces W10662129) WPL-WPW10662129
...
32A
Refrigeration Appliance Run Capacitor (Replaces W10662129) WPL-WPW10662129
...
33
Refrigerator Retainer WPL-W10141545
...
34
Refrigerator Wire Harness Retainer WPL-WP1115374
...
35
Refrigerator Extension WPL-2264278
...
38
Refrigerator Capacitor Wire Harness WPL-WP2172890
...
39
Refrigerator Extension Tube WPL-W10140199
...
43
Refrigerator Drain Pan WPL-WP2263928
...
44
Refrigerator Tube WPL-W10140197

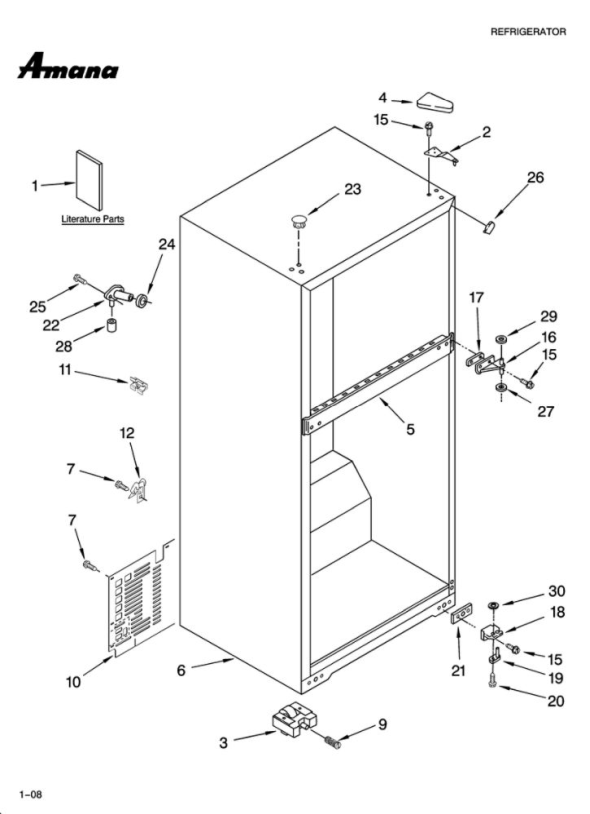

Amana ATF1833MRB00

...
...
2
Refrigerator Door Hinge WPL-WP2261963
...
3
Refrigerator Roller Assembly, Front WPL-2324094
...
4
Refrigerator Freezer Door Hinge Cover WPL-WP2213360
...
4A
Refrigerator Freezer Door Hinge Cover WPL-WP2213363
...
4B
Refrigerator Cover WPL-2213360D
...
7
Refrigerator Screw WPL-WP489442
...
9
Refrigerator Roller Wheel Screw WPL-2222100
...
10
Refrigerator Cover Unit WPL-WP2264132
...
11
Refrigerator Spacer WPL-2266506
...
15
Refrigerator Screw (Replaces 489497) WPL-WP489497
...
16
Refrigerator Door Hinge WPL-WP2166037
...
17
Refrigerator Shim (Black) WPL-2215385
...
18
Refrigerator Door Hinge, Lower WPL-WP2325482
...
20
Refrigerator Door Hinge Screw WPL-WP3428970
...
21
Refrigerator Shim WPL-WP2201567
...
22
Refrigerator Ice Maker Fill Tube (Replaces 2196157) WPL-WP2196157
...
23
Refrigerator Cabinet Hole Plug WPL-WP2151652
...
23A
Refrigerator Door Hole Plug WPL-WP2183998
...
24
Refrigerator Ice Maker Fill Tube Seal WPL-WP1106508
...
25
Appliance Screw WPL-WP488729
...
26
Refrigerator Filler WPL-W10859322
...
26A
Blk-Corner F WPL-W11500943
...
26B
Refrigerator Filler WPL-2166003D
...
27
Refrigerator Washer (Replaces 487576) WPL-WP487576
...
28
Refrigerator Cap WPL-WP487996
...
29
Refrigerator Washer WPL-WP487802
...
30
Refrigerator Washer WPL-WP488296

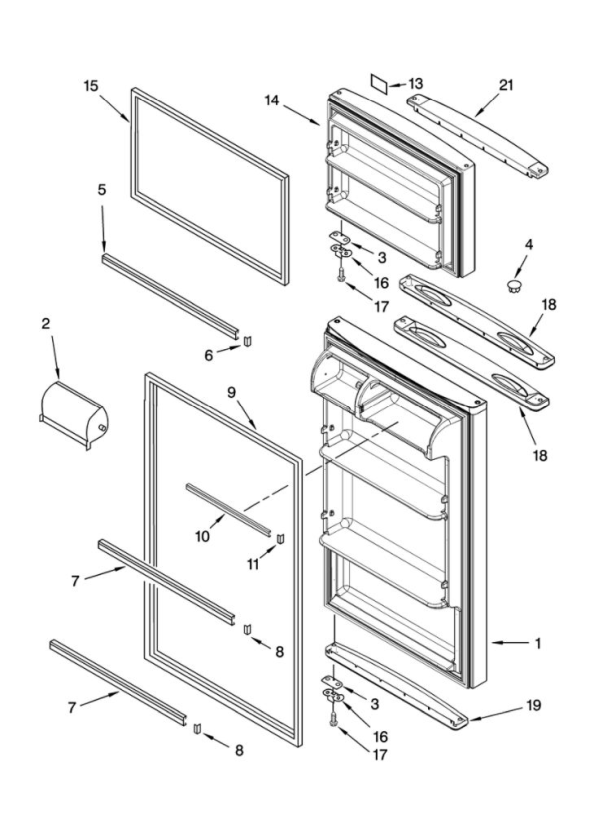

Amana ATF1833MRB00

...
...
1B
Refrigerator Door Assembly (Universal Silver) WPL-2265677D
...
1C
Refrigerator Door Assembly (Red Merlot) WPL-2265677R
...
2
Refrigerator Dairy Bin Cover (Replaces 2207942) WPL-WP2207942
...
3
Refrigerator Shim WPL-2258681B
...
4
Refrigerator Door Hole Plug WPL-WP2212648
...
4A
Refrigerator Door Hole Plug WPL-WP2212651
...
4B
Refrigerator Door Hole Plug (Apollo Gray) WPL-WP2254517
...
5
Refrigerator Door Shelf Rail (Replaces 2266727) WPL-WP2266727
...
6
Refrigerator Door Shelf Rail End Cap (Replaces 2156003) WPL-WP2156003
...
7
Refrigerator Door Shelf Rail WPL-WP2266738
...
8
Refrigerator Door Shelf Rail (Replaces 2195916K) WPL-WP2195916K
...
9
Refrigerator Door Gasket WPL-WP2319264W
...
9A
Refrigerator Door Gasket (Replaces 2319264B) WPL-WP2319264B
...
10
Refrigerator Door Shelf Rail WPL-W11129820
...
11
Refrigerator Shelf Support Retainer WPL-WP2156007
...
13
Refrigerator Insert WPL-2200749
...
14
Freezer Door Assembly (White) WPL-W10162670
...
15
Refrigerator Freezer Door Gasket WPL-WP2319263W
...
15A
Refrigerator Freezer Door Gasket (Black) (Replaces 2319263B) WPL-WP2319263B
...
16
Refrigerator Door Stop (Replaces 2183805) WPL-WP2183805
...
18
Refrigerator Handle WPL-2265645W
...
18B
Refrigerator Handle WPL-2265645D
...
19A
Refrigerator Door Trim WPL-2222048
...
21
Refrigerator Door Trim WPL-2265644W
...
21A
Refrigerator Door Trim WPL-2252863
...
21B
Refrigerator Door Trim WPL-2265644D

Amana ATF1833MRB00

...
...
NI
Refrigerator Permagum Sealer WPL-212643
...
NI
Refrigerator Ice Maker Kit (Replaces W11534202, Wpw10715708) WPL-W11510803
...
NI
Appliance Spray Paint (White) (Replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) WPL-350930
...
NI
Appliance Spray Paint (White Primer) WPL-350942
...
NI
Refrigerator Vinyl Tape WPL-W11238399
...
NI
Refrigerator Permagum Sealer WPL-WP503695
...
NI
Refrigerator Mastic Sealer WPL-WP505587
...
NI
Appliance Touch-Up Paint, 2-Oz (White) WPL-511873
...
NI
Appliance Silicone Lubricant (Replaces 542638) WPL-WP542638
...
NI
Refrigerator Alumilastic Adhesive WPL-WP4317852
...
NI
Refrigerator Door Bag Insulation (Replaces 502448, 502454, 502460, 502479, 505398, 509327, 522188, 550398) WPL-606755
...
NI
Appliance Porcelain Touch-Up Paint, 1-Qt (White) WPL-799344
...
NI
Refrigerator Compressor Wire Terminal Kit (Replaces 83398) WPL-833938
...
NI
Refrigerator Door Insulation, 2-Piece (Replaces 4344350, 479512, 540284, 540816, 540833, 605483, 794507, 8170591, 876305, 978941, B0523588) WPL-876370
...
NI
Appliance Spray Paint (Black) (Replaces 10952, 830864) WPL-285006
...

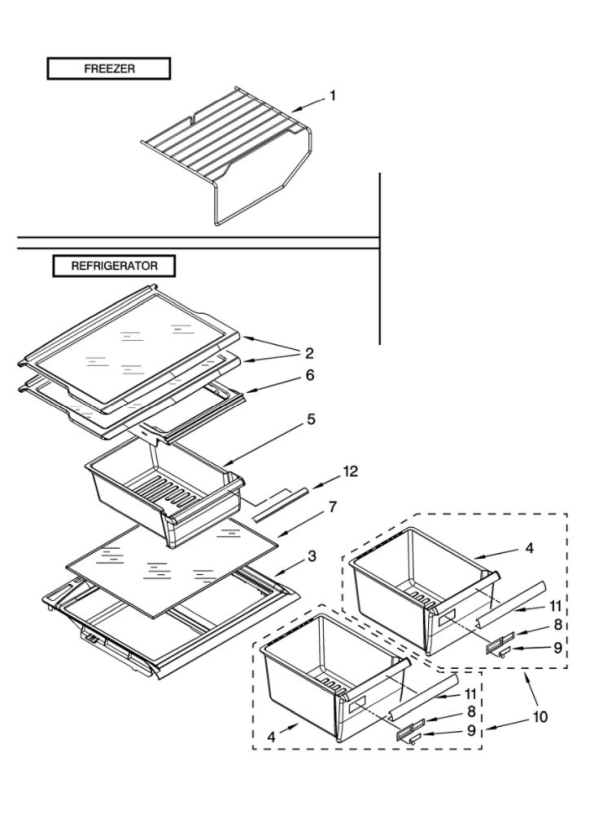

1
Refrigerator Freezer Wire Shelf WPL-WPW10401596
...
2
Refrigerator Glass Shelf (Replaces 2263641, 2325502) WPL-W10837901
...
3
Refrigerator Crisper Drawer Cover Frame WPL-WP2222031
...
4
Refrigerator Crisper Drawer (Replaces 2256704) WPL-WP2256704
...
6
Refrigerator Shelf WPL-WP2256601
...
7
Refrigerator Glass Shelf (Replaces 2262441) WPL-WP2262441
...
8
Refrigerator Crisper Drawer Humidity Control Body WPL-WP2212446
...
9
Refrigerator Crisper Drawer Humidity Control Slide WPL-WP2176222
...
11
Refrigerator Pan Trim WPL-2328555

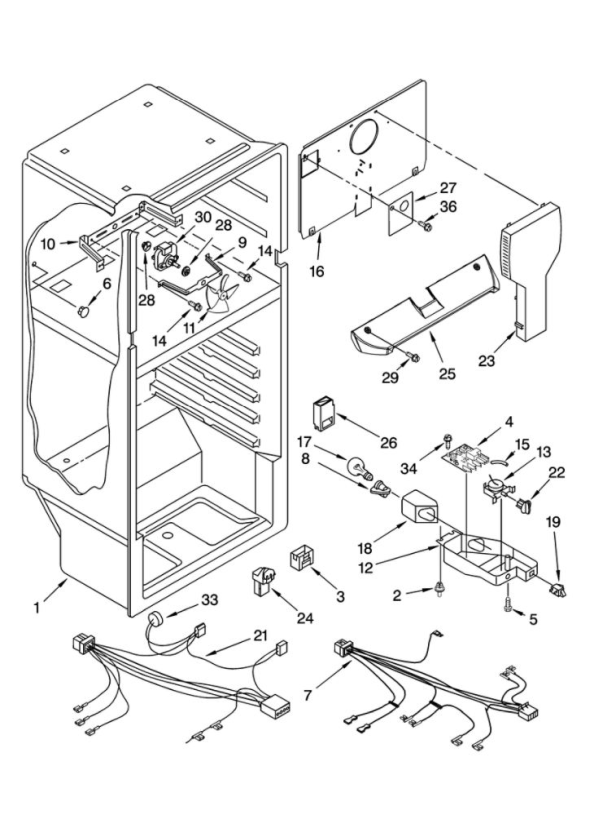

Amana ATF1833MRB00

...
...
2
Rivet WPL-939962
...
4
Refrigerator Defrost Control Board (Replaces 2154674, 2162270, 2188160, 2303825) WPL-4388931
...
5
Refrigerator Screw WPL-WP489174
...
6
Refrigerator Evaporator Cover Hole Plug WPL-WP941839
...
7
Refrigerator Control Box Wire Assembly WPL-2265930
...
8
Refrigerator Light Socket (Replaces 1129370, 2167012, 2317419, 833769) WPL-4387478
...
9
Refrigerator Bracket WPL-WPW10180172
...
11
Refrigerator Evaporator Fan Blade (Replaces 2169142) WPL-WP2169142
...
12
Refrigerator Control Box WPL-2215210
...
13
Refrigerator Temperature Control Thermostat (Replaces W10511937) WPL-WPW10511937
...
14
Refrigerator Screw WPL-WP489399
...
15
Refrigerator Thermostat Sensor Barrier WPL-WP2196003
...
17
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
18
Light Lens WPL-W11034434
...
19
Refrigerator Door Switch (Replaces W11234536, W11428639, Wp1118894, Wpc3680310) WPL-W11384469
...
21
Refrigerator Wire Harness WPL-2319442
...
22
Refrigerator Temperature Control Knob WPL-WP2202885
...
23
Refrigerator Freezer Air Tower WPL-9790408
...
27
Refrigerator Ice Maker Fill Tube Cover WPL-WP2217784
...
28
Refrigerator Evaporator Fan Motor Grommet WPL-WP2264462
...
29
Refrigerator Screw WPL-WP489474
...
33
Refrigerator Defrost Bi-Metal Thermostat (Replaces W10225581) WPL-WPW10225581
...
34
Refrigerator Door Cap Screw WPL-WP487353
...
36
Refrigerator Screw (Replaces 489478) WPL-WP489478
