Amana ASE90002 (BOM P1332814M)

Model: ASE90002 (BOM P1332814M)

Save Part Not Listed?
product name

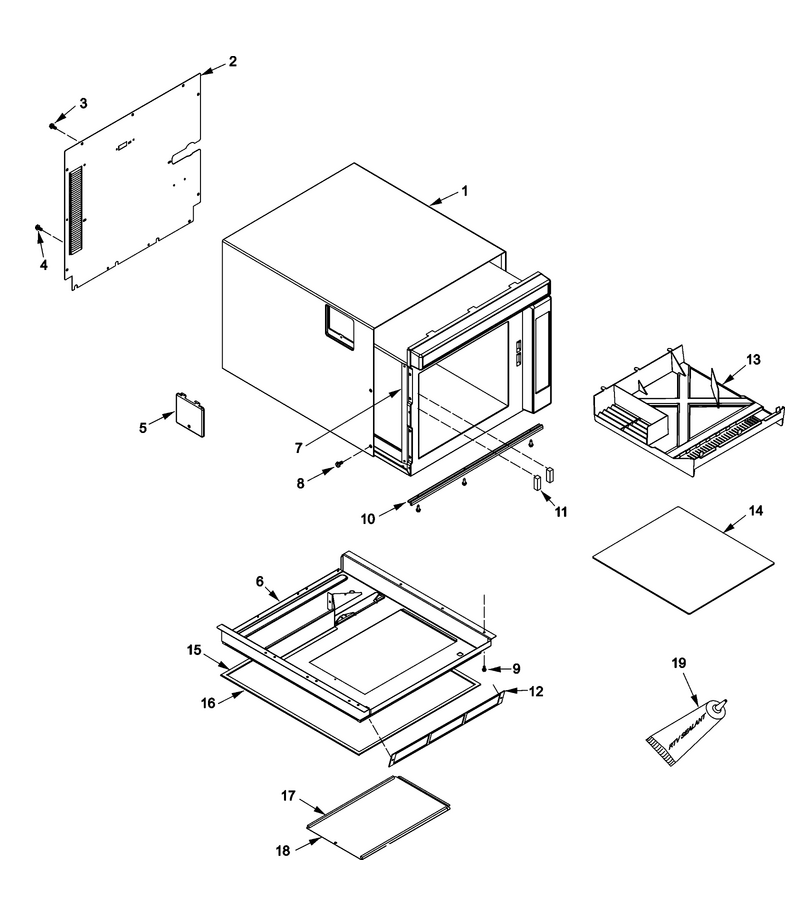

01 - Tray, Grease Shield, Cabinet,

...
...
001
Wrapper-Oc (Ss) WPL-10908901Q
...
002
Assy, Access Panel (Rear) WPL-R0156970
...
003
Screw WPL-WP3388228
...
004
Screw WPL-WP90767
...
005
Clip WPL-NLA
...
006
Base Assy-Gaskets, Access Pnl WPL-10790304Q
...
007
Bracket,hinge Support WPL-12189003
...
008
Screw-Tf/oval WPL-13042002
...
009
Screw WPL-WP489128
...
010
Trim-Oc (Brushed) WPL-NLA
...
011
Support-Tray WPL-3010003001
...
012
Washer, Nylon WPL-M0274066
...
013
Shield, Grease WPL-10766601
...
014
Tray-Ceramic Floor W/sealer WPL-R0156942
...
015
Basepan Gasket-Cut WPL-59001646
...
016
Basepan Gasket-Cut WPL-59001647
...
017
Gasket (Inch) WPL-A3030301
...
018
Bottom Access Panel WPL-10782402
...
019
Adhesive WPL-W10841140

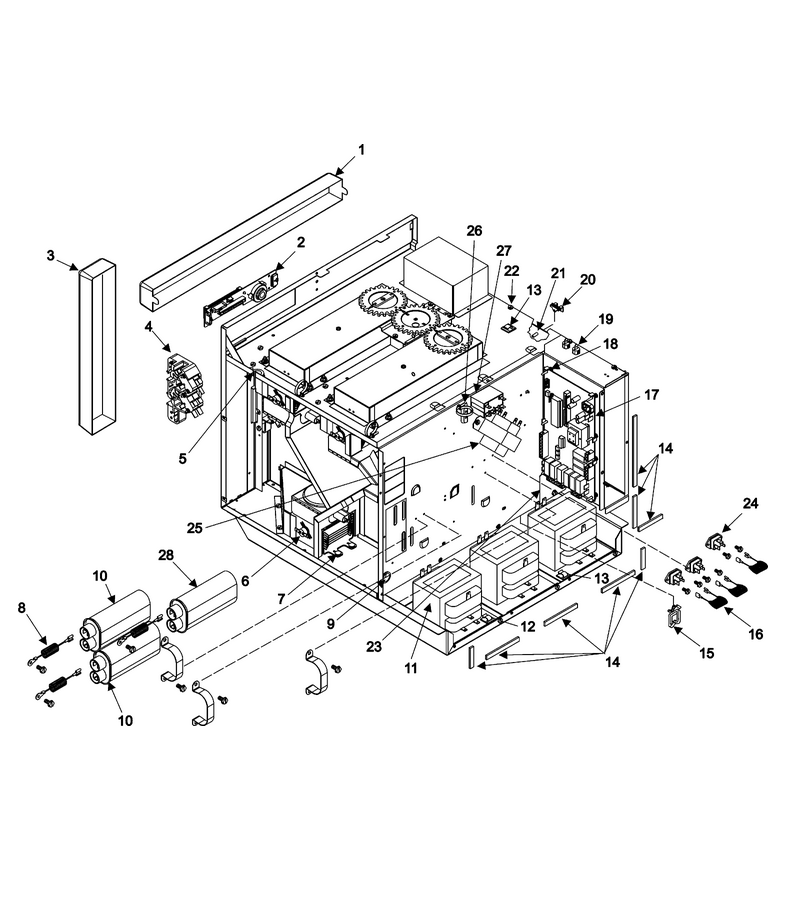

03 - Electrical Components

...
...
001
Touch Panel(Top) WPL-R0130108
...
002
Screw WPL-M0234114
...
003
Screw, Tf WPL-M0231704
...
004
Switch, Interlock Kit WPL-12002636
...
005
Grommet-Rubber WPL-59002007
...
006
Screw T.c WPL-M0229916
...
007
Magnetron-T WPL-10489402
...
008
Screw WPL-WP489349
...
009
Bushing, Snap WPL-59001128
...
010
Strap, Capacitor WPL-A4055405
...
011
Transformer-Hv WPL-59001626
...
012
Screw WPL-WP90767
...
013
Clip WPL-WPM0104106
...
014
Gasket (Inch) WPL-A3030301
...
015
Wire Clip WPL-B5667304
...
016
Snubber Assembly WPL-59002017
...
017
Board,hv WPL-59001002
...
018
Support P-C Bd A WPL-M0590602
...
019
Bushing,terminal WPL-M0325401
...
020
Thermal Cutout WPL-B5795306
...
021
Cap, Protective-Threaded (Red) WPL-M0308801
...
022
Screw,tf WPL-M0231617
...
023
Plate, Partition WPL-10847601
...
024
Screw WPL-WP489349
...
025
Screw WPL-WP489349
...
026
Tie Wire WPL-WPM0322202
...
027
Relay WPL-12492202
...
028
Capacitor-.74 WPL-59001162

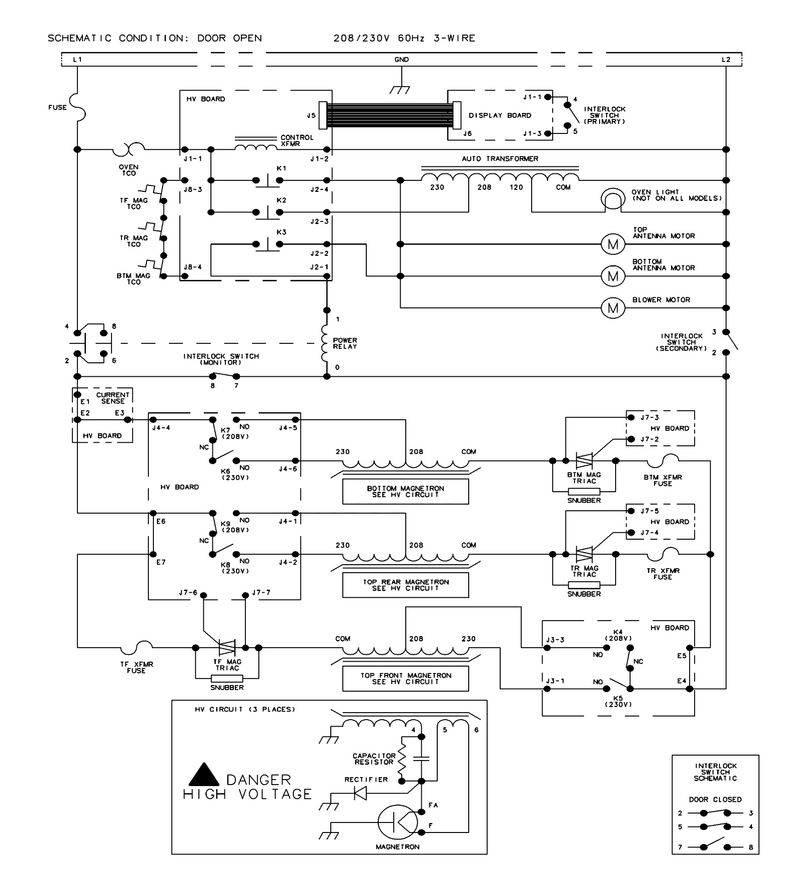

05 - Wiring Information

...
...
NI
Wiring Information WPL-NLA

...
...
001
Mnl,svc-Comm`l Micro WPL-RS2240003
...
002
Use & Care-Amana Com Microwave WPL-59001488
...
003
Tech Sht Comm. Microwave WPL-16022019
...
004
Magnetic Y-Drive Bit WPL-NLA
...
005
Harness, Hv Board To Display WPL-R0130265
...
006
Harness-Interlock WPL-13018201
...
007
Harness, Lower Antenna Motor WPL-12598201
...
008
Harness- Oven WPL-59001631
...
009
Harness-Hi Volt WPL-59001137
...
010
Manual-Prod Safety WPL-16021751
...
011
Instr-Quick Start WPL-59001132
...
012
Card-Menu WPL-59001654
...
013
Pan, Steamer WPL-59001125
...
014
Manual, Product Safety WPL-59001508
...
015
Kit-Cav- 3 Tube ``s`` Chassis WPL-12002484

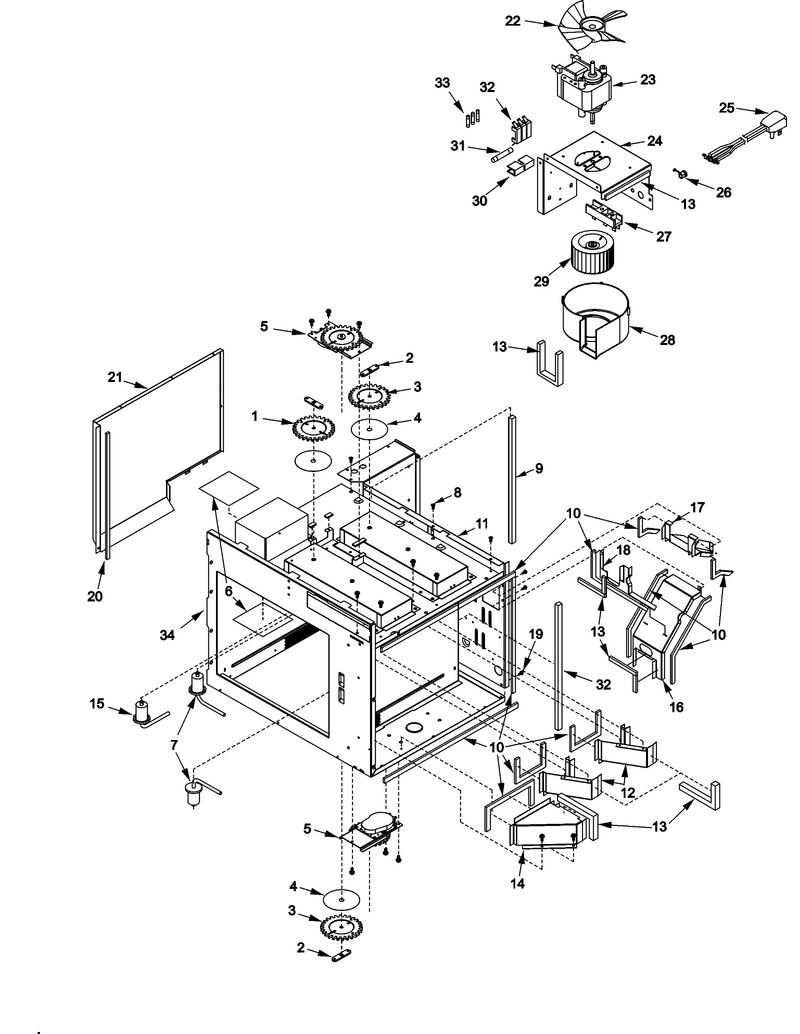

02 - Fuses, Antennas, Blower, Ducts,

...
...
001
Gear,spur (Gray) WPL-12570102
...
002
Retainer,gear Shaft WPL-12570201
...
003
Gear,spur--++xxx WPL-12570101
...
004
Washer, Spur Gear WPL-10903002
...
005
Screw, Tf WPL-M0231704
...
006
Window, Oven Light WPL-B8367701
...
007
Antenna (Stirrer) WPL-R0130262
...
008
Screw WPL-WPW10001160
...
009
Gasket, Neoprene WPL-10966601
...
010
Gasket,per Ft WPL-A30303-30
...
011
Panel, Partition WPL-59001129
...
012
Duct-Top Exhaust WPL-10989201
...
013
Gasket (Per Foot) WPL-A3030303
...
014
Bottom Exhaust Duct-W/gasket WPL-10989301
...
015
Antenna, Top Front (Blue) WPL-R0130261
...
016
Divider-Bot Flow WPL-10989401
...
017
Screw WPL-WP489349
...
018
Screw WPL-WP489349
...
019
Screw WPL-5078-CC
...
020
Gasket (Inch) WPL-A3030301
...
021
Duct, Exhaust WPL-10781901
...
022
Fan Blade WPL-B5706704
...
023
Motor,blower WPL-12138106
...
024
Screw WPL-WP489349
...
025
Power Cord WPL-10098906
...
026
Relief-Strain WPL-M0370011
...
027
Terminal Block WPL-B5677203
...
028
Screw-Sm/hex WPL-12990523
...
029
Wheel, Blower WPL-C3670809
...
030
Fuse Holder WPL-10091101
...
031
Fuse- 30a WPL-M0805205
...
032
Screw, No.6x18x1/4 (3) WPL-487010
...
033
Fuse WPL-WPM0805102
