Amana ASC-1B (BOM: P8512208S)

Model: ASC-1B (BOM: P8512208S)

Save Part Not Listed?
product name

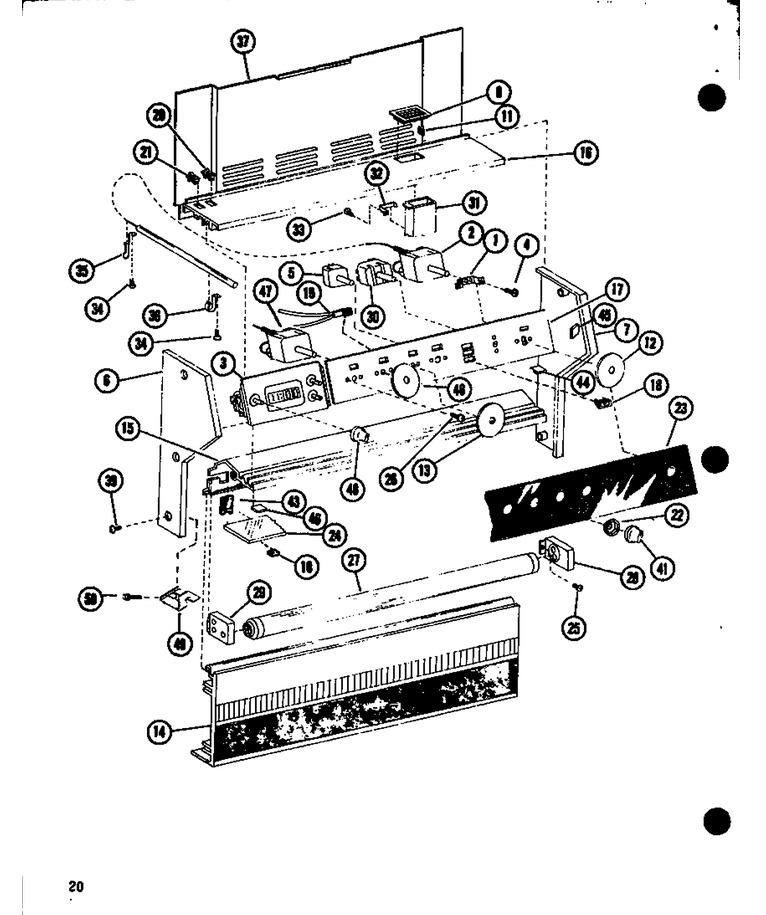

05 - Page 8

...
...
1
Brkt-Mtg WPL-A4404801
...
2
Thermostat-Oven WPL-C2705902
...
3
Timer, Digital WPL-D8500501
...
4
Screw WPL-M0202528
...
5
Switch- In WPL-R0702564
...
6
End Cap WPL-D8515201
...
7
End Cap WPL-D8515202
...
9
Vent Cap WPL-B5005501
...
11
Clip WPL-M0119301
...
12
Disc WPL-D8509003
...
13
Disc-Surf Unit WPL-D8509002
...
14
Extrusion WPL-D8515301
...
16
Extrusion WPL-D8509101
...
17
Panel, Control Mounting WPL-D8528601
...
18
Indicator Light WPL-B5009706
...
19
Light Ind Kit WPL-R0157517
...
22
Seal-Control WPL-A4404701
...
23
Control Panel Glass WPL-D8501501
...
25
Screw WPL-M0200414
...
26
Screw WPL-M0217616
...
30
Switch-Selector WPL-B5005003
...
31
Duct WPL-C2706302
...
32
Brkt-Air Vent WPL-A4401601
...
33
Screw WPL-M0213155
...
34
Screw WPL-M0213430
...
35
Retainer-Bulb WPL-A4407201
...
36
Retainer-Thermo WPL-A4407801
...
37
Cover-Upper Lead WPL-D8509602
...
39
Screw WPL-M0234229
...
40
Knob, Dual Timer WPL-B5005101
...
41
Knob K WPL-C2737001
...
44
Bumper WPL-A4402201
...
45
Pad-Glass WPL-A4402401
...
46
Pad-Glass WPL-A4402402
...
47
Thermostat, Essex WPL-D8503901
...
48
Disc WPL-D8509001
...
49
Brkt-End Cap WPL-B5004801
...
50
Screw-Hinge WPL-M0219043

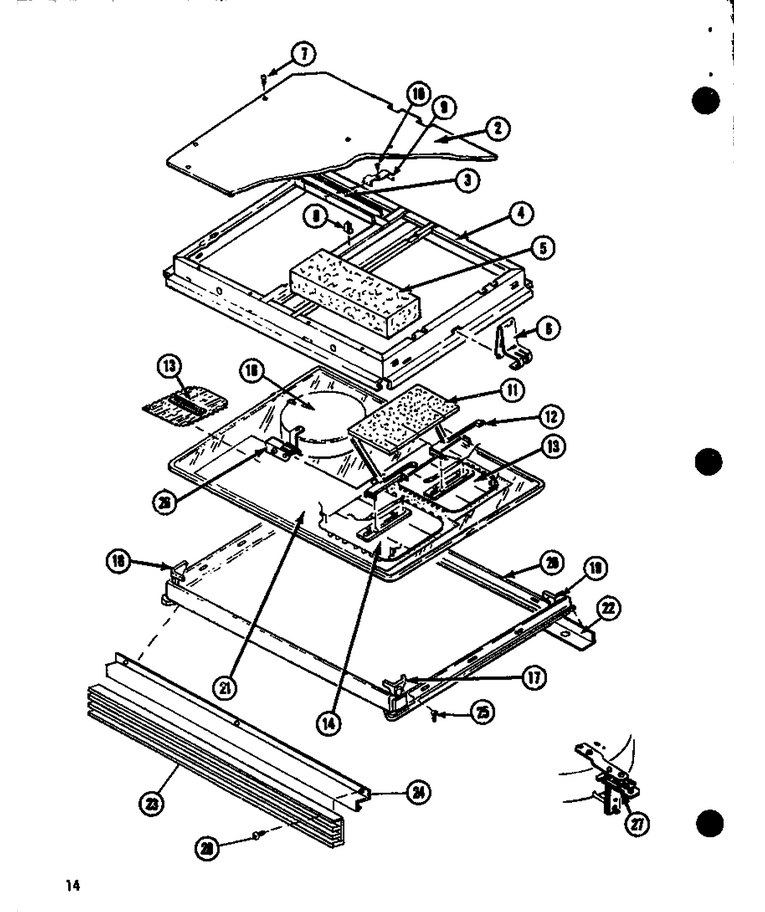

02 - Page 5

...
...
NI
Bracket, Support, R.h. WPL-C2703101
...
2
Cover-Htr Box WPL-C2704201
...
3
Bar-Hold Down WPL-C2705701
...
4
Htr Box Assy WPL-D8508501
...
5
Insulation, Fiberglas WPL-C2710701
...
6
Clip WPL-B5001502
...
7
Screw WPL-WP90767
...
8
Clip, Cable WPL-M2110503
...
9
Spring, Element WPL-74008213
...
10
Screw (3) WPL-67006425
...
11
Insulation Lo-Con K WPL-C2702002
...
12
Hld Down Assy WPL-C2701701
...
13
Element Kit, Small WPL-R0157501
...
14
Element Kit, Large WPL-R0157502
...
16
See Svc Ltr Cba-136 WPL-D8527201
...
17
Brkt-Front L WPL-B5005801
...
18
Brkt-Front R WPL-B5005802
...
19
Supt Brkt WPL-C2707201
...
20
Frame WPL-D8511102
...
21
Net-Kit,heater Panel WPL-D8511201
...
22
Shield-Wire WPL-B5007301
...
23
Grille, Front WPL-D8509403
...
24
Guard WPL-C2706101
...
25
Screw WPL-M0213155
...
26
See Serv Ltr Cba-136 WPL-C2702401
...
27
Switch WPL-C2703201
...
28
Screw WPL-M0217616

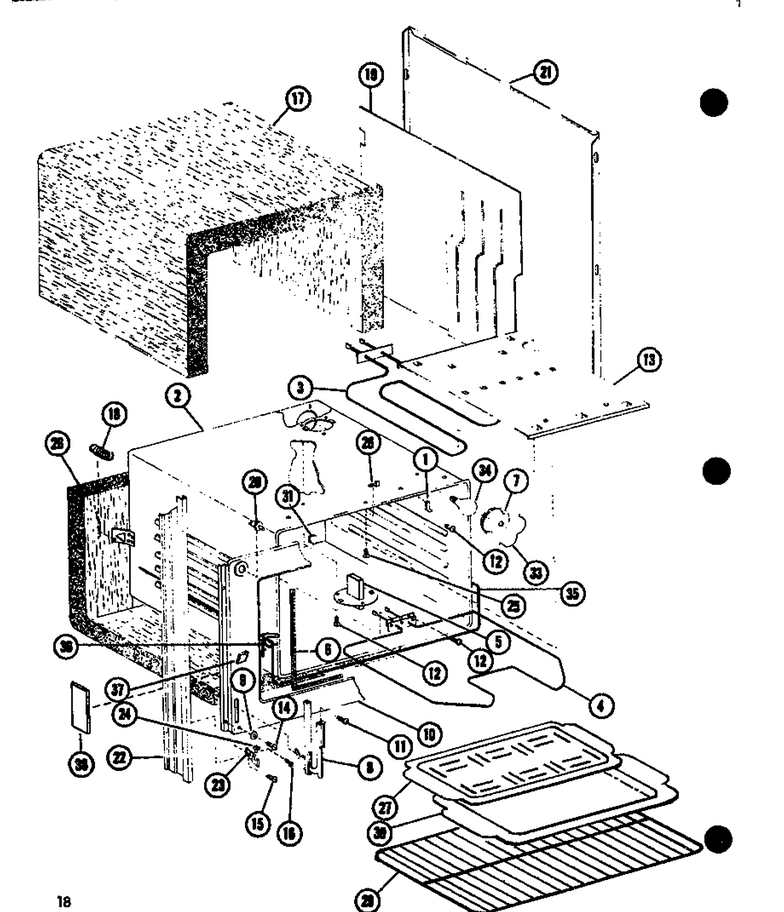

04 - Page 7

...
...
1
Brkt-Broil Refl WPL-A4407301
...
2
Oven Cavity, Weldment WPL-D8510501
...
3
Element, Broil, 250 Volts, 340 WPL-C2704601
...
4
Bake Element WPL-C2704901
...
5
Assy, Vent WPL-C2704801
...
6
Gasket WPL-B5002601
...
7
Globe-Lamp WPL-B5003301
...
8
Door Hinge Assy WPL-D8509902
...
9
Washer, Padder WPL-M0271201
...
10
Panel WPL-D8509802
...
11
Screw-Adj WPL-M0202232
...
12
Screw WPL-M0213430
...
13
Reflector-Broil WPL-D8506601
...
14
Screw WPL-M0203342
...
15
Screw WPL-WP90767
...
16
Screw WPL-W11233072
...
17
Insulation K WPL-B5003001
...
18
Spring WPL-A4407101
...
19
Retainer-Insul R WPL-D8506701
...
20
Switch WPL-C2707501
...
22
Trim-Side WPL-D8515501
...
25
Screw WPL-WP98165
...
26
Clip-Oven Cavity WPL-B5003201
...
27
Procelain Broiler (Pan And Grid) WPL-4396923
...
28
Insulation K WPL-B5002401
...
29
Rack 15 11/32`` W X 22 29/32`` L WPL-D8510001
...
30
Procelain Broiler (Pan And Grid) WPL-4396923
...
31
Plug Button WPL-M0311101
...
33
Retainer-Lamp WPL-A4407001
...
34
Light Bulb WPL-8009
...
35
Element WPL-C2704701
...
36
Clip-Htr WPL-M0119401
...
37
Bumper WPL-A4402201
...
38
Insulation K WPL-B5003101

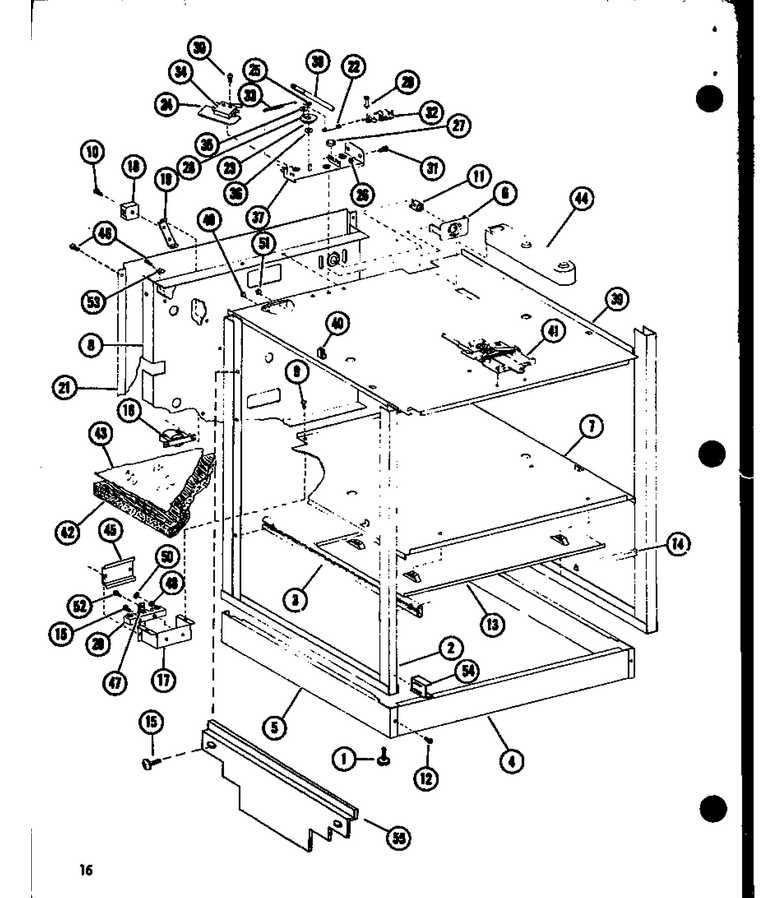

03 - Page 6

...
...
NI
Package Range Wire WPL-R0157518
...
1
Foot WPL-A4400801
...
2
Side Frame Wld WPL-D8504102
...
4
Panel, Kick Front WPL-C2707901
...
6
Reflector, Oven Lamp WPL-B850006-1
...
7
Retainer WPL-D8510401
...
8
Retainer WPL-D8506301
...
9
Screw WPL-WP90767
...
10
Screw WPL-M0211550
...
11
Socket, Oven Light WPL-Y0316385
...
12
Screw WPL-M0214217
...
15
Screw WPL-M0211545
...
17
Brkt-Term Block WPL-C2705001
...
18
Relay WPL-C2704301
...
19
Brkt-Oven Relay WPL-B5001001
...
20
Block-Term WPL-WP8203546
...
21
Lwr Lead Cover Kit WPL-R0199214
...
22
Arm-Actuator WPL-A4405801
...
23
Cam, Lock Solenoid WPL-B5004201
...
24
Insulator-Switch WPL-A4405601
...
25
Speed Nut A- K WPL-M0287901
...
26
Clip WPL-M0119701
...
27
Pad WPL-A4405901
...
28
Pin-Grooved WPL-A4405701
...
29
Pop Rivet WPL-M0010212
...
30
Screw WPL-M0227520
...
31
Screw WPL-WP74004005
...
32
Solenoid, Lock WPL-Y0306856
...
33
Spring, Solenoid WPL-Y0306846
...
34
Switch, Limit WPL-B5004401
...
35
Washer WPL-M0270501
...
36
Washer WPL-M0270515
...
37
Assy, Latch Solenoid WPL-C2705401
...
38
Arm WPL-B5004501
...
39
Retainer WPL-D8506201
...
40
Clip WPL-M0110503
...
41
Assy, Door Latch (10442001) WPL-D8508301
...
42
Insulation K WPL-B5002301
...
43
Foil Aluminum K WPL-A4400601
...
44
Duct-Vent WPL-C2706401
...
45
Cover WPL-B5003501
...
47
Strap-Grd WPL-A4406901
...
48
Usr 0041847 WPL-M0282402
...
49
Clip-Speed Nut WPL-M0119101
...
50
Washer WPL-M0270001
...
51
Clip WPL-M0110503
...
52
Screw WPL-M0227804
...
53
Clamp WPL-M0102311
...
54
Brkt-False Front WPL-C2708001
...
55
Baffle WPL-B5007201

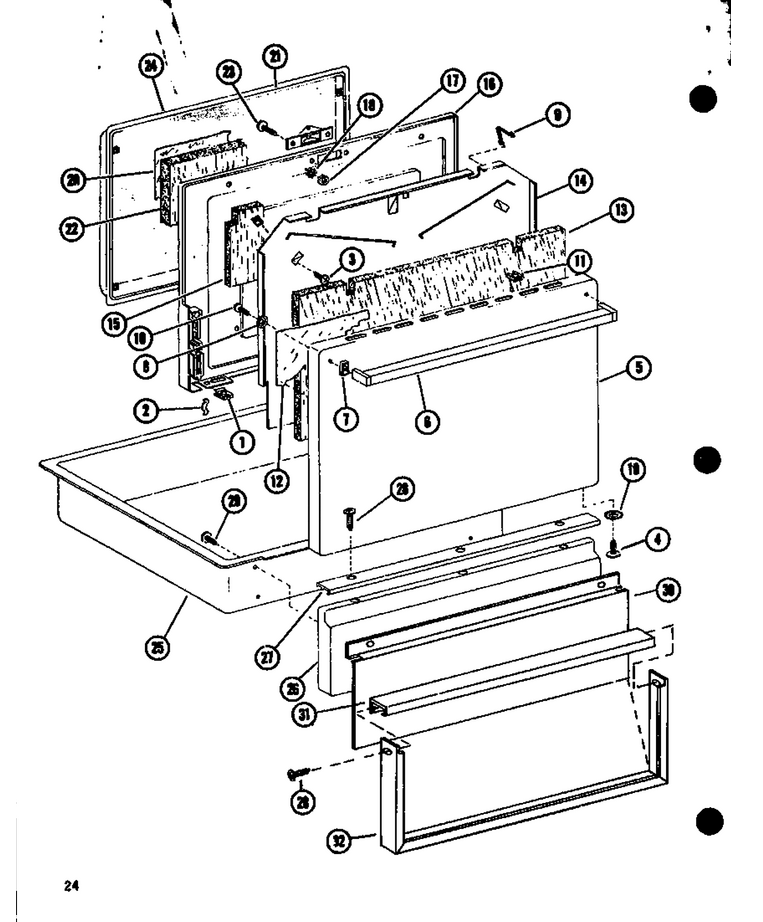

06 - Page 9

...
...
31
Screw WPL-W11233072

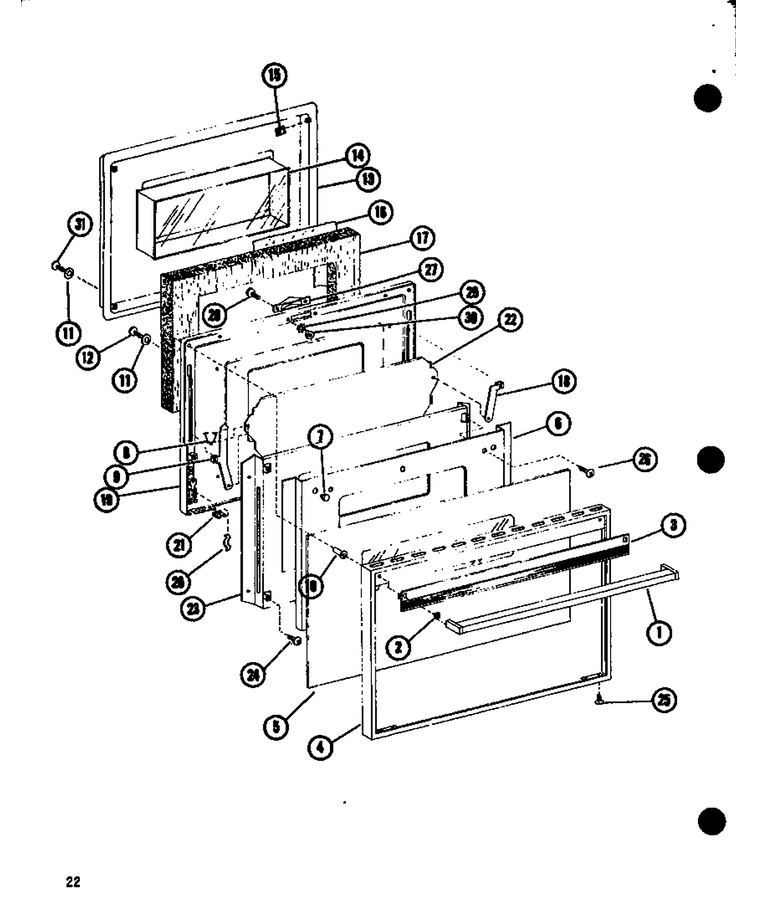

01 - Page 10

...
...
NI
Clip WPL-A4408701
...
1
Clip-Speed Nut WPL-M0119601
...
2
Spring WPL-A4407701
...
3
Screw (3) WPL-67006425
...
9
Clip-Spacer WPL-A4408101
...
10
Screw WPL-M0258732
...
11
Speed Nut WPL-A4407601
...
14
Heat Shield WPL-D8513801
...
15
Insulation WPL-B5006901
...
16
Inr Oven Door Assy WPL-D8513701
...
17
Nut WPL-WP486255
...
18
Lock Washer WPL-M0272803
...
20
Foil-Door Plug WPL-A4406601
...
21
Latch Plate Assy WPL-B5003601
...
22
Insulation, Door Plug WPL-B5001101
...
23
Screw WPL-M0203218
...
24
Door Plug WPL-D8514001
...
26
False Front, Almond WPL-C2708105
