Amana ARTS6651CC (BOM: P1143914NCC)

Model: ARTS6651CC (BOM: P1143914NCC)

Save Part Not Listed?
product name

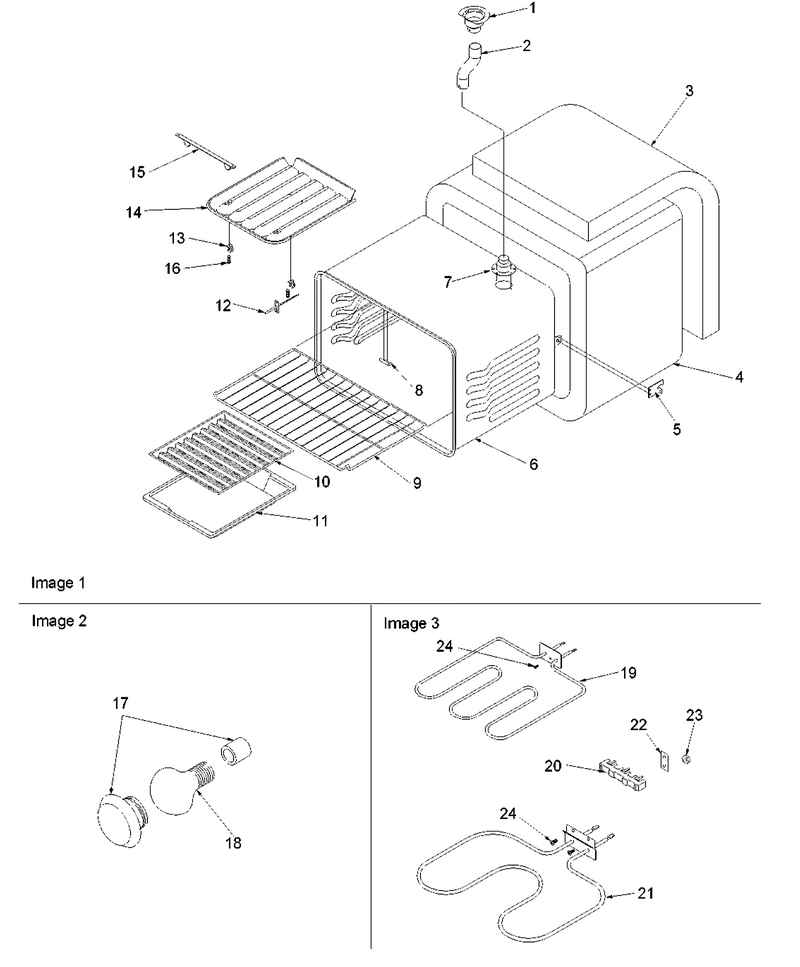

02 - Cavity

...
...
NI
Screw WPL-WP693995
...
1
Adapter, Vent Tube WPL-Y0316762
...
2
Tube, Vent WPL-31938101
...
3
Insulation, Top (Rr) WPL-31976601
...
4
Insulation, Wrapper WPL-31976501
...
5
Bracket, Oven Cavity WPL-Y0058852
...
6
Oven Shell (El. W/lt) WPL-31821101CG
...
7
Eliminator, Smoke WPL-31938201
...
8
Cover, Chip WPL-Y0315022
...
9
Rack-Oven WPL-WP314763J
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Procelain Broiler (Pan And Grid) WPL-4396923
...
12
Sensor WPL-WP31968201
...
13
Bracket, Mounting WPL-0315402
...
14
Reflector, Broil Element WPL-Y0315403
...
15
Bracket, Reflector Mounting WPL-Y0061557
...
16
Rivet, Pop WPL-Y0097822
...
17
Oven Light Assy WPL-31823701
...
18
Light Bulb WPL-8009
...
19
Element- B WPL-WPY0061732
...
20
Block-Term WPL-WP8203546
...
21
Element- B WPL-WP77001094
...
22
Block-Term WPL-WPW10245259
...
23
Hex Nut (Nkl) WPL-31750124
...
24
Screw WPL-WP7101P126-60

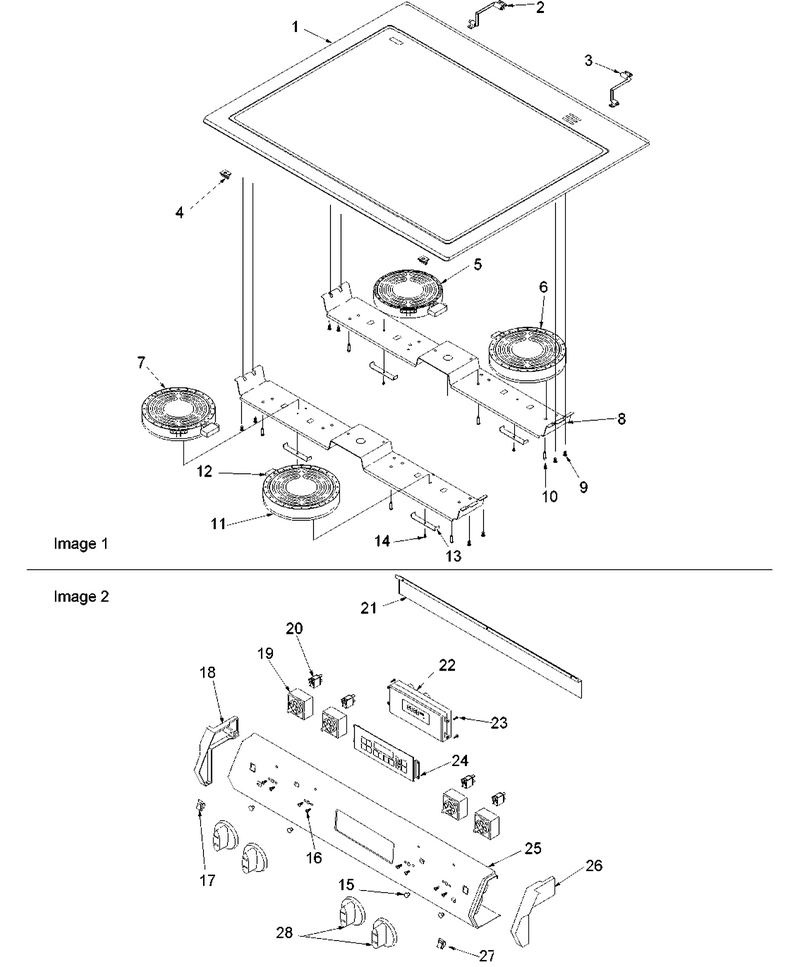

03 - Main Top And Backguard

...
...
Note: Ribbon Element Limiters Are Not Replaceable. WPL-NOTE:
...
NI
Nut, Speed No.6-32 WPL-31750121
...
1
Main Top Assy (Bsq) WPL-32059903C
...
2
Hinge, Main Top (Lt) WPL-31769702
...
3
Hinge, Main Top (Rt) WPL-31769701
...
4
Clip, Spring WPL-Y0316394
...
5
Elmnt-Surf WPL-W10823710
...
6
Elmnt-Surf WPL-W10823699
...
7
Elmnt-Surf WPL-WP32082801
...
8
Bracket, Element WPL-Y0316165
...
9
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
10
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
11
Elmnt-Surf WPL-W10823726
...
12
Limiter-Dual WPL-0316689
...
13
Spring, Element WPL-Y0306683
...
14
Screw WPL-W11245710
...
15
Lens, Indicator WPL-Y0316265
...
16
Screw, No.8-32 X 1/4 WPL-31750714
...
17
Switch,rocker(Bisque) WPL-301491C
...
18
End Cap, Cont-Pnl (Lt-Bsq) WPL-R0701579
...
19
Switch- In WPL-WP74011243
...
20
Light-Ind WPL-WP903115
...
21
Heat Shield, Control Panel WPL-0316650
...
22
Erc3 (Electric) WPL-Y0315570
...
23
Screw WPL-W11245710
...
24
Overlay,mylar-Erc 3(Bisque) WPL-315851C
...
25
Bkgd Panel,enameled(Bisque) WPL-316360C
...
26
End Cap, Cont-Pnl (Rt-Bsq) WPL-31742707C
...
27
Switch, Rocker (Bsq) WPL-74008765
...
28
Knob, Infinite (Bsq) WPL-31905426C

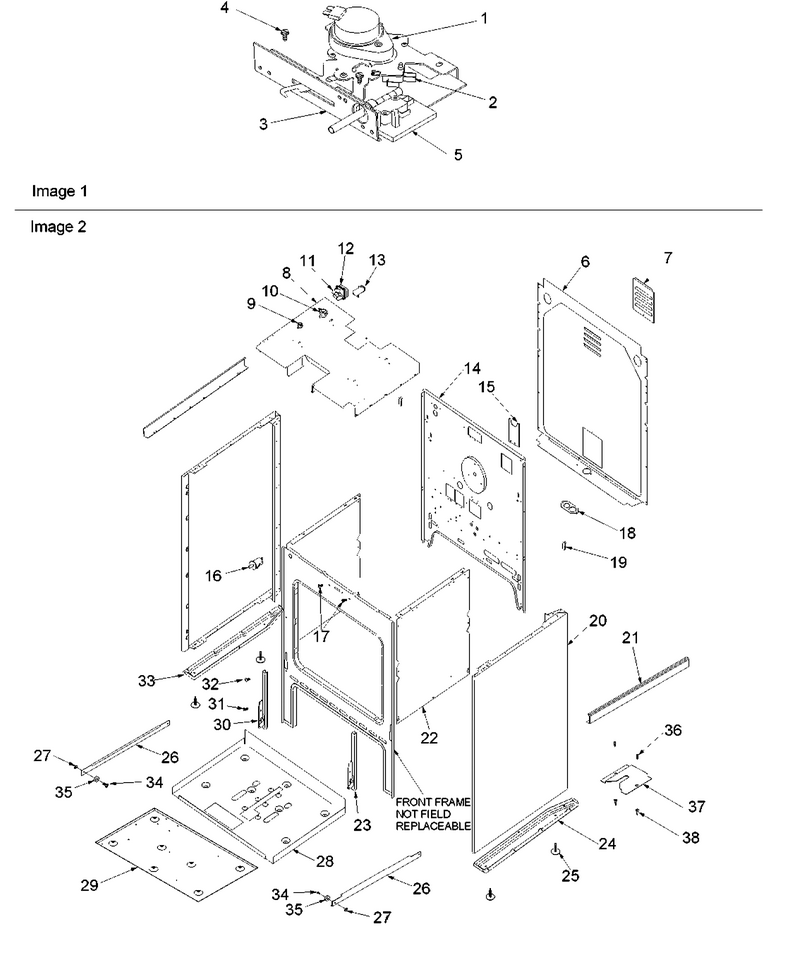

01 - Cabinet

...
...
NI
Screw, No.10-32x1/2 (Pan Ph Hd) WPL-31750517
...
1
Latch, Door WPL-31933401
...
2
Switch, Micro WPL-31899201
...
3
Bracket, Latch Mounting WPL-31848301
...
4
Screw WPL-WP693995
...
5
Switch, Plunger WPL-31933601
...
6
Cover, Rear WPL-31757101
...
7
Plate, Access WPL-31757201
...
8
Retainer, Top Insulation WPL-31723601
...
9
Control, Limit WPL-31933003
...
10
Thermostat, High Limit WPL-Y0316699
...
11
Blade, Fan WPL-Y0314375
...
12
Fan Assy, Cooling (W/blade) WPL-Y0309884
...
13
Bracket, Z Fan WPL-0314183
...
14
Retainer, Rear WPL-31791201
...
15
Bracket, Vent Tube WPL-31938301
...
16
Plug, Button (3/4``-Blk) WPL-Y0315328
...
17
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
18
Plate, Main Inlet Wire WPL-0058311
...
19
Cable, Clip Esm WPL-Y0091587
...
20
Panel, Side (Bsq) WPL-31825105C
...
21
Filler Strip (Bsq) WPL-316325C
...
22
Retainer, Insulation (Side) WPL-0304282
...
23
Hinge, Oven Door (Lt) WPL-31715201
...
24
Brace, Leveling Leg (Rt) WPL-31854502
...
25
Leg,leveling Xxx WPL-314187B
...
26
Track, Mounting WPL-32075601
...
27
Nut, Lock WPL-22004193
...
28
Retainer, Insulation (Bottom) WPL-Y0309061
...
29
Shield, Heat WPL-Y0315146
...
30
Hinge-Door WPL-R0706011
...
31
Screw WPL-WP4159193
...
32
Screw WPL-WP7101P126-60
...
33
Brace, Leveling Leg (Lt) WPL-31854501
...
34
Bolt, Shoulder 10-32 WPL-31750717
...
35
Roller, Drawer WPL-31733401
...
36
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
37
Bracket, Anti Tip WPL-31945201
...
38
Anchor, Plastic WPL-Y0301555

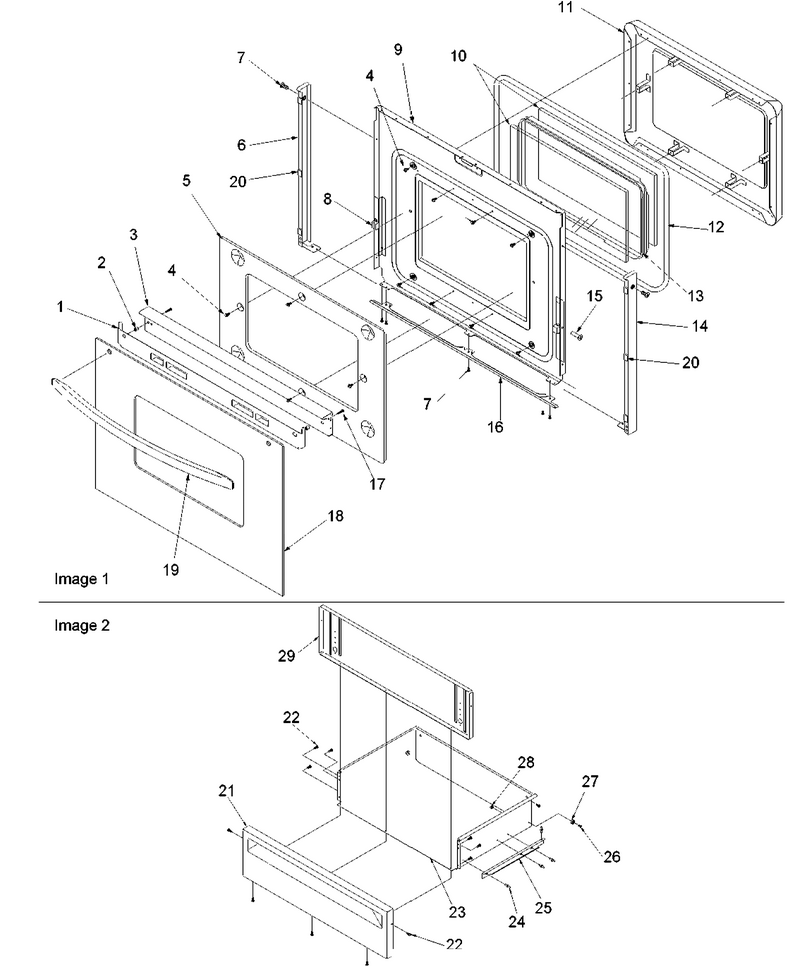

04 - Oven Door And Storage Drawer

...
...
NI
Insulation, Door Pad-Long WPL-31975501
...
1
Assy, Glass Heat Shield WPL-31854101
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top (Bsq) WPL-32054202C
...
4
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
5
Shield, Heat WPL-Y0309068
...
6
End Cap, Door (Lt-Bsq) WPL-309523C
...
7
Screw WPL-W11245710
...
8
Bumper, Rubber WPL-Y0309627
...
9
Backer, Oven Door WPL-317023CG
...
10
Glass, Door WPL-Y0317019
...
11
Pad, Oven Door WPL-317021CG
...
12
Gasket, Oven Door (67``) WPL-31715902
...
13
Frame, Window Pack WPL-Y0317020
...
14
End Cap, Door (Rt-Bsq) WPL-309522C
...
15
Rivet, Pop WPL-Y0302648
...
16
Support, Glass (Bsq) WPL-309460C
...
17
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
18
Glass, Oven Door (Bsq) WPL-316238C
...
19
Handle, Oven Door (Bsq) WPL-31689505C
...
20
Tape, Foam WPL-0043184
...
21
Panel, Drawer (Bsq) WPL-309176C
...
22
Screw WPL-W11245710
...
23
Drawer, Storage (Wht) WPL-32059403W
...
24
Rivet, Pop WPL-Y0097822
...
25
Track, Storage Drawer WPL-31733301
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Roller, Drawer WPL-31733401
...
28
Nut, Lock WPL-22004193
...
29
Liner, Drawer Panel (Blk) WPL-31927401B
