Amana ARTC8621SS (BOM: P1143845NSS)

Model: ARTC8621SS (BOM: P1143845NSS)

Save Part Not Listed?
product name

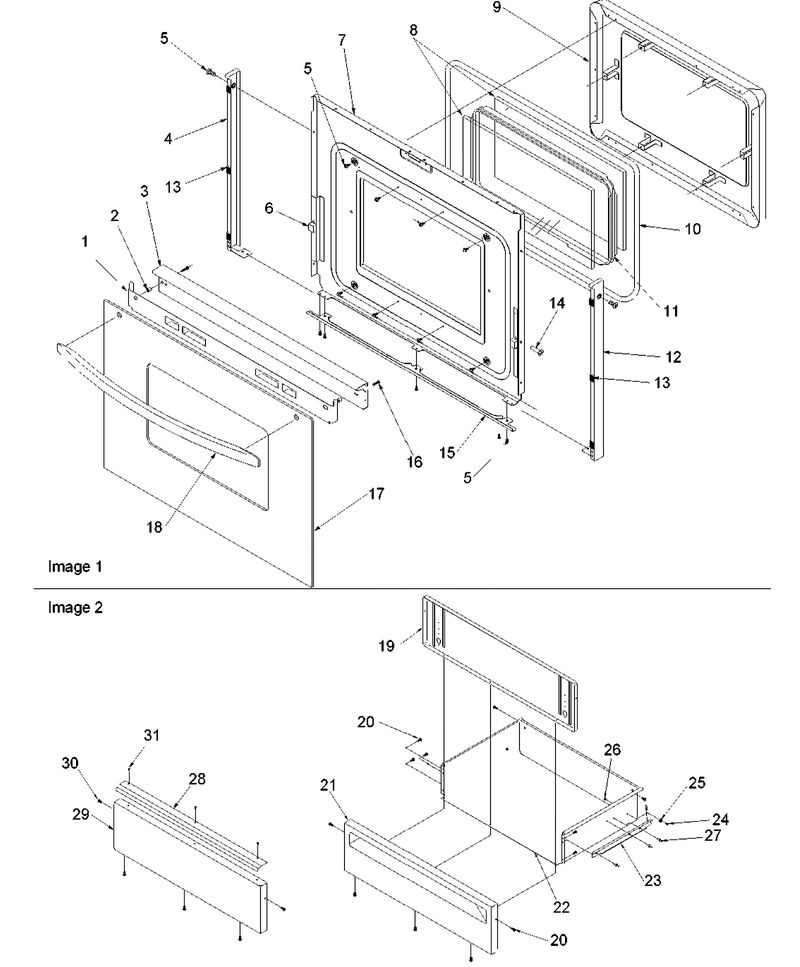

05 - Oven Door And Storage Drawer

...
...
NI
Screw WPL-W11245710
...
1
Assy, Glass Heat Shield WPL-31833201
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top (Blk) WPL-32054201B
...
4
End Cap, Lt (Blk) WPL-309458B
...
5
Screw WPL-W11245710
...
6
Bumper, Rubber WPL-Y0309627
...
7
Backer, Oven Door (Elec) WPL-317028CG
...
8
Glass, Door WPL-Y0317019
...
9
Pad, Oven Door WPL-317021CG
...
10
Gasket, Oven Door (67``) WPL-31715902
...
11
Frame, Window Pack WPL-Y0317020
...
12
End Cap, Rt (Blk) WPL-309457B
...
13
Tape, Foam WPL-0043184
...
14
Rivet, Pop WPL-Y0302648
...
16
Screw, No.10-32x1 3/8 Pan Ph Hd WPL-31750522
...
17
Assy, Door Face Tall WPL-31929901SS
...
18
Handle, Oven Door (Ss) WPL-77001120
...
19
Liner, Drawer Panel (Blk) WPL-31930601B
...
20
Screw WPL-W11245710
...
22
Drawer, Storage (Wht) WPL-32059403W
...
23
Track, Storage Drawer WPL-31733301
...
24
Bolt, Shoulder 10-32 WPL-31750717
...
25
Roller, Drawer WPL-31733401
...
26
Nut WPL-M0282009
...
27
Rivet, Pop WPL-Y0097822
...
28
Handle, Drawer (Ss) WPL-31917401SS
...
29
Panel, Drawer (Ss) WPL-31917001SS
...
30
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
31
Screw WPL-W11245710

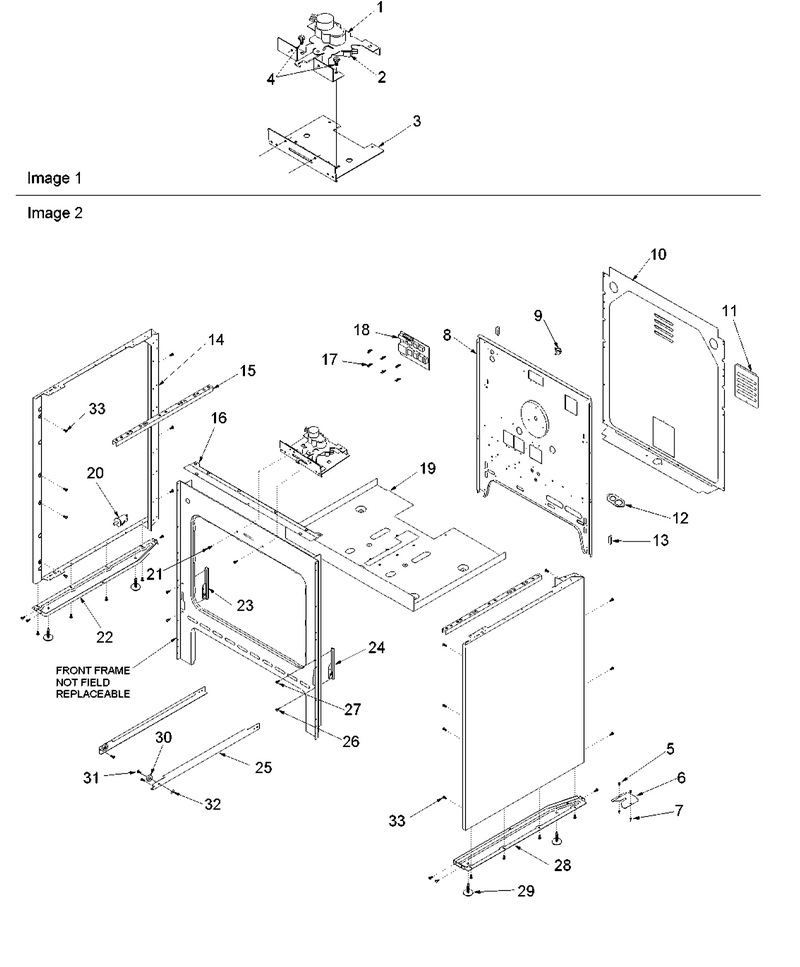

02 - Cabinet

...
...
NI
Screw, No.10-32x1/2 (Pan Ph Hd) WPL-31750517
...
1
Latch, Oven Door WPL-Y0309430
...
2
Switch, Door Latch WPL-Y0314277
...
3
Brkt, Latch Mtg WPL-Y0316243
...
4
Screw WPL-WP693995
...
5
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
6
Bracket, Anti Tip WPL-31945201
...
7
Anchor, Plastic WPL-Y0301555
...
8
Retainer, Rear (Elec) WPL-31733901
...
9
Switch, Hi Limit WPL-Y0053584
...
10
Cover, Rear WPL-31757101
...
11
Plate, Access WPL-31757201
...
12
Plate, Main Inlet Wire WPL-0058311
...
13
Cable, Clip Esm WPL-Y0091587
...
14
Panel, Side (Blk) WPL-31825102B
...
15
Channel, Broil Burner WPL-Y0304019
...
16
Brkt- Main WPL-314891B
...
17
Support-Circuit Board WPL-Y0306900
...
18
Cntrl-Elec WPL-WPY0309305
...
19
Retainer, Insulation (Bottom) WPL-Y0309061
...
20
Switch, Oven Door WPL-Y0305797
...
21
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
22
Brace, Leveling Leg (Lt) WPL-31854501
...
23
Hinge,oven Door-Lh/heavy WPL-31715205
...
24
Hinge-Door WPL-R0706011
...
25
Track, Mounting WPL-32075601
...
26
Screw WPL-WP4159193
...
27
Screw WPL-WP7101P126-60
...
28
Brace, Leveling Leg (Rt) WPL-31854502
...
29
Leg,leveling Xxx WPL-314187B
...
30
Roller, Drawer WPL-31733401
...
31
Bolt, Shoulder 10-32 WPL-31750717
...
32
Nut WPL-M0282009
...
33
Screw WPL-W11245710

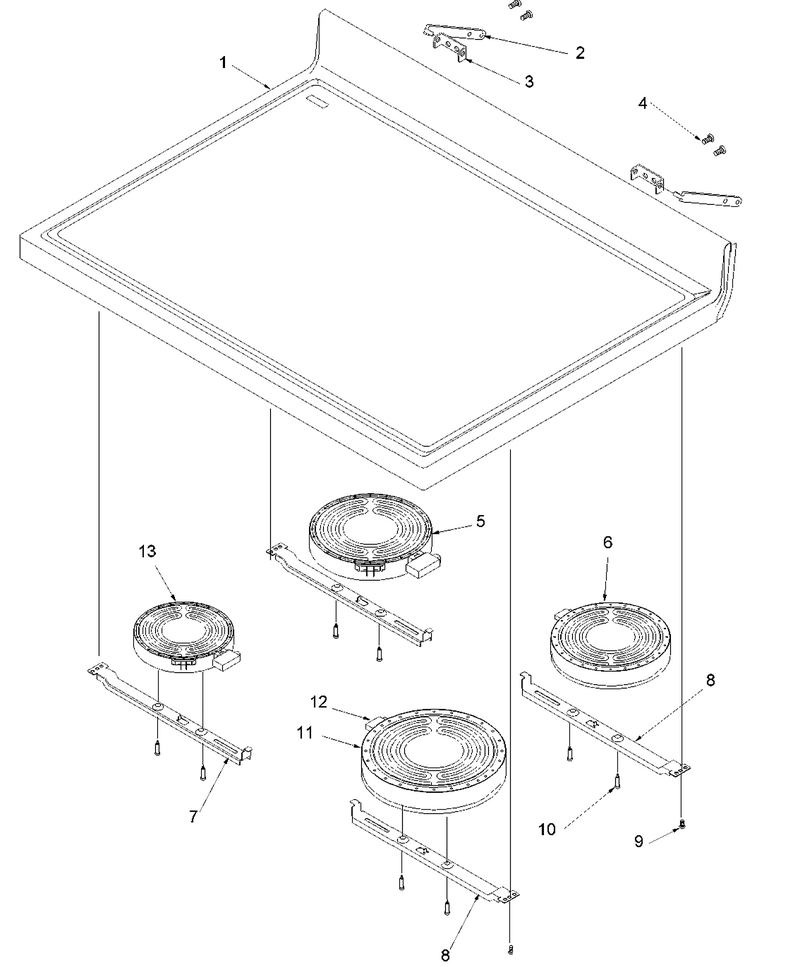

04 - Main Top

...
...
1
Assy, Top & Glass (6610/8600 B WPL-31721501B
...
2
Pin, Hinge WPL-Y0315931
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
4
Screw WPL-W11245710
...
5
Elmnt-Surf WPL-W10823710
...
6
Elmnt-Surf WPL-W10823699
...
7
Bracket, Element Lt WPL-31720702
...
8
Bracket, Element WPL-31720701
...
9
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
10
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
11
Elmnt-Surf WPL-W10823726
...
12
Limiter-Dual WPL-0316689
...
13
Elmnt-Surf WPL-WP32082801

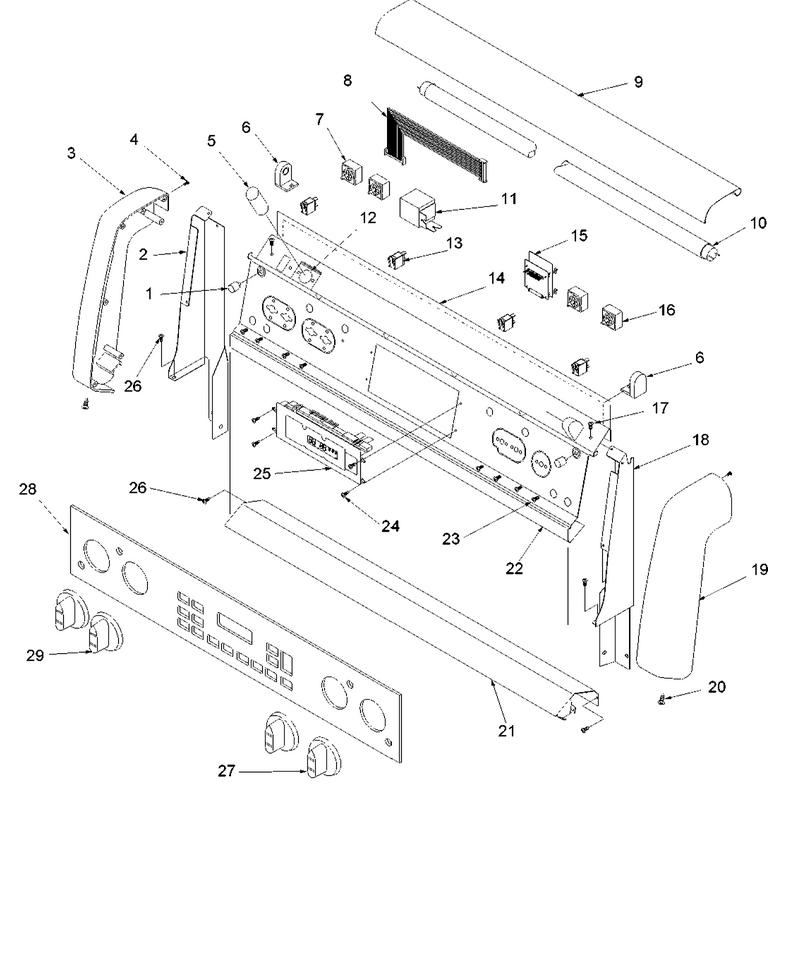

01 - Backguard

...
...
NI
Harness, Wire Bkgd (Erc-Relay WPL-Y0315920
...
1
Bumper, Rubber WPL-Y0314643
...
2
Bkgd. Support-Lh WPL-315877B
...
3
End Cap-Glass Bkgd Lh WPL-315844B
...
4
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
5
Starter, Flourescent WPL-0071920
...
6
Lamp Holder-Floures WPL-Y0304559
...
7
Switch- In WPL-WP74011243
...
8
Harness, Wiring WPL-0314521
...
9
Cover, Light WPL-31926801B
...
10
Lamp-Fluor WPL-WP95292
...
11
Ballast WPL-Y0071869
...
12
Socket, Starter (1 Piece) WPL-31785501
...
13
Indicator Light WPL-Y0071820
...
14
Cover, Upper Rear WPL-0315887
...
15
Board, Adapter WPL-Y0314034
...
16
Switch, Dual Inf. WPL-Y0315855
...
17
Screw WPL-W11245710
...
18
Bkgd. Support-Rh WPL-315876B
...
19
End Cap-Glass Bkgd Rh WPL-315842B
...
20
Screw WPL-74009538
...
21
Shield, Bkgd Trim Heat WPL-31722704B
...
22
Mtg. Pnl, Bkgd Control WPL-315840B
...
23
Screw, No.8-32 X 1/4 WPL-31750714
...
24
Screw WPL-WP693995
...
25
Erc, 4800 Single Oven WPL-31949401
...
26
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
27
Knob, Dual Infinite (Blk) WPL-31760207B
...
28
Glass,bkgd(Black) WPL-31923201B
...
29
Knob, Infinite Switch (Blk) WPL-31760201B

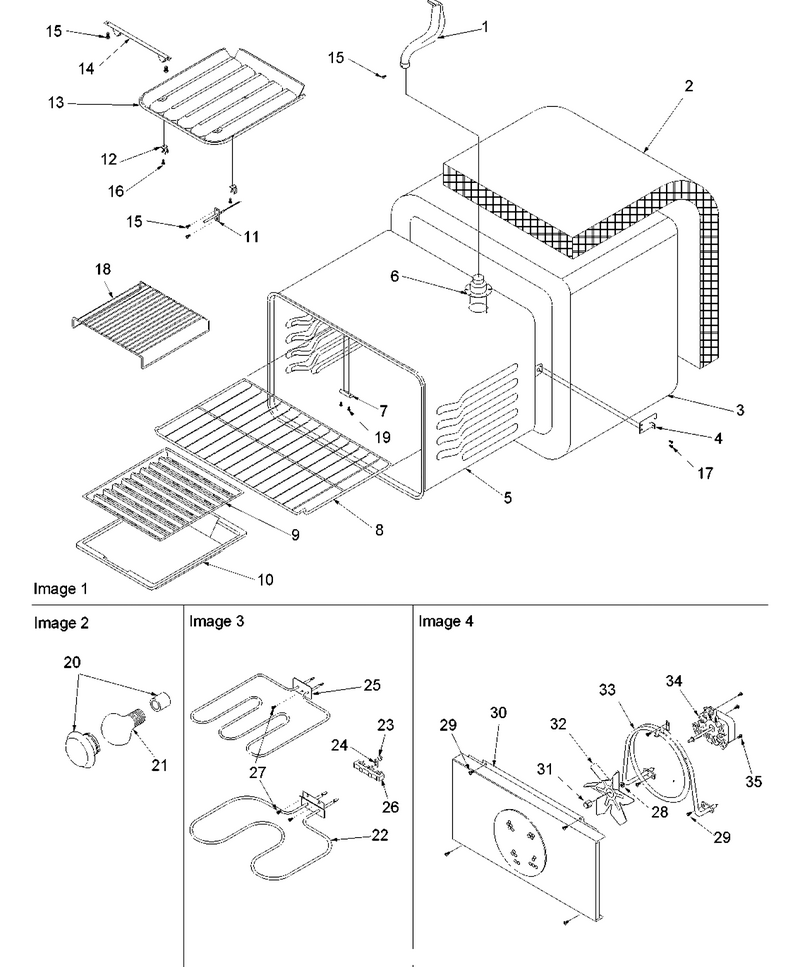

03 - Cavity

...
...
NI
Wire, Insulation Retainer 100`` WPL-31715801
...
1
Tube, Vent WPL-31866901
...
2
Insulation, Rear WPL-31975901
...
3
Insulation, Wrapper WPL-31975801
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Oven, Cavity (Enamelled) WPL-31822301CG
...
6
Smoke Eliminator, Short WPL-Y0316952
...
7
Cover, Chip WPL-Y0315022
...
8
Rack, Oven WPL-309988J
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Sensor WPL-WPY0314907
...
12
Bracket, Mounting WPL-0315402
...
13
Reflector, Broil Element WPL-Y0315403
...
14
Bracket, Reflector Mounting WPL-Y0061557
...
15
Screw WPL-W11245710
...
16
Rivet, Pop WPL-Y0097822
...
17
Screw WPL-WP693995
...
18
Rack, Broiler WPL-Y0306531
...
19
Screw WPL-W11245710
...
20
Oven Light Assy WPL-31823701
...
21
Light Bulb WPL-8009
...
22
Element- B WPL-WP77001094
...
23
Hex Nut (Nkl) WPL-31750124
...
24
Block-Term WPL-WPW10245259
...
25
Element- B WPL-WPY0061732
...
26
Block-Term WPL-WP8203546
...
27
Screw WPL-WP7101P126-60
...
28
Washer (Zn) WPL-0307038
...
29
Screw WPL-W11245710
...
30
Cover, Fan (Cg) WPL-31843201CG
...
31
Nut, Lt Hand Thread WPL-0307037
...
32
Blade, Fan WPL-Y0307036
...
33
Element, Conv Oven(240v-2200w) WPL-77001135
...
34
Assy, Conv. Fan & Blade WPL-31769301
...
35
Screw WPL-WP693995
