product name

Amana ART6511WW/P1143658NWW Electric Range

Model: ART6511WW-P1143658NWW

Save
 Part Not Listed?Part Not Listed?

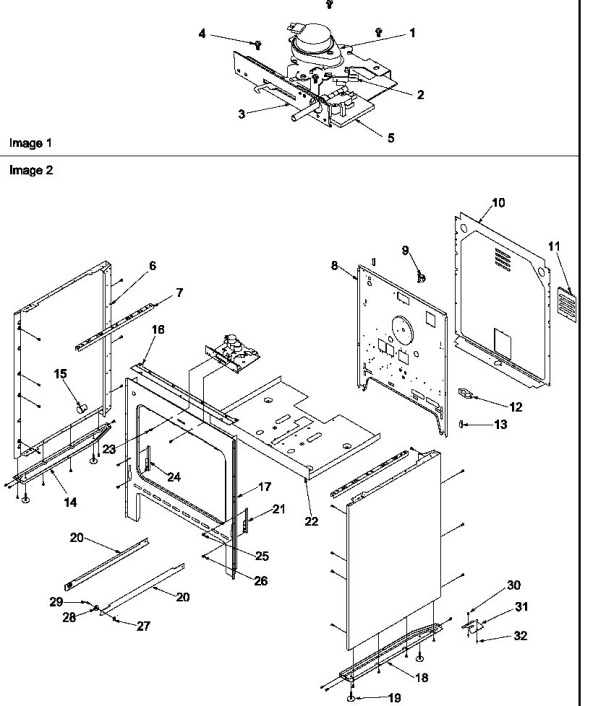

product name

Amana ART6511WW-P1143658NWW

...
...
2
Range Oven Door Lock Switch WPL-W10915404
...
4
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
25
Range Screw WPL-WP7101P126-60

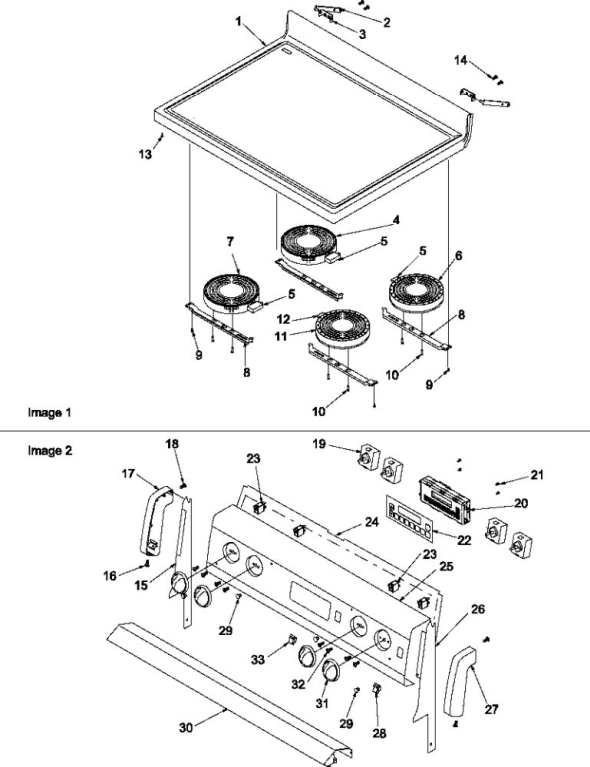

Amana ART6511WW-P1143658NWW

...
...
4
Range Radiant Surface Element, 9-In WPL-W10823710
...
6
Range Radiant Surface Element, 7-In (Replaces Wp8523697) WPL-W10823699
...
11
Range Dual Radiant Surface Element WPL-W10823726
...
14
Refrigerator Screw WPL-W11245710
...
17
Range Control Panel End Cap, Left WPL-WP315843B
...
18
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
19
Range Surface Element Control Switch WPL-WP74011243
...
23
Light WPL-WP903115
...
27
Range Control Panel End Cap, Right WPL-WP315841B
...
28
Range Rocker Switch WPL-74008717
...
28
Switch Rocker (Off-White) WPL-74008765

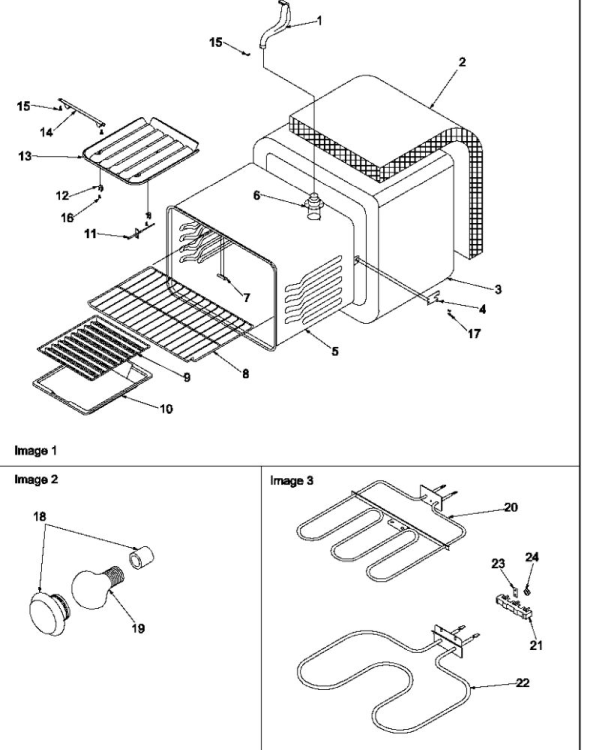

Amana ART6511WW-P1143658NWW

...
...
8
Range Oven Rack (Replaces 314763J) WPL-WP314763J
...
9
Range Broil Pan WPL-4396923
...
10
Range Broil Pan WPL-4396923
...
11
Range Oven Temperature Sensor WPL-WPY0314907
...
15
Refrigerator Screw WPL-W11245710
...
17
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
19
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
20
Range Broil Element WPL-WPY0061732
...
21
Range Terminal Block WPL-WP8203546
...
22
Range Bake Element (Replaces 77001094) WPL-WP77001094
...
23
Range Terminal Block (Replaces W10245259) WPL-WPW10245259

Amana ART6511WW-P1143658NWW

...
...
5
Refrigerator Screw WPL-W11245710
...
22
Refrigerator Screw WPL-W11245710

Amana ART6511WW-P1143658NWW

...
...
NI
Cooktop Cleaning Cream For Smoothtop Ranges WPL-40079
...
...
...
