Amana ART6121CC (BOM: P1143851NCC)

Model: ART6121CC (BOM: P1143851NCC)

Save Part Not Listed?
product name

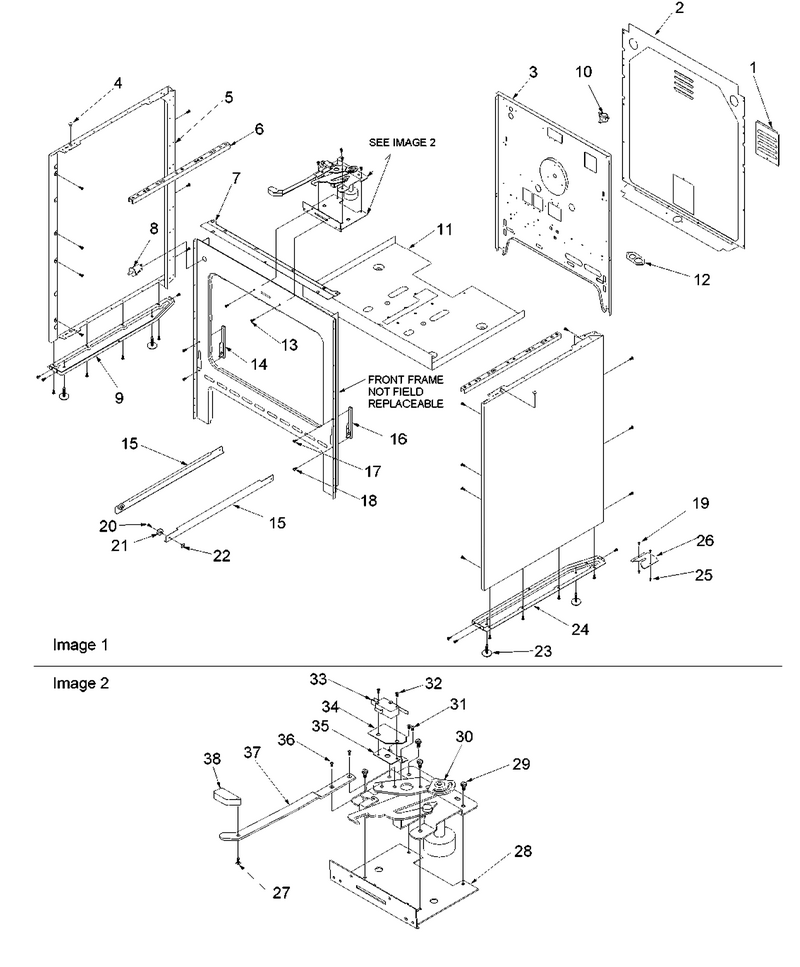

01 - Cabinet

...
...
NI
Screw WPL-W11245710
...
1
Plate, Access WPL-31757201
...
2
Cover, Rear WPL-31757101
...
3
Retainer, Rear (Elec) WPL-31733901
...
4
Spacer, Snap-In WPL-31717001
...
5
Panel, Side (Bsq) WPL-31825105C
...
6
Channel, Broil Burner WPL-Y0304019
...
7
Brkt- Main WPL-314891B
...
8
Switch, Oven Light WPL-866294
...
9
Brace, Leveling Leg (Lt) WPL-31854501
...
10
Switch, Hi Limit WPL-Y0053584
...
11
Retainer, Insulation (Bottom) WPL-Y0309061
...
12
Plate, Main Inlet Wire WPL-0058311
...
13
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
14
Hinge, Oven Door (Lt) WPL-31715201
...
15
Track, Mounting WPL-32075601
...
16
Hinge-Door WPL-R0706011
...
17
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
18
Screw WPL-WP4159193
...
19
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
20
Bolt, Shoulder 10-32 WPL-31750717
...
21
Roller, Drawer WPL-31733401
...
22
Nut WPL-M0282009
...
23
Leg,leveling Xxx WPL-314187B
...
24
Brace, Leveling Leg (Rt) WPL-31854502
...
25
Anchor, Plastic WPL-Y0301555
...
26
Bracket, Anti Tip WPL-31945201
...
27
Screw, No.6-32 X .375 Flat Hd Ph WPL-31750306
...
28
Bracket, Latch Mounting WPL-31848301
...
29
Screw WPL-WP693995
...
30
Latch, Oven Door (Elec) WPL-31719901
...
31
Screw 4-40x1 WPL-Y0092365
...
32
Screw, Tt 23 4-40 X 5/8 WPL-Y0065664
...
33
Switch, Clean Circuit WPL-Y0065780
...
34
Insulation, Esm WPL-Y0091523
...
35
Bracket, Switch WPL-Y0302316
...
36
Screw WPL-WP4159193
...
37
Arm, Latch (Bisque) WPL-31919805C
...
38
Handle, Latch Arm (Bisque) WPL-31919704C

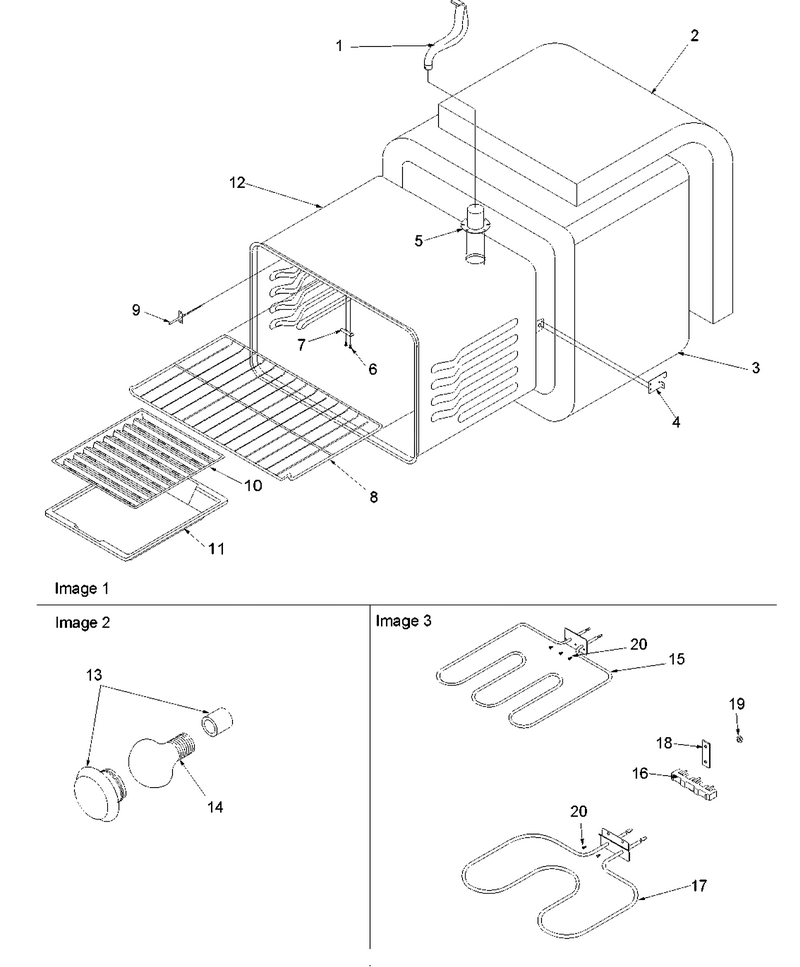

02 - Cavity

...
...
NI
Wire, Insulation Retainer 100`` WPL-31715801
...
1
Tube, Vent WPL-31866901
...
2
Insulation, Rear WPL-31975901
...
3
Insulation, Wrapper WPL-31975801
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Smoke Eliminator, Short WPL-Y0316952
...
6
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
7
Cover, Chip WPL-Y0315022
...
8
Rack-Oven WPL-WP314763J
...
9
Sensor WPL-WP31968201
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Procelain Broiler (Pan And Grid) WPL-4396923
...
12
Oven Shell (El. W/lt) WPL-31821301CG
...
13
Oven Light Assy WPL-31823701
...
14
Light Bulb WPL-8009
...
15
Broil Elem WPL-WPY0063532
...
16
Block-Term WPL-WP8203546
...
17
Element- B WPL-WP77001094
...
18
Block-Term WPL-WPW10245259
...
19
Hex Nut (Nkl) WPL-31750124
...
20
Screw WPL-WP7101P126-60

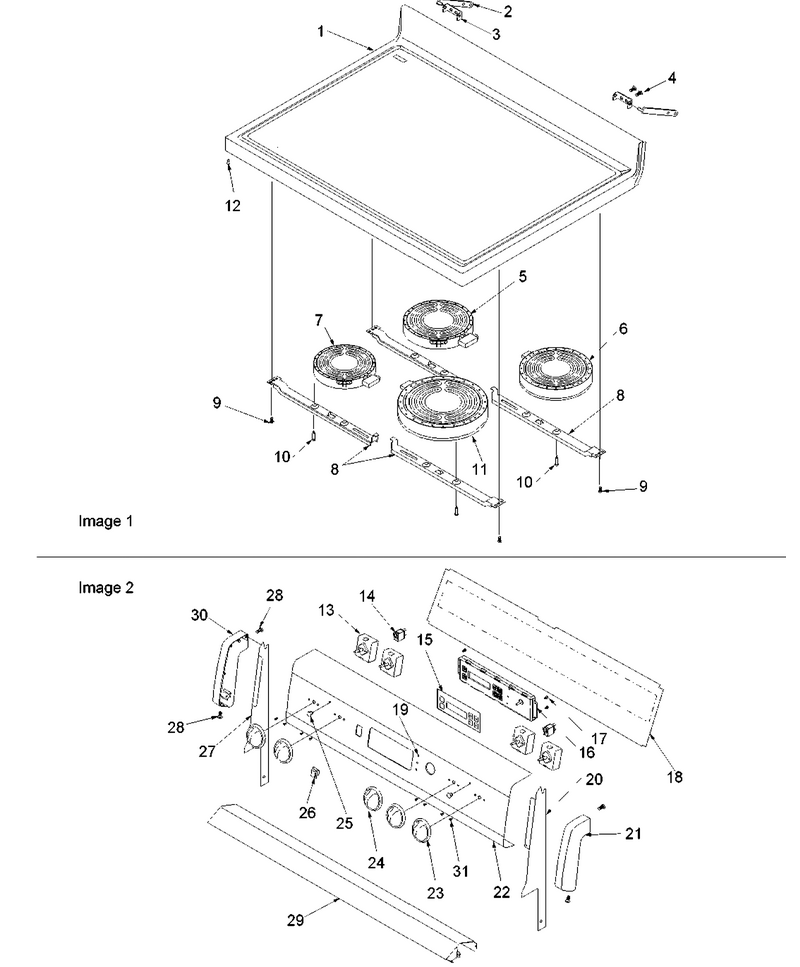

03 - Main Top And Backguard

...
...
Note: Ribbon Element Limiters Are Not Replaceable. WPL-NOTE:
...
NI
Harness, Bkgd WPL-32002101
...
1
Main Top/glass Assy (Blk) WPL-32038201B
...
2
Pin, Hinge WPL-Y0315931
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
4
Screw WPL-W11245710
...
5
Elmnt-Surf WPL-W10823710
...
6
Elmnt-Surf WPL-W10823699
...
7
Elmnt-Surf WPL-WP32082801
...
8
Bracket, Element WPL-31720701
...
9
Screw WPL-W11245710
...
10
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
11
Element, Ribbon (2500 Watts) WPL-31939201
...
12
Spacer, Snap-In WPL-31717001
...
13
Switch, Infinite Csi (R) WPL-31926703
...
14
Light-Ind WPL-WP903115
...
15
Overlay,mylar(Bisque) WPL-31777908C
...
16
Krc Electric WPL-31771301
...
17
Screw WPL-W11245710
...
18
Cover, Upper Rear WPL-0315887
...
19
Lens, Ind Light (Mini Snap In) WPL-31780501
...
20
Bkgd Support,rh(Bisque) WPL-315876C
...
21
End Cap, Rh(Bisque) WPL-315841C
...
22
Pnl, Bkgd (Bisque) WPL-31779440C
...
23
Knob, Infinite Switch (Bsq) WPL-31760104C
...
24
Knob, Thermostat (Bsq) WPL-31760310C
...
25
Lens, Indicator WPL-Y0316265
...
26
Switch,rocker(Bisque) WPL-301491C
...
27
Bkgd Support,lh(Bisque) WPL-315877C
...
28
Screw WPL-74009538
...
29
Shield, Bkgd Trim Heat WPL-31722704B
...
30
End Cap, Lh(Bisque) WPL-315843C
...
31
Screw, No.8-32 X 1/4 WPL-31750714

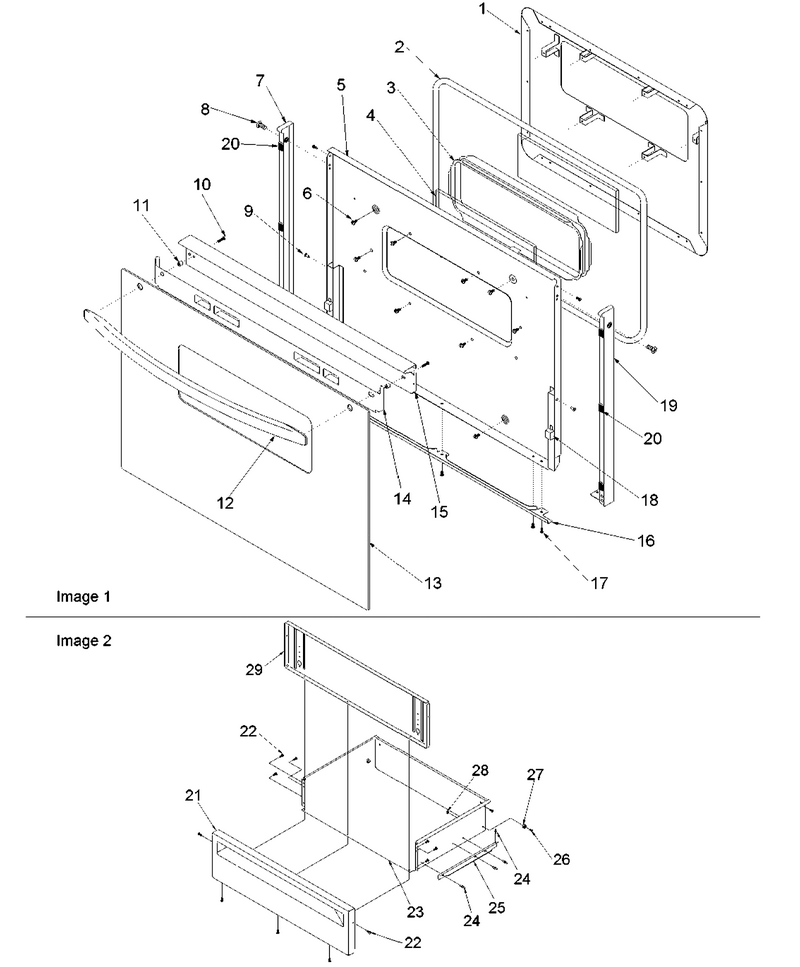

04 - Oven Door And Storage

...
...
NI
Label, Cleaning Caution Fr/eng WPL-Y0309434
...
1
Pad, Door (Enameled) WPL-316976CG
...
2
Gasket, Oven Door (67``) WPL-31715902
...
3
Frame, Window Pack WPL-Y0316975
...
4
Glass, Double Coated WPL-Y0316974
...
5
Backer, Oven Door (Sm Window) WPL-316978CG
...
6
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
7
End Cap, Lt (Bsq) WPL-309458C
...
8
Screw WPL-W11245710
...
9
Rivet, Pop WPL-Y0302648
...
10
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
11
Bushing, Handle (Nal) WPL-Y0309461
...
12
Handle, Oven Door (Bsq) WPL-31689505C
...
13
Glass, Door(Bisque) WPL-315943C
...
14
Assy, Glass Heat Shield WPL-31833201
...
15
Trim, Door Top (Bsq) WPL-32054202C
...
16
Support, Glass (Bsq) WPL-309460C
...
17
Screw WPL-W11245710
...
18
Bumper, Rubber WPL-Y0309627
...
19
End Cap, Rt (Bsq) WPL-309457C
...
20
Tape, Foam WPL-0043184
...
21
Panel, Drawer (Chr) WPL-309177C
...
22
Screw WPL-W11245710
...
23
Drawer, Storage (Wht) WPL-32059403W
...
24
Rivet, Pop WPL-Y0097822
...
25
Track, Storage Drawer WPL-31733301
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Roller, Drawer WPL-31733401
...
28
Nut WPL-M0282009
...
29
Liner, Drawer Panel (Blk) WPL-31930601B
