Amana ART6110LL (BOM: P1142673NLL)

Model: ART6110LL (BOM: P1142673NLL)

Save Part Not Listed?
product name

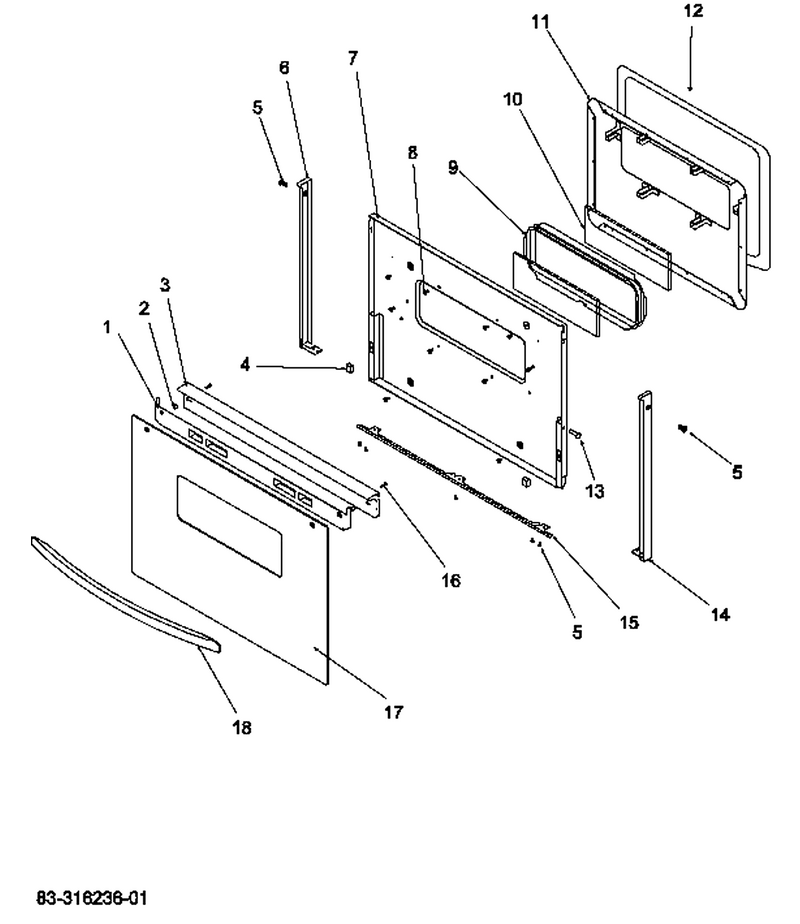

05 - Oven Door

...
...
NI
Label, Cleaning Caution Fr/eng WPL-Y0309434
...
1
Shield, Glass Heat (Oven Door) WPL-315946L
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top WPL-31782103L
...
4
Bumper, Rubber WPL-Y0309627
...
5
Screw WPL-W11245710
...
6
End Cap, Lt (Alm) WPL-309458L
...
7
Backer, Oven Door (Sm Window) WPL-316978CG
...
8
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
9
Frame, Window Pack WPL-0316228
...
10
Glass, Dbl Coated WPL-0316226
...
11
Pad, Door (Enameled) WPL-316976CG
...
12
Gasket, Oven Dr 82`` WPL-Y0300432
...
13
Rivet, Pop WPL-Y0302648
...
14
End Cap, Rt (Alm) WPL-309457L
...
15
Support, Glass (Alm) WPL-309460L
...
16
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
17
Glass, Oven Door WPL-315943L
...
18
Handle, Oven Door (Alm) WPL-31689502L

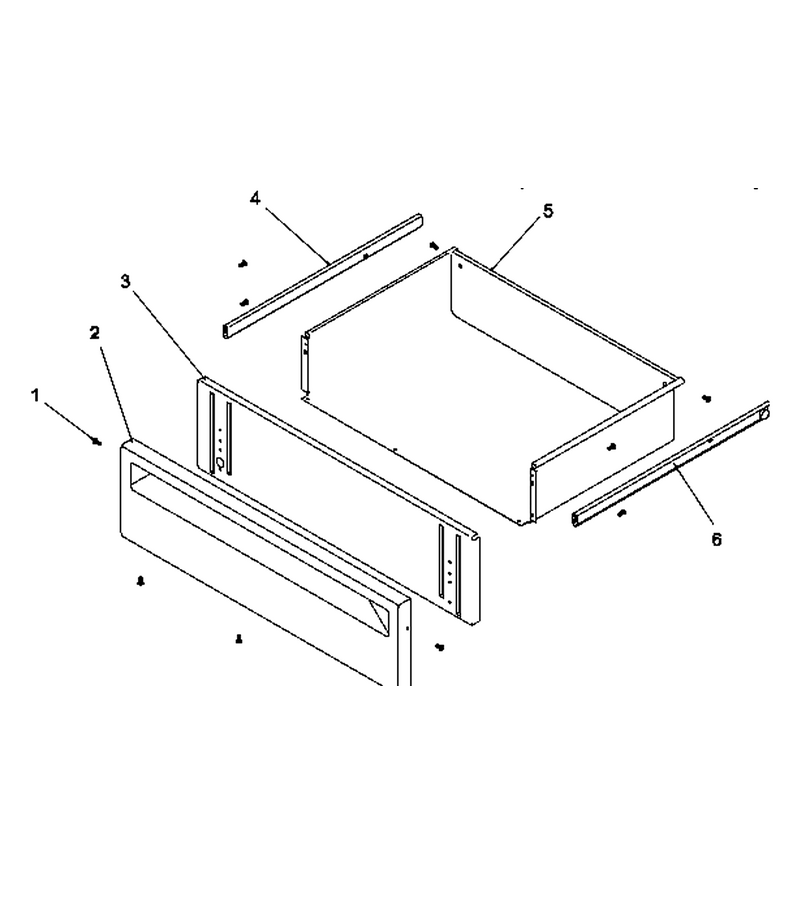

06 - Storage Drawer

...
...
NI
Rivet, Pop WPL-Y0076357
...
1
Screw WPL-W11245710
...
2
Panel, Drawer (Alm) WPL-309177L
...
3
Liner, Drawer Panel (Blk) WPL-31930601B
...
4
Runner Storage Dwr-Lh WPL-0314664
...
5
Drawer, Storage (Wht) WPL-32059403W
...
6
Runner Storage Dwr-Rh WPL-Y0314665

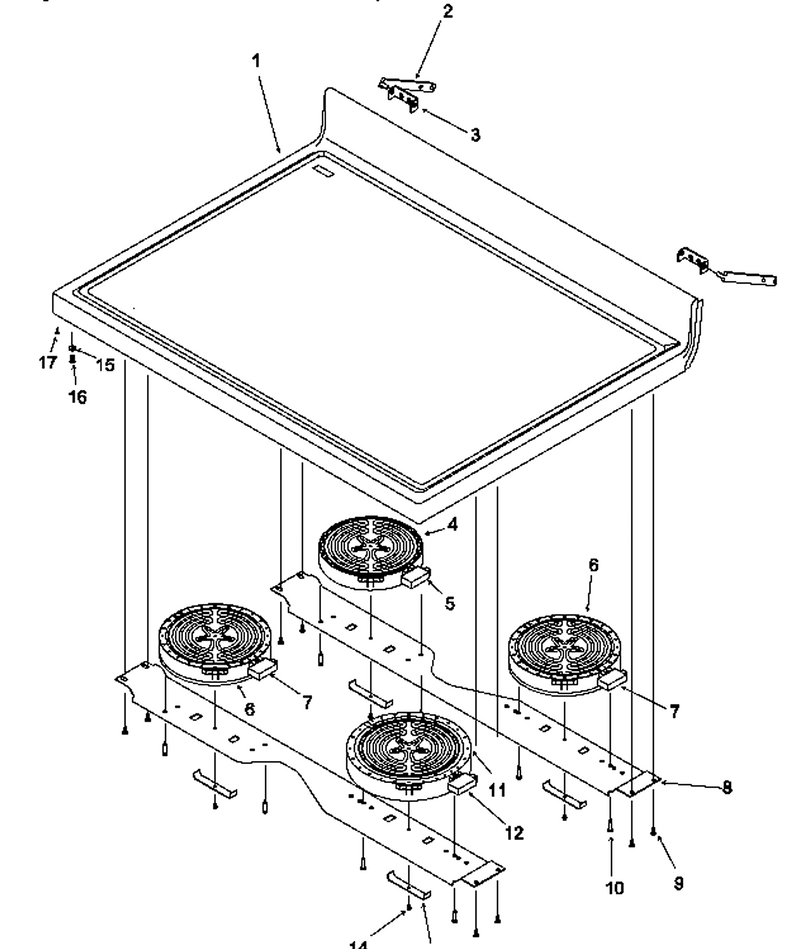

04 - Main Top

...
...
NI
Clamp, Tube (1/2``) WPL-Y0307456
...
1
Assy, Top & Glass (Art6110 Ald WPL-315912L
...
2
Pin, Hinge WPL-Y0315931
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
4
Elmnt-Surf WPL-WP32082801
...
5
Limiter (1200 Watts) WPL-0316686
...
6
Elmnt-Surf WPL-W10823699
...
7
Limiter (1500 Watts) WPL-0316687
...
8
Brkt, Element WPL-Y0316248
...
9
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
10
Screw, Shoulder WPL-Y0316569
...
11
Elmnt-Surf WPL-W10823708
...
12
Limiter (2000 Watts) WPL-0316688
...
13
Spring, Element WPL-Y0306683
...
14
Screw WPL-W11245710
...
15
Screw WPL-W11245710
...
16
Spacer, Nylon (.14``) WPL-Y0062445

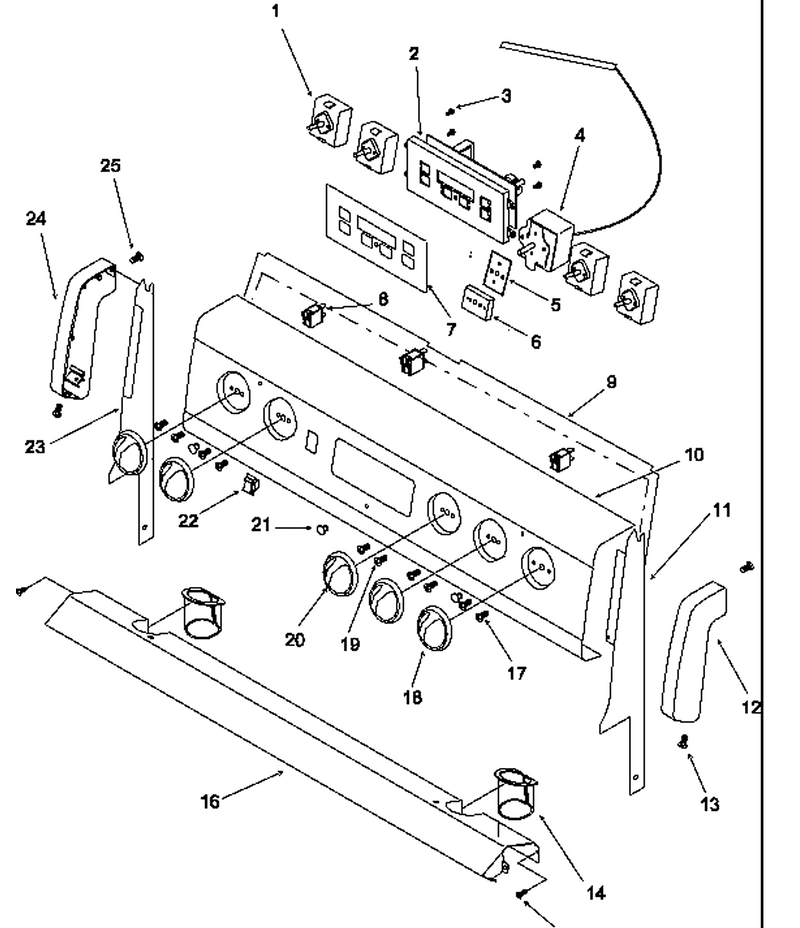

01 - Backguard

...
...
NI
Screw, No.6-20 X .375 Pan Hd Ph WPL-Y0073657
...
1
Switch- In WPL-WP74011243
...
2
Clean Clock, Timer/order B,l,o WPL-Y0315568
...
3
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
4
T Stat Sel WPL-R0161098
...
5
Plate, Adaptor WPL-Y0315967
...
6
Switch, Auxilliary WPL-Y0316886
...
7
Mylar,clean Timer WPL-315852L
...
8
Light-Ind WPL-WP903115
...
9
Cover, Upper Rear WPL-0315887
...
10
Assy, Bkgd Pnl & Brace WPL-315938L
...
11
Bkgd. Support-Rh WPL-315876L
...
12
End Cap-Metal Bkgd Rh WPL-315841L
...
13
Screw No.8 - 18 X .250 WPL-Y0061164
...
14
Bushing, Wire WPL-0316548
...
15
Screw WPL-74009538
...
16
Shield, Bkgd Trim Heat WPL-315874B
...
17
Screw, No.8-32 X 3/16`` WPL-Y0316546
...
18
Knob, Infinite Switch (Alm) WPL-31760103L
...
20
Knob, Thermostat (Alm) WPL-315968L
...
21
Lens, Indicator WPL-Y0316265
...
22
Switch, Rocker (Almond) WPL-301491L
...
23
Bkgd. Support-Lh WPL-315877L
...
24
End Cap Lh WPL-315843L
...
25
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016

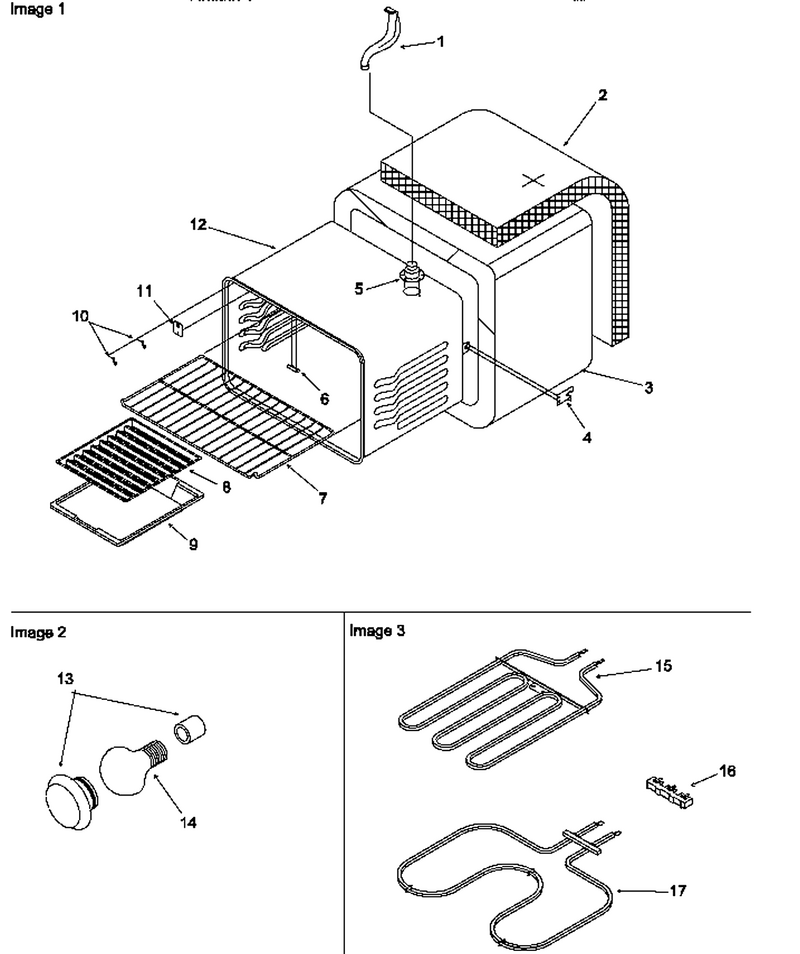

03 - Cavity

...
...
NI
Block-Term WPL-WPW10245259
...
1
Tube, Vent WPL-0315917
...
2
Insulation, Wrapper WPL-31975801
...
3
Insulation, Wrapper WPL-0300973
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Smoke Eliminator WPL-Y0058526
...
6
Cover, Chip WPL-Y0315022
...
7
Rack-Oven WPL-WP314763J
...
8
Procelain Broiler (Pan And Grid) WPL-4396923
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Clip, Thermo Capillary WPL-Y0067053
...
11
Capillary Hole Cover WPL-Y0063351
...
12
Oven Shell (El. W/lt) WPL-31821101CG
...
13
Light- Ove WPL-WP74011278
...
14
Light Bulb WPL-8009
...
15
Broil Elem WPL-WPY0063532
...
16
Block-Term WPL-WP8203546
...
17
Element- B WPL-WP77001094

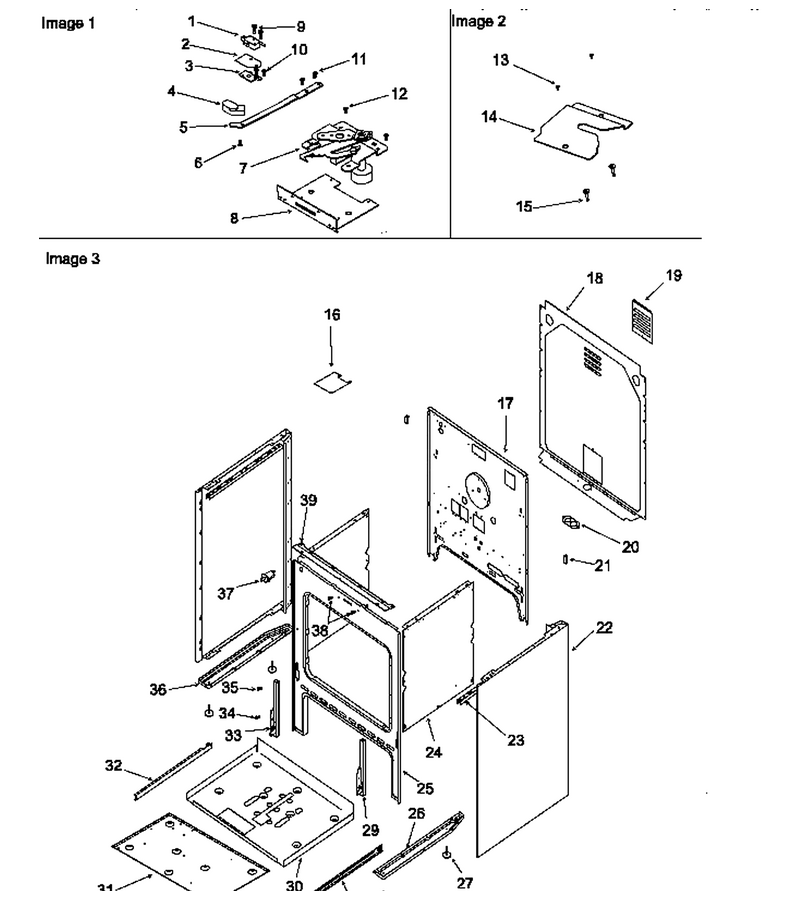

02 - Cabinet

...
...
NI
Screw WPL-W11245710
...
1
Switch, Clean Circuit WPL-Y0065780
...
2
Insulation, Esm WPL-Y0091523
...
3
Bracket, Switch WPL-Y0302316
...
4
Handle, Latch WPL-306830L
...
5
Latch Arm WPL-303039L
...
6
Screw 6 32x5/16 Ph Fh WPL-Y0041769
...
7
Latch, Oven Door (Elec) WPL-31719901
...
8
Bracket, Latch Mounting WPL-31848301
...
9
Screw, Tt 23 4-40 X 5/8 WPL-Y0065664
...
10
Screw 4-40x1 WPL-Y0092365
...
11
Screw Latch Arm Mounting WPL-Y0078780
...
12
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
13
Screw Cabinet Trim WPL-Y0041813
...
14
Bracket, Anti Tip WPL-31945201
...
15
Anchor, Plastic WPL-Y0301555
...
16
Retainer, Oven Light WPL-Y0063353
...
17
Retainer, Rear Insul. WPL-0309081
...
18
Cover, Rear WPL-31757101
...
19
Plate, Access WPL-31757201
...
20
Plate, Main Inlet Wire WPL-0058311
...
21
Cable, Clip Esm WPL-Y0091587
...
22
Panel, Side (Alm) WPL-31825103L
...
23
Channel, Broil Burner WPL-Y0304019
...
24
Retainer, Insulation (Side) WPL-0304282
...
25
See Note Front Frame,tall-S/c W/light(Not Field Replaceable) WPL-Y00000000
...
26
Brace, Leveling Leg (Rt) WPL-31854502
...
27
Leg,leveling Xxx WPL-314187B
...
28
Track, Storage Dwr Rh WPL-0314663
...
29
Kit, Door Hinge(Lh-Hs) WPL-Y0317067
...
30
Retainer, Insulation (Bottom) WPL-Y0309061
...
31
Shield, Heat WPL-Y0315146
...
32
Track, Storage Dwr Lh WPL-Y0314662
...
33
Hinge-Door WPL-R0706011
...
34
Screw WPL-WP4159193
...
35
Screw WPL-WP7101P126-60
...
36
Brace, Leveling Leg (Lt) WPL-31854501
...
37
Switch, Oven Light WPL-866294
...
38
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
39
Brkt- Main WPL-314891B
