Amana ARSE66MBB (BOM: PARSE66MBB0)

Model: ARSE66MBB (BOM: PARSE66MBB0)

Save Part Not Listed?
product name

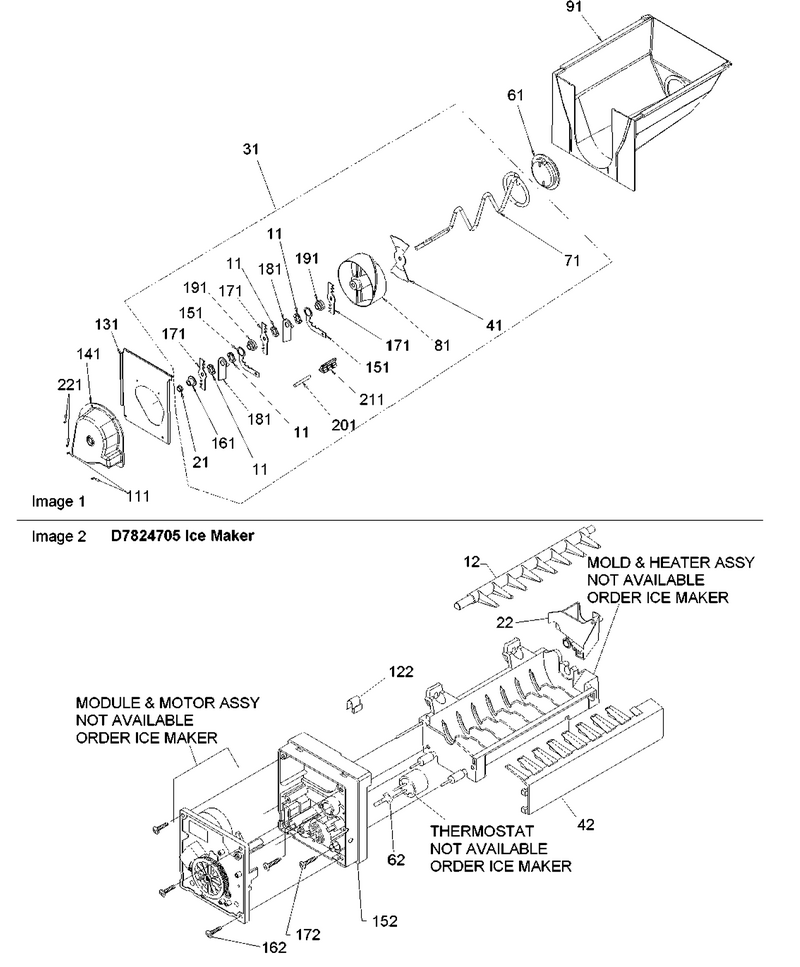

11 - Ice Bucket/auger Assy

...
...
NI
Label, Im WPL-10834701
...
11
Washer, Waved WPL-10275101
...
12
Arm-Ejectr WPL-WP627843
...
21
Nut WPL-WPM0223101
...
22
Cup-Fill WPL-WP628356
...
31
Crushr-Mec WPL-WP12740302
...
41
Bar, Crsh Ice Bucket WPL-10113801
...
42
Arm-Stripr WPL-WP2182124
...
61
Cap- Helix WPL-WPD7749401
...
62
Clip WPL-WP2315522
...
71
Agitator, Ice WPL-10114401
...
81
Wheel- Crs WPL-WP67002052
...
91
Bucket- Ic WPL-WP67005959
...
111
Screw (3) WPL-67006425
...
122
Clip WPL-WP628379
...
131
Front, Ice Crusher WPL-10115001
...
141
Cover, Blade WPL-10114004
...
151
Blade, Static WPL-10114601
...
152
Housing-Im WPL-WP2195914
...
161
Spacer, Cover WPL-10113901
...
162
Screw WPL-R0186041
...
171
Blade, Rotating WPL-10114501
...
172
Screw WPL-R0186040
...
181
Damper, Ice WPL-10275201
...
191
Washer Stepped WPL-10114301
...
201
Pin, Roll WPL-M1200108
...
211
Anchor, Blade WPL-10114101
...
221
Screw, Tf WPL-M0231704

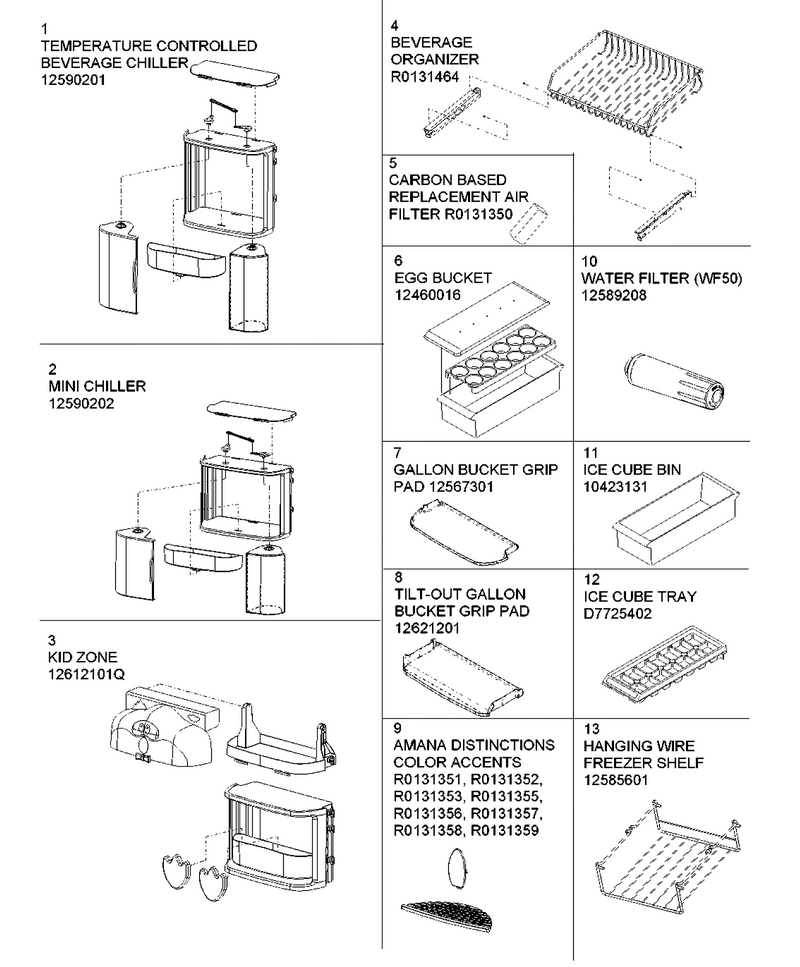

01 - Accessory Page

...
...
1
Chiller Assy. (large) WPL-67003074
...
2
Chiller Assy. (mini) WPL-67003177
...
3
Assy,kid Zone WPL-12612101Q
...
4
Kit,can Rack WPL-R0131464
...
5
Filter,ref Air(qty 2) WPL-R0131350
...
6
Assy,egg Bkt W/ Lid WPL-12460016
...
7
Grip Pad (gallon Bucket) WPL-12567301
...
8
Gripper Bu WPL-67003209
...
9
Kit,handle/grille(country Blue WPL-R0131359
...
10
Filter WPL-EDR4RXD1
...
11
Container WPL-WP10423131
...
12
Tray WPL-WP841180A
...
13
Shelf, Hanging Wire WPL-12585601

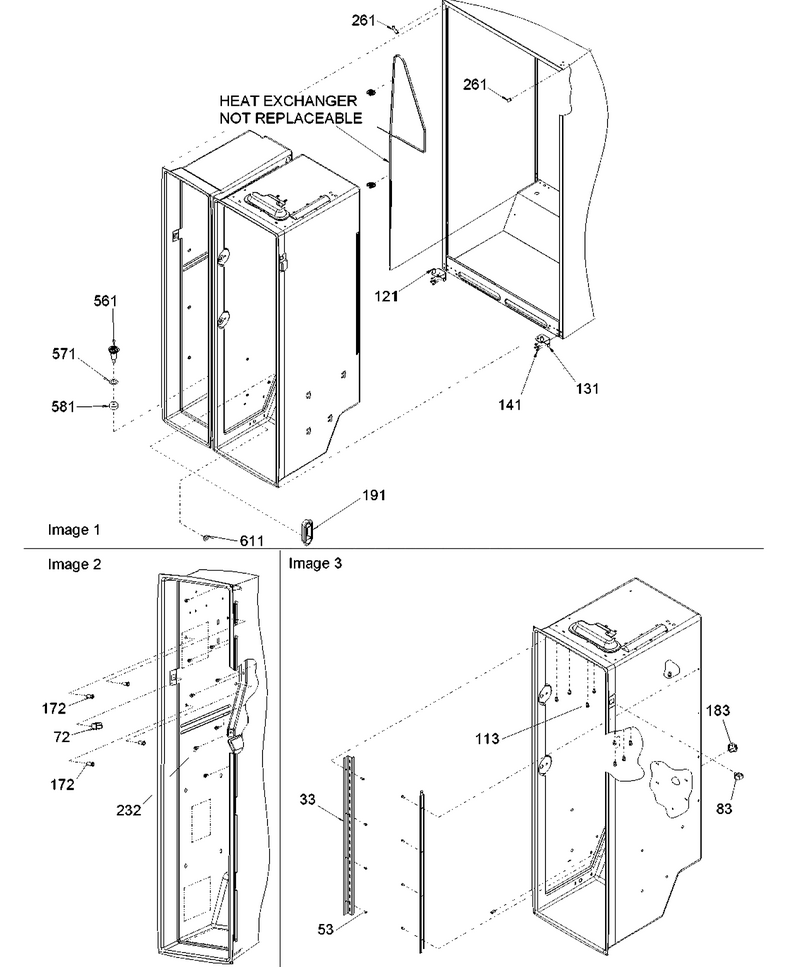

03 - Cabinet Parts

...
...
33
Ladder, Side WPL-67001178
...
53
Screw WPL-WP90767
...
72
Switch WPL-W11396033
...
83
Switch WPL-W11291138
...
113
Grommet, Screw WPL-M0580007
...
121
Hinge, Bottom (lt-Blk) WPL-12570905ED
...
131
Hinge, Bottom (rt-Blk) WPL-12570906ED
...
141
Screw WPL-WP67006715
...
172
Plug, Frz Shelf Support WPL-C8973701
...
183
Socket WPL-W11447232
...
191
Grille, Return Air WPL-12634801
...
232
Grommet, Screw WPL-M0581003
...
261
Cover, Corner (blk) WPL-67003485
...
561
Funnel, Drain WPL-12456901
...
571
Seal- O Ri WPL-WPM0500703
...
581
Gasket- Dr WPL-WPB8381501
...
611
Plug, Air Tunnel WPL-67005933

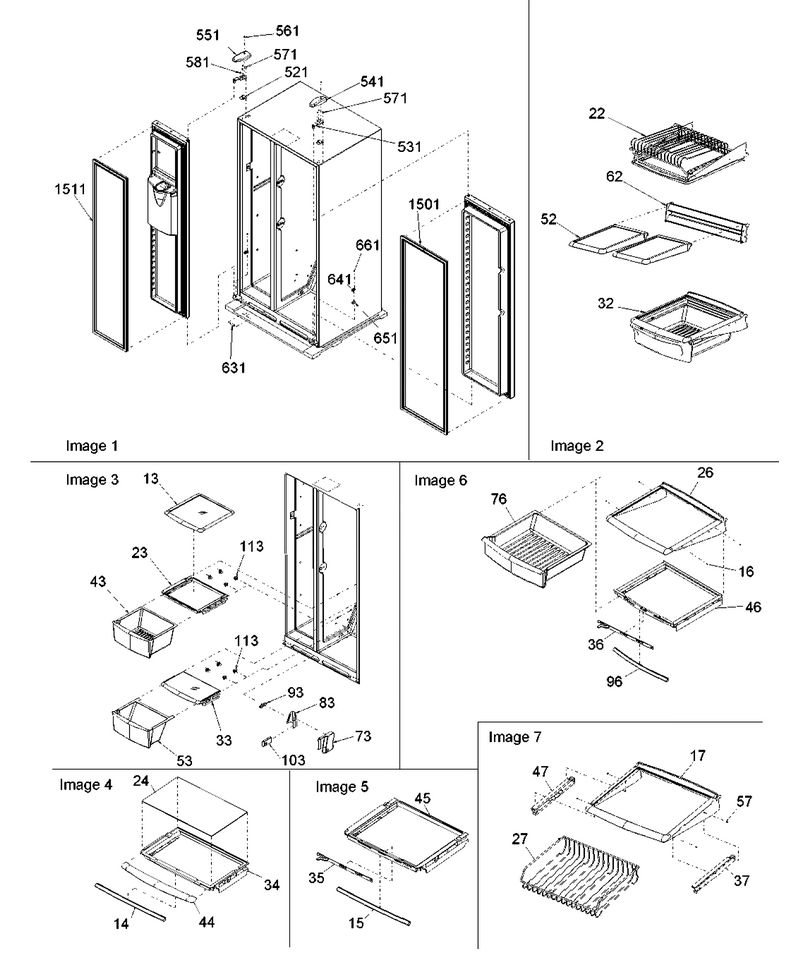

10 - Hinges, & Refrigerator Shelving

...
...
13
Shelf, Top Crisper B/b WPL-67003387
...
14
Seal, Sm Crisper Front WPL-12589104
...
15
Seal, Sm Crisper Front WPL-12589104
...
16
Screw WPL-W10856125
...
17
Shelf, Glide WPL-12457501
...
22
Kit,can Rack WPL-12589901Q
...
23
Assy,b/b Lg Crisper WPL-12585701Q
...
24
Glass, Shelf WPL-12204811
...
26
Shelf, Sta B/b 26 WPL-67003389
...
27
Rack, Can WPL-12565901
...
32
Assy,sm Crisper Frm(26) WPL-12589802Q
...
33
Assy,deli Frame WPL-12585802Q
...
34
Frame, Deli WPL-67002822
...
35
Slide, Lg Crisper (blue) WPL-12562601U
...
36
Slide, Sm Crisper (blue) WPL-12562602U
...
37
Glide, Can Rack (rt) WPL-12579601
...
43
Pan-Crispr WPL-WP67001503
...
44
Trim, Dba Deli Front WPL-67003348
...
45
Frame- Lg WPL-WP67002723
...
46
Frame, Sm Crisper WPL-67002900
...
47
Holder-Bev WPL-WP12579602
...
52
Shelf, Specialty WPL-67001180
...
53
Pan- Deli WPL-WP67001504
...
57
Screw WPL-W11233072
...
62
Rack, Shelf WPL-12617801
...
73
Housing, B/b Deli Control WPL-67003347
...
76
Pan,sm Crisper-26 WPL-12559604
...
83
Slide, Deli Control WPL-12586101
...
93
Control, Deli (blue) WPL-12586201U
...
96
Seal, Sm Crisper Front WPL-12589104
...
103
Tunnel, Deli Control WPL-12664201
...
113
Support- C WPL-WP12603701
...
521
Shim, Top Hinge WPL-12579702
...
531
Hinge-Door WPL-WP12566607ED
...
541
Cover, Left Hinge (black) WPL-W10177767
...
551
Cover, Top Hinge (rt-Blk) WPL-12684202B
...
561
Screw WPL-WP8281196
...
571
Screw WPL-WP489349
...
581
Screw WPL-W11214483
...
631
Fitting WPL-WP2300868
...
641
Kit,dr Closure WPL-R0181181
...
651
Shim- Clos WPL-WP67005716
...
661
Screw, Tc WPL-M0220431
...
1501
Gasket-Fip WPL-W10840101
...
1511
Gasket, Door (black) WPL-W10133491

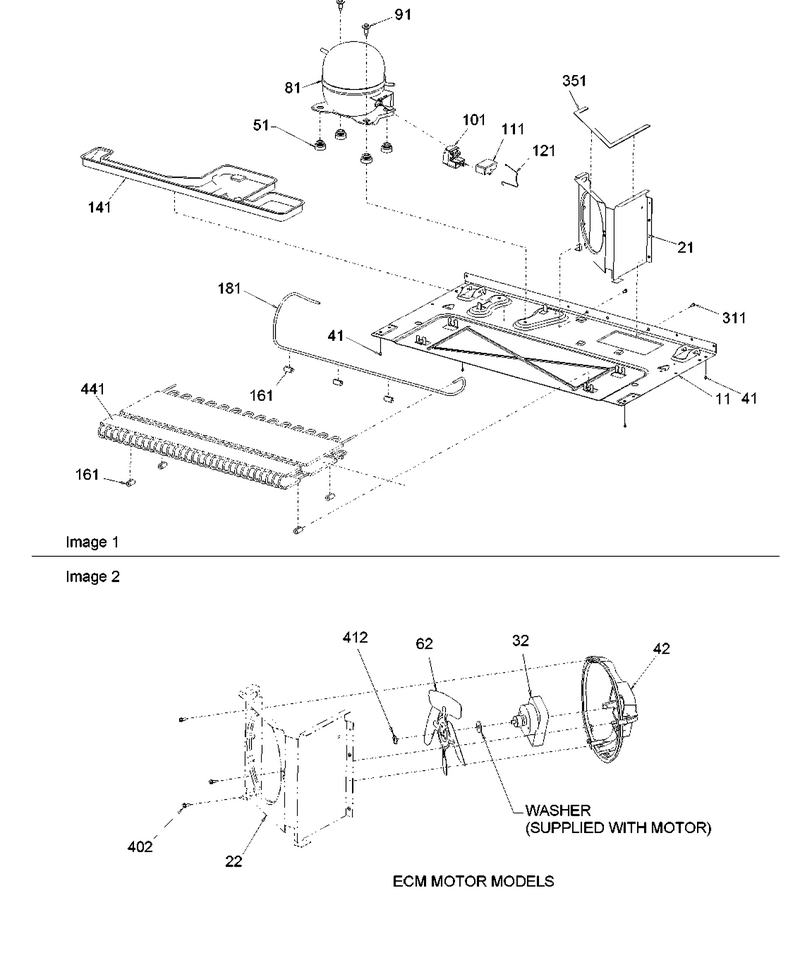

12 - Machine Compartment

...
...
NI
Harness-Mc WPL-WP12669701
...
11
Basepan, Mc WPL-12457103
...
21
Shroud, Condenser Fan WPL-67001090
...
22
Shroud, Condenser Fan WPL-67001090
...
32
Motor-Cond WPL-12002738
...
41
Screw, Tf WPL-M0260242
...
42
Motor-Cond WPL-12002738
...
51
Grommet, Compressor WPL-67003493
...
62
Blade- Con WPL-WP12587601
...
81
Compressor WPL-W10309994
...
91
Screw, Shldr WPL-M0221523
...
101
Overload WPL-WP12555902
...
111
Capacitor WPL-WP65889-4
...
121
Strap, Bale WPL-12576801
...
141
Pan- Drain WPL-WP12579803
...
161
Grommet (2) WPL-67005680
...
181
Tube, Discharge WPL-12588701Q
...
311
Screw (3) WPL-67006425
...
351
Seal-Strip WPL-WP854334
...
402
Screw (3) WPL-67006425
...
412
Nut WPL-WP486692
...
441
Condenser WPL-WP67006131

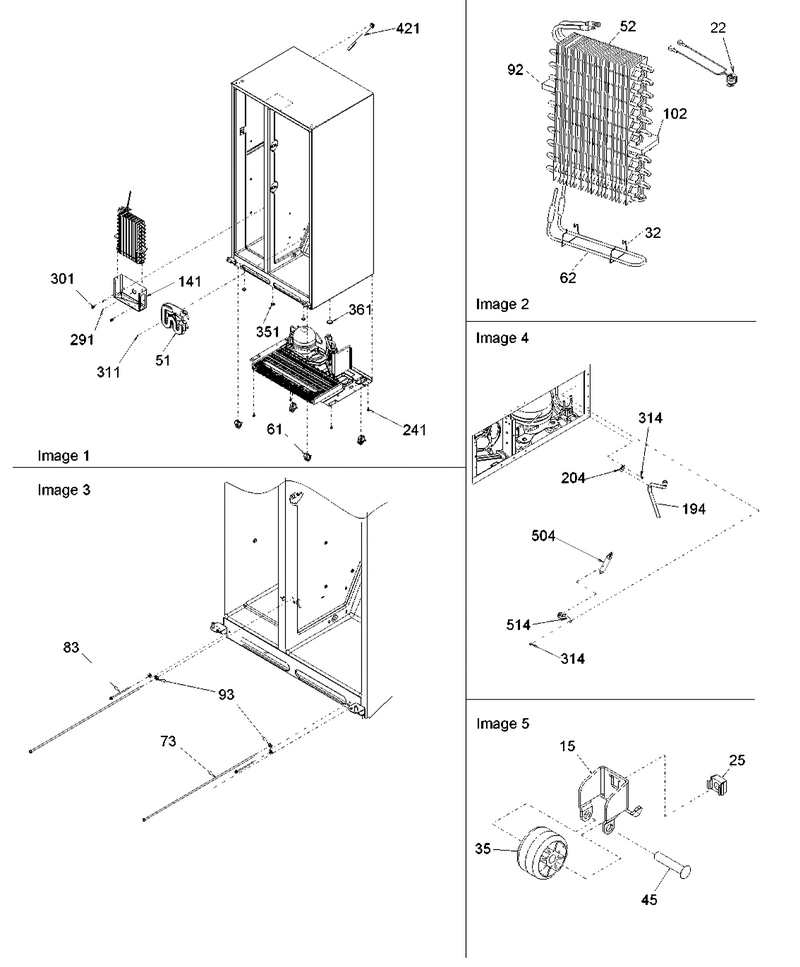

05 - Evap Assy, Drier & Rollers

...
...
15
Bracket, Foot WPL-12456801V
...
22
Kit, Thermostat WPL-R0131454
...
25
Nut, Speed WPL-M0286708
...
32
Clip WPL-W11673433
...
35
Roller WPL-WP10450603
...
45
Rivet WPL-M1205302
...
51
Kit, Water Tank WPL-R0131625
...
52
Evap Kit (sxs)--W WPL-12001940
...
61
Assy, Roller Brkt WPL-12580301Q
...
62
Heater- Ev WPL-WP12049801
...
73
Screw, Mach WPL-10093320
...
83
Screw WPL-71003131
...
92
Block, Air Coil (lt) WPL-12590101
...
93
Washer, Nylon WPL-M0274074
...
102
Block, Air Coil (rt) WPL-12590102
...
141
Tray, Evap Drip WPL-12558101WD
...
194
Tube, Drain WPL-12580401
...
204
Clamp WPL-M0102303
...
241
Screw, Tf WPL-M0260242
...
291
Screw WPL-WP90767
...
301
Clip, Evaporator WPL-10623003
...
311
Screw WPL-WP98165
...
314
Screw WPL-WP98165
...
351
Plug, Button (blk) WPL-A3080001
...
361
Plug, Button WPL-A3076901
...
421
Elbow- Fil WPL-WP67003576
...
504
Drier WPL-WPB2150504
...
514
Clip, Drier WPL-10547002

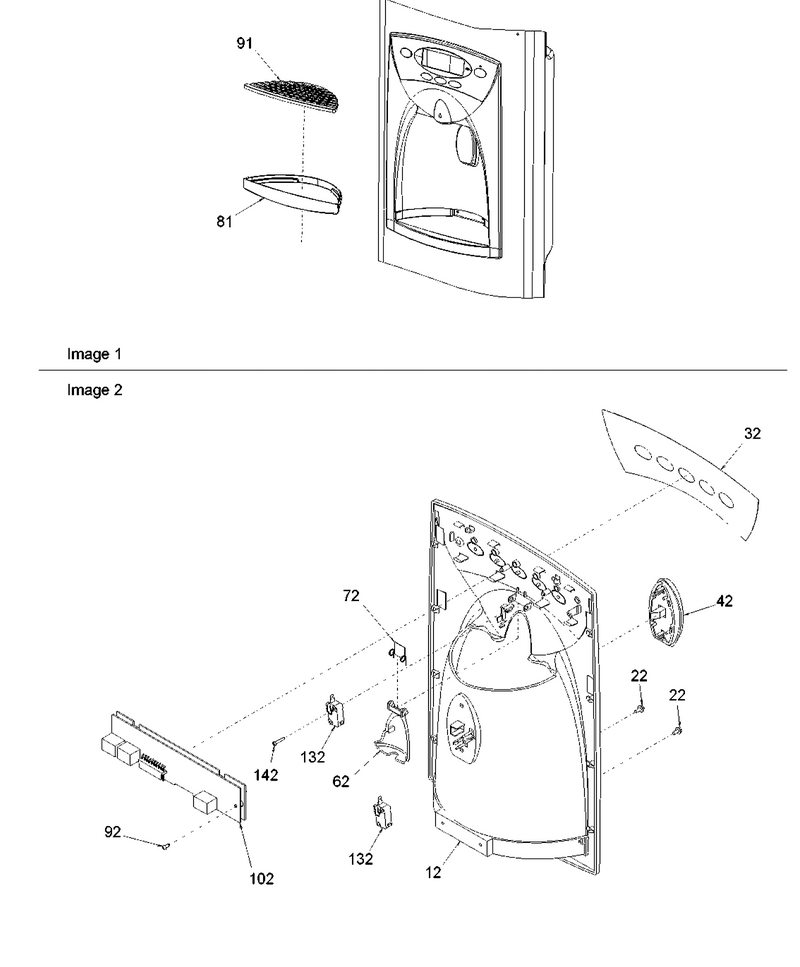

06 - Facade

...
...
NI
Clip WPL-WPM0104106
...
12
Facade,disp-5 Button(black) WPL-12560908B
...
22
Screw (3) WPL-67006425
...
32
Insert, Facade (blk) WPL-67001176
...
42
Actr Pad Frame Assy (blk) WPL-12593203B
...
62
Button, Sports Fill (blk) WPL-12665402B
...
72
Spring, Sports Fill-Return WPL-B8385403
...
81
Tray,b/b Sump(black) WPL-12561002B
...
91
Grille- Su WPL-WP67002382
...
92
Screw, 6-19 X .250 WPL-2006254
...
102
Cntrl-Elec WPL-WP67003622
...
132
Switch- Li WPL-WP12575501
...
142
Screw,hi/lo WPL-M0237945

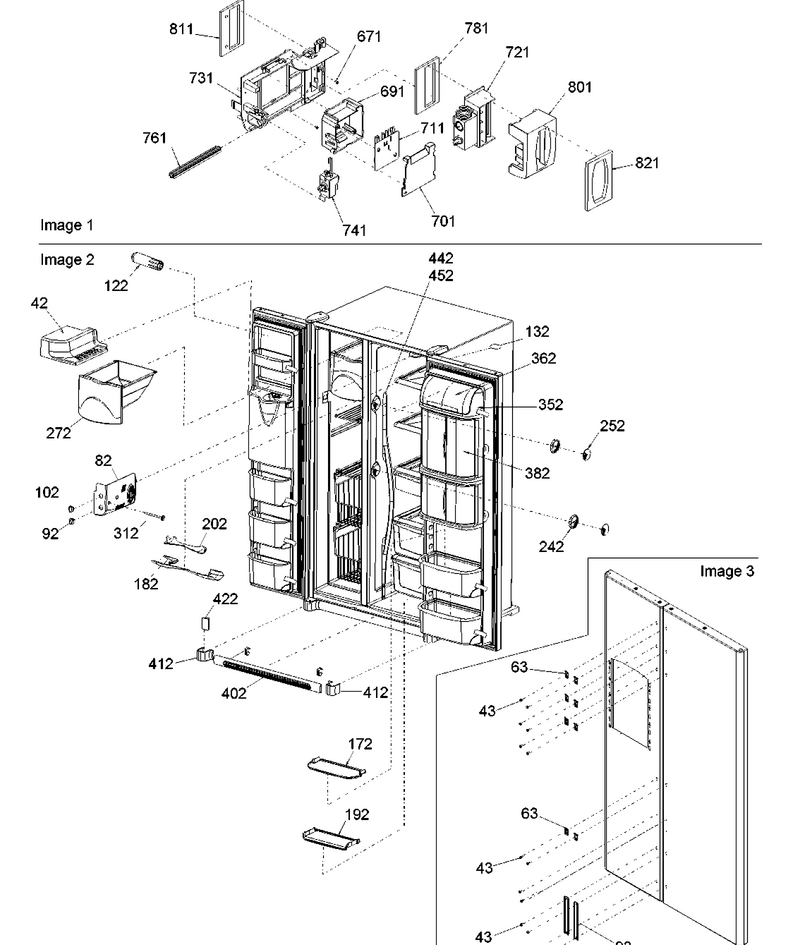

04 - Controls, Light Shield & Door Handles

...
...
NI
Harness, Control WPL-12672901
...
42
Shelf, Quick Chill WPL-12582101
...
43
Screw (3) WPL-67006425
...
63
Clip, Door Handle WPL-12576403
...
82
Cover, B/b Control WPL-67003342
...
92
Knob, Control WPL-12620901
...
93
Retainer, Trim WPL-12273808
...
102
Knob, Control WPL-12620902
...
122
Filter WPL-EDR4RXD1
...
132
Nameplate (amana Plus) WPL-Y12528501
...
172
Grip Pad (gallon Bucket) WPL-12567301
...
182
Cover, Light WPL-12602907
...
192
Gripper Bu WPL-67003209
...
202
Lens, Light WPL-12677801
...
242
Control, Chiller WPL-12572801
...
252
Grille- Ch WPL-12572907
...
272
Bucket- Ic WPL-WP12571606
...
312
Screw WPL-M0231426
...
352
Tray, Dairy WPL-67002304
...
362
Door, Dairy WPL-67002957
...
382
Chiller Assy. (large) WPL-67003074
...
402
Grille Asy WPL-WP67002224
...
412
Cover, Lwr Hinge (blk) WPL-12561901B
...
422
Tech Sheet-S X S Refrig Xxno WPL-12575010
...
442
Handle, Door (blk) WPL-67001657
...
452
Trim, Handle (blk) WPL-12575901B
...
671
Screw WPL-WP98165
...
691
Box, Defrost Control WPL-12624801
...
701
Cover, Defrost Control WPL-12624901
...
711
Cntrl-Elec WPL-WP12566102
...
721
Control- D WPL-WP12571701
...
731
Bracket, Control WPL-12558004
...
741
Control- F WPL-WP12351006
...
761
Extension, Knob WPL-12571801
...
781
Gasket, Damper WPL-12582801
...
801
Insulation, Damper WPL-12604201
...
811
Gasket, Damper WPL-10383201
...
821
Gasket- Co WPL-WP12582901

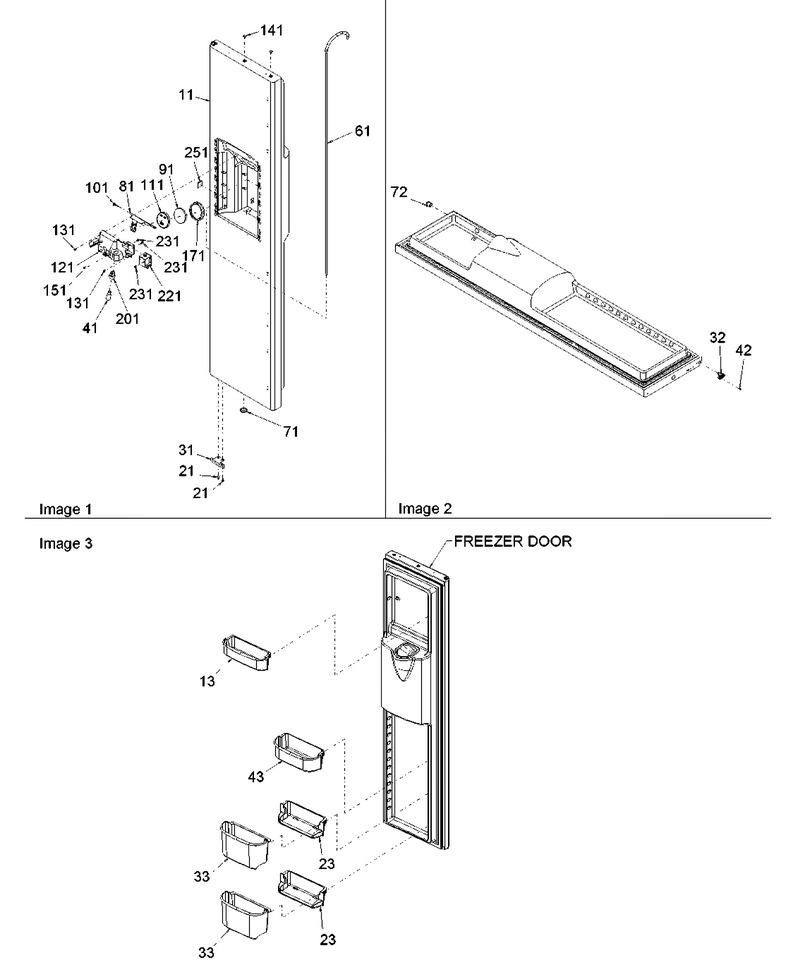

07 - Freezer Door

...
...
11
Fz Dr Foam Assy (blk) WPL-67002118
...
13
Bucket, Upr Fz Dr WPL-12556901
...
21
Screw WPL-WP98165
...
23
Frame, Tilt Bucket WPL-12569401
...
31
Stop, Door (blk) WPL-12636401B
...
32
Closure, Door (blk) WPL-12571301B
...
33
Bucket, Fz Tilt Xxx WPL-12569302
...
41
Bulb-Light WPL-W10857122
...
42
Screw WPL-WP8281227
...
43
Bucket, Lwr Fz Dr WPL-12557501
...
61
Waterline Assy. WPL-67004938
...
71
Plug, Button (blk) WPL-A3080001
...
72
Bushing, Door (blk) WPL-12395501B
...
81
Hinge WPL-12002464
...
91
Insulation WPL-WP67007098
...
101
Spring- Ch WPL-WP12565502
...
111
Door- Ice WPL-WP12562701
...
121
Hinge WPL-12002464
...
131
Screw (3) WPL-67006425
...
141
Plug, Button (blk) WPL-M0311604
...
151
Clip, Waterline WPL-67002816
...
171
Seal- Ice WPL-WP12665101
...
201
Socket, Light WPL-12617501
...
221
Solenoid WPL-67006000
...
231
Screw WPL-WP488234
...
251
Clip, Cord WPL-M0104102

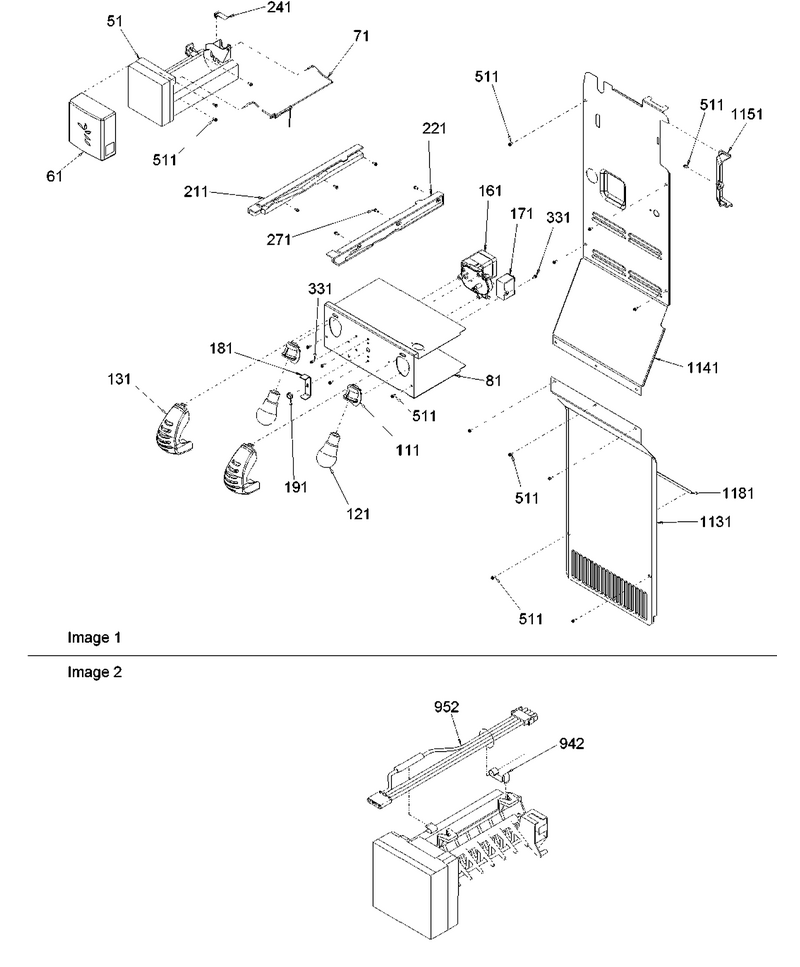

08 - Fz Lighting & Auger Assy

...
...
NI
Harness,auger Mtr WPL-12672501
...
51
Ice Maker Assy. WPL-D7824706Q
...
61
Cover-Frnt WPL-WPW10289690
...
71
Arm-Shut WPL-WPW10152975
...
81
Cover, Auger Motor WPL-12561701
...
111
Socket WPL-W11447232
...
121
Light Bulb WPL-8009
...
131
Shield, Fz Light WPL-67004433
...
161
Motor, Auger WPL-12501001
...
171
Capacitor WPL-WP65889-4
...
181
Coupling WPL-WP10114901
...
191
Nut WPL-WPM0223101
...
211
Glide, Container (left) WPL-67005375
...
221
Glide, Frz. (rt) WPL-67004323
...
241
Clip WPL-B5720302
...
271
Screw, Handle WPL-67006529
...
331
Screw WPL-WPW10139210
...
511
Screw (3) WPL-67006425
...
942
Clamp, Wire WPL-10526701
...
952
Harns-Wire WPL-WPW10146386
...
1131
Cover, Evap WPL-12403401
...
1141
Im Air Duc WPL-12002160
...
1151
Cover, Supply Air WPL-12583101
...
1181
Gasket WPL-A3030302

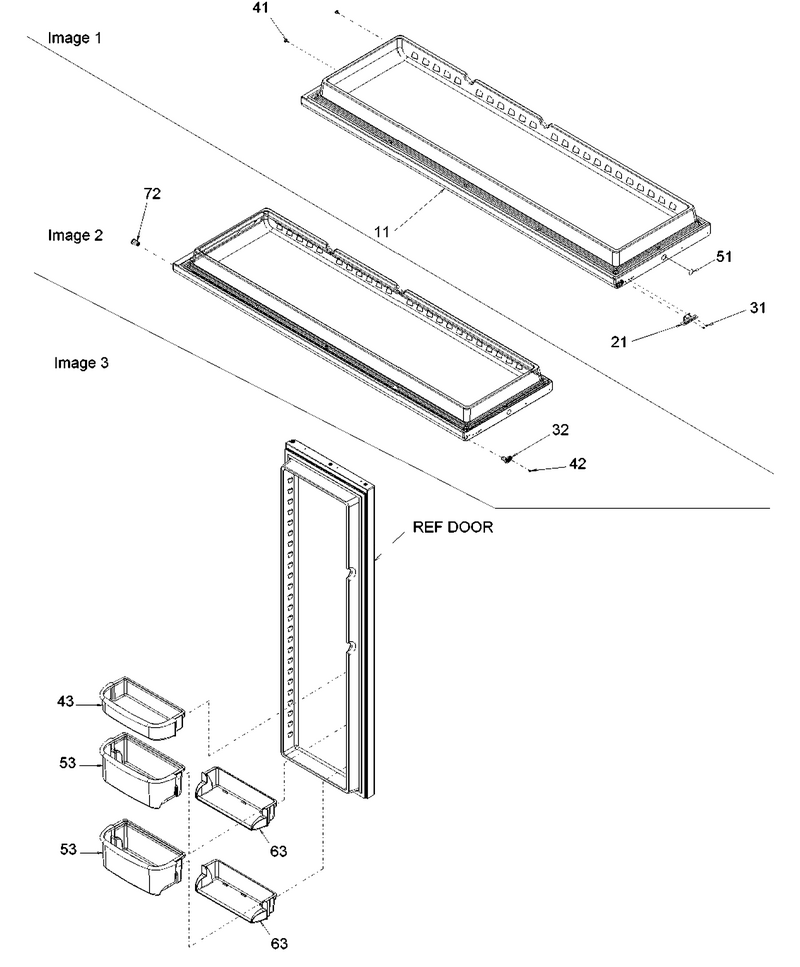

13 - Refrigerator Door

...
...
11
Ref Dr Foam Assy (blk) WPL-12584701BQ
...
21
Stop, Door (blk) WPL-12636401B
...
31
Screw WPL-WP98165
...
32
Kit,dr Closure WPL-R0181181
...
41
Plug, Button (blk) WPL-M0311604
...
42
Screw WPL-WP8281227
...
43
Bucket- Re WPL-WP12556602
...
51
Plug, Button (blk) WPL-A3080001
...
53
Bucket, Gallon Tilt WPL-12568601
...
63
Frame, Tilt Bucket WPL-12568801
...
72
Hing-Bushg WPL-10961005B

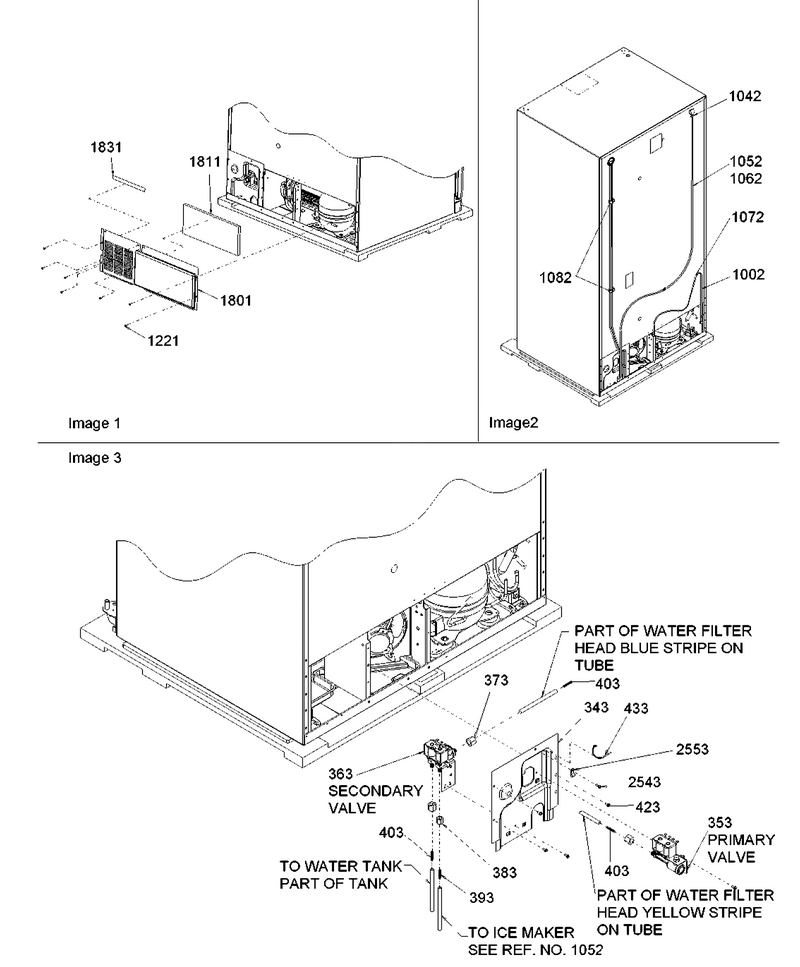

02 - Cabinet Back

...
...
343
Cover, Water Valve WPL-12575201ED
...
353
Valve-Inlt WPL-WP12544002
...
363
Valve-Inlt WPL-12002193
...
373
Nut WPL-8201513
...
383
Nut WPL-WP627018
...
393
Spring WPL-WPA1055105
...
403
Spring, Anti-Kink WPL-A1055104
...
423
Screw, 8-32 X 3/8 WPL-681390
...
433
Wire Tie K WPL-M0322201
...
1002
Cord-Power WPL-WP67006506
...
1042
Clip- Spee WPL-WPM0114003
...
1052
Tube WPL-WPB5705307
...
1062
Insert- Pl WPL-WPA3223101
...
1072
Clip WPL-WPM0104106
...
1082
Clip, Cord WPL-M0104102
...
1221
Screw WPL-WP489069
...
1801
Back, Mach Comp WPL-12575101ED
...
1811
Insulation, Mc Back WPL-B0523599
...
1831
Gasket, Mc Back WPL-B5759649
...
2543
Screw, Sm WPL-M0227217
...
2553
Clamp, Tube WPL-M0108001

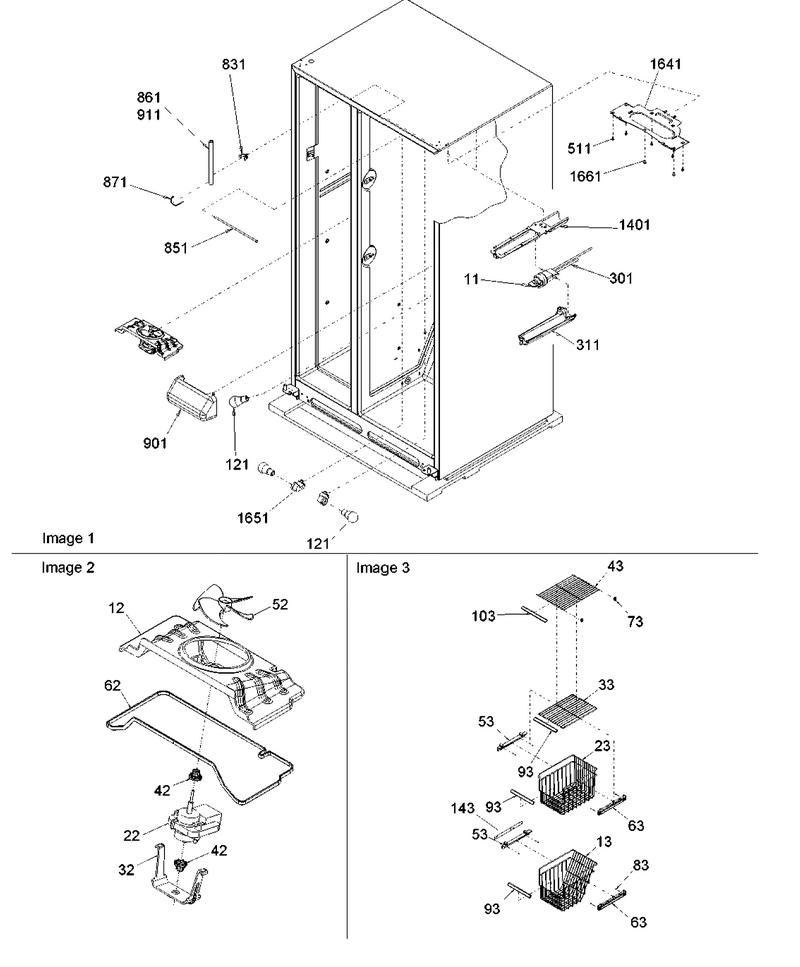

09 - Fz Shelving, Filter & Evap Fan Motor

...
...
11
Cap-Filter WPL-W11395888
...
12
Shroud, Evap WPL-12590001
...
13
Basket, 26`` Lwr Fz Wxs/sxs WPL-67006234
...
22
Motor-Evap WPL-WPW10128551
...
23
Basket, Upr Fz WPL-12570401
...
32
Clip, Evap Motor WPL-12217805
...
33
Shelf, Lwr Fz WPL-12570501
...
42
Grommet- F WPL-WP67002780
...
43
Shelf, Upr Fz WPL-12570601
...
52
Blade-Fan WPL-WP2169142
...
53
Rail, Shelf (lt) WPL-12015102
...
62
Gasket WPL-A3030302
...
63
Rail, Shelf (rt) WPL-10972802
...
73
Support- F WPL-WPC8973801
...
83
Screw WPL-WP98165
...
93
Trim, Basket/shelf WPL-12314101
...
103
Trim, Lwr Shelf WPL-67004181
...
121
Light Bulb WPL-8009
...
143
Spacer, Fz Shelf WPL-12683601
...
301
Housing- W WPL-WP67001669
...
311
Cover- Fil WPL-WP12568001
...
511
Screw (3) WPL-67006425
...
831
Tie Wire WPL-WPM0322202
...
851
Tube-Water WPL-12617602
...
861
Insulation,tubing WPL-12607601Q
...
871
Tie-Wire WPL-WPW10339879
...
901
Shield, Crisper Light WPL-67001507
...
911
Gasket (per Foot) WPL-A3030303
...
1401
Plate, Filter Backing WPL-12688501
...
1641
Plate, Light Backing WPL-12666201
...
1651
Socket, Light WPL-12679501
...
1661
Screw WPL-W11233072
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
