Amana ARS2661BC (BOM: PARS2661BC0)

Model: ARS2661BC (BOM: PARS2661BC0)

Save Part Not Listed?
product name

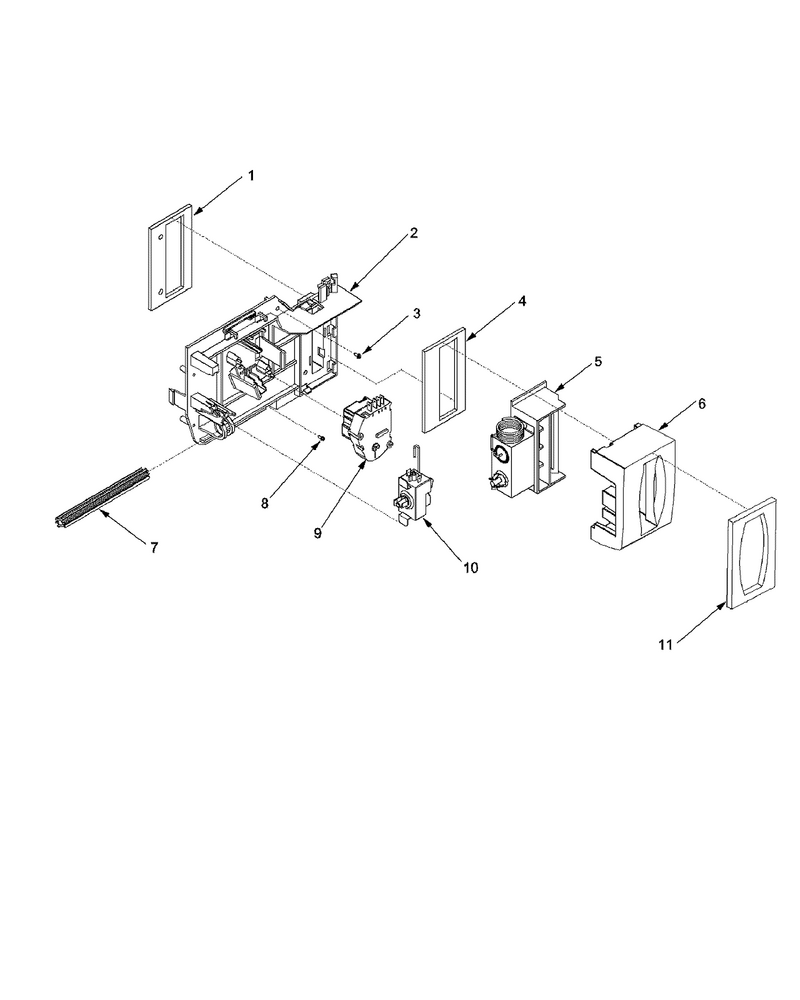

03 - Controls

...
...
NI
Harness, Control WPL-12602001
...
1
Gasket, Damper WPL-10383201
...
2
Bracket, Control WPL-67002982
...
3
Screw WPL-M0216539
...
4
Gasket, Damper WPL-12582801
...
5
Control, Damper WPL-67003519
...
6
Insulation, Damper WPL-12604201
...
7
Extension, Knob WPL-12571801
...
8
Screw WPL-WP98165
...
9
Timer- Def WPL-WP67001036
...
10
Control- F WPL-WP12351006
...
11
Gasket- Co WPL-WP12582901

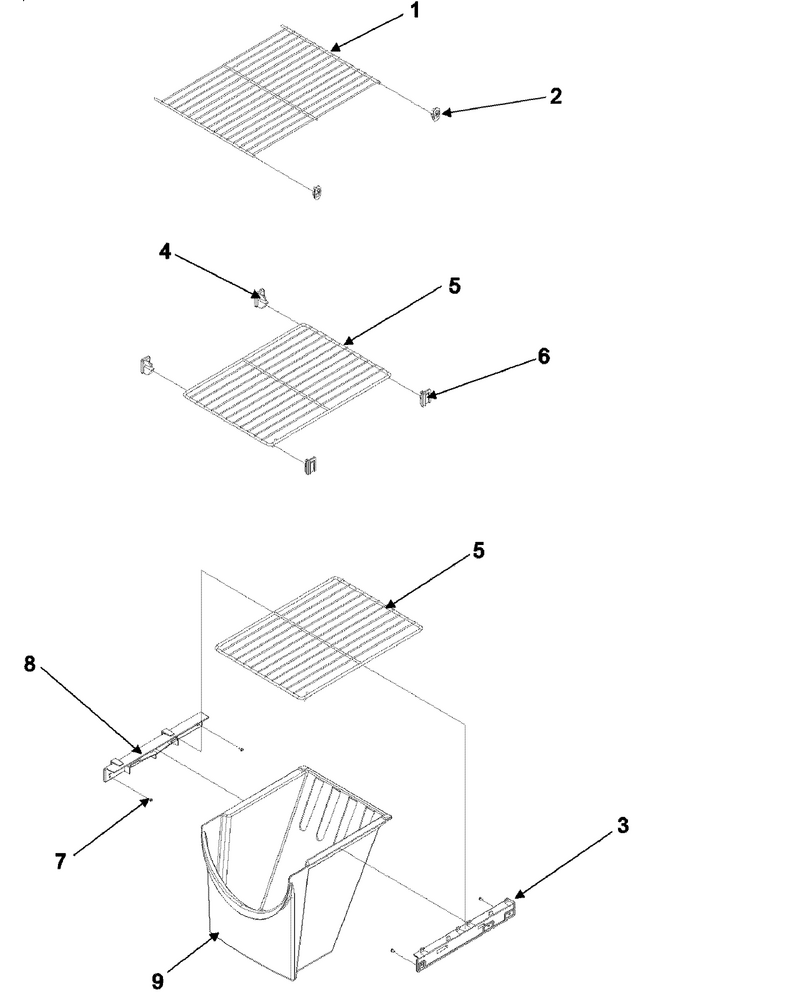

10 - Fz Shelf

...
...
1
Shelf, Upr Fz WPL-12570601
...
2
Support- F WPL-WPC8973801
...
3
Rail, Shelf (rt) WPL-12603201
...
4
Support, Shelf (lt) WPL-12015002
...
5
Shelf, Lwr Fz WPL-12570501
...
6
Support- S WPL-WP10941102
...
7
Screw WPL-WP98165
...
8
Rail, Shelf (lt) WPL-12603101
...
9
Bin, Fz WPL-12596501

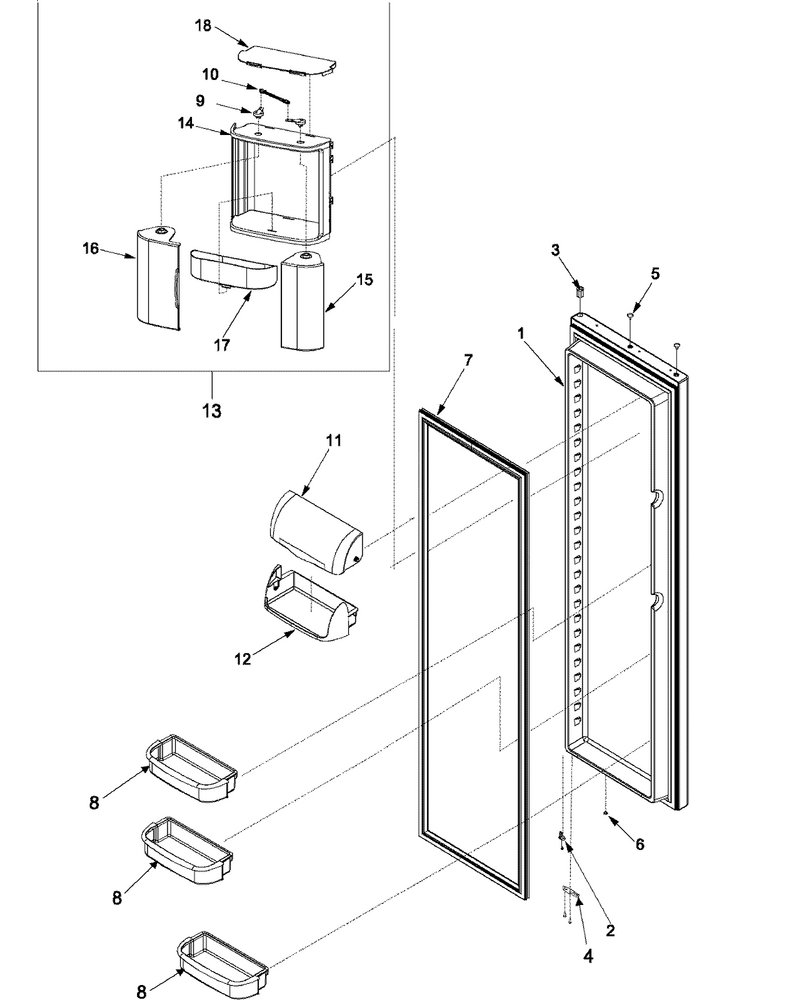

17 - Refrigerator Door

...
...
1
Ref Dr Foam Assy (bsq) WPL-12584701CQ
...
2
Kit,dr Closure WPL-R0181181
...
3
Bushing, Door (wht) WPL-10961001
...
4
Screw WPL-WP98165
...
5
Plug, Button (bsq) WPL-M0311606
...
6
Plug, Button (blk) WPL-A3080001
...
7
Gasket, Ref Dr (wht) WPL-12591501W
...
8
Bucket- Re WPL-WP12556602
...
9
Linkage, Chiller WPL-67002293
...
10
Linkage, Ctr Chiller WPL-67002292
...
11
Door, Dairy WPL-67002957
...
12
Tray, Dairy WPL-67002304
...
13
Chiller Assy. (mini) WPL-67003177
...
14
Frame, Mini Chiller WPL-67002409
...
15
Door, Mini Chiller (rt) WPL-67002411
...
16
Door Chiller (lt) (mini) WPL-67003137
...
17
Tray, Chiller WPL-67002296
...
18
Cover, Chiller WPL-67002291

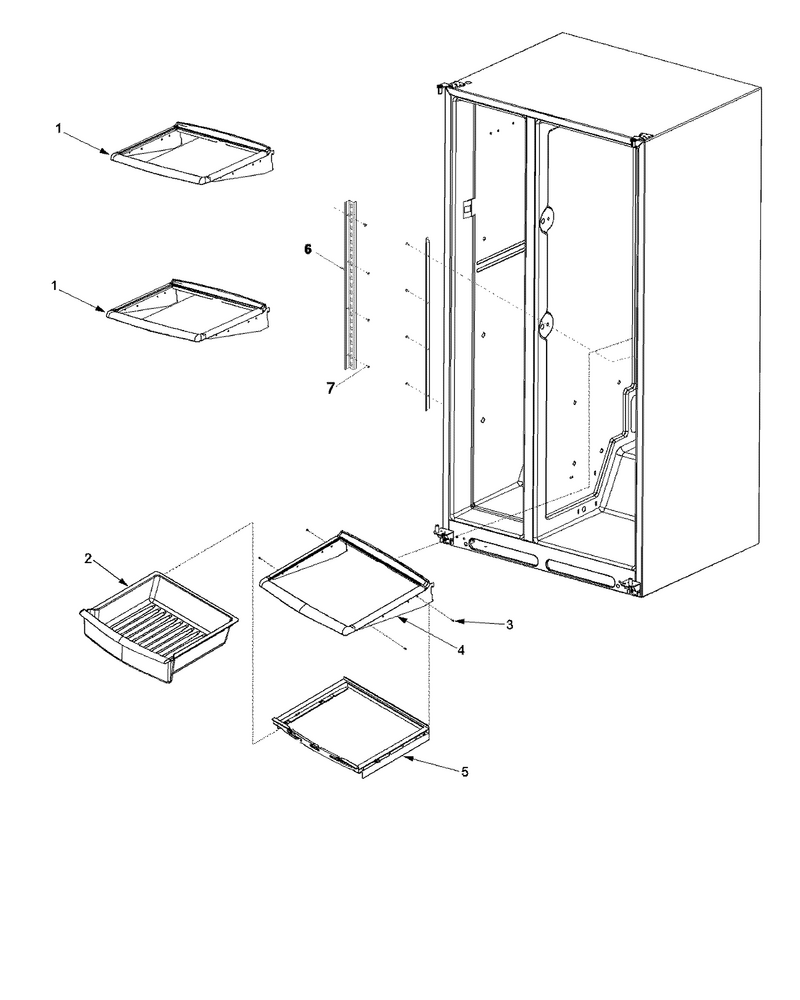

05 - Deli And Ref Shelf

...
...
NI
Assy,sm Crisper Frame(26) WPL-12589804Q
...
1
Shelf, Stationary WPL-12457406
...
2
Pan, Sm Crisper WPL-67001505
...
3
Screw WPL-W11233072
...
4
Shelf, Stationary WPL-12457406
...
5
Frame, Sm Crisper WPL-67002900
...
6
Ladder, Side WPL-67001178
...
7
Screw WPL-WP90767

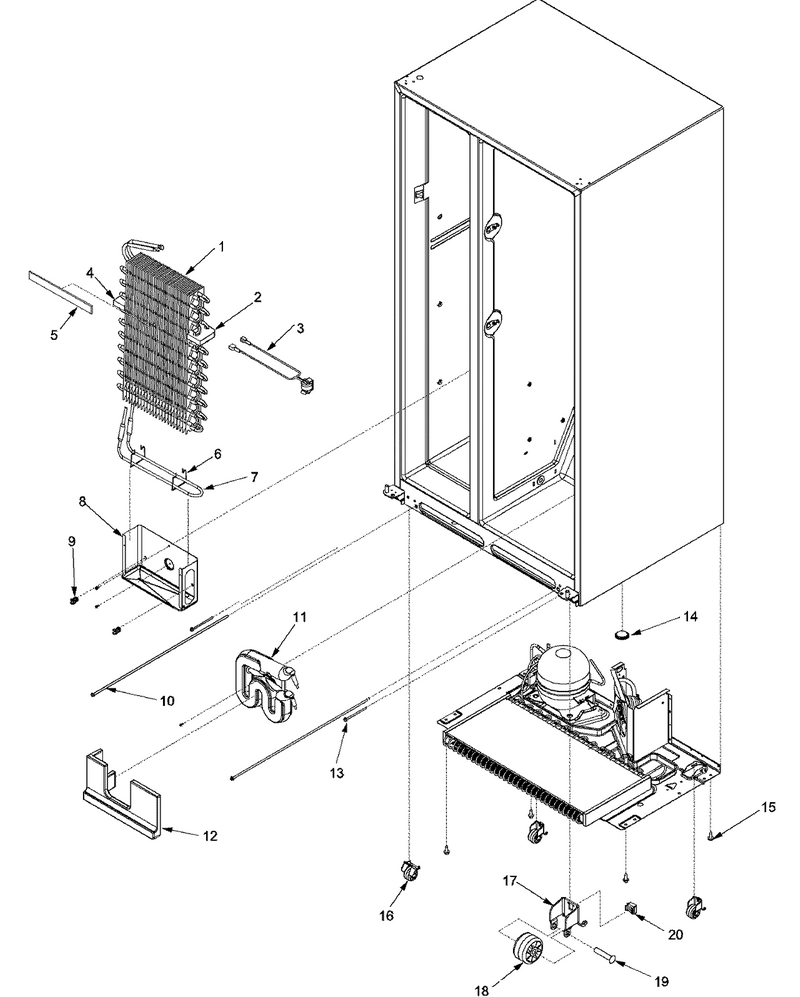

07 - Evaporator Assy And Rollers

...
...
NI
Heater/harness, Frz WPL-12641003
...
1
Evap Kit (sxs)--W WPL-12001940
...
2
Block, Air Coil (rt) WPL-12590102
...
3
Thermostat W/harness Fz Liner WPL-67003272
...
4
Block, Air Coil (lt) WPL-12590101
...
5
Gasket, Foam WPL-67002226
...
6
Clip WPL-W11673433
...
7
Heater- Ev WPL-WP12049801
...
8
Screw WPL-WP90767
...
9
Clip, Evaporator WPL-10623003
...
10
Screw, Mach WPL-10093320
...
11
Tank, Water WPL-67003504
...
12
Insulation, Water Tank WPL-67002275
...
13
Screw WPL-71003131
...
14
Plug, Button WPL-A3076901
...
15
Screw WPL-W10709798
...
16
Roller Bracket Assy WPL-67002227
...
17
Bracket, Foot WPL-12456801V
...
18
Roller WPL-WP10450603
...
19
Rivet WPL-M1205302
...
20
Nut, Speed WPL-M0286708

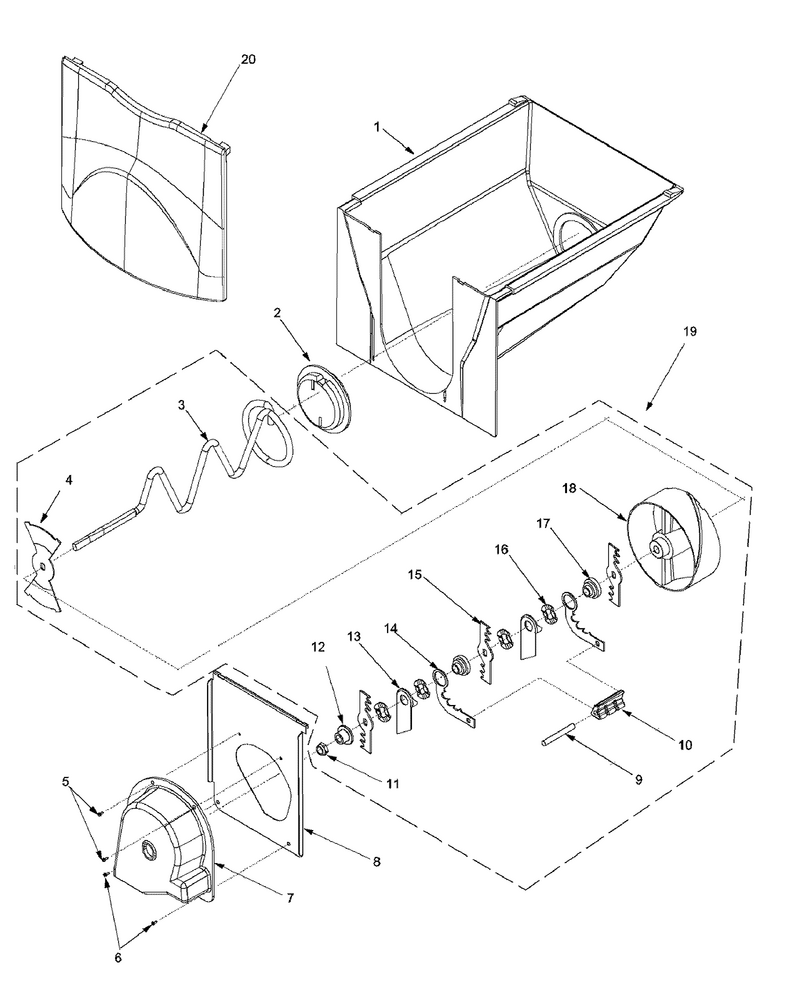

13 - Ice Bucket Assy

...
...
1
Bucket- Ic WPL-WP67005959
...
2
Cap- Helix WPL-WPD7749401
...
3
Agitator, Ice WPL-10114401
...
4
Bar, Crsh Ice Bucket WPL-10113801
...
5
Screw, Tf WPL-M0231704
...
6
Screw (3) WPL-67006425
...
7
Cover, Blade WPL-67002271
...
8
Front, Ice Crusher WPL-10115001
...
9
Pin, Roll WPL-M1200108
...
10
Anchor, Blade WPL-10114101
...
11
Nut WPL-WPM0223101
...
12
Spacer, Cover WPL-10113901
...
13
Damper, Ice WPL-10275201
...
14
Blade, Static WPL-10114601
...
15
Blade, Rotating WPL-10114501
...
16
Washer, Waved WPL-10275101
...
17
Washer Stepped WPL-10114301
...
18
Wheel- Crs WPL-WP67002052
...
19
Crushr-Mec WPL-WP12740302
...
20
Bucket- Ic WPL-WP12571606

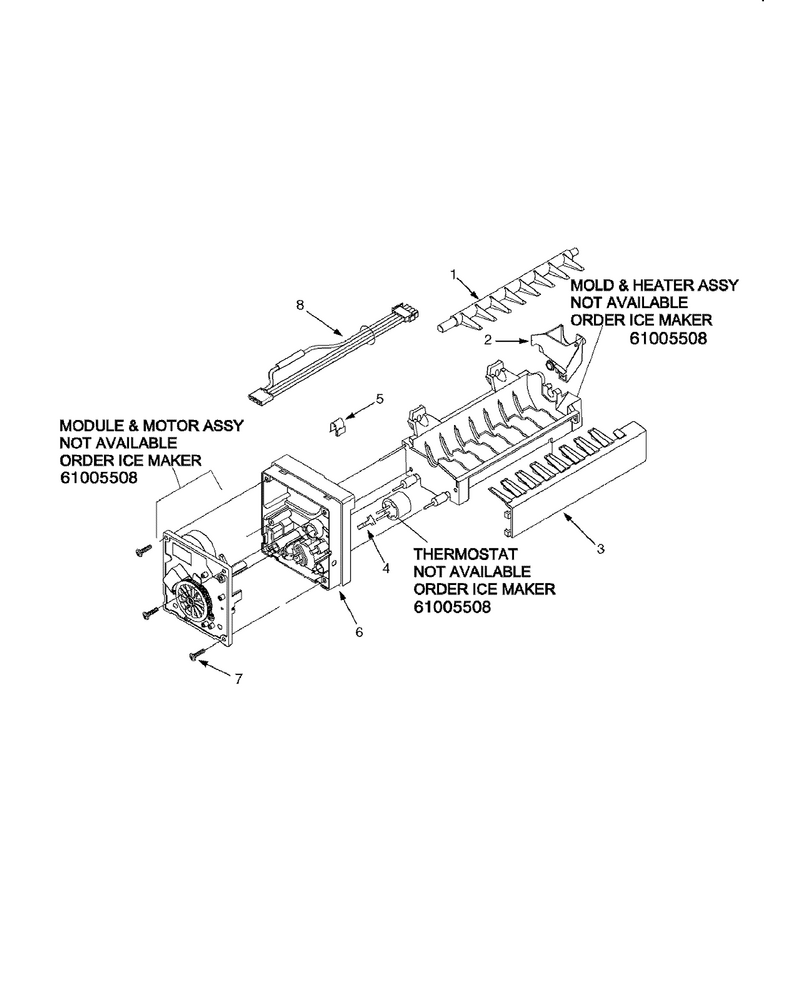

14 - Ice Maker

...
...
NI
Icemaker Install Kit WPL-8003RP
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Stripr WPL-WP2182124
...
4
Clip WPL-WP2315522
...
5
Screw WPL-WP489128
...
6
Housing-Im WPL-WP2195914
...
7
Screw WPL-WP681249
...
8
Harns-Wire WPL-WPW10146386

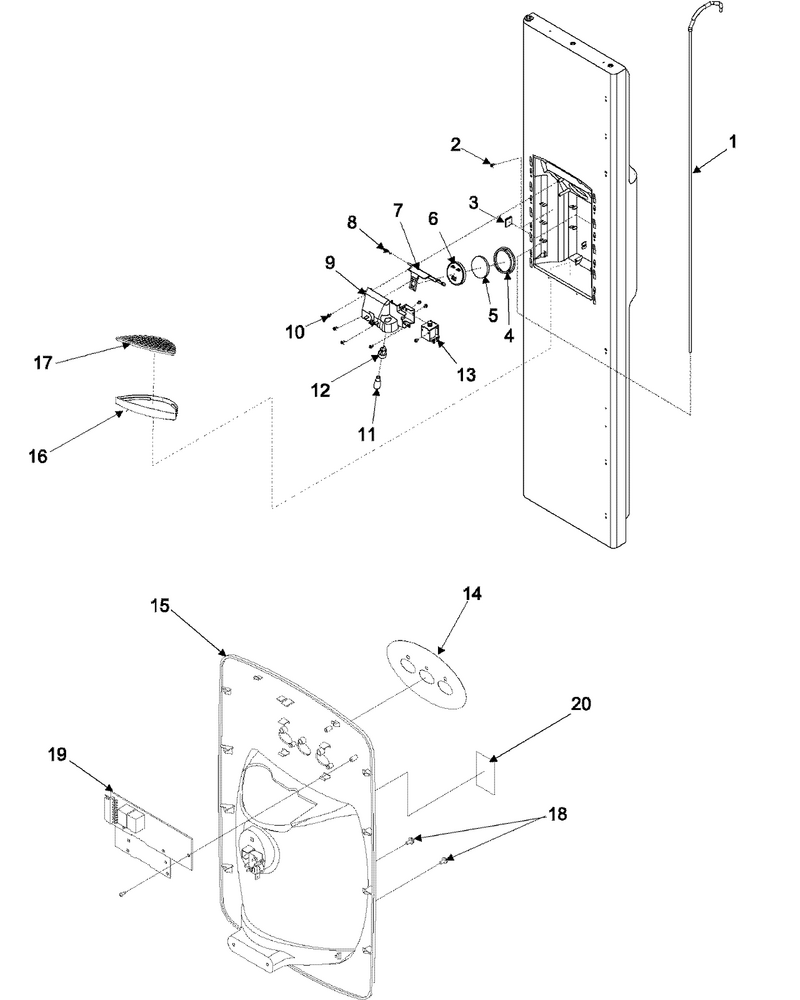

09 - Fz Door And Facade

...
...
NI
Actr Pad Frame Assy. (blk) WPL-12598902B
...
1
Waterline Assy. WPL-67004938
...
2
Clamp WPL-W10833902
...
3
Clip, Cord WPL-M0104102
...
4
Seal- Ice WPL-WP12665101
...
5
Insulation WPL-WP67007098
...
6
Door- Ice WPL-WP12562701
...
7
Hinge WPL-12002464
...
8
Spring- Ch WPL-WP12565502
...
9
Hinge WPL-12002464
...
10
Clip, Waterline WPL-67002816
...
11
Bulb-Light WPL-W10857122
...
12
Socket, Light WPL-12617501
...
13
Screw WPL-WP488234
...
14
Insert, Facade (bsq) WPL-67003200
...
15
Facade-Dispenser WPL-67002776
...
16
Tray, Sump (bsq) WPL-67001741
...
17
Grille, Sump (bsq) WPL-67002817
...
18
Screw (3) WPL-67006425
...
19
Screw, 6-19 X .250 WPL-2006254
...
20
Label, Dispenser WPL-67006684

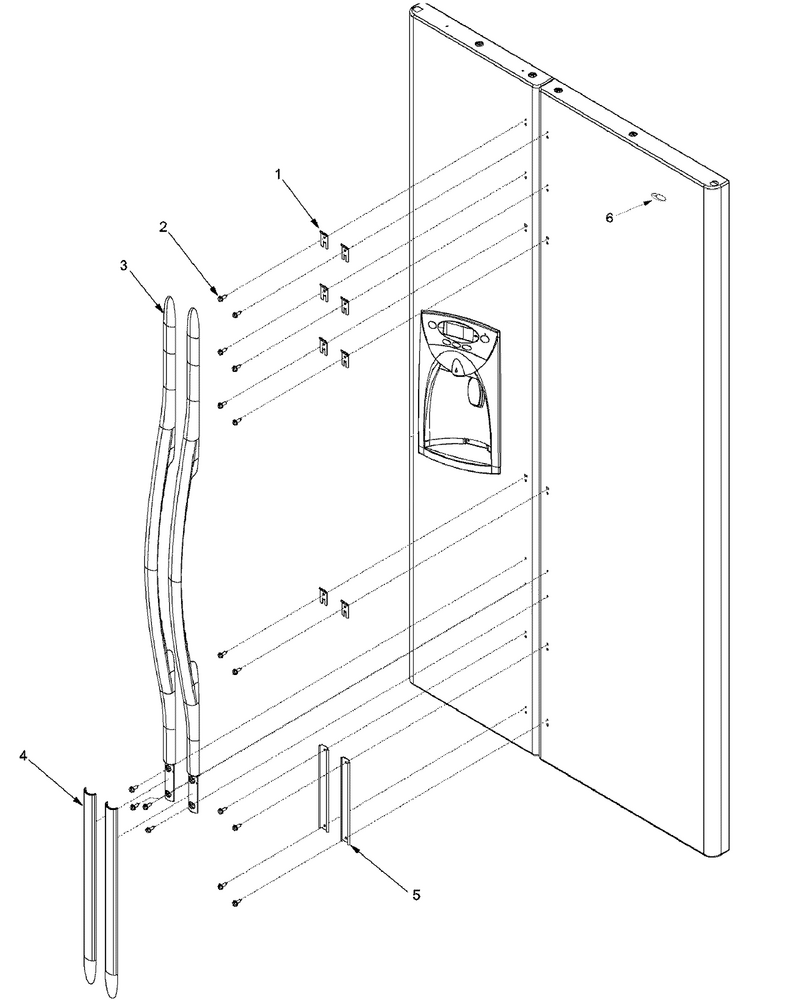

11 - Handles And Trim

...
...
1
Clip, Door Handle WPL-12576403
...
2
Screw (3) WPL-67006425
...
3
Handle, Door (bsq) WPL-67002034
...
4
Trim, Handle (bsq) WPL-12575901C
...
5
Retainer, Trim WPL-12273808
...
6
Nameplate (amana Plus) WPL-Y12528501

...
...
1
Manual, Use & Care WPL-16022371
...
2
Sheet, Tech Data WPL-67003204
...
3
Tag, Energy WPL-67003205
...
4
Icemaker Install Kit WPL-8003RP

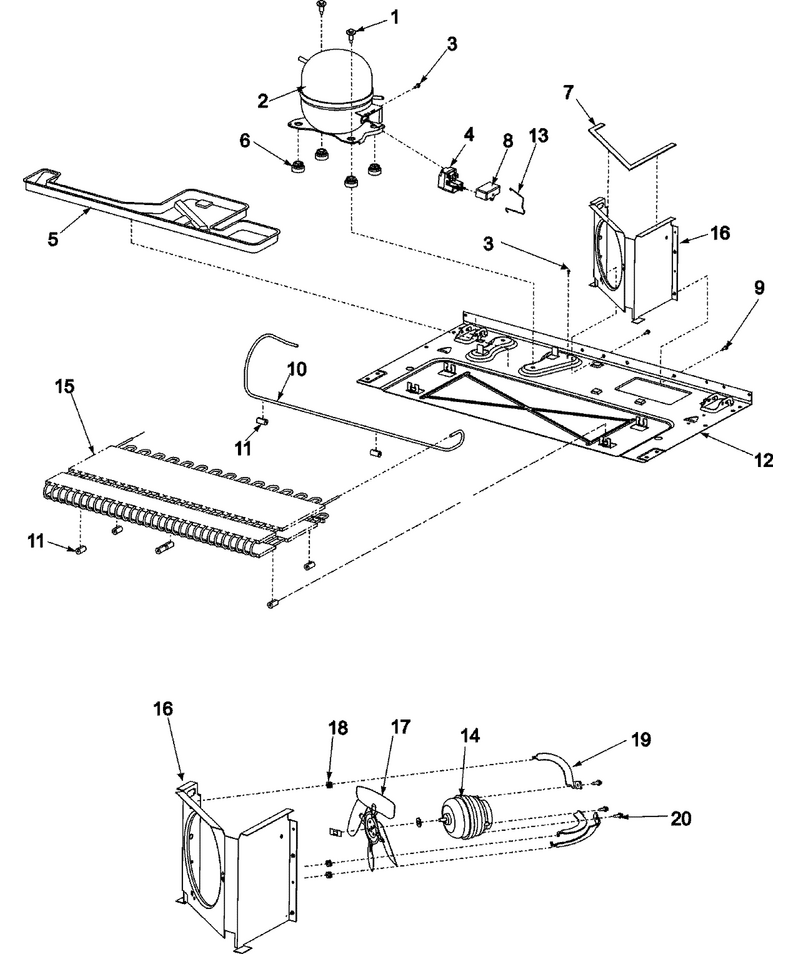

02 - Compressor

...
...
NI
Harness, Mc WPL-67002807
...
1
Screw, Shldr WPL-M0221523
...
2
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
3
Screw WPL-12992301
...
4
Overload WPL-WP67002527
...
5
Pan- Drain WPL-WP12579803
...
6
Grommet, Compressor WPL-67003493
...
7
Seal-Strip WPL-WP854334
...
8
Capacitor WPL-WP65889-4
...
9
Screw (3) WPL-67006425
...
10
Tube, Discharge WPL-67002236
...
11
Grommet (2) WPL-67005680
...
12
Basepan WPL-12457108
...
13
Strap, Bale WPL-12576801
...
14
Motor-Cond WPL-833697
...
15
Condenser WPL-WP67006131
...
16
Shroud, Condenser Fan WPL-67001090
...
17
Blade- Con WPL-WP12587601
...
18
Grommet, Fan Brkt WPL-12578701
...
19
Bracket, Cond Mtr WPL-67001311
...
20
Screw WPL-WPM0223816

15 - Light Covers And Toe Grille

...
...
1
Housing, Up Ref Light WPL-67002825
...
2
Cover, B/b Control WPL-67003342
...
3
Knob, Control WPL-12581102
...
4
Knob, Control WPL-12581101
...
5
Screw WPL-M0231426
...
6
Assy,light Cover WPL-12602910
...
7
Funnel, Drain WPL-12456901
...
8
Seal- O Ri WPL-WPM0500703
...
9
Gasket- Dr WPL-WPB8381501
...
10
Cover, Lwr Hinge (bsq) WPL-12561901C
...
11
Clip- Toe WPL-WP12627302
...
12
Plug, Air Tunnel WPL-67005933
...
13
Grille, Return Air WPL-12634801
...
14
Grille, Chill Cont WPL-67002630
...
15
Control, Chiller WPL-67002225
...
16
Clip, Chiller Control WPL-67002827

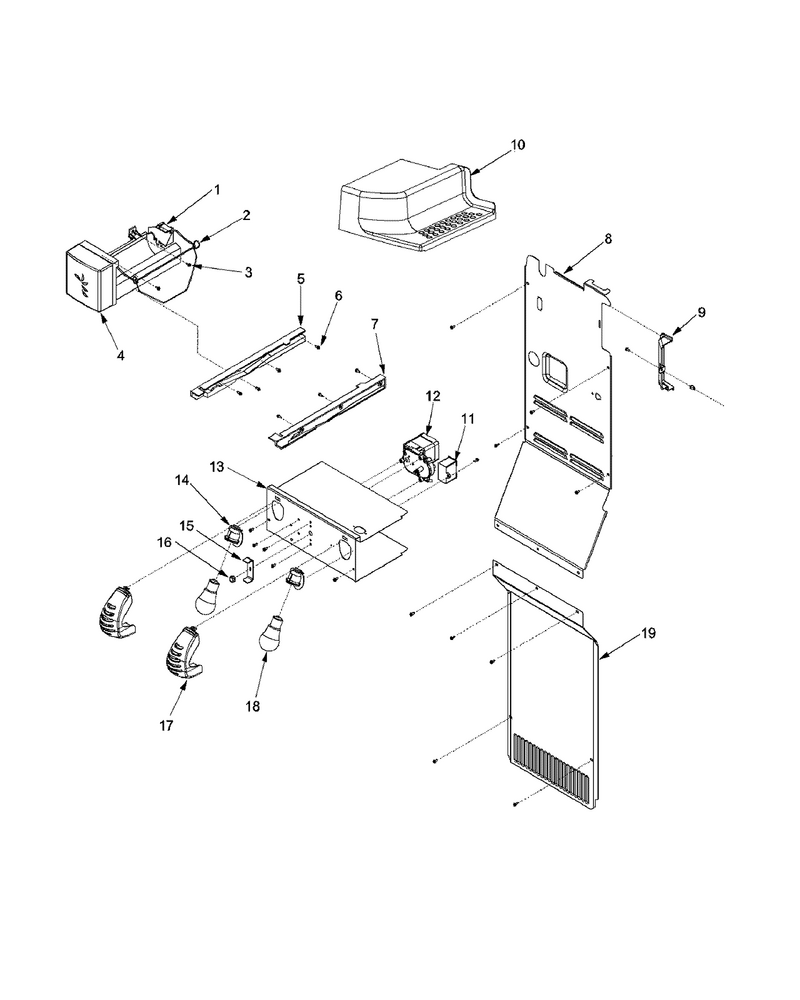

16 - Lights And Ice Maker

...
...
NI
Cover, Evap WPL-12403401
...
1
Ice Maker Assy. WPL-D7824706Q
...
2
Arm-Shut WPL-WPW10152975
...
3
Screw (3) WPL-67006425
...
4
Cover-Frnt WPL-WPW10289690
...
5
Glide, Container (left) WPL-67005375
...
6
Screw, Handle WPL-67006529
...
7
Glide, Frz. (rt) WPL-67004323
...
8
Screw (3) WPL-67006425
...
9
Screw (3) WPL-67006425
...
10
Shelf, Quick Chill WPL-12582101
...
11
Screw WPL-WPW10139210
...
12
Screw WPL-WPW10139210
...
13
Cover, Auger Motor WPL-12561701
...
14
Socket WPL-W11447232
...
15
Coupling WPL-WP10114901
...
16
Nut WPL-WPM0223101
...
17
Shield, Fz Light WPL-67004433
...
18
Light Bulb WPL-8009
...
19
Screw (3) WPL-67006425

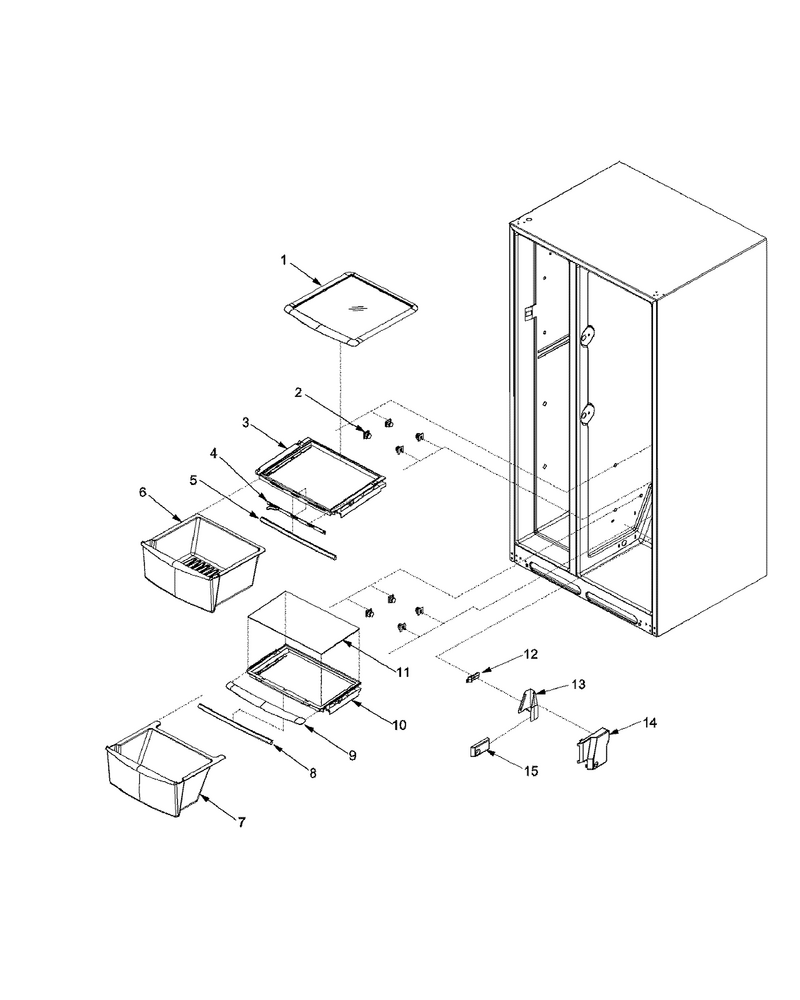

04 - Crisper Assy

...
...
NI
Lg Crisp Frame Assy WPL-67002908
...
1
Shelf, Top Crisper B/b WPL-67003387
...
2
Support- C WPL-WP12603701
...
3
Frame- Lg WPL-WP67002723
...
4
Slide, Lg Crisper (blue) WPL-12562601U
...
5
Seal, Sm Crisper Front WPL-12589104
...
6
Pan-Crispr WPL-WP67001503
...
7
Pan- Deli WPL-WP67001504
...
8
Seal, Sm Crisper Front WPL-12589104
...
9
Trim, Dba Deli Front WPL-67003348
...
10
Frame, Deli WPL-67002822
...
11
Glass, Shelf WPL-12204811
...
12
Control, Deli (blue) WPL-12586201U
...
13
Slide, Deli Control WPL-12586101
...
14
Housing, B/b Deli Control WPL-67003347
...
15
Tunnel, Deli Control WPL-12664201

06 - Evap Fan Assy And Lights

...
...
1
Screw WPL-W11233072
...
2
Tie Wire WPL-WPM0322202
...
3
Insulation, Tubing WPL-67002219
...
4
Tie-Wire WPL-WPW10339879
...
5
Tube-Water WPL-12617602
...
6
Blade-Fan WPL-WP2169142
...
7
Shroud, Evap WPL-12590001
...
8
Gasket WPL-67001508
...
9
Grommet- F WPL-WP67002780
...
10
Motor-Evap WPL-WPW10128551
...
11
Clip, Evap Motor WPL-12217805
...
12
Shield, Crisper Light WPL-67001507
...
13
Light Bulb WPL-8009
...
14
Socket, Light WPL-12679501
...
15
Filter WPL-EDR4RXD1
...
16
Cover- Fil WPL-WP12568001
...
17
Housing- W WPL-WP67001669
...
18
Plate, Filter Backing WPL-12688501
...
19
Plug, Bypass WPL-67003146
...
20
Socket WPL-W11447232
...
21
Switch WPL-W11291138
...
22
Switch WPL-W11396033

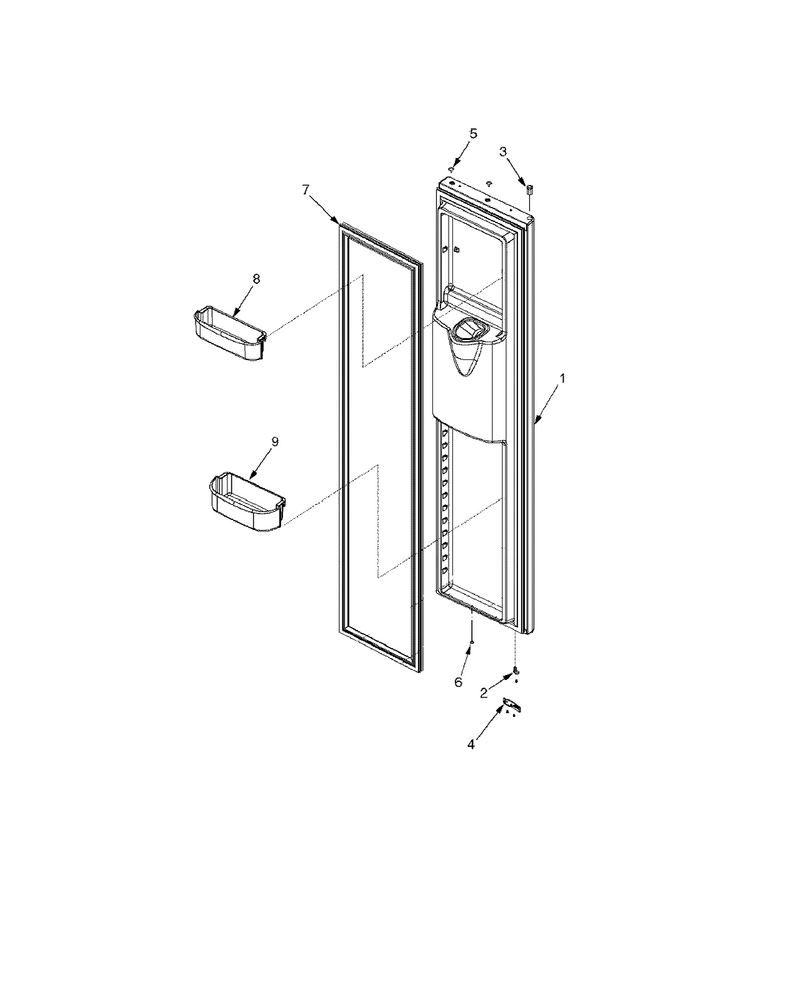

08 - Freezer Door

...
...
1
Fz Dr Foam Assy (bsq) WPL-67003180
...
2
Screw WPL-WP8281227
...
3
Bushing, Door (wht) WPL-12395501W
...
4
Screw WPL-WP98165
...
5
Plug, Button (bsq) WPL-M0311606
...
6
Plug, Button (blk) WPL-A3080001
...
7
Gasket, Fz Dr (wht) WPL-12591502W
...
8
Bucket, Upr Fz Dr WPL-12556901
...
9
Bucket, Lwr Fz Dr WPL-12557501

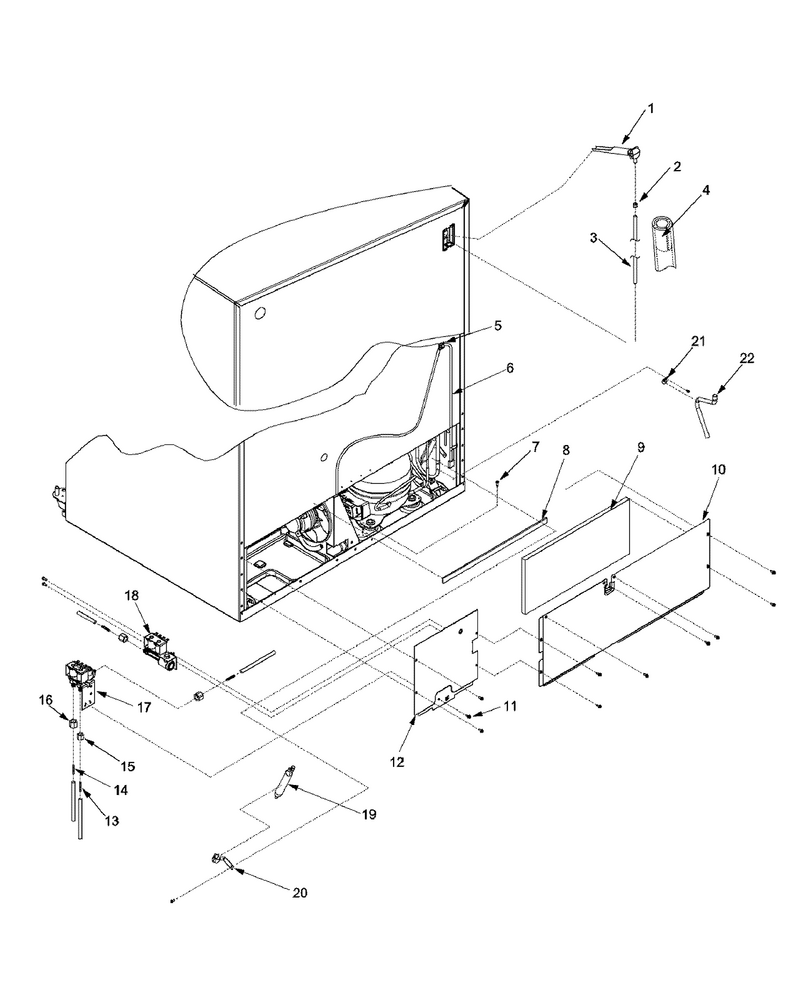

01 - Cabinet Back

...
...
1
Elbow- Fil WPL-WP67003576
...
2
Clip- Spee WPL-WPM0114003
...
3
Tube WPL-WPB5705307
...
4
Insert- Pl WPL-WPA3223101
...
5
Clip WPL-WPM0104106
...
6
Cord-Power WPL-WP67006506
...
7
Screw WPL-WP489399
...
8
Gasket, Mc Back WPL-B5759649
...
9
Insulation, Mc Back WPL-B0523599
...
10
Screw (3) WPL-67006425
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Cover, Water Valve WPL-12575201ED
...
13
Spring WPL-WPA1055105
...
14
Spring, Anti-Kink WPL-A1055104
...
15
Nut WPL-WP627018
...
16
Nut WPL-8201513
...
17
Valve-Inlt WPL-12002193
...
18
Valve-Inlt WPL-WP12544002
...
19
Drier WPL-WPB2150504
...
20
Screw WPL-WP489069
...
21
Screw WPL-WP489069
...
22
Tube, Drain WPL-12580401

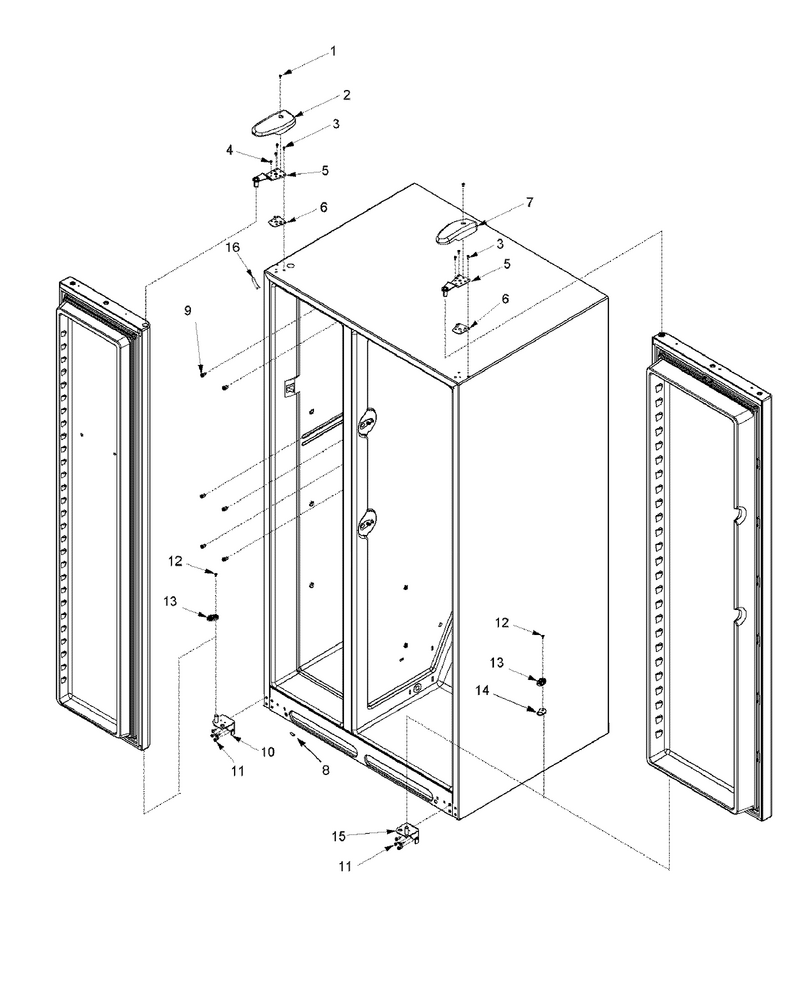

12 - Hinges

...
...
1
Screw WPL-WP8281196
...
2
Cover, Top Hinge (lt-Bsq) WPL-12684201C
...
3
Screw WPL-WP489349
...
4
Screw WPL-W11214483
...
5
Hinge-Door WPL-WP12566607ED
...
6
Shim, Top Hinge WPL-12695601
...
7
Cover, Top Hinge (rt-Bsq) WPL-12684202C
...
8
Fitting WPL-WP2300868
...
10
Hinge, Bottom (lt-Wht) WPL-12570905WD
...
11
Screw WPL-WP67006715
...
12
Screw, Tc WPL-M0220431
...
13
Kit,dr Closure WPL-R0181181
...
14
Shim- Dr C WPL-WP10361805
...
15
Hinge, Bottom (rt-Wht) WPL-12570906WD
...
16
Cover, Corner (bisque) WPL-12587703C

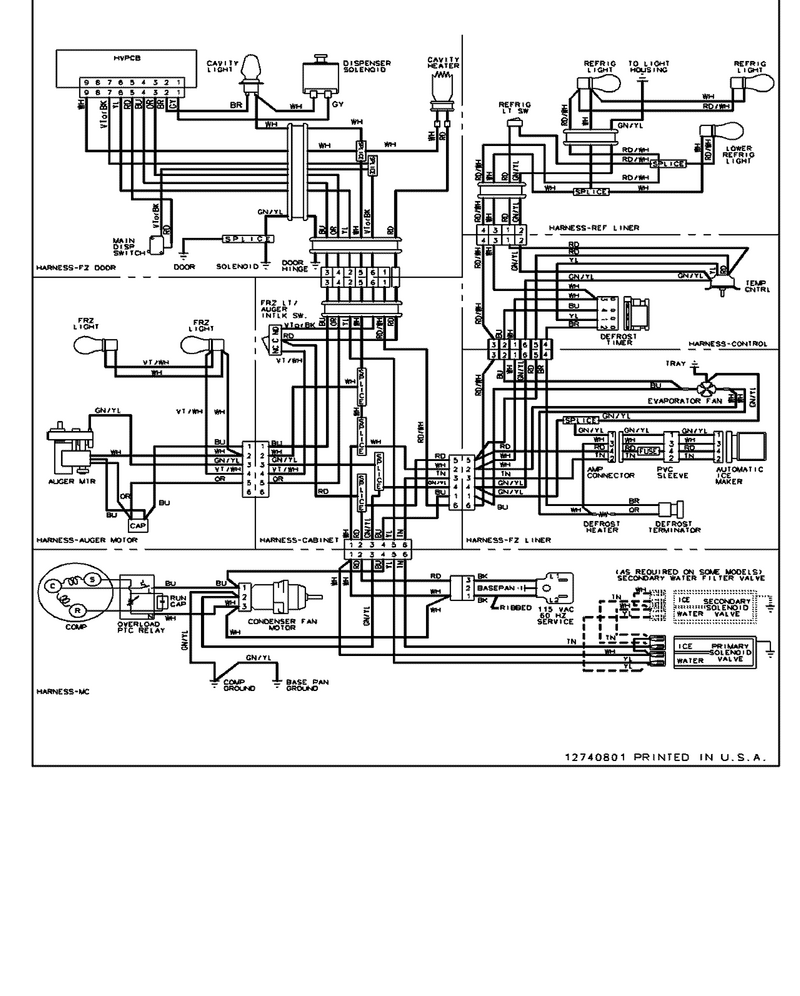

19 - Wiring Information

...
...
NI
Wiring Information WPL-15003044
